There is a specialty in the art industry! For a truck, to what extent can it be "specialized"?
There are many special goods, special working conditions need special truck products to "counterpart" service, such as our common dangerous goods tractor, concrete mixer truck, truck-with lifting transporter, concrete pump truck, etc. are "special car" dedicated. In fact, the "special car" truck products are far more than these, and even some product names sound like you will exclaim "and this car"?
Yes, this year, FAW Jiefang has a lot of truck products that make people "increase knowledge" in the new car declaration announcement of the Ministry of Industry and Information Technology, let's get to know it!
Liquid supply truck VS fuel truck Similar in appearance but very different
The liquid supply truck and the fuel truck are very similar in appearance, but the two models have huge differences in the type of announcement, configuration, and operation.
The liquid supply truck is a general cargo truck, and the announcement will indicate that the model is a non-dangerous goods vehicle. The liquid supply truck will be equipped with tanks, pumps, liquid supply systems and other special devices, and the transport medium is non-toxic, non-corrosive, non-flammable and explosive liquid substances such as well washing fluid, mixing station admixture, lubricating oil, etc. Taking a liquid supply truck declared by Jiefang in the announcement of 350 batches of new vehicles as an example, the total capacity of the tank of this liquid supply truck is 14 cubic meters, and the effective volume of the tank is 13.95m, which is only used to transport ordinary liquids with a density of 750 kg/m such as well washing fluid, water purification agent and water reducer with a density of <750 kg/m. In the operation of the license, the liquid supply truck can be settled in an individual household or attached to the general cargo transportation company, and the driver only needs to have a general cargo transportation qualification certificate.

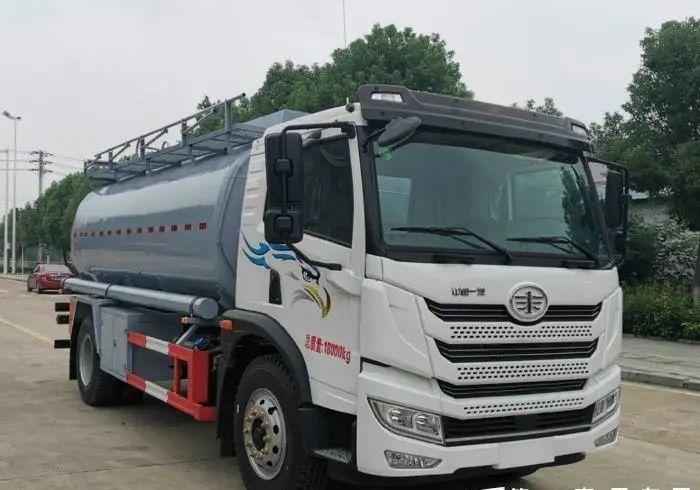

Liberate the liquid supply truck
The oil truck (tank truck) is a dangerous cargo truck, and the announcement will indicate that this model is suitable for the transportation of dangerous goods. The oil truck is used to transport gasoline and diesel flammable and explosive liquids, and the tank of the oil truck must be equipped with an emergency shut-off valve at the bottom of the tank, a European standard tank mouth, and the chassis must be equipped with a front disc and a rear drum and an engine speed limit device. In the operation of the license, the fuel truck must be attached to the company with dangerous goods transportation qualifications, can not hang personal households, the driver of the fuel truck must hold a dangerous goods transportation qualification certificate, the co-driver must also be equipped with an escort (and hold a dangerous goods transport escort certificate), from the factory to the road, the requirements are very strict.
Liberated fuel trucks, "overhead" with a striking yellow triangle "danger" logo
The rear of the fuel truck is also much more complicated than the liquid truck, which prompts "danger" everywhere.
Liberate the fuel truck chassis
Flammable gas van transport vehicles, gas cylinder transport vehicles
Let's look at flammable gas vans and cylinder transport vehicles, both of which are flammable gases or non-flammable non-toxic gases packaged in separate containers (bottles) for transporting separate containers (bottles). Both belong to dangerous goods transport vehicles, and the safety devices of these two types of vehicles are very rich, such as exhaust pipe front mounting, speed limiting device, steering wheel installation puncture emergency protection device, front axle disc brake, etc.
Liberate flammable van transporter, the front exhaust pipe of this car can be seen from the declaration photo
Liberate flammable gas vans
The side of the carriage of the liberated flammable gas van is also exposed with "danger" everywhere
The biggest difference between the cylinder transport vehicle and the flammable gas van is that the cylinder transport vehicle is not a closed carriage design. This year, Jiefang declared a number of gas cylinder transport vehicles, and only 349 batches of new cars were announced, and Jiefang had three gas cylinder transport vehicles on the list.
Liberation cylinder transporter, this car transporter is also a front-mounted exhaust pipe design
Liberate cylinder transporter
The variety of cars about "garbage" is very subtle to the extreme
Speaking of "special cars", the first reaction of ordinary people must be sanitation vehicles, used for cleaning, used for sprinkling, used for dust removal, and garbage transportation... It is a kind of garbage truck, and there are many varieties below, such as compression garbage trucks, dump truck garbage trucks, unloadable garbage trucks, grab-bucket garbage trucks, kitchen garbage trucks... It's dizzying, it's almost as subtle as it gets to the extreme.
Liberation compression garbage truck, used to compact domestic garbage by itself, has the function of transfer and unloading
This year, Liberation also saw the appearance of several vehicles related to "garbage". In batches 346 and 348 of new cars, several barreled garbage trucks appeared, which looked no different from ordinary barn-type trucks from the front, but had very different uses.
Liberate barreled garbage trucks
The main difference is that there are more hydraulic tail plate devices that facilitate the loading and unloading of barreled garbage, and its rear protection and hydraulic tail plate are linked to avoid interference when the tail plate is working.
Liberation of the side of the barreled garbage truck, and the rear guard
epilogue
With the continuous development of the economy and society, the people's living standards continue to improve, and the social division of labor is becoming more and more meticulous, whether it is the division of labor of personnel or the division of tools. Nowadays, not only pay attention to the special person, but also pay more and more attention to the "special car", these small details are explaining that the Chinese more "exquisite", more and more exquisite.
There will be more "special cars" in the future, and we will wait and see.
