The development of industry and economy will drive many surrounding industries, hazardous transportation is one of them, with the rising demand, the production, transportation and use of dangerous chemicals in the mainland increase rapidly at a rate of more than 10% per year, and the demand for hazardous chemicals is increasing year by year.
"Tens of millions of roads, safety first", the transportation of dangerous chemicals will be relatively high requirements, for light dangerous chemical transport vehicles, the main driving section is still based on densely populated cities, safety is the most important thing.
The transportation of dangerous chemicals is characterized by many strict regulations, a wide variety of different natures, strong professionalism and great danger, in view of this working condition, how does Qingling do?
Security armed to the teeth:

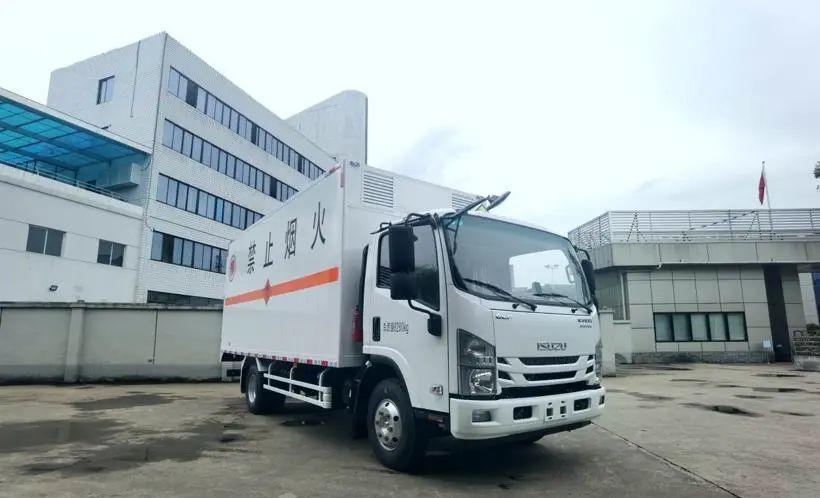

Qingling Isuzu's flammable gas/liquid/solid transport vehicle adopts original factory design and international technology on the top, and complies with the "Dangerous Goods Transportation Management Regulations" and "Dangerous Goods Transportation Safety Operating Procedures", and is produced according to the national standards GB6944 and GB12268. In the upper part of the Qingling KV100 flammable van, it has a high-strength structure carriage, a stable air circulation system, an anti-static device, and a signage display of transport items, which has perfectly protected the goods loaded in the car. A large number of aluminum alloys and composite materials are used in the carriage to ensure the strength of the scientific lightweight, which is conducive to reducing the weight of the vehicle and reducing fuel consumption.
The position of the exhaust pipe has been moved forward to avoid heat sources under the carriage, and the spark extinguisher is equipped in front of the exhaust pipe, which can effectively prevent the exhaust cylinder from spewing out of Mars due to excessive exhaust temperature and preventing fire.
The whole vehicle is equipped with a total of three fire extinguishers, placed on both sides of the carriage and behind the driver's seat, the factory is equipped with dry powder fire extinguishers as standard, and the Qingling special vehicle can replace the foam fire extinguisher, water-based fire extinguisher and halogenated alkane fire extinguisher according to the user's transportation conditions to cope with the combustion of different chemicals.
According to the requirements of JT/T 1285-2020 "Dangerous Goods Road Transport Vehicle Safety Technical Conditions": from May 1, 2020, dangerous goods transport vehicles should be equipped with lane departure warning and pre-collision warning as standard. Therefore, the Qingling KV100 flammable van is equipped with sensors for lane departure warning and front collision warning in the center of the windshield and bumper, respectively. At the same time, the car is also equipped with brake shoe wear alarm and driver seat belt alarm, both in the form of fault lights in the instrument panel to protect the safety of people, vehicles and goods.
The cab is equipped with a leak alarm, which will actively alarm when it detects that the dangerous chemicals in the compartment are leaked, reminding the driver to carry out an emergency treatment plan, and the alarm will also be connected with the GPS system to transmit the vehicle location in real time to facilitate vehicle monitoring and emergency rescue.
Equipped with vacuum tires, The Qingling Isuzu KV100 flammable gas van will also install a flat tire emergency pack and tire pressure monitoring according to national regulations, and when the vehicle tire is seriously out of pressure, the steering and braking of the vehicle can also be controlled, and the vehicle can be safely driven until the vehicle is stablely stopped.
Reliable Isuzu chassis:
The chassis of the Keirin Isuzu KV100 flammable gas van is built with mature Isuzu technology and has corresponding products on blue/yellow models. The yellow card version of the Qingling KV100 has a wheelbase of 3815mm, a box length of 5.175m, a body size of 7020 x 2220 x 3195 (mm), and a rear protective section size of 139×50 (mm). The vehicle has a curb weight of 4.1 tons, a rated load of 3.985 tons, and a maximum speed of 80km/h.
The cab synchronizes with the world's latest Isuzu ELF model manufacturing, the enlarged front grille provides more intake and heat dissipation effect for the water tank intercooling; the wide windshield and narrow A-pillar design also improve the driving sight; in the case of both rearview mirrors with secondary mirrors, the Keirin Isuzu KV100 is also equipped with front and side mirrors to minimize the blind spot of the vehicle.
The car adopts a sports-shaped steering wheel, optional multi-function buttons and cruise control; the dashboard is a full liquid crystal display, the driver can always pay attention to the dynamic information of the vehicle; the overall interior style is mainly simple and practical, and there are multiple storage spaces and cup holders on the workbench, with multi-functional car machines and air conditioning and heating and air conditioning, multiple storage compartments, improving driving comfort.
In terms of power, Qingling Isuzu KV100 adopts Isuzu 4K series 3.0 liter displacement engine, manufactured by Isuzu (China) Engine Co., Ltd., with horsepower covering 120Ps-150Ps, mature machine technology, good market reputation, stable performance and attendance, and first-class reliability. This 4KH1 engine meets the emission standards of China VI, and its technical route is EGR+DOC+DPF+SCR+ASC, which is currently a very strict China VIB emission standard route, and it will not be affected by emission control when loading and unloading goods in and out of urban areas.
The gearbox is matched with the Isuzu MSB 5-speed manual transmission, its precise structure, simple maintenance, and is called "million kilometers without overhaul transmission" by card friends.
The front and rear axles are matched with Isuzu Axles with long maintenance technology and Rickett's ABS, and the axle differential ratios are available in 5.857 and 6.142, with a variety of wheelbase configurations for better driving stability.
Editor's Note:
At present, China's economy continues to improve, further driving the demand for dangerous goods transport vehicles, with the gradual standardization of the dangerous goods transport market, the industrial structure of dangerous goods transport vehicles continues to adjust, and users gradually shift from low-end products to high-end products. With Isuzu technology as the core, The KV100 dangerous goods transport vehicle is committed to creating a safe and reliable high-end special vehicle market, meeting the various needs of users for dangerous goods transportation, and creating maximum operational benefits.
Text: Niu Yilin
