The next five years will be a critical period for Jiading to promote the "all-round momentum" of new kinetic energy and strive to become a benchmark for high-quality development. Taking the lead in building a new kinetic energy system for forming high-quality development, supporting the regional economy to be stable and far-reaching, walking in the forefront, enhancing the core competitiveness of enterprises, and accelerating the transformation of new and old kinetic energy are the keys to winning the future. "Zhizuo Jia" takes you to appreciate the charm of Jiading's "wisdom", see the acceleration of Jiading's new kinetic energy, and feel the vitality of Jiading's vigorous scientific and technological development.
40 minutes of super fast charging, rhythmic light language aesthetics, multi-screen smart cockpit, and a flat driving experience. Such a new energy vehicle is from SAIC Volkswagen's MEB plant.
Want to know how it was made?
walk! Follow the wisdom of Jia,
Feel the power of Jiading's wisdom together!
Cyberfair, futuristic, as soon as you walk in here you will know what is "hardcore"! In the workshop of more than 400,000 square meters, more than 1,400 robots are working diligently.
This is "smearing"

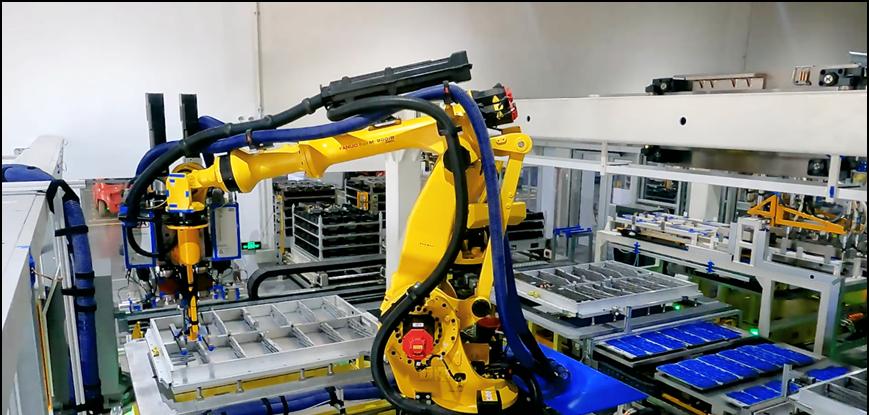

Automatic gluing module installation
It's honestly "screwed"
BMC+CMC installation
This is the "little yellow" responsible for transportation
AGV trolley
Laser measurement, image processing, temperature compensation... The 8 At-line measuring robots have a "golden eye of fire", which can perform 100% visual online inspection of the parts and key parts of the body, even if it is as fine as a hair, it cannot escape their eyes.
At-line measurement robot
The "soul" of the new energy vehicle is the battery pack, and the entire battery workshop is for it. Before being installed into the car, it needs to undergo 338 rigorous tests to become the "heart" of reliable new energy vehicles. SAIC Volkswagen has also designed a complete set of thermal control systems independently, in case of extreme situations, it can control the open flame within 5 minutes without coming out of the battery housing, protecting the safety of the driver and occupants. At the same time, the new thermal adhesive process also makes the MEB battery pack have better thermal management capabilities.
Battery pack wiring harness mounting
After having a "soul", the next body workshop, paint workshop and final assembly workshop will give the car skeleton and skin and flesh.
This is a single "welding", is the fastest laser welding here, can reach 110mm / s, can be called the welding world of Su Bingtian!
High-speed laser welding
This is "Peter Pan", which is saichiro Volkswagen's longest EMS transmission and storage line, with a total length of 6,000 meters. Every day, the line travels nearly 6,000 kilometers, which is equivalent to 36 circles around the earth in a year! Up to 180 sets of side wall assemblies and 180 sets of door cover assembly parts can be stored in the air, which can realize the identification and handling functions of 6 models and greatly save ground space.
EMS air conveyor storage line
There is also a 150-meter-long body assembly line, and the accompanying belt reduces the walking distance of workers by half. It is used together with over-the-air EMS to realize automatic part handling, reduce manual handling intensity, and ensure part consistency during conveying.
150 meters body assembly line
With the concerted efforts of robots and workers, exquisite new energy vehicles have gradually taken shape.
Before being officially delivered to customers, these new energy vehicles must also "pass five levels and cut six generals". The rain shower line fully tests the airtightness of the car, carries too much rainstorm, and can withstand a level 16 typhoon to pass the pass
Rain test line
This is not the end, in the 712-meter road test area, there are still 9 kinds of devil tests! Nine kinds of test roads, including sine wave road, protruding manhole road, rough stone road, and nail head road, fully simulate various road conditions and terrain to further test vehicle reliability.
Road test area
What do you think? Is it cool ~ In 2021, there will be nearly 40,000 units of Auto-Volkswagen's ID family pure electric vehicles entering the market from here. In the future, not only car manufacturing, SAIC Volkswagen MEB plant will also serve as an innovation incubation base, and more forward-looking research and intelligent technologies will be landed here, continuing to lead the intelligent transformation and upgrading of the automotive industry.
"Wisdom Manufacturing Jia",
Take you to explore more possibilities of Jiading Intelligent Manufacturing!
Follow us,
The next issue will take you to the eye-opening!
Written by: Chen Haojun
Video: Chen Haojun, Sun Jingwei, Chen Fei, Qin Pinjie
Editor: Lu Zebin
