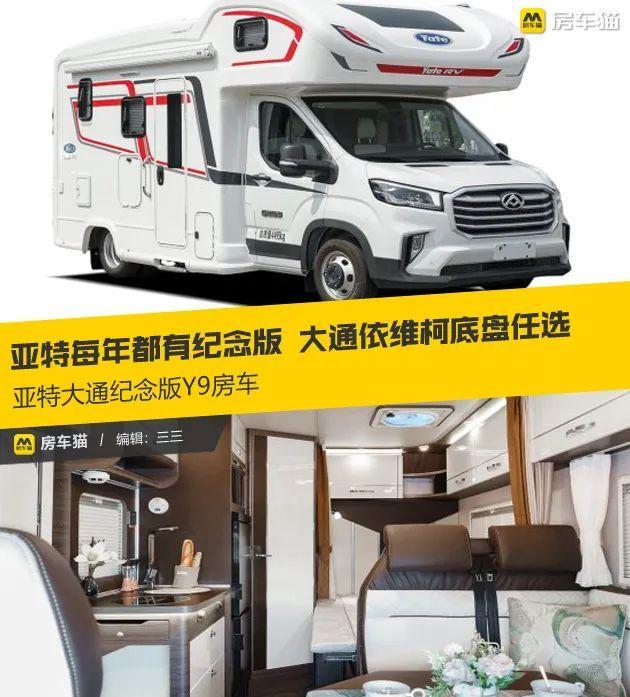

The commemorative edition released by Yate Motorhome every year can set off a boom, and the release of Y9 in 2021 is no exception, which is another milestone of great significance in the history of Yate's caravan development. The new car has a very big improvement in all aspects, safer, more environmentally friendly, more comfortable, more beautiful. The biggest highlight is that there are IVECO O'Win and Chase V90 chassis, you can choose, both chassis have their own advantages, today we take a look at the Atticus Commemorative Edition Y9 motorhome.
The length, width and height of the vehicle are 5990*3150*2475mm, wheelbase is 3760mm, the curb weight is 3620kg, the rated manned is 6 people, and the blue C can be on the road. Sandwich body structure, but the sandwich process of Yate motorhome is more than three layers, which are external layer, fault bridge layer, skeleton + insulation layer, and interior layer. The exterior trim uses FRP material, which has the advantage of high strength, and at the same time performs excellent in terms of durability and corrosion resistance. Compared to the foaming treatment inside the Y8 passenger door, it can be better insulated at all angles.
Built according to the latest Chase V90 chassis, equipped with SAIC π2.0T diesel turbo engine, the maximum power is 110Kw, the peak torque is 375Nm, matching the French Bunge 6at gearbox The maximum speed is 145km/h, and the fuel consumption is 10 liters per 100 km/ h. China VI B emission standards, blue card C could have been on the road. Chassis assistance comes standard with a cruise-speed cruise and a multi-function steering wheel. Vehicle size 5990x3150x2475mm, wheelbase 3760 (mm), curb weight 3620KG, rated for 6 people. The front suspension features front McPherson-style independent suspension, the rear suspension features leaf spring non-independent suspension, and the rear-drive rear twins make driving smoother.
The left functional area of the body is equipped with storage compartment, mains interface, water injection port and battery compartment, which is safer away from the living area. Similar to the configuration of the Y8, there is no excessive installation.
The urea filling port on the right side of the body meets the emission standards of China VI, storage space, external operating platform, black water tank, external shower, passenger door is upgraded to a foam door compared to Y8, more slippery heat insulation and sound insulation, which can meet the basic needs of outdoor life.
The rear of the car is equipped with a full-size spare tire, reversing image, reversing radar, parking legs, and safer driving.
The basic driver assistance functions are all equipped, and can be optionally upgraded according to their actual use needs, including: 10.1-inch high-definition touch screen + mobile phone mapping + 4.2-inch multi-function LCD instrument; LED headlights, TMPS tire pressure monitoring (first two wheels), front radar, parking heating system, remote control key 2, intelligent start-stop + keyless one-key start, front high-power air conditioner 10kw.
And the previous color collocation is different is based on dark brown and white, the visual effect is more comfortable, the entire interior chooses environmentally friendly wood combination furniture, imported environmental protection fireproof floor leather, E0 level environmental protection standards. The commemorative version of the Y9 box is widened, so that the inner diameter width reaches 2.3 meters, the largest in the same class of products, although the Y9 is not an expanded model, but the internal space is not crowded. The overall layout is classic, with a front forehead bed, a central reception area, a rear kitchen and bathroom, and a rear plunger bed.
The forehead bed is 2300mm long and 1400mm wide, with a ladder to facilitate getting on and off the bed. To meet the sleeping needs of two people, both sides are equipped with external push windows for convenient lighting and ventilation. It adopts a replica design, and the bottom of the replica is equipped with a 19-inch special car smart TV.
The design of the reception area adopts the layout of the L-shaped sofa card seat, opposite the card seat, a single small sofa is designed, and the living room forms a ring shape, which is more convenient and practical. The seat is covered in leather by changing the fabric to make it easier to clean. The middle lifting table, when the car is resting, you can put the lifting table down to form a single bed.
The kitchen area is dominated by dark colors and is very well equipped. The countertop is equipped with an embedded 1200W induction cooker, a washbasin with a cover, a faucet, and storage space above and below the countertop. as well as alarms for safety.
On the right is Midea's microwave oven, Midea's 3 kg wall-mounted washing machine and Frost car refrigerator with 148L double-door doors, and the top is equipped with Hongdu parking air conditioning (heat pump type) and independent diesel heating system.
The side window of the rear longitudinal bed area is conducive to lighting and ventilation, the upper three groups of lockers are convenient for placing clothes and other daily necessities, and the bedside is equipped with a pull-out bed board, which is not used to increase the activity area of the aisle, and it is necessary to pull out when sleeping, increase the sleeping space, which is very intimate.
The toilet did not follow the commemorative version of the Y8 dry and wet separation toilet, but chose the integrated toilet, the toilet style echoes the color of the living area, fully equipped, the top two-way ventilation fan, integrated bathroom system, 28L electric water heater, bathroom mirror, wash basin, storage space and Domeda box toilet.
【Summary】Above the door is a switch of each functional configuration, which can control the lighting and commonly used electrical appliances. The vehicle is equipped with a 190-liter water purification tank and a 60-liter gray water tank, and a black water tank of 18L. The circuit is equipped with 3000W charging inverter all-in-one machine, 500W if new energy solar panel + solar controller, 12V820Ah lithium iron phosphate battery. RV special external power charging port (with 10 meters power cord), indoor 220V socket 5 + external mains socket 1. The Yate Chase Commemorative Edition Y9 motorhome has been continuously upgraded and improved to solve the difficulties of car users, and practically create such a caravan with a bag, with sufficient internal space and also supporting the travel of many people. Final offer 470,000.
