Hello everyone, this time the demolition of Hualing N8HK1 1.5 horsepower new first-class fresh air conditioner, this air conditioner is the latest model listed in August. This dismantling machine, and I have dismantled and are still selling Hualing new level 1.5 horse hang-up machine, including Hualing N8HA1, Hualing N8HG1, Hualing N8HC1, Hualing N8HE1 1.5 horse new level, plus the United States fresh air fresh air conditioning, so many models together.
Model: KFR-35GW/N8HK1
Internal model: KFR-35G/N8HK1
Model: KFR-35W/BN8-B03(HL)
<h1 class="pgc-h-arrow-right" data-track="5" > Hualing HK1 outdoor unit</h1>
Hualing HK1 1.5 hp new first class external machine size: 857 (807) ×555×328mm
External machine size: the width with a valve outside the bracket, and the width without a valve inside the bracket
Hualing HK1:857(807)×555×328mm
Hualing HA1: 857 (807) ×555×328mm
Hualing HG1: 857(807) ×555×328mm
Hualing HC1: 857 (807) ×555×328mm
Hualing HE1:857(807)×555×328mm
Midea's fresh air: 857 (807) ×555×328mm
Hualing and Midea's 1.5-horsepower new first-class air conditioners are the same size.

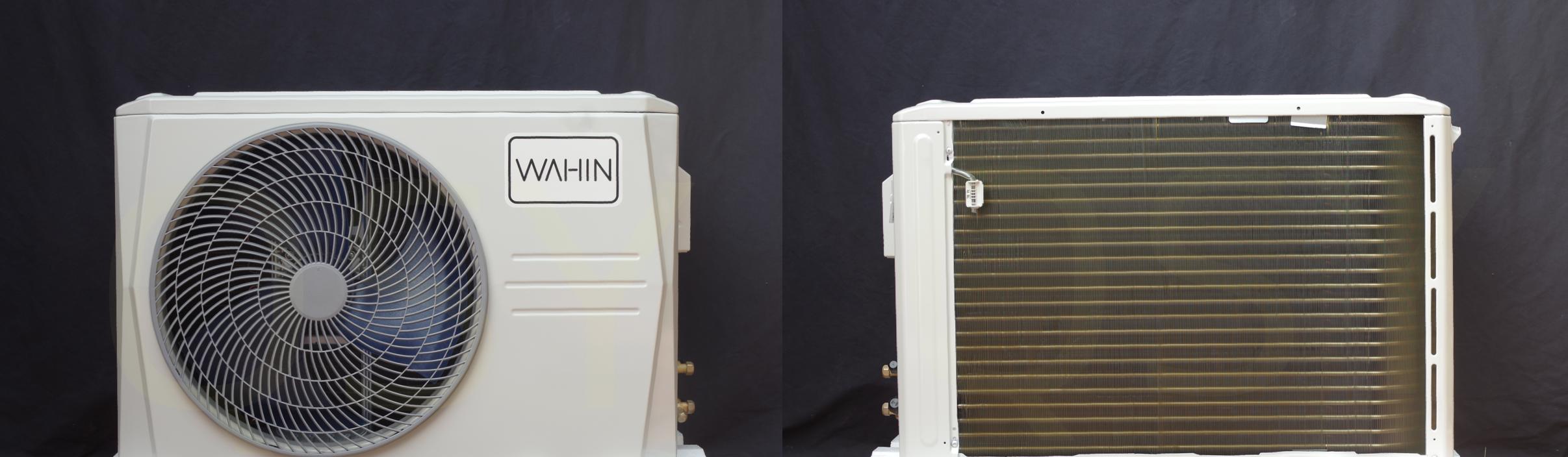

Hualing HK1 1.5 hp new first class external side
Hualing HK1 1.5 hp new first class foreign aircraft parameters
Refrigerant and external weight
Hualing HK1: R32/750g, external weight 29kg
Hualing HA1: R32/840g, external weight 31kg
Hualing HG1: R32/750g, external weight 31kg
Hualing HC1: R32/750g, external weight 31kg
Hualing HE1: R32/840g, the weight of the external machine is 31kg
Midea's fresh air: R32/750g, the weight of the external machine is 31kg
Hualing HK1 external machine weight 29kg is the lightest.
External model
Hualing HK1:KFR-35W/BN8-B03(HL)
Hualing HA1: KFR-35W/BP3N8-B03(HL)
Hualing HG1: KFR-35W/BN8-B01(HL)
Hualing HC1: KFR-35W/BN8-B02(HL)
Hualing HE1: KFR-35W/BP3N8-B05(HL)
Midea's fresh air: KFR-35W/BN8-B02
Hualing HK1, Hualing HG1, Hualing HC1 and Midea's Huanxinfeng, the external machines all adopt new naming rules, simplifying "P3", and reducing the refrigerant charge to 750g.
Hualing HK1 1.5 horse new class, disassemble the upper cover, confirm that it is a 1.6 row condenser, transverse electronic control board
Hualing HK1 1.5 horsepower new grade, electronic control board heat sink
The size of the heat sink area of the electronic control board of these air conditioners is not much different.
Hualing HK1 1.5 hp new class, 1.6 rows of condensers, each row of 12 sets of copper tubes
Hualing HK1: 1.6 row condenser, each row of 12 sets of copper tubes
Hualing HA1: 1.6 row condenser, each row of 12 groups of copper tubes
Hualing HG1: 1.6 row condenser, each row of 12 groups of copper tubes
Hualing HC1: 1.6 row condenser, each row of 12 groups of copper tubes
Hualing HE1: Double row condenser, 12 groups of copper tubes per row
Midea's fresh air: 1.6 rows of condensers, each row of 12 sets of copper tubes
Hualing HK1 1.5 horse new class, the whole row of brass tubes with fin parts is about 89cm in length
Hualing HK1: The length of the whole row of copper tubes with fin parts is about 89cm
Hualing HA1: The length of the entire row of copper tubes with fin parts is about 89cm
Hualing HG1: The length of the entire row of copper tubes with fin parts is about 89cm
Hualing HC1: The length of the entire row of copper tubes with fin parts is about 89cm
Hualing HE1: The length of the entire row of copper tubes with fin parts is about 89cm
Beautiful new wind: the length of the entire row of copper pipes with fins is about 89cm
The length of the copper tubes of Hualing HA1 and Hualing HE1 has not been measured, but it can be basically determined that it is also about 89cm.
Hualing HK1 1.5 horse new grade, 0.6 rows with fin part of the copper pipe length of about 52cm
Hualing HK1: 0.6 row of copper tubes with fin parts is about 52cm in length
Hualing HA1: No amount
Hualing HG1: 0.6 row with fin part of the copper pipe length of about 53cm
Hualing HC1: 0.6 row with fin part of the copper pipe length of about 53cm
Hualing HE1: Double row
Midea's fresh air: 0.6 rows of copper tubes with fin parts about 53cm in length
Considering the measurement error, it can be seen as 53cm.
Hualing HK1 1.5 hp new grade, copper pipe outer diameter 7.3mm
Hualing HK1: Copper pipe outer diameter 7.3mm
Hualing HA1: Copper pipe outer diameter 7.4mm
Hualing HG1: Copper pipe outer diameter 7.2mm
Hualing HC1: Copper pipe outer diameter 7.0mm
Hualing HE1: Copper pipe outer diameter 7.5mm
Midea's fresh air: copper pipe outer diameter 7.1mm
Considering the measurement error, the outer diameter of the copper tube can be regarded as 7mm.
Hualing HK1 1.5 horsepower new first-class, external fan motor, using up to 34w DC motor
Hualing HK1:34w DC Motor (Tongda)
Hualing HA1: 56w DC motor (Welling)
Hualing HG1: 56w DC motor (Welling)
Hualing HC1: 34w DC Motor (Welling)
Hualing HE1: 34w DC Motor (Welling)
Midea's fresh air: 34w DC motor (Ocean)
Hualing HK1 1.5 hp new class, external fan φ434mm (φ is the diameter)
Hualing HK1:φ434mm
Hualing HA1: φ434mm
Hualing HG1: φ434mm
Hualing HC1: φ434mm
Hualing HE1: φ434mm
Beautiful new style: φ434mm
The fan diameters are all the same.
Hualing HK1 1.5 hp new stage, using The Medit KSN98D64UFZ3 single rotor compressor with a displacement of 9.8cc
Hualing HK1: Meizhi KSN98D64UFZ3 single rotor compressor with a displacement of 9.8cc
Hualing HA1: Medea KSN98D64UFZ3 single rotor compressor with a displacement of 9.8cc
Hualing HG1: Medea KSN98D64UFZ3 single rotor compressor with a displacement of 9.8cc
Hualing HC1: Meizhi KSN98D64UFZ3 single rotor compressor with a displacement of 9.8cc
Hualing HE1: Meizhi KSN98D64UFZ3 single rotor compressor with a displacement of 9.8cc
Midea's fresh air: Medea KSN98D64UFZ3 single-rotor compressor with a displacement of 9.8cc
They are all the same compressors, and they are also the most used models in Hualing and Midea's 1.5-horse air conditioner.
Hualing HK1 1.5 hp new stage, using DunAn electronic expansion valve
Both have electronic expansion valves.
Hualing HK1 1.5 hp new stage, using DunAn four-way valve
In general, the external configuration of Hualing HK1 is the same as that of Hualing HC1 and Midea Huanxinfeng, and the overall configuration differences of these models are as follows.
Hualing HK1: Meizhi 9.8cc compressor + 1.6 discharge condenser + 34w motor + 750g refrigerant
Hualing HA1: Meizhi 9.8cc compressor + 1.6 discharge condenser + 56w motor + 840g refrigerant
Hualing HG1: Meizhi 9.8cc compressor + 1.6 discharge condenser + 56w motor + 750g refrigerant
Hualing HC1: Meizhi 9.8cc compressor + 1.6 discharge condenser + 34w motor + 750g refrigerant
Hualing HE1: Meizhi 9.8cc compressor + double row condenser + 34w motor + 840g refrigerant
Midea's fresh air: Meizhi 9.8cc compressor + 1.6 discharge condenser + 34w motor + 750g refrigerant
<h1 class="pgc-h-arrow-right" data-track="101" > Hualing HK1 indoor unit</h1>
The configuration of the indoor unit is compared with the Hualing HE1 and Hualing HG1.
Hualing HK1 1.5 horsepower new class, internal width, height and depth size: 1000×327×202mm
Hualing HK1 inner machine width of 1 meter, this size and 2 horse hang-up machine is similar, is relatively large, Hualing other 1.5 horse about 0.9 wide, HK1 wide, because the left side of the new air outlet.
Hualing HK1 1.5 hp new class internal machine parameters
Hualing HK1 1.5 hp new class, internal evaporator front and back
The evaporator has a PTC electric auxiliary heating tube inside, and the power is 1050w.
Hualing HK1 1.5 horse new grade, internal evaporator with fin part of the copper pipe length of about 65cm
Hualing HK1: The length of the copper pipe with fin part of the inner evaporator is about 65cm
Hualing HE1: The length of the copper pipe with fin part of the internal evaporator is about 65cm
Hualing HG1: The length of the copper pipe with fin part of the internal evaporator is about 65cm
Hualing HK1 1.5 horse new stage, internal evaporator side, double row a total of 15 groups of copper tubes
Hualing HK1: Double row of 15 groups of copper tubes
Hualing HE1: Double row of 15 groups of copper pipes
Hualing HG1: Double row a total of 15 groups of copper tubes
Hualing HK1 1.5 hp new grade, internal evaporator, copper tube outer diameter 7.1mm
Hualing HK1: Copper pipe outer diameter 7.1mm
Hualing HE1: There was no amount at the beginning
Hualing HG1: Copper tube outer diameter 7.3mm
The outer diameter of the copper pipe can be seen as 7mm.
Hualing HK1 1.5 horse new class, internal wind wheel, length about 65cm, φ94mm (φ is the diameter), over-balancing
Hualing HK1: The wind wheel is about 65cm long, φ94mm
Hualing HE1: The wind wheel is about 65cm long, φ94mm
Hualing HG1: The wind wheel is about 65cm long, φ90.4mm
The wind wheel of Hualing HK1 is as big as that of HE1.
Hualing HK1 1.5 hp new class, internal wind wheel, using Welling 13w brushless DC copper wire motor
Hualing HK1 uses Welling 78 series 13w copper wire motor, Welling this series of motors is good, that is, 13w power is small. Midea and Hualing 1.5 horse new first-class hang-up machine, the current internal motor power is 13w.
Hualing HK1 1.5 horsepower new class, large air deflector plate, length approx. 98cm, width approx. 10cm, thickness approx. 8.4mm
Hualing HK1 1.5 horse new grade, transparent plastic "golf face" wind guide, length approx. 68cm, width approx. 4.5cm, thickness approx. 3.8mm
The large wind guide plate of Hualing HK1 is internally tested as a groove treatment, and the wind guide plate inside is a golf surface treatment, which can reduce some wind noise and resonance.
Hualing HK1 1.5 horse new class, two stepper motors on the left and right, a total of four stepper motors
No. 1 controls the left and right sweeping winds;
No. 2 controls the wind up and down the golf ball surface wind guide;
No. 3 and No. 4 control large wind guide plates up and down.
Hualing HK1 1.5 horse new class, internal machine filter, a total of two pieces on the left and right
In general, Hualing HK1 belongs to the "big air outlet" internal machine configuration of the United States, using φ94mm through-flow fans, with double-row 15 groups of 65cm condensers, this configuration is the same as the internal machines of Hualing HE1 and Hualing HC1.
<h1 class="pgc-h-arrow-right" data-track="137" > Hualing HK1 fresh air part</h1>
Open the front panel of Hualing HK1, and on the left are the fresh air outlets and filters.
Inside the red frame is the entire fresh air part, and you will see it when you remove the shell
Hualing HK1 fresh air is an independent air outlet and does not go through the heat exchanger and only one line is connected to the electronic control board, which is also the design scheme of most fresh air conditioners now
Hualing HK1 1.5 hp new grade, fresh air filter and HEPA filter
Hualing HK1 fresh air filter is also relatively simple, HEPA filter is only about one finger thick, quite thin.
Hualing HK1 1.5 hp new class fresh air duct, 2.5 meters long
Hualing HK1 1.5 hp normal fresh air volume is 40m³/h, the maximum fresh air volume after reaming up to 60m³/h, the air inlet of the fresh air duct does not have a primary effect filter.
In general, Hualing HK1's fresh air scheme is relatively simple, it can also be said to be simple, the air volume is not large, the filtering capacity of the filter is not the same, not as good as the mainstream air purifier, nor as good as the wall-mounted fresh air blower. However, Hualing HK1's main competitor, Mijia's fresh air conditioner, is also a similar solution.
My preliminary judgment at present is that in terms of fresh air and air filtration, Hualing and Mijia are both rookies pecking at each other's level, only to pursue product selling points, and have not solved the fresh air needs of consumers (carbon dioxide concentration dropped to within 1000ppm). This conclusion is based on my preliminary judgment based on the Hisense 60m³/h fresh air conditioner that I measured before, and then I looked for an opportunity to measure the effect.
<h1 class="pgc-h-arrow-right" data-track="147" > Hualing HK1 noise cancellation processing</h1>
Hualing HK1's sound attenuation, mainly based on the sound-deadening sponge, can not see a large area of foam for sound suppression and temperature insulation, the estimated performance of the operating noise is general, and Hualing HA1, HE1 is at the same level.
<h1 class="pgc-h-arrow-right" data-track="151" > Hualing HK1 configuration summary and personal opinion</h1>
Compressor: Medit KSN98D64UFZ3 single rotor compressor with a displacement of 9.8cc
Refrigerant: R32/750g
External heat exchanger: 1.6 rows× 12 groups of copper tubes, 7mm pipe diameter, the total length of about 34.1 meters
External fan motor: 34w access DC motor, φ420mm blade
External machine width and depth: 857 (807) × 555×328mm
Weight: 29kg
Electronic expansion valve: DunAn
Inner machine width and depth: 1000×327×202mm
Inner weight: 13.5kg
Internal heat exchanger: 2 rows of 30 7mm copper pipes
Inner fan motor: 13w Welling DC motor + φ94×650mm wind wheel
Circulating air volume: 650m³/h
Connecting tube length: 3 meters
After-sales policy: 6 years warranty of the whole machine
After dismantling the machine, in terms of external configuration, Hualing HK1 uses Meizhi 9864 compressor, with electronic expansion valve, 1.6 rows of condenser, with a total length of about 34.1 meters, with a 34w DC motor. The external machine configuration is the same as Hualing HC1 and Midea's fresh air, and it is not as good as Hualing HE1.
In terms of internal configuration, Hualing HK1 uses a double row of 15 groups of 30 copper tube evaporators, with a 13w Welling DC motor, and a relatively large φ94×650mm wind wheel, with left and right sweeping function, this configuration and Hualing HE1, Hualing HC1, Midea Huanxinfeng is the same.
In general, I think that Hualing HK1 is the beautiful new style vest, the two models have different subtle indicators, but the main components and indicators are the same. The external configuration of Hualing HK1 is general (similar to HA1), the internal configuration is better (the same as HE1), and the fresh air function is chicken ribs.
Buying advice: I think the price of Hualing HK1, in Hualing HA1 + 500 yuan is more reasonable (2600 ~ 2700 yuan), after all, Mijia fresh air conditioning, that is, on the basis of N1A1 added 500 yuan, and this simple fresh air program, the estimated price of 500 yuan is not low.
However, there are also many people who have expressed their need for fresh air conditioning to me. The reason is either that the wall has no place to open a hole for the fresh air, or the room cannot open the window on the street. In the case of last resort, it is believed that "fresh air is better than no fresh air", even if the carbon dioxide concentration cannot be reduced to within 1000ppm, it is good to drop from 2000ppm to 1500ppm, or 1800ppm.
If you are also in this demand, then I think Hualing HK1 is indeed a relatively good model at present, which is definitely better than Mijia Fresh Air.
Supplement: The dismantling of Hualing HK1, I expected to send it at noon on August 14, but the logistics were delayed, and the air conditioner was sent to me a day and a half later than expected. Then when the machine is disassembled, some parts of the internal fresh air are not disassembled, and I do not see the internal machine and wind wheel of the fresh air, I continue to study to see if I can take it apart, and also find an opportunity to test the fresh air effect of this machine.
