I. Introduction
The improvement of the 12th generation intel processor is obvious to all, not only in terms of performance, but also in terms of power consumption and heat generation. Many processor models that were very grumpy before have become mild-mannered after the replacement, which is still very good.
The most intuitive benefit of the improvement of the heat generation situation is that in the case of the same processor model, you can choose some cooling with lower positioning; in the case of the same model of heat dissipation, you can suppress the more advanced processor; even say, many processors that were previously pressed with water cooling are now completely fine with air cooling.
In this case, the overclocking three launched the all-new Tokai EX6000 dual fan single tower heat dissipation. This heat dissipation hardware configuration is still quite good, the heat dissipation body is a single tower design, the selection of 6 6mm composite nickel-plated heat pipes, supplemented by two customized PF series 13CM specifications of the hydraulic fan, the part that contacts the CPU is reflow copper bottom design, no use of heat pipe direct contact design, so the whole set of looks down, is still very interesting.
The first is the design of a single tower double fan, which fully guarantees the heat dissipation at the same time, but also has a very good hardware compatibility, at least completely blocking the memory; the composite nickel-plated heat pipe with a diameter of 6mm ensures that whether it is horizontally installed or vertically installed, it can have an excellent heat transfer effect, and the surface has nickel plating, electrophoresis treatment, better oxidation effect and longer life; the cooling fan adopts the non-mainstream 13CM specifications, which is larger than the 12CM fan size, the air volume is larger, and the height of the 14CM fan is more capacity control The compatibility is more excellent; and finally, the design of the reflow copper bottom makes the radiator more calm in the case of dealing with the rapid heat.
I heard that the heat dissipation strength of this air-cooled is very good, and the maximum heat relief capacity is about 230W. There are two versions at the same time, black and white, you can choose the right version according to the color of your hardware.
Second, overclocking Sandonghai EX6000 dual fan single tower CPU radiator unpacking

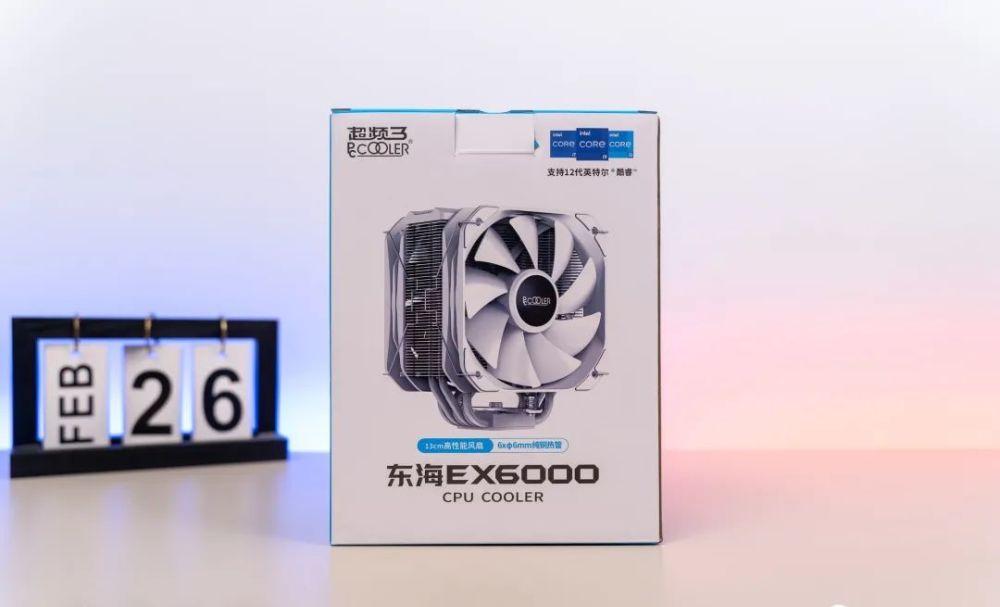

▼ The appearance design of heat dissipation is very simple, white and blue color, look very fresh. In the middle of the package there is the appearance of the radiator, and at the bottom is an introduction to the model and the like.
▼The side of the package is a size specification introduction, the height is 158mm, the width is 105mm, and the compatibility is good.
▼ On the other side are the detailed parameters of heat dissipation, where the maximum air volume of the fan is 81CFM and the maximum noise is 36dBA, which looks quite good.
▼The protection inside the package is good, and the radiator body is completely wrapped by foam.
Third, overclocking Sandonghai EX6000 dual fan single tower CPU radiator appearance
▼ The main body of the radiator is quite beautiful, all white, and the heat dissipation fins on the sides are very dense.
▼ There are two fixed grooves on the side of the heat dissipation tower, and the front and back sides can fix the fan.
▼ The top of the heat dissipation tower has a plastic cover, the top is decorated with stripes, and there is the LOGO of the overclocking three in the middle.
▼ At the bottom of the heat dissipation tower, there are six heat pipes, and the outside has a complete electrophoretic white paint coating.
▼ The bottom of the heat dissipation tower, the reflow copper bottom design, mirror polishing, the surface is pasted with protective stickers to prevent scratches and oxidation.
▼ The workmanship of the heat dissipation tower looks good, the heat pipe and heat dissipation fins use the Fin process, and the heat pipe and heat dissipation fin parts are completely painted.
▼ The cooling fan is also white, and there is an overclocking three LOGO in the middle.
▼ The four corners of the cooling fan have rubber shock absorbing pads, and the frame part has chamfer treatment to facilitate air intake.
▼ The back of the fan, the middle is the label, rated input DC 12V 0.22A.
▼ The back of the fan also has a chamfer treatment, and the bracket part also has a sectional design to facilitate the passage of air flow and reduce wind resistance.
▼ The radiator is equipped with two fans as standard, and the fan blade of the other fan is designed for reverse installation, with front air outlet and reverse air inlet.
Fourth, overclocking Sandonghai EX6000 dual fan single tower CPU radiator installed
▼ Then ready to test, the processor selects 12700K to see if this heatsink can be pressed.
▼ The design of the radiator clip is very simple, with a back plate and an auxiliary fixed metal frame, which is very convenient for daily installation.
▼ Directly install the clip to the motherboard, and then fix the heatsink to the top.
▼ The fixing of the heat dissipation tower is also very simple, and the two screws are tightened. Single-tower radiator, very thin, good compatibility performance.
▼Finally, the cooling fans on both sides are fixed, and the heat dissipation is installed.
▼ The compatibility performance of the heatsink is good, the thickness is very narrow, and under normal installation, the atx motherboard in the horizontal range can not touch the memory at all.
▼ The performance of the vertical aspect is also OK, and there is still a lot of distance from the main PCIe slot of the motherboard below.
▼ Then install the graphics card, the white Shadow Chi RTX3070Ti HOF Pro graphics card, the appearance of the graphics card is also white.
▼ The graphics card is directly installed horizontally, and a graphics card bracket is installed at the end of the graphics card on the right side to prevent the graphics card PCB from being bent by force.
▼ Boot, light up at once, the whole machine effect is very beautiful.
▼ The color scheme of the radiator is white, and there is some decorative design on the top, and there is no lighting effect.
▼However, this white heat dissipation value is still very good, and it looks quite textured.
▼ If you engage in some white body installation, this radiator is still quite good. In addition, the fan blade on the back of the radiator is reversed, there is no plastic frame, and the appearance looks really prettier.
▼ This motherboard has 5 M2 interfaces, and all of them are covered with original metal heat sinks, and the south bridge part also has a lighting effect, which is great in expansion and appearance.
▼ In addition, in terms of details, the 8Pin auxiliary power supply line of the graphics card adopts a single 8Pin design, and the power supply will be more stable in the case of high load of the graphics card.
▼ Yingchi This RTX3070Ti HOF Pro graphics card has ARGB lighting effects on the front and sides, which looks good.
▼ The chassis uses Antic's DF800, and the appearance and design of this chassis are very interesting. The front of the chassis is divided into two parts, the left side is a metal punching mesh, and the surface has a very complex bevel shape to ensure the air inlet of the chassis. On the right side, there is a mirror lighting decoration of the colorful ARGB, which is functional and decorative.
▼ Add some fans on the front of the chassis that support the arGB lighting effect of the phantom, and the overall effect will be more beautiful.
5. Overclocking Sandonghai EX6000 dual fan single-tower CPU radiator test
▼ Simple run a test, the whole machine score 203W, processor score 86.7W, graphics card score 61.7W, memory score 32.3W, the overall score is still very good.
▼ Daily standby situation, room temperature is about 22 ° C, the processor standby temperature is about 27 ° C, the performance is good.
▼ Simple run a CPU-Z pressure test, the processor power consumption is about 150W, the temperature is 72 ° C, and the thermal performance is OK.
▼ Single baked FPU test, processor power consumption of 190W, temperature at 91 ° C, the overall heat dissipation performance is OK, suppressing the silent frequency of 12700K.
▼ Just now it is a case where the single-baked FPU lasts for about 5 minutes, and then continues to bake for 10 minutes, and the overall temperature performance is still very stable.
▼ Click stop, the cooling curve of the processor is a cliff-like decline, and the heat dissipation efficiency is still good.
▼ Run the 3Dmark stress test, TS mode, frame rate stability rate of 98.9%.
▼ The core temperature of the graphics card is about 71 °C, and the temperature of the processor is about 41 °C.
▼ Noise test, in the case of shutdown, the ambient noise is about 43.3dBA.
▼ Boot, unplug all other fans, the radiator turns by default, the overall noise performance is 43.8dBA. In standby, this radiator is super quiet, with two fans and almost no noise.
▼ Single baking FPU test, two cooling fans running at full speed, the overall noise is about 54.8dBA, ok.
6. Summary
Overclocking Sandonghai EX6000 this heat dissipation is still quite good, the appearance is very beautiful, there are white and black two colors, white this overall is white, heat fins, heat pipes, fans, etc., are white. And the overall workmanship is also very good, the details are also in place, the daily installation of the machine wants to engage in some theme color matching, this radiator is still very worth buying.
In addition, in terms of heat dissipation strength, the performance of this radiator is OK. To cope with the case of the silent frequency of 12700K single baked FPU, the power consumption is about 190W, the room temperature is 22 ° C, the processor temperature can be controlled at 91 ° C, and the continuous roast chicken, the temperature has not risen significantly, it is a stable suppression of the 12700K of the silent frequency.
In terms of compatibility, the single tower with dual fans, the thickness is very thin, with the ATX motherboard, it will not affect the installation of memory at all. In addition, with a 130mm fan, the height control can also be, 158mm.
The only thing that makes the mushroom a little dissatisfied is that the heat dissipation fins are all electrophoretic spray paint, and it is easy to rub off the paint when installing the metal spring wire of the fixed fan, and it is not recommended to repeatedly disassemble and assemble.
Thank you!
