I. Introduction
At the moment when the process is still improving, you will find that the heat performance of the mid-range processors of each family is getting better and better. The performance gradually improves, the heat has regressed, which is still very good for the player, at least in the choice of radiator, the room is greater.
Conversely, for a four-heat pipe, single tower, single fan heatsink, it can hold more processors, such as Intel's 12th generation 12600K, 12490F, 12400F, etc., and AMD's 5600X and below, can be easily suppressed. In this case, it gives a lot of this positioning radiator some room for the pursuit of appearance.
Overclocking three launched the white version of the East Sea R4000, that is, the East Sea R4000W, while the value of the line increased, its overall heat dissipation performance is still excellent, or very good.
Second, overclocking Three East Sea R4000W white ARGB radiator unboxed

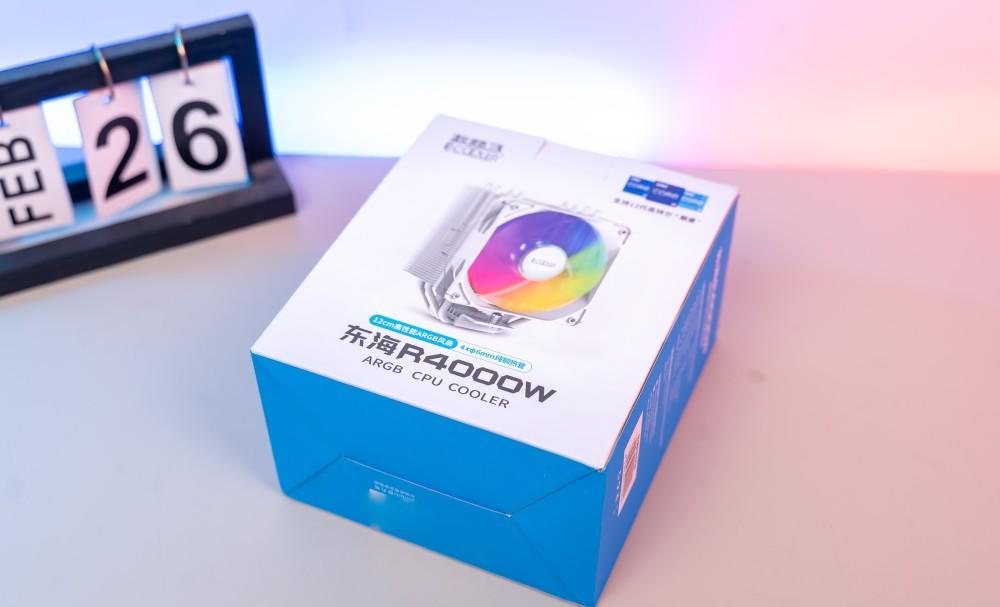

▼ The packaging of the radiator is still the familiar white and blue color, and the carton is not heavy.
▼ There is a color print of the radiator on the front of the package, and the cooling fan supports ARGB lighting effect, which looks very beautiful. At the bottom is the model of the heatsink, and in the upper right corner there is the logo of the 12th generation LGA1700 processor that supports Intel.
▼ The side of the radiator has a three-dimensional size, of which the height is 157mm, not more than 160mm, and the overall height compatibility performance is OK.
▼The back side is the parameter of the radiator, including fan speed, noise, air volume, etc., which is very detailed.
▼ Open the carton, the radiator body and the cooling fan are completely wrapped in foam, and the protection is first-class.
▼ The radiator body and the cooling fan are packaged separately for easy installation, and the white carton next to it is a fastener.
Third, overclocking Sandonghai R4000W white ARGB radiator appearance
▼ The appearance of the radiator is still quite beautiful, and the whole body is painted in white.
▼And this white is similar to the texture of piano paint, and there is a feeling of warmth like jade.
▼ Changing the angle will be more obvious, and some details of the heat pipe are covered.
▼ The bottom heat pipe part also has white paint, which can effectively prevent the oxidation of the heat pipe.
▼ The bottom is a familiar heat pipe direct contact design, with sanding treatment, flatness is OK. In addition, a protective film is attached to the surface to prevent scratches and oxidation.
▼ Carefully look at the details of the heat pipe, wear the Fin process, the gap is uniform and regular.
▼ The cooling fan is also white, the fan blade is milky white, and there is an overclocking three LOGO in the middle.
▼ The milky white fan leaves look good in texture, and have a soft light effect, which can be seen after the light is turned on.
▼ The fan frame of the fan has a chamfer design around it, which is convenient for air intake. In addition, the four corners of the front of the fan do not have rubber shock absorbers, which is strange.
▼ The back of the fan is designed conventionally, the middle is a label, and the fan is rated input DC 12V 0.38A.
▼ There are rubber shock absorbing pads in the four corners of the back of the fan, which will be close to the heat dissipation tower under normal installation, and the rubber shock absorber pads can effectively absorb vibration.
▼The four corners of the fan frame part also have a chamfer design, and the edge part of the fan frame is also designed with an angle, which can effectively facilitate the wind to blow out and comb the air flow.
Fourth, overclocking Sandonghai R4000W white ARGB radiator installed
▼ Here is ready to install into the chassis to try, the processor is 5600X, the motherboard is MSI's B550M mortar.
▼ The AMD fastener design of the radiator is good, independent bracket, and the back panel of amD's original buckle is installed.
▼ After the radiator bracket is fixed, there is a metal sheet on each side that assists the heat sink to fix.
▼ Then tighten the two screws to secure the heatsink to the processor.
▼After fixing the heat dissipation tower, fix the cooling fan to the heat dissipation tower. The cooling fan is fixed to the heat dissipation tower by metal elastic wire, which can be disassembled and fixed separately, which is very convenient.
▼ Then install the memory, Uzan's NOX Dark Goddess, but it is black, and if there is white, it is better.
▼ The luminous light bar at the top of the Uject nox Dark Goddess memory is still quite large, milky white, and beautiful shape.
▼ In the lower right corner is a white SFX specification power supply, an overclocked vanadium GI-FX500, and a half-module bronze SFX power supply. This power supply is the cheapest SFX specification white power supply, very cost-effective, especially suitable for use with a white chassis.
▼ There is a label on the side of the power supply, this power supply is rated at about 500W, of which the maximum output power of +12 is about 499.92W, and the internal power supply is definitely a single +12V architecture, which is still very good.
▼ The side of the power supply is a cooling fan, the size is small, the number of fan blades is 9 pieces, it is relatively dense, and a larger air volume output can be guaranteed at the same speed.
▼In addition to the power outlet, there is also a switch at the end of the power supply, which can be turned on and off very conveniently.
▼ The details of the power supply are good, the module line part is also pure white, that is, the cable and plug are white, which is great.
▼ The motherboard adopts MSI's B550M mortar motherboard, this motherboard is still very good, the material for power supply specifications is great, and it is covered with a large volume of metal heat sink to assist heat dissipation, ensuring the stable operation of the power supply part. The parts you can see with paint are all made of metal, and the materials are very sufficient.
▼ The right part of the motherboard power supply also has a small metal heatsink covered, which can effectively assist the following Mos heat dissipation.
▼ In the case of the current B660 motherboard is at a high level, choosing a B550 motherboard with a more suitable price may be a very good choice. And the MSI B550M mortar motherboard is a number of B550M motherboards in terms of sales and word of mouth are very good, not bad.
▼ The graphics card is Sotera's RTX3050 X-Gaming OC graphics card, which is the most cost-effective 3050 graphics card, and the graphics card side also has a lighting effect.
▼ Boot, light up at once, the whole machine effect is still very beautiful.
▼ The appearance of the overclocking three R4000W ARGB heatsink is still very beautiful, the whole body is white, and the cooling fan part has a beautiful ARGB lighting effect.
▼ The effect of ARGB lighting effect is quite good, and the milky white fan blade has a good soft light effect.
▼ The appearance of the Dark Goddess memory of Yuzhan NOX is really beautiful, the lighting effect part is very large, and there is a beautiful styling design, and the appearance is great.
▼ The side of the Soltei RTX3050 X-Gaming OC graphics card has a lighting effect in the side of the Solté LOGO, and there is a breathing light effect during normal operation. The graphics card's cooling fan supports low load stalling, further reducing standby noise.
▼Finally, the cover plate on the side of the chassis is installed, and the whole machine is installed.
▼Through the heat dissipation grille on the front of the chassis, you can faintly see the lighting effect part of the internal heat sink.
Five, overclocking Sandonghai R4000W white ARGB radiator test
▼ The whole machine configuration is at a glance, the processor is 5600X, the motherboard is MSI's B550M mortar, and the graphics card is Sotay's RTX3050 X-Gaming OC graphics card.
▼ Simple run a test, the whole machine score 102W, processor 58.3W, graphics card 29.2W, performance is not bad.
▼ Room temperature is about 25 ° C, daily standby situation, the temperature of the processor is about 35 ° C, the performance is not bad.
▼ Simple run a CPU-Z pressure test, the power consumption of the processor is about 80W, the full core Turbo frequency is about 4.6GHz, the temperature is 69 ° C, and the overall heat dissipation is good.
▼ Single-baked FPU test, the processor power consumption of the whole machine is about 95W, the full core turbo frequency is about 4.5GHz, the temperature is 85 ° C, the thermal performance is not bad, and it can easily suppress the 5600X of the PBO2.
▼ Finally, I simply ran a 3Dmark stress test, and the frame rate stability rate was 99.6%, which was good.
▼ The core temperature of the graphics card is up to 65 °C, and the processor fluctuates around 47 °C, which is slightly affected by some graphics card exhaust. However, the chassis fan at the bottom of the chassis is a silver shin armor-piercing bullet, which is huge in size, so that the processor is minimally affected by the exhaust of the graphics card.
6. Summary
Overclocking three R4000W ARGB this heat dissipation is still very good, the value is very beautiful, the heat dissipation tower as a whole is a white color, the appearance looks very exquisite, and the processing of the details is also very in place. With a white ARGB-enabled fan, the overall effect is still very good.
The daily price of this radiator is 109 yuan, the activity price is more than 90 fast money can be bought, as a pure white with ARGB 4 heat pipe radiator is still very cost-effective.
In addition, the installation of this heat dissipation is very simple, the fastener design is quite reasonable, and the single installation is basically not difficult. In terms of heat dissipation performance, at room temperature of about 26 ° C, you can easily suppress the 5600X of PBO2, and there is no problem in coping with the lower mid-range processor under normal circumstances.
For those who want to complete the white theme chassis, this radiator is a very good choice.
