Hearey released a 200 million pixel mobile phone sensor: 1/1.28 inch outsole

Core Research Institute January 8 news, smart phone high-pixel camera era has arrived, 100 million pixel sensor in Xiaomi, Honor and other companies have been applied on a variety of mobile phones, Samsung last September debuted a 200 million pixel sensor ISOCELL HP1, and now the domestic Howey company also launched a 200 million pixel sensor OVB0B.

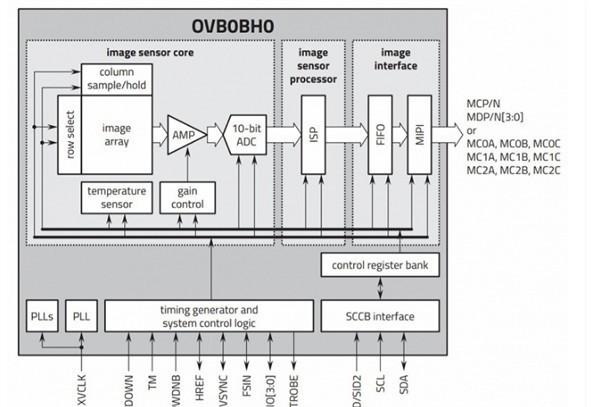

The OVB0B is the world's smallest 0.61μm pixel size 200 million resolution image sensor for the high-end smartphone market, a 1/1.28-inch outsole with a resolution of 200 million pixels (16384 x 12288 pixels), and a unique 16-unit combined technology that delivers premium video and preview quality in 12.5-megapixel mode, especially in low-light conditions.

Edited by the Institute of Core Research

The OVB0B is also the first 200-megapixel image sensor with an entire area that can be used for phase detection autofocus using QPD (Four Phase Detection) technology. In terms of video, the OVB0B has the industry's first 16-cell binning function for 4K2K video, and its sensitivity is 16 times that of its peers. In low light, 12.5 MEGApixel performance and 2.44 μm-equivalent pixel size can be achieved using a 4×4 pixel combination.

The OVB0B also supports 24 frames per second (fps) of 50-megapixel and 30fps of 8K video with 1.22 μm-equivalent performance, and the OVB0B also supports 3-reexposure HDR output at 12.5 megapixel photos at 30 frames per second. According to reports, OVB0B supports CPHY, DPHY and dual DOVDD (1.8V and 1.2V), and samples of OVB0B are now available.
