As the performance of mobile phones becomes more and more powerful and the functions become more and more comprehensive, they have increasingly become an indispensable and important tool in life. However, if a mobile phone or electronic product that does not have waterproof ability enters the water, it will affect the use and become very troublesome. Now the mainstream flagship mobile phones have supported structural waterproofing, through the way of physical sealing, blocking water vapor into the inside of the mobile phone to affect normal use.
CXUN electronics (CXUN) has launched a USB-C connector mother that supports IPX8 waterproofing, and the design has applied for utility model patents. Chaoxun Electronics is currently a member of the International USB-IF Association, and its main products are type-C, Type-A and other precision connector products. And with a number of domestic and foreign first-line brands long-term cooperation, product quality has been unanimously recognized by customers.
Chaoxun Electronics' latest waterproof USB-C mother seat is composed of a stretch stamped metal housing with specially designed terminals, and the gap between the housing and the terminals is sealed with LIM injection molding waterproof adhesive. The waterproof rubber ring is fixed by the housing crimp design to prevent the sealing effect of the rubber ring displacement during assembly. This improves the airtightness of the connector and ensures water resistance.
The Ultratek Waterproof USB TYPE-C Mother Supports 5V5A 25W Power Transfer and is designed for 24PIN full pins to meet USB3.1 data transfer. The tongue blade has a built-in stainless steel hook and has a greater than 10,000 mating life. IPX8 level waterproof ability provides protection of 2 meters and 1 hour underwater, which is very suitable for application in recording devices for outdoor applications such as mobile phones, action cameras, 3C electronics, etc., providing excellent waterproof ability.

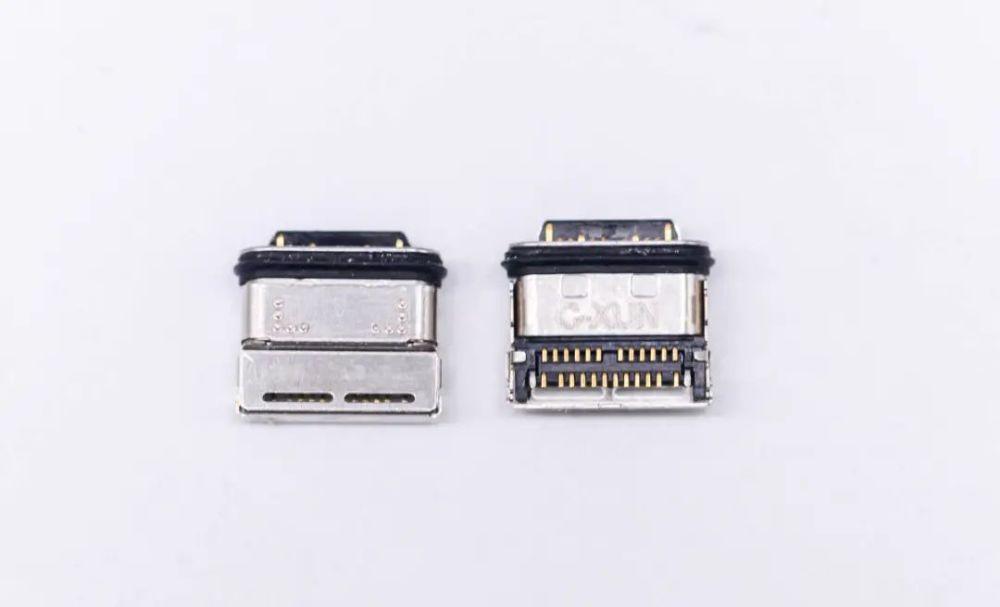

The Type-C matrix is welded horizontally, and the housing fixing feet are welded vias, with a large enough area to ensure welding reliability. The front of the mother seat is a waterproof sealing rubber ring, and the housing assists in fixing the rubber ring. The interior of the mother seat is a double-layer housing, which is fixed by laser spot welding. The housing and terminal blocks are filled with waterproof glue. The side shell and the inner shell are fixed by laser spot welding, and the lower shell is fixed with solder feet, which are fixed by via welding on the PCB.
Spot welding joints for the two-layer housing can be seen at the top of the mother seat. The rear of the terminals opens for direct inspection of weld quality.
The mother tongue sheet is at a glance, with a black rubber core, the end face is not exposed copper, and the tongue plate has a built-in stainless steel hook, and the service life is greater than 10,000 times.
The outer shell of the mother seat is bent to form a shell, and it is welded by the side laser spot welding to form a whole with high mechanical strength.
Compared with the size of the 1 yuan coin, the size of the Chaoxun waterproof TYPC-C mother seat is exquisite, which can effectively save the space occupied by the internal space of the device.
The ultra-short and ultra-thin design of the ultra-short and ultra-thin type-C mother can be adapted to the ultra-thin mobile phone case seal to achieve the overall waterproof design.
Chaoxun Electronics conducted ipX8 waterproof test for this waterproof mother seat, and the waterproof level test was provided by China Test.
The test report shows that after 1 hour of testing, there is no water entering the sample.
The Ultrason Waterproof TYPE-C mother supports IPX8 waterproofing and is a full-featured USB TYPE-C board-side connector. The mother seat adopts a double-layer shell design, with via welding and patch welding, the overall workmanship is fine. At the same time, it also adopts a number of optimized designs, which can simplify the design of waterproof products, and the large area pad also enhances the strength of the welding machinery, which is of great help to the service life.
At present, Chaoxun IPX8 waterproof USB-C mother seat has been mass-produced, if there is a product demand, you can contact the official sales of Chaoxun to get samples.
