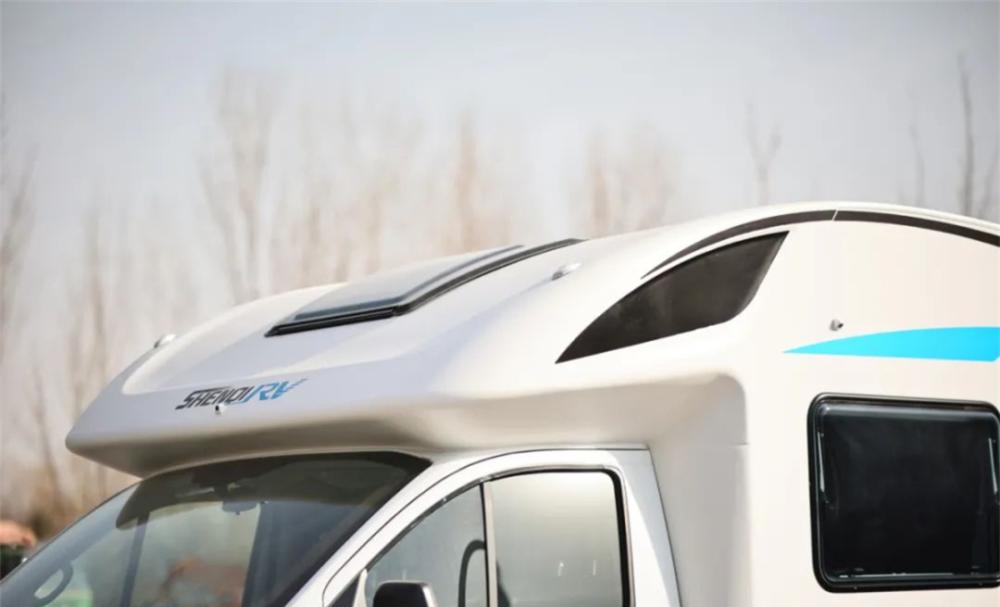

"It starts with the value of the face, and finally the quality." This sentence applies to both people and cars. The Pilot 02 motorhome is still "very capable" in appearance. European-style appearance, the forehead line is smooth and smooth, the front of the car and the body are naturally integrated, and the white body is matched with blue and gray double color strips, making the whole car appear light and agile.
Pilot 02, we chose a special RV wide exterior mirror, the field of view is wider, the blind area is smaller. In addition, the front bumper can be upgraded to customize the front bar, chrome plated middle mesh, and the appearance is more stylish after optional installation.
Vehicle size: 5980×2290×2740 (mm), C1/C2 driver's license can be opened. The height of the car is controlled within 2.8 meters, and the small forehead has better passability. In terms of design concept, the car adopts the design logic of lightweight and low center of gravity.
In terms of van material, this car still uses the mainstream process of lightweighting in the industry: European lightweight sandwich van technology, and has reached a thickness of 37 mm, and the embedded non-metallic frame structure skeleton blocks the cold and heat conduction, which can provide a comfortable living temperature in the car. The box plate adopts CNC engraving machine for one-piece molding, no splicing, long-term use is not easy to deform, and the safety is better.
In the installation process, the traditional German caravan installation process is adopted, from the inside to the outside - first furniture and then the box board, "stand against the sky" type of furniture and the box board to support each other. Compared with the "filling type" during driving, the bearing capacity of the van plate is effectively reduced, and the abnormal noise generated during the driving process of the caravan is significantly improved. The skeleton embedded position in the compartment plate is precise and reasonable, and the tenon connection is tighter. CNC machining of van furniture, accurate alignment, driving safety is effectively guaranteed.
In the production process, the modular production method is adopted, which is easy to assemble and the maintenance and repair cost is lower.
The weight reduction design of the Pilot 02 focuses on the lightweight box and the plate, so that the overall weight of this car is controlled at 2890KG in the case of complete electrical equipment. The exterior of the vehicle is simple, with manual awnings, external charging interfaces, external showers, gas tank storage compartments with overflow ports and a 17-liter black water tank.
On the left side of the body is a large luggage compartment (which can hold 1.8 meters of fishing rods and golf clubs), which can meet the needs of going out. Above the left side, near the forehead, is a panoramic camera, which has a total of 4 cameras in the car.
In terms of power, the new car is equipped with a Ford EcoBoost 2.0T gasoline engine, the maximum power is 202 horsepower, the peak torque is 300N M, and with a 6AT gearbox, the starting noise is significantly smaller than that of the diesel engine, and the driving sense is excellent, and the driving is smooth and sensitive. The cockpit section has been equipped with navigation displays and microfiber seats to upgrade the overall level.
Although it is a small roof design, the sunroof in the car increases the sense of transparency, and the height of the car reaches 2.04 meters at the highest point, which seems to be relatively open and not depressing. The overall shades of the interior are fashionable and youthful, with warm lighting, full of sense of home, and the materials are E0 grade environmental protection panels.
The reception area is composed of a microfiber L-shaped sofa + lift table, which can be put together into 120×120 children's beds at night. The sofas are equipped with seat belts and have lumbar supports for added comfort. Above the sofa are 3 hanging cabinets with damping for daily storage. Under the hanging cabinet is installed a 220V home socket with USB interface.
Under the sofa seat, there is also a 220V socket with USB interface, 2 small cabinets, a driving air outlet, a circuit access port, and a fuel heater switch and fuel heating air outlet on the other side
The two sides of the forehead are equipped with a 4-channel Bluetooth rich sound, which brings better audio-visual effects to the car.
Opposite the reception area is the sub-kitchen section, at the top is a 22-inch smart car TV with adjustable angle, microwave in the middle, and a 148L motorhome refrigerator at the bottom for long-distance use. A very practical folding hanger storage bag and a mesh pocket are installed on the side of the refrigerator.
The control area of the whole car is concentrated at the entrance, and on the left side of the entrance is a four-way surveillance image, which can be well viewed and clearly covered on each side. Above the doors, from left to right, from top to bottom, are the inverter switch, the master control panel, the battery display panel, and the audio control panel.
In terms of electrical equipment, the new car is equipped with 12V400AH lithium battery (optional 800AH), 3000W+300W dual inverter, 200W solar energy (optional 400W); 30L vertical water heater. The whole vehicle heating equipment includes RV air conditioning, driving heating and 2000W parking fuel heating system.
On the right side of the entrance is the secondary battery master switch and the whole car light switch, and the secondary battery switch remembers to turn off in time when the vehicle is placed for a long time.
The cooking area adopts a simple and clean style, and the KME 12V DC inverter air conditioner is installed on the top of the cooking area and can be taken directly from the battery without going through the inverter or mains interface. The cooking countertop is very large in size, with a measured thickness of 2.5 cm and a width of 1 meter, and stainless steel corners are made around the countertop. The cooking area is equipped with an induction cooker, a washing pool and a direct drinking water outlet. The sink is 18 cm deep and underneath is the storage space.
The tail seating area adopts the design of the mother-daughter bed, and the size of the bed is 1900×1210mm; Bed size: 1900×800mm. The mattress is made of foam and has a measured thickness of 7 cm. Softness and hardness are friendly to the lumbar spine. Riders who prefer to sleep in soft beds can be upgraded to latex mattresses.
Both the upper and lower beds are equipped with reading lights and a 12V household socket with USB port. Under the bed is a 3KG washing machine, which can meet the washing of 4-5 pieces of intimate clothing.
The bathroom is dry and wet, the measured area is 0.7 square meters, the ground adopts a sunken design, and the internal height is 1.88 meters. Features a Thetford rotatable toilet, large volume washbasin and pull-out shower. Above is a two-way ventilation fan.
Overall, the Pilot 02 has not been reduced by the price, and this pie is still really fragrant. Welcome to leave a message in the comment area to discuss.
