In today's emergence of a variety of small hardware, more and more players seem to have a special love for ITX chassis, small and exquisite shape, exquisite workmanship, and even some ITX chassis in the DIY transformation can be used as decorations on the desktop for table mounting, and for desktop use of nervous players, ITX is to save them a lot of space. Just the latest release of the RTX3060 Metal Master mini graphics card, just able to be compatible with various types of ITX chassis, so we installed the mini in December.

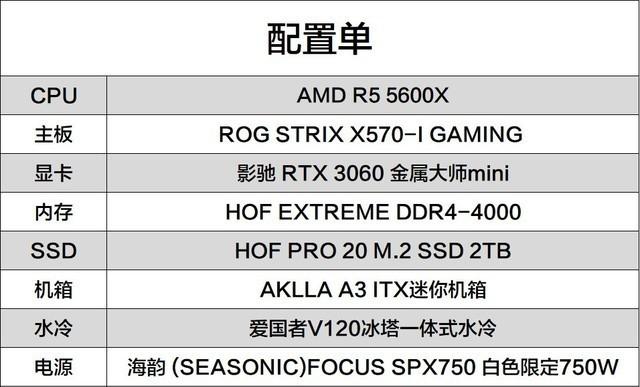

After a comprehensive consideration of heat dissipation, performance and power consumption, the classic R55600X was selected on the CPU, the ROGSTRIX X570-I GAMING motherboard was selected on the motherboard, and then the HOFEXTREME DDR4-4000 was selected for the memory, which perfectly played the CPU and motherboard performance, the SSD was HOFPRO 20 M.2 SSD 2TB, and the power supply was Haiyun's SFX750W white power supply. The radiator is the Patriot V120 Ice Tower integrated water cooling with Galaxy T1 fan, the chassis is AKLLAA3 ITX mini chassis, and the graphics card is of course the Shadow Chi RTX 3060 Metal Master mini!
Accessories introduction
AMD R5 5600X
AMD R5 5600X, 7nm process, 6 cores 12 threads, 3.7GHz base frequency, equipped with Zen3 architecture, low power consumption and powerful performance, ITX small chassis of the faithful choice.
ASUS STRIX X570-IGAMING motherboard
ASUS STRIX X570-IGAMING motherboard, ITX small motherboard, with 8 +2 power supply interface, built-in dual fan cooling ice flakes, as well as dual M.2 interface, wireless network card support, powerful performance expansion and rich, very suitable for this installation theme.
Shadow Chi RTX3060 Metal Master Mini
Inchi RTX3060 Metal Master Mini, single-fan 168mm mini graphics card, equipped with NVIDIA Ampere architecture, with 12GB of large video memory, support DLSS2.3 and light tracking technology, powerful performance.
And metal master mini support intelligent start-stop technology, and is a heat dissipation system for the front and rear outlets, with a cold light star M radiator, no need to worry about heat dissipation.
HOF EXTREME DDR4-4000
HOF EXTREME DDR4-4000, preferably Samsung B-die overclocking particles, gives a strong overclocking physique, easily break through the frequency limit; There are also 10 layers of white enhanced PCB, combined with ceramic mirror surface plus CNC cutting and high-gloss edge processing, the achievement of super memory, more personal insurance + lifetime warranty, to help you use worry-free.
Inchi HOFPro 20 M.2 SSD 2TB
Inchi HOFPro 20 M.2 SSD 2TB, using PCIe4.0 bandwidth, read and write speed up to 5000/4400MB/s, random sketch speed up to 750000/700000IOPS; more selected 3DNANDA particles to ensure data stability, silver ice mirror for heat dissipation escort. And HOFPRO M.2 SSD also supports a five-year warranty and a personal warranty, making it easy to use after-sales worry-free.
Haiyun SFX750W power supply white limited edition
Haiyun SFX750W power supply white limited edition, 80Plus white gold certification, high efficiency power supply design, to meet the needs of high-specification power supply, and equipped with Haiyun 4th generation temperature control technology, digital IC monitoring temperature and load so that the fan shutdown more accurate, prolong service life. Paired with a full module of white embossed thread, it is as thin as a braid and soft texture, and it can also be easily wired in the ITX chassis.
Patriot V120 ice tower integrated water-cooled radiator
Patriot V120 ice tower integrated water-cooled radiator, the cold head adopts pressurized double cavity design, the flow channel is smooth, effectively improving the heat dissipation efficiency and product service life; the cold drain adopts the E-shaped waterway design, which is conducive to heat exchange and increases the water cooling and heat dissipation capacity.
The cold exhaust fan adopts the Patriot Galaxy T1 white fan, supports 5V3-pin ARGB divine light synchronization, and adopts FDB bearings to quickly conduct heat and achieve long fan life.
AKLLA A3 ITX mini chassis
AKLLA A3 ITX mini chassis, white appearance, using 3-15mmT6 aviation aluminum CNC processing, luxurious materials, exquisite workmanship support SFX, SFXL and 1U power supply, perfectly compatible with Yingchi RTX 3060 metal master mini.
The side is made of mortise and tenon structure, which is easy to open in seconds; the top vent adopts a 2000+ round hole chamfer design, which presents a beautiful texture, and the PCIe3.0 graphics card extension cable is given in the random box to help easily install the machine.
Philips E-Line display
This time, there are philips E-Line displays to join, 27-inch LCD display, using LGD original IPS screen, 4-side micro-bezel design, effectively reduce visual interference, stronger immersion;
With 75Hz refresh rate, 1 millisecond MPRT rapid response, effectively reduce the game of stuttering, delay and screen tearing problems, and this display uses blue light filtering and non-flashing technology, can effectively filter short-wave blue light damage, and through DC dimming intelligent adjustment of brightness, reduce flicker, to give players a more comfortable visual experience;
In addition, the monitor also supports SmartImage game mode, different types of games with different modes, one-click switching, quickly optimize performance, bring better gaming experience;
There is also a lifting base design on the back of the monitor, with pitch and height adjustment functions, you can find your own ideal viewing angle, greatly protect your cervical spine, and the details reflect the quality of ingenuity.
This time the installation of the ITX chassis, it can be said how small how to come, whether it is ITX motherboard or metal master mini graphics card, as well as SFX power supply, are in order to be compatible with small chassis and carefully selected. The final product display is also very good-looking, showing the delicacy and compactness of the small chassis to the fullest, and the performance is also very outstanding, not inferior to other 3060 graphics cards.
If there is a small partner who also wants to install an ITX chassis, then the following points are very important to pay attention to:
For the measurement of length, the most important thing when installing an ITX chassis is the consideration of length and size. Accurate metering from hardware size, wire length, etc. is very conducive to the subsequent hardware selection, and it can be much easier when installing the machine.
The construction of the space layout, before installing the ITX chassis, must build the layout of the hardware, and then install according to the layout will be more effective with half the effort, greatly reducing the installation time and the risk of overturning.
The choice of wire, because the space of the ITX chassis itself has been very insufficient, so try to choose a custom module line on the wire, soft and maneuverable, easy to walk the wire.
Later upgrade direction, because the compatibility of the ITX chassis itself is very limited, so if you want to upgrade in the future, it may be very troublesome, so everyone must think clearly about the purpose of this host before installing the machine. If you want to use it as the main machine, this configuration is enough to compete in various AAA games.
