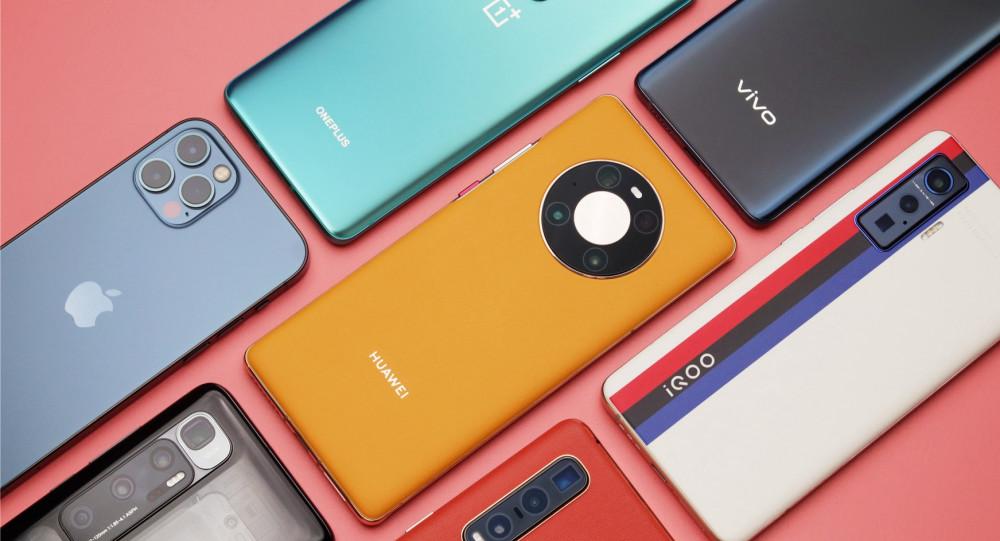

Cameras are the core selling point of mobile phones, especially high-end mobile phones. You often see various camera CMOS sensor models, such as IMX766, IMX686/682, IM586/598, GN1/GN2/GN5, OV64B/OV48C/08A10, etc. When the new CMOS debuts or the manufacturer turns over the old inventory, don't say ordinary users, the fans will inevitably be confused. In order to facilitate everyone's comparison, this inventory of the common main camera CMOS, simple specifications and main models in 2022.
CMOS quick checks are ranked on the basis of sensor size, from largest to smallest. When encountering cmOS that are unknown or unfamiliar, you can get a rough idea of its level depending on the size.
PS: Make good use of the page search function of the computer browser Ctrl+F and the mobile browser. The iPhone's CMOS is italicized. There are many models involved in the fear of omissions, and I hope not to hesitate to correct them.
Look at the sensor, what do you care about?
CMOS, that is, camera sensors, the core manufacturers are Sony, Samsung, OV Howey three. The article time is April 22, and some CMOS do not yet have a mass production machine.
Indicators to focus on for CMOS:
CMOS is the "bottom of the large first level of crushing people", including the total size of the sensor and the size of the unit pixels, the latter directly affect the light sensitivity. The limit distinguishing force is affected by the number of pixels, but the number of pixels is inversely proportional to the size of the unit pixels, and they are the two ends of the balance;
The core indicator is the CMOS size, which directly determines its positioning. The 2022 flagship mainstream is 1/1.5 inch to 1/1.3 inch class, and the mid-range mainstream is 1/2 inch to 1/1.7 inch. Because the size is expressed in the form of a reciprocal, the smaller the denominator value, the larger the CMOS;
This is followed by the unit pixel size, now 0.6μm to 0.8μm in the mid-range, the flagship 1μm to start, 1.2μm to 1.4μm up, and 2.4μm at the bottom of 1 inch (after all, only 20 million pixels);
OIS optical image stabilization and aperture are also important, but these are determined by the lens module. The same CMOS, generally only a few lens module specifications.
Unconventional level
The Sharp AQUOS R6 and its reloader vest "LeicaLET 1" are equipped with an unknown 1-inch CMOS. 1 inch, 20.2 megapixels, about 2.4μm per pixel (model not announced, with Leica custom-produced Summicron 7P lenses, they are extremely rare single camera flagships, a main camera digital cut package equivalent to 19mm to 152mm focal length, the only secondary camera is only a ToF lens)
Sony 1-inch Exmor RS sensor. 1 inch, 20.1 megapixels, 2.4μm per pixel. 315 phase focus points, up to 20FPS burst shooting, can shoot 12-bit RAW format photos and 4K 120FPS HDR video (powered by Sony Xperia PRO-I, CMOS is derived from sony black card RX100 VII, but only captures the central 60% area, about 1/1.3 inch, usable pixels 1200W)
Samsung GN2 (S5KGN2), 1/1.12 inch, 50 megapixels, unit pixels 1.4μm. 4 in 1 into 2.8μm 12.5 million pixels, the first Double Pixel Pro omni-pixel omnidirectional 8 check focus, intelligent ISO Pro, interlaced HDR (Xiaomi 11 Ultra and Xiaomi Mi 11 Pro debuted, and now only they are equipped, after a year, it is still a big guy. Xiaomi with 8P OIS lens, F1.95 aperture)
Honor Magic4 to the best version of the unknown CMOS, the same 1/1.12 inch, 50 million pixels, 1.4μm, part of the data marked is PDAF focus (but honor with a stronger 8P, F1.6, OIS lens)
Flagship
Samsung HP1 (S5KHP1), 1/1.22 inch, 200 million pixels, single pixel size 0.64μm. 16-in-1 into 12.5 mp 2.56 μm, or 4 in 1 into 50 MP 1.28 μm (200 million pixels of the Scared Cry ISP, released in September 2021, not equipped with a mass production machine)
Sony IMX700, 1/1.28 inch, RYYB, 50MP, 1.22μm. 4-in-1 into 2.44μm 12.5 million pixels, full pixel eight-core focus (super base + RYYB, huge amount of light intake, but white balance is difficult to adjust. Powered by Huawei P40 Series, Mate 40 Series, Honor 30 Pro+
Sony IMX707, 1/1.28 inch, 50MP, 1.22μm. 4-in-1 into 2.44μm 12.5MP, full pixel eight-core focus, filter is common RGGB, 8K24 frame video recording (now only equipped with Xiaomi Mi 12 Pro)
Howey OVB0B, 1/1.28 inch, 200 million pixels, 0.61 μm. 16-in-1 into 2.44μm 12.5 MP, QPD quad-phase focus + triple exposure HDR, 8K30 frame video recording (the smallest pixel record holder at the beginning of 22 years, the new representative of "wrong direction". Released in January 2022, no mass production machine installed)
Samsung GN1 (S5KGN1), 1/1.31 inch, 50MP, 1.2μm. 4-in-1 into 2.4μm 12.5 million pixels, full pixel dual-core focus, 8K30 frame video recording (VIVO polished for 2 years CMOS, vivo X50/X60/X70 Pro+ and iQOO 5/5 Pro main camera, Meizu 18 Pro/18s Pro, Google Prince Pixel 6/6 Pro is also in use)
Howey OV48C, 1/1.32 inch, 48MP, 1.2μm. 4 in 1 into 2.4μm 12 million pixels, dual native ISO, 12bit video (OV light, so that Xiaomi 10 Ultra can hang the early Xiaomi 11 Ultra, so far not vain, but unfortunately only used a generation)
Howey OV64A, 1/1.32 inch, 64 million pixels, 1μm (seen in lenovo savior esports mobile phone 2 Pro, rumored honor V40, nova9 Pro and other models to cut it into 5000W and join RYYB use)
Samsung HM3 (S5KHM3), 1/1.33 inch, 108 million pixels, 0.8 μm. 9-in-1 into 2.4μm 12mp pixels, on the basis of HM1, more Super PD Plus, focus speed increased by 50%, more intelligent ISO Pro (powered by Samsung Galaxy S21 Ultra and S22 Ultra)
Samsung HM 1 (S5KHM1), 1/1.33 inch, 108 million pixels, 0.8 μm. 9-in-1 into 2.4μm 12MP (HMX 9-in-1 version, powered by Samsung Galaxy S20 Ultra and Note20 Ultra)
Samsung HMX (S5KHMX), 1/1.33 inch, 108 million pixels, 0.8 μm. 4 in 1 into 1.6μm 27 million pixels (the cmOS that was first ridiculed as "the wrong direction", but the daily use of 2700W is now the highest pixel cmOS of the mobile phone, and the ability to count hairs has not yet been rivaled. Xiaomi Mi CC9 Pro, Xiaomi Mi 10/10 Pro/10S, Xiaomi Mi 11, etc.
Sony IMX789, 1/1.35 inch, 48MP, 1.12 m. Native 16:11, 16:9 when shooting video, 4:3 when taking pictures, equivalent 1/1.43 inch, omni-pixel omnidirectional focus, more 8K30 frame video recording (for the time being, only one plus 9Pro, one plus 10 Pro two mass production machines use)
Sony IMX689, 1/1.35 inch, 48MP, 1.12 m. Native 16:11, 16:9 when shooting video, 4:3 when taking photos, equivalent 1/1.43 inch, omnidirectional focus (and IMX789 difference in data speed, OPPO Find X2 Pro, OnePlus 8 Pro and OnePlus 9 have all been used)
Sony IMX766/766V, 1/1.56 inches, 50MP, 1μm (extremely balanced, massive models.) Seen in Huawei P50 series, OPPO Find X3 series/Find N, OnePlus 9/9 Pro ultra-wide angle, OnePlus 9RT, True Self Master Exploration Edition/GT2/GT2 Pro/GT Noe3, iQOO 8 series, Xiaomi 12/12X, Honor Magic3/3 Pro, Magic4/4 Pro, etc.)
Samsung GN5 (S5KGN5), 1/1.57-inch, 50MP, 1μm (fresh and hot, Samsung version of IMX766, powered by Samsung S22/S22+, iQOO 9 series, vivo X Fold, etc.)
Howey OV50A, 1/1.55", 50MP, 1μm (Howey version of IMX766, found in moto edge X30)
Samsung HM2, 1/1.52 inches, 108 million pixels, 0.7μm (the real direction is wrong, the unit pixels are too small, the shame of 100 million pixels, the empty bottom, the strength is extremely ordinary, and can not win the better IMX589. Countless models: Redmi K50 Pro, Note 9 Pro/Note 11 Pro, K40 Pro+, Xiaomi MIX FOLD, Honor 50/60 Series, Vivo S12 Series, Moto Edge S30, etc.)
Mainstream grade 1/1.7 inch
Sony IMX703, between 1/1.67 and 1/1.65 inches, 12MP, 1.9μm (iPhone 13 Pro/13 Pro Max main camera)
Howey OV40A, 1/1.7 inch, 40 million pixels, 1μm (can be understood as Howey's IMX600, the specifications are very similar, but the machine equipped with it generally does not indicate the model)
Sony IMX686, 1/1.72 inch, 64MP, 0.8μm (daily output 1600W, the discriminating power is inherently advantageous, but weak light will be weaker than the same size CMOS. There are many models: Redmi K30 Pro, Meizu 17 series, K50 esports edition, vivo X30 series, etc.)
Sony IMX682, 1/1.72 inch, 64MP, 0.8μm. The video specifications are weakened to the IMX686, less 4K60 frames and 8K video recording (the camera effect is basically not bad, equipped with more models: Redmi K30S/K30 Ultra, True Self GT Neo, Meizu 18 and Samsung Galaxy A52/M31s/M51, etc.)
Samsung GW2 (S5KGW2), 1/1.72-inch, 64MP, 0.8μm (GW1 minor modification, very interesting to use on Samsung Galaxy S20/S20+, S21/S21+, Note20 27mm "telephoto")
Samsung GW1 (S5KGW1), 1/1.72-inch, 64MP, 0.8μm (Samsung version of the IMX686, but weak performance. Models: LG V60, OPPO Reno3 Pro, True Me X2/X3/X50 Series, Redmi Note 8 Pro/Note 9 Pro, Vivo S7, NEX 3/3S, Moto Edge, etc.)
IMX600y, 1/1.74 inch, 40 million pixels, 1.01μm, RYYB filter (IMX600 filter modified version, although the size is smaller than the above, but the unit pixel size dessert, with RYYB blessing, is actually stronger. Powered by Huawei P30/P30 Pro, Mate 30/30 Pro, Honor V30 Pro, etc.)
IMX600, 1/1.74 inch, 40 million pixels, 1.01μm (2018 generation of CMOS, the beginning of the century of night vision, due to Huawei P20 Pro, Mate 20 Pro, Mate 20X, Honor V30, "nova backbone" nova 6 and other models and larger survived)
IMX603, 1/1.88-inch, 12MP, 1.7μm (iPhone 13/13 mini, iPhone 12 Pro/12 Pro Max main camera)
Basic stage 1/2 inch
IMX598, 1/2 inch, 48MP, 0.8μm (and IMX586 are not large, basically vivo in use, found in vivo X50/X50 Pro, X60/X60 Pro, X70 Pro+ ultra-wide angle, iQOO Neo5/iQOO 7/8/8 Pro, etc.)
IMX586, 1/2-inch, 48MP, 0.8μm (main camera + super telephoto + telephoto triple-habitat true evergreen CMOS. There are countless models: Honor 20 series, nova 4, Meizu 16s series, Xiaomi 9 series, Xiaomi CC9, Redmi K20 Pro/Note7 Pro, Find X2, OnePlus 7/One Plus 8 series, vivo X27 series, etc. OnePlus 8 Pro/Find X2 Pro/Xiaomi 11 Ultra Ultra Wide Angle, Samsung S20 Ultra/Xiaomi 10U/11U 5x Telephoto are all it)
IMX582, 1/2 inch, 48MP, 0.8μm. Video specification reduction version, camera and IMX586 are not large (Redmi K20, Redmi Note 10, iQOO Pro and a large number of mid-range models use)
OV64B, 1/2", 64MP, 0.7μm (Redmi K40 Gaming Enhanced, Redmi Note 10 Pro, OPPO Reno7, Honor 60 Pro Ultra Wide Angle)
OV48B, 1/2 inch, 48MP, 0.8μm (offline machine love, OPPO A74/A92s, Xiaomi Mi 10 Youth Edition, some honor Play4t Pro, etc.)
Samsung GM2/GM1, 1/2 inches, 48MP, 0.8μm (high imitation IMX586, weak performance, massive midrange use)
Ultra-wide angle/telephoto/front-level (too much and too cluttered, probably listed)
IMX503/IMX403, 1/2.55-inch, 12MP, 1.4μm (2020 iPhone 12/12 Pro/12 mini, 2019 iPhone 11 series is IMX503, 2018 iPhone XS/XS Max/XR is IMX403)
IMX563, 1/2.55", 1220W, 1.4μm (Galaxy S21/21U/S22/S22 U Ultra Wide Angle)
OV60A, 1/2.61", 60MP, 0.612μm (Honor 60 Pro and moto edge X30 front, Honor Magic4 Pro ultra-wide angle cut to 5000W)
Samsung GH1, 1/2.65 inches, 44mp, 0.7μm (Reno3 Pro, Samsung Galaxy S20U/S20U, vivo S7/S9 and other front cameras, there are also strange manufacturers to use it on the main camera)
Samsung JN1, 1/2.76 inches, 50 million pixels, 0.64μm (2022 ultra-wide angle new favorite, the advantage is that the number is scary, some thousand yuan machine will also use it as the main camera. Seen in ultra-wide angle or telephoto of models such as iQOO 9 Pro/OnePlus 10 Pro/True My GT2 Pro/Xiaomi Mi 12 Pro)
IMX350, 1/2.78-inch, 2000W, 1.0 m (2016 longevity CMOS, year one plus 5, Meizu 15/16/16s series, Huawei P10 series, Mate 9 series, Honor 9. Xiaomi Mi 10 Pro/10 Ultra Ultra Wide Angle, Huawei P30 Pro Ultra Wide Angle, etc.)
Samsung GD1, 1/2.8-inch, 32MP, 0.8μm (Vivo likes to use it on twice the portrait telephoto, seen in X50/X60 Pro+)
IMX663, 1/2.93", 1200W, 1.22μm (Pixel 6 Pro's front camera, also used on telephoto for xperia 1 III, Xperia 5 III, Xperia PRO-I and vivo X70 Pro+ )
OV13B10, 1/3.06", 1300W, 1.12μm (K30 Pro, Xiaomi Mi 10S/11/11 Pro, Xiaomi Mi MIX4 Ultra Wide Angle)
S5K3M5, 1/3.4", 1300W, 1μm (Find X3/X5 Series 2x Telephoto)
OV8856, 1/4 inch, 800W, 1.12μm (commonly used to make up the number of ultra-wide angle, K50 esports edition and iQOO Neo5 vitality edition ultra-wide angle are it)
S5K4H7, 1/4", 800W, 1.12μm (K50 Series, Note 11 Pro+Ultra Wide Angle)
IMX355, 1/4", 800W, 1.12μm (ultra-wide angle for almost the entire K40 series)
OV08A10, 1/4.4 inch, 800W, 1 m (3.3 times telephoto that OnePlus loves to use, vivo X50/60/70 Pro+ also likes to use it on 5 times periscope telephoto)
The old flagship 1/2.3 inch class
Like 888/865/855/845/835/820/801/800/8064, just showing up their numbers is a memory, a mysterious string engraved into the DNA of the machine circle: IMX135/214/298/386/362/363/586/686/600/700
IMX377, 1/2.3-inch, 12.2MP, 1.55μm (cmOS originally designed for drones, used in the 2016 HTC 10, the last Nexus 5X/6P main camera)
IMX378, 1/2.3-inch, 12.3MP, 1.55μm (2016 Eye of the Night, seen in Xiaomi 5s, Google Pixel, and Pixel XL)
IMX380, 1/2.3-inch, 12.3MP, 1.55μm (found in Meizu 15/15 Plus, 16th/16th Plus/16X, Huawei P20/Mate 20. Its cmOS is heavily used on action cameras such as goPro)
IMX220, 1/2.3-inch, 20.7 megapixel, 1.2μm (2013 CMOS, extremely long-lived, but the technology is old, the imaging effect is not satisfactory. Sony Xperia Z1/Z2/Z3 Series, Meizu MX4/MX4 Pro/MX5)
Massive 1/2.55 inch class
Head-tail mixed with several proximity levels:
IMX230, 1/2.4-inch, 21MP, 1.12μm (the only choice for high pixels in 2015, Meizu PRO 5/PRO 6 Series, Sony Xperia XA Ultra, HTC One M9+, Lenovo Singing Lemon X3)
IMX363, 1/2.55-inch, 12.2MP, 1.4μm (dual-core focus popularizer, shined in 2018, many models are better than the IMX586.) Xiaomi Mi 8 Series/MIX 2S/MIX 3, Google Pixel 3/4/5 Series, LG G8/V40/V50/V50S Main Camera, Xperia 1/5 II and Xperia 1/5 III Ultra Wide Angle)
IMX362, 1/2.55-inch, 12.2mp, 1.4μm (old CMOS released in 2016, Google Pixel 2 series, HTC U11, vivo Xplay 6, Meizu M15/E3, Meizu 16T/17 are all in use)
Samsung S5K2L4, 1/2.55-inch, 12.2MP, 1.4μm (Samsung Galaxy S10 Series, Z Flip/Z Flip3)
Samsung SAK2L3, 1/2.6", 12.2MP, 1.4μm (Samsung Galaxy Note9)
IMX345/Samsung S5K2L3, 1/2.55", 12.2MP, 1.4μm (Samsung S9/S9+)
IMX333/Samsung S5K2L2, 1/2.55", 12.2MP, 1.4μm (Samsung S8/S8+, Note8 Main Camera, Note20U Ultra Wide Angle)
IMX260/Samsung S5K2L1, 1/2.55", 12.2MP, 1.4μm (Samsung Galaxy S7/S7 edge with Note7)
Samsung S5K2L9, 1/2.55", 12.2MP, 1.4μm (mid-range takeaway version, found in vivo X20/X21 series)
Samsung S5K2L7, 1/2.56-inch, 12.2MP, 1.4μm (low-end takeaway version, found in Redmi Note 5, Nokia 8 Sirocco, Sharp Aquos S2, etc.)
IMX240, 1/2.6-inch, 16MP, 1.22μm (2015, Samsung-specific, from the Galaxy S5 LTE-A, Note4, Note edge, has been using the legendary Galaxy S6 series and Galaxy Note5 with it)
IMX234, 1/2.6-inch, 16MP, 1.22μm (2015, witnessed LG's brief photographic brilliance. Found in LG G4/G5/V10, Nubia Z9 series)
Medieval times recall killing
iPhone 6/6s/7/8/X series, 1/3 inches, 12MP, 1.22μm (from 2014 to 2017, almost every generation has claimed sony minor changes)
iPhone 5s, 1/3-inch, 8MP, 1.5μm (2013)
iPhone 4s/5/5C, 1/3.2-inch, 8MP, 1.4μm (2011 to 2013)
iPhone 4, 1/3.2-inch, 5MP, 1.75μm (2010)
Sony IMX398, 1/2.8-inch, 16MP, 1.12μm (Green Series Minor Redesign, OnePlus 5/5T, OPPO R9s Series)
Sony IMX298, 1/2.8 inches, 16MP, 1.12μm (2016 domestic flagship standard, Huawei Mate 8, Xiaomi 5, OnePlus 3/3T, LG V20, vivo Xplay5, OPPO R9 Plus, Nubia Z11, etc.)
Sony IMX386, 1/2.9-inch, 12MP, 1.25μm (2017, Xiaomi Mi 6/Xiaomi MIX 2, Huawei Mate 10 Pro, Meizu MX6/PRO6 Plus/PRO 6S, etc.)
Sony IMX286, 1/2.9-inch, 12MP, 1.25μm (Huawei P9 series, Honor 8/V8, etc.)
Sony IMX278, 1/3.06 inch, 13MP, 1.12μm, RGBW (2015, Huawei P8/Mate S, OPPO R7 Plus, Sony Xperia XZ1/XZ2/XZ3 front, etc.)
Sony IMX 258, 1/3.06 inch, 13MP, 1.12μm (2015, Sony Xperia XA, Xiaomi 5s Plus, Redmi Note 4/4X, Nokia 8, Nubian Z17 mini, etc.)
Sony IMX214, 1/3.06 inches, 13.51 megapixels, 1.12μm (2014 Classic, HTC One M8/A9/Butterfly 2, Prince Nexus 6, Xiaomi 4, OnePlus 1, OPPO Find 7, Generation Off-gear Domestic Photo Peak Vivo Xshot, Huawei Mate 7/G7/P7, Honor 6/5X/4C, Nubia Z7 Series)
Sony IMX135, 1/3.06 inches, 13.42 megapixels, 1.12μm (the first flagship royal CMOS in public view, Samsung Galaxy S4/note3, LG G2/G3/G Flex, Sony Xperia Z, legendary original Moto X, Xiaomi Mi 3)
