Avalon 1246 miner evaluation

In September 2020, canaan, a veteran BTC mining machine manufacturer, released the latest generation of Avalon series Avalon 1246 large-capacity BTC miners. Avalon1246 mining machine set Canaan technology nearly ten years of BTC mining machine R & D and production experience, is the Avalon series of mining machine eleventh generation products.

Official parameters of the Avalon1246BTC miner (hereinafter referred to as the A1246):

The hash rate is 90TH/s

Power consumption is 3420W

The energy efficiency ratio is 38J/Th

First, open the box and expose it

The A1246 adopts a five-layer special hard packaging box, and the sky and earth cover pearl plate are suspended and packaged, which plays a good shockproof effect. The box is printed with various compliance information. There is a mining machine in the box, a mining machine power line (16A plug), and the length of the line is about 1.5 meters.

The miner has an integrated power supply and is located on the right side of the front of the miner.

The mining machine is rectangular in length, and the chassis adopts a new alloy material, which is thick and strong, and supports horizontal and vertical placement, which is convenient and flexible.

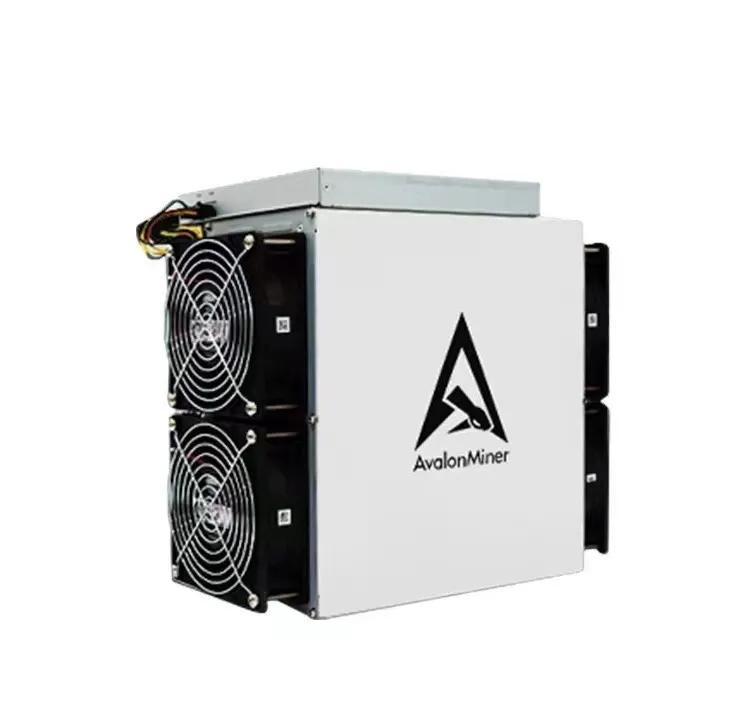

The other side of the mining machine has the Avalon trademark.

The upper part of the front of the miner from left to right are the system reset button (RESET), the network cable interface, the three-color status indicator (red, yellow and green), the function button (FUNC), and the fan power interface.

The lower part of the front of the miner sees the front of the mining machine with dual cooling fans, the specification is four-pin socket diameter 12CM fans two (12v4.5a), with a protective cover, from which the air is inlet.

The cooling fan cable and interface are four-wire (four-pin), and the contact position snaps.

The top of the mining machine is a controller, the controller adopts the self-developed Kanzhi K210 dual-core 64-bit AI chip, which is widely used in intelligent electronic devices, and the built-in encryption algorithm of the main control chip can prevent poison and theft.

The back of the mining machine is a rear dual cooling fan, the specification is four-pin socket diameter 12CM fan two (12v4.5a), with a protective cover, from which the air comes out.

The bottom of the miner.

Miner physical parameters.

Second, installation and commissioning

Before the installation runs, the following preparations need to be made.

1. Each mining machine has its own high-quality RJ45 interface network cable, and the transmission data of the network cable is easily disturbed, affecting the stability.

2. The operating power of A1246 large computing power mining machine is relatively high, reaching more than 3000w, and the mining machine is equipped with a 16A power line. You need to have your own socket with a 16A socket, because the mining machine is running for a long time, the power interface is hot for a long time, please choose a reliable quality socket from a compliant manufacturer.

3. Mining machine transportation process of individual logistics violence is inevitable, before installing the mining machine, pick up the mining machine slightly shaken, listen to identify whether there is a strange sound inside the mining machine, if there is a strange noise may occur parts falling off, timely contact the manufacturer after-sales processing.

The A1246 is very simple to install, with internet cables and power supplies.

Third, debugging

Turn on the power supply, the mining machine immediately enters the working state, the status indicator is green and bright.

There are two ways to set up mining machines, the first is to use the official cluster management software settings (support batch configuration of mining machines). Software and manual download page URL: after-sales support - Canaan Technology

The second is to use the browser of the Internet access device (mobile phone, computer) in the LAN to enter the mining machine background for settings.

After the mining machine is started in the default state, the IP address is automatically assigned, and the ip device that is newly connected to the LAN is the mining machine, and the browser enters the MINER IP address to enter the mining machine background. (For more information about the network and IP settings, please refer to this post.) https://www.cybtc.com/thread-9843-1-1.html）

First come to the landing page, you can see the Avalon logo and password login box, the default factory user name and password are "root".

The A1246 mining setup is extremely simple, with only one step: pool setup.

Fourth, testing

The evaluation is located in the southern region, and the continuous high temperature weather in recent days, with an outdoor temperature of nearly 30 degrees during the day, also simulates a summer mining environment for the mining machine of this evaluation.

The A1246 operates without complex settings such as frequency, voltage, fan speed, etc., and has been done at plug-and-play levels.

After the mining machine starts, the hash rate quickly reaches 90T in a short period of time, the fan speed is about 6800 rpm, and the average hash rate is 90.05T for long-term operation. The maximum hash rate is nearly 105T, the minimum hash rate is about 78T, and there is no large fluctuation in long-term operation.

Under the normal working condition of the mining machine, the hash rate is about 90T, and the measured power is about 3508w.

In terms of noise, when the mining machine is running stably, the fan speed is about 6800 rpm, and about 93.1 dBa is measured at 20CM from the mining machine.

In terms of temperature, when the background temperature shows 31 degrees inside the miner, the air inlet is measured at 26.3 degrees.

The air outlet was measured at 28 degrees.

The mining machine chassis measured 29 degrees.

Five, summary

1. Avalon1246 mining machine is solidly worked, with its own power supply, the mining machine can be placed horizontally and vertically to facilitate large-scale deployment of the mine, 90T super computing power, smaller space deployment of greater computing power.

2. Extremely simple installation, plug and play, one-step setup, a large number of mining machines can be cooperated with the cluster software, convenient operation and maintenance.

3. The controller has a built-in AI chip, with strong security performance, combined with the running system can automatically identify malicious viruses, to prevent the mining machine computing power from being stolen.

4. Stable operation, high efficiency heat dissipation of front and rear fans, self-regulating mining guardian system, long-term running computing power of 90T, the same as the official parameters.

5. Ultra-low energy consumption ratio, high performance 38.8J/T energy consumption ratio is in the international leading.

6. The mining experience of Avalon1246 mining machine is impressive, simple operation, and the operation stability performance is not bad.
