Air conditioners, as a more mature home appliance now, can basically meet the characteristics of excellent workmanship, good refrigeration/heating effect, and low energy consumption, and with some more advanced needs in the user's use process, whether the control is convenient, whether the air supply is comfortable or not, and the elements that affect the use of the experience have gradually become the upgrading direction of air conditioning products. Now the traditional hanging air conditioner is generally 45 ° downward tilt angle direct blowing, especially in the summer direct blowing can obtain the most direct cool feeling, but if the long-term direct blowing will cause a certain impact on the human body, over time there will be joint soreness, headache and runny nose and other issues.
In order to further improve the impact of this direct blowing on people, in April this year, Yunmi released a new air conditioning series Space, its geometric panel design gets rid of the traditional way of hanging up, "AI global wind" This innovative design, but also with sliding air flotation panel to achieve four-dimensional circular air flow, four-dimensional global air supply so that air conditioning has a more comfortable and natural air supply effect. Next, we will conduct a detailed evaluation of this Yunmi AI global air conditioner Space Y.
Exterior design
The design of the Yunmi Space series air conditioner was personally carried out by matt Arauette, a well-known foreign designer. The simple geometric shape, three-dimensional corrugated air flotation panel, the oblique texture of the surface has a dynamic sense of air flow, and also brings a different characteristic fashion sense from traditional air conditioning.

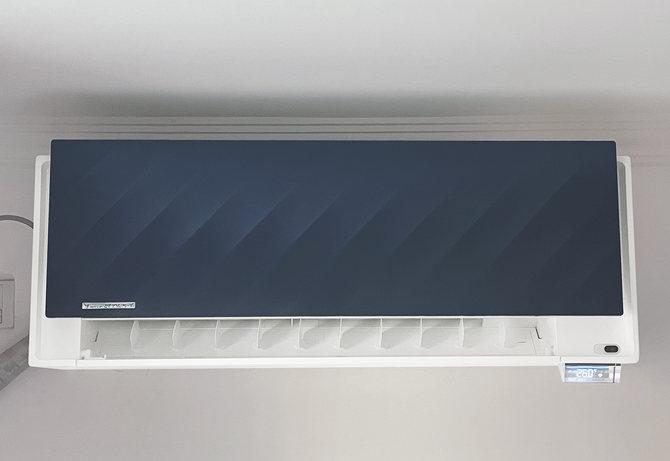

The appearance of Yunmi AI global wind air conditioner Space Y is no small difference compared to the traditional hanging machine, the middle is a movable panel, the periphery is a circle of white shell, the tone is very compatible with the white wall, the side view of this air conditioner large area of white is very simple, can be well integrated with the wall surface, the white shell also highlights the front panel, plus the wavy twill, so that the entire panel is more three-dimensional effect.
The appearance of The Cloud Meter AI Global Wind Air Conditioning Space Y
The lower left corner of the panel is printed with Yunmi's brand LOGO, which is a very conspicuous model label label "5G IoT Space Y". There is a triangular transparent suspension display at the bottom of the fuselage, which can display the temperature, WI-FI link and other states through the refraction display of the diamond mirror, and has a lighting effect with AI voice, giving the user a very obvious voice operation interaction feedback.
This screen is also equipped with a light sensor, which can automatically adjust the display brightness of this suspended screen according to the light induction of the environment, and can even be opened and closed in a very dark or very bright environment, which can ensure that the information is clear and will not appear very dazzling in the low light environment.
Actual use test
The Yunmi AI global air conditioner Space Y we evaluated is a 1.5-horsepower wall-mounted air conditioner with a rated cooling capacity of 3500W, a customized heat of 4900W, and an indoor unit circulating air volume of 650m3/h. As a 1.5-horse air conditioner, it is suitable for rooms of about 16 to 26 square meters, that is, the bedroom, study or small living room at home can be directly covered.
Yunmi AI global wind air conditioner Space Y is equipped with a full DC inverter compressor, which has the characteristics of fast refrigeration, low noise, long life and more energy saving.
AI global wind is a major feature of the Yunmi Space series. Yunmi AI global wind air conditioner Space Y adopts "AI global wind" airflow technology, by adjusting the internal air duct and air flow distribution of the air conditioner, the upper and lower left and right air is out, thus achieving the effect of the warm field layout of the whole room.
The outermost panel of the Yun Mi AI Global Air Conditioning Space Y is called "Sliding Air Flotation Panel", which slides according to the corresponding settings. When booting up and entering the corresponding refrigeration mode, the panel will slide to the top, exposing the internal air outlet, the air outlet panel is very large, with the bottom wind shield, you can blow the air more powerfully. In global wind mode, the panel drops back into place, allowing the wind to blow around the panel.
Through the design of this air flotation panel, Yunmi air conditioner Space Y can achieve the following three types of airflow:
1, high-altitude cold field air flow, this way the air flow will flow along the roof, the horizontal supply air can reach 9m, the refrigeration air is transmitted along the upper position, and can quickly spread down to the entire room, there is no 45 degree angle direct blowing human body problem. Compared with the common installation of "air conditioning wind flaps" to change the angle of direct blowing air flow, this simple and rough solution can greatly improve the cooling efficiency of the room. Moreover, the cold air is transmitted down from the roof, which can achieve uniform dissemination without the feeling of uneven sensation in different positions.
2, four-dimensional circular air flow, that is, AI global wind, the panel around the comfortable wind, this wind field will not have the problem of direct blowing people, comfortable and natural non-sensory wind is more comfortable. The airflow of Yunmi AI global wind air conditioner Space Y is that after the room temperature reaches the temperature suitable for the body, the professional suspension panel is used to open the wind blowing up and down, left and right in all directions. This creates a sense of comfort without wind. This method also solves the problem of cold loss of small hole soft air. It is possible to achieve more efficient air-conditioning propagation efficiency without direct blowing.
3, vertical heat field air flow, heating, hot air blowing vertically down to the ground, warm air from the ground up to spread, to solve the traditional air conditioning "hot air gathering roof can not go down the heating pain points."
In addition to the motion design of the front panel, the air duct design inside the Yun mi air conditioner Space Y is also very reasonable, the bottom wind shield area is very large, and can be moved at multiple angles, with the position of the front baffle to move, can further enhance the fan function. Removing the outer baffle, we can see the transmission device that supports the movement of the panel inside, as well as the blades and air ducts inside the air outlet.
AI mode of air conditioning
In terms of voice interaction, Yun mi air conditioner Space Y supports continuous dialogue of far-field voice. After waking up the AI with the "Yun Mi air conditioner" command, the AI will be on standby for a period of time, during which the user can always talk to the AI, without having to call a small dimension to wake up before saying each command; if the user has no instructions, after a while the AI will say "I went to rest" and re-enter sleep. This wake-up-instruction can be repeated for each subsequent use.
We used voice to test the most commonly used basic functions such as booting, setting the temperature, opening the global wind, sweeping the air, saving mode, turning off the lights, etc. Yunmi AI global wind air conditioner Space Y can respond quickly after receiving, the continuous command implementation is also no problem, and the screen prompt light as feedback, the overall interactive experience is very smooth.
Yunmi AI global air conditioning Space Y support mobile phone APP control, after downloading the "Yunmi Mall" APP, the air conditioner is successfully connected, and it can be operated. Yunmi air conditioner Space Y APP is rich in functions, conventional mode switching, temperature, wind speed, wind direction, timing, etc., as well as sterilization, self-cleaning, you can also switch the light of the diamond mirror display.
Noise test
Next we test the air conditioner for running noise and noise. When sleeping at night, the operating noise of the air conditioner will be more obvious, and the silent operation is also a just need for the user.
When the air conditioner is not turned on, we first measured the indoor reference noise of about 32.7 decibels.
Since noise interference is only noticeable during sleep, we focused on measuring the global wind patterns used for sleep. Set the Yunmi AI global air conditioner Space Y to the global wind mode, and gradually adjust the air volume from the smallest first gear to the largest fifth gear, at this time, at this time, the noise is measured at a distance of about 48.8 decibels from the air conditioner outlet.
Through the above tests, it can be seen that the Yunmi AI global wind air conditioner Space Y has very low noise when running in the global wind mode, and the lowest gear is almost as quiet as not turning on, even if the maximum air volume is the fifth gear, the air outlet position is only about 16 decibels higher than the indoor benchmark noise. If it is a normal rest, the noise can be further controlled when there is a certain distance from the air conditioner, and the maximum air volume will not have a great impact on sleep and rest.
Review summary
In terms of appearance design, Yunmi AI global wind air conditioning Space Y adopts new design elements such as three-dimensional corrugated air flotation panel and diamond mirror refraction display, which is more distinctive than the traditional air conditioner hanging up appearance, breaking the traditional monotonous air conditioning appearance. Moreover, in terms of functions, the AI far-field voice, AI global wind and other functions used by Yunmi AI Global Air Conditioning Space Y have greatly improved the user's experience, and some pain points such as direct air conditioning, low refrigeration efficiency and uneven space temperature have been specially optimized. Starting from the basic needs of users, Space Y solves the user's use of air conditioner power through innovation, and is a smart air conditioner worthy of recommended experience. At present, this product has been listed, the e-commerce price is 3399 yuan (11.11 promotion to the hand price of 2999 yuan), interested friends can pay attention to the next.
