Measured data verification: Tianji 8100-MAX compared to Snapdragon 8, OnePlus's good reputation was "messed up"
OnePlus Ace performance and game measurements
The First OnePlus Ace is equipped with the exclusive Custom Chip of Tianji 8100-MAX, which is built on the TSMC 5nm process and has a 25% higher CPU energy efficiency than the previous generation. It uses an octa-core CPU architecture with a Gpu for the Arm Mali-G610 MC6.

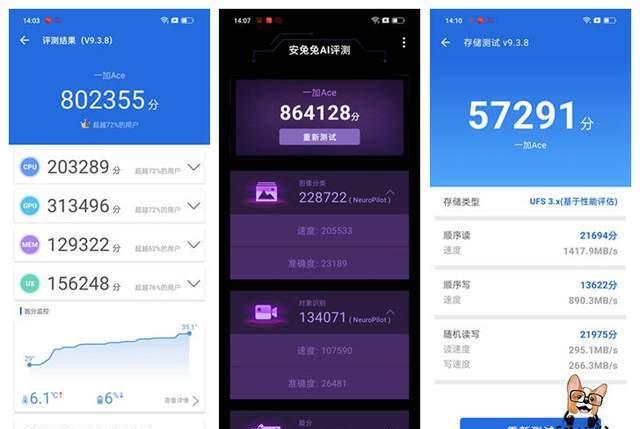

According to the past practice, the technology dog first chose to use the two running score software of An TuTu and Master Lu to do the running score test (open the performance mode). The measured score of AnTutu of the Small One Plus Ace is 802355 points, and Master Lu is 858914 points, and the overall performance is in line with its positioning.
The test game conducts continuous uninterrupted measurement of the "Original God" game and opens the performance mode, conducts the actual measurement of 60 frames of "Original God" under the 30-minute extreme picture quality, and records the final average frame rate, power consumption performance, and delay number through the monitoring software.
It should be noted that the technology dog test character level is 50, the test model is 4 daily tasks + quests + running charts, the skill release is extremely frequent during the test and the character switching operation is also extremely frequent during the battle, the purpose of this is to maximize the high load to test the pressure resistance of oneplus Ace. The specific performance of the OnePlus Ace over a game length of about 30 minutes (full effects 60 frame mode) is as follows:
In this extremely harsh measured environment, it was found that the OnePlus Ace ran an average frame rate of 37.9fps in the extreme picture quality 60 frame mode, the average temperature of the front of the fuselage was 45 °C, the average temperature of the back of the fuselage was 46 °C, the average power consumption was 2709mW, the overall heat distribution was relatively uniform, and the temperature control of the whole machine was in line with its positioning performance.
Above: Frontal fuselage temperature
Above: Temperature on the back of the fuselage
Through the above about 30 minutes of game length presented frame rate chart, the game runs in about 1 minute or so to appear frame drop phenomenon, at this time the technology dog is carrying out the first daily task, in the game after facing multiple enemies after the game characters release skills to fight, at this time the screen appears more obvious frame drop and stutter phenomenon, the game after about 6 minutes of average frame rate at about 40fps, such as triggering the battle, the average frame rate of the game reached 22fps, and the phenomenon of Caton dropping frame also occurs frequently, It is currently the worst performing model on the MediaTek Tianji 8100-MAX tested by the Technology Dog (there is no one).
OnePlus 10 Pro
Let's take a look at the performance of one plus 10 Pro in "Original God", the game "Original God" can be said to be the nightmare of the current flagship mobile phone, no mobile phone can run at full frame, one plus 10 Pro in about 30 minutes of game time performance Specific results are as follows:
It should be noted that the technology dog test character level is 50, the test model is 4 daily tasks (a total of 26 minutes) The skill release is extremely frequent during the test and the character switching operation during the battle is also extremely frequent, the purpose of this is to maximize the anti-pressure ability of the OnePlus 10 Pro through high load, and at the same time open the "e-sports mode" to maximize the release of mobile phone performance.
Above: Performance dog monitoring data
In the measured environment, it was found that the oneplus 10 Pro ran an average frame rate of 46.5fps in the extreme picture quality 60 frame mode, the average temperature of the front of the fuselage was 44.4 °C, and the average temperature of the back of the fuselage was 40.8 °C.
During the game, the bottom speaker is often obscured by the right hand, and the sound experience is greatly reduced, and players who like to listen to game music and sound effects with the speaker need to pay attention to this problem.
Above: Frame rate representation
Why doesn't the OnePlus 10 Pro's long-term game frame rate performance exceed 50fps in extreme graphics?
Through the above about 26 minutes of game length presented frame rate chart, the game runs in about 7 minutes or so to appear frame drop phenomenon, at this time the technology dog is in the second daily task, in the game after facing multiple enemies after the game characters release skills to fight, at this time the screen appears more obvious frame drop and stutter phenomenon, the game about 9 minutes later is to complete the second daily task (battle time of about 2 minutes), frame rate returned to the initial state of the game, However, after 1 minute (the total length of the game is 10 minutes), there is a phenomenon of frame drop, and the smoothness of the game is significantly reduced.
Through the thermal imager for actual measurement, it was found that the maximum average temperature of the top inner screen of the one plus 10 Pro fuselage and the rear camera module was 45.3 °C and 44.3 °C, respectively, under the high load pressure under the extreme picture quality of "Original God", the fuselage temperature was relatively high, for the heavy players who ran the game "Original God" for a long time, it is best to plug in a third-party radiator, and the high temperature environment brought by the summer is larger, please be aware.
Test Summary:
OnePlus 10 Pro in the test of "Original God" in line with its positioning, energy efficiency control is also relatively good, 2754.7mW performance is also in many flagship machines performance, the average number of stutters per ten minutes is 51.5, the average number of severe stutters per ten minutes is 40.5, in terms of game fluency needs to be improved.
OnePlus Ace performed poorly in the test of "Original God", the energy efficiency control aspect is relatively high, and the performance of 2790mW is also relatively high in the same gear model, with an average of 77.2 stutters per ten minutes and an average of 57.9 severe stutters per ten minutes, which needs to be improved in terms of game fluency.
Finally, let's talk about the purchase suggestions, if you are a heavy "Original God" player, a plus Ace is not suitable for you, you can choose the Redmi K50 or the real me GT Neo3, in the process of comparison testing, the two mobile phones are significantly better than one plus Ace in the game experience If you are a fan of one plus, then one plus Ace may be the best upgrade choice at present, but the same price segment of the same type of model to compare, one plus Ace overall performance bottom, not recommended to start, please know!
