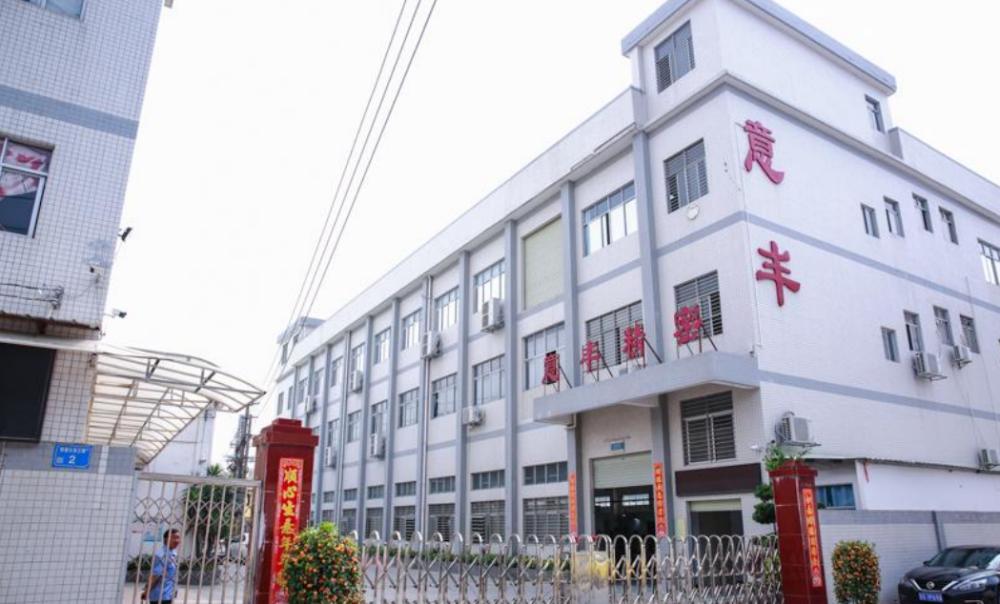

Yifeng Precision Electronics Co., Ltd. was established in September 2016, integrating product research and development, production and sales, specializing in the manufacture of Type-C electronic connectors. The factory is located in Humen Town, Dongguan City, Guangdong Province, known as the "World Factory", covering an area of 15,000 square meters.
The company has realized fully automated production and testing, and is committed to creating a high-quality, efficient production management model. At the same time, it has complete product testing equipment and perfect quality management system.
The company has passed ISO9001 quality management system certification, Type-C series of products have passed TID certification, is a member of the USB Connector Association (member number: 12481).
Yifeng Precision has set up a Pearl River Delta office in Shenzhen, a Yangtze River Delta office in Kunshan City, Jiangsu Province, and an international trade division to expand overseas markets.
Male SMT workshop
Automated assembly workshop
Press shop
It is understood that the main product lines of Yifeng Precision include Type-C male series, Type-C female series, Micro USB series, FG female series, etc.
Type-C male: 12pin series, 16pin series, 24pin high frequency USB 3.1 series, PD fast charge 100W series, PD3.1 fast charge 240W series, etc.;
Type-C mother seat: 14pin/16pin vertical insert, 16/24pin vertical sticker, 24pin front and rear sticker/double row sticker, 14pin side insert, 16Pin3 times molding integrated flat sticker, sink plate 1.6/0.8 specification model, 6Pin flat sticker, 6 pin vertical insert, 6 pin vertical sticker, etc.;
Micro USB series: full sticker, front plug-in and post-sticker, four-pin full plug- and so on;
FG Mother seat series: 10Pin FG mother seat, 4Pin FG mother seat, sink plate 1.6/0.8 specifications, FG mother seat TWS vertical 8pin/10pin 6.5/5.5/5.0/4.8 mother seat, etc.
In view of the rapid development of the USB PD fast charging market, Yifeng Precision has released a number of new Type-C male/female products to meet the needs of various line-end manufacturers in the market.
Yifeng Precision 100W Type-C male head
Yifeng Precision 100W Type-C male head is equipped with 16 solder joints, with its own E-Marker chip, which can not only support 20V 5A 100W fast charging under the USB PD3.0 fast charging protocol, but also meet the USB3.2 Gen2×2 20Gbps high-speed transmission, suitable for Thunderbolt or USB4 data cable design.
In terms of workmanship, the shell of this Type-C male head adopts spot welding treatment to prevent instantaneous breakage and shell drop; the terminal adopts 7025 high conductivity copper, the minimum 3U gold plating, the theoretical maximum current can exceed 8A; it has also passed the USB-IF association certification, TID number: 7237, in addition, the end bullet is high, meeting the size of the association, and the high-frequency differential impedance meets the association standard.
Yifeng Precision 240W Type-C male head
Yifeng Precision specially for the APPLICATION NEEDS OF USB PD3.1 fast charging launched this 240W Type-C male, which also adopts its own E-Marker chip design, mainly for charging, and can support 28V, 36V, 48V and other voltage specifications. In terms of material and workmanship, this Type-C male head also adopts shell spot welding treatment to prevent instantaneous breakage and shell loss; the terminal is 7025 high conductivity copper, the minimum 3U" gold plated, and the theoretical maximum current can exceed 8A.
eFST Precision 14/16Pin Vertical Type-C Mother Seat
Yifeng Precision 14/16Pin vertical Type-C mother seat height is 10.0, 10.5 and other sizes, to meet the needs of customers a variety of structures, the terminal using 7025 high conductivity copper, the theoretical maximum current can be over 8A. Full CCD detection PIN needle size, avoid crooked Pin, 100% electrical measurement shipment, 100% elimination of gluing, short circuit. In addition, the series adopts sleeve plugging and taping shipment to meet the automatic placement of the placement machine and improve production efficiency.
Yifeng Precision 16Pin Vertical SMD Type-C Mother Seat
Yifeng Precision 16Pin vertical SMD Type-C mother seat series has a height of 6.5/6.8 and other sizes, to meet the needs of customers a variety of structures, terminal 7025 high conductivity copper, the theoretical maximum current can exceed 8A; full CCD detection PIN pin size, 100% electrical measurement shipment, 100% elimination of gluing, short circuit. The use of sleeve plugs, taping and shipping, to meet the placement machine automatic placement, improve production efficiency.
Yifeng Precision 24Pin Type-C Mother Seat
Yifeng Precision 24Pin Type-C female double-row paste, meets the association's high-frequency standards, the terminals use 7025 high conductive copper, the theoretical maximum current can exceed 8A. Full CCD detection PIN needle size, 100% electrical measurement shipment, 100% elimination of gluing, short circuit.
Yifeng Precision 24Pin Type-C mother seat front plug and rear sticker
Yifeng Precision 24Pin Type-C mother seat front plug and rear sticker meets the association's high-frequency standards, the terminal adopts 7025 high conductivity copper, and the theoretical maximum current can exceed 8A. Full CCD detection PIN pin size, 100% electrical measurement shipment, 100% elimination of gluing, short circuit.
Yifeng precision 24Pin Type-C mother seat splint model
Yifeng Precision 24Pin Type-C mother clamp model meets the high-frequency standards of the association, the cleat has 0.8/1.0, the length has 9.3/10.5 and other sizes, to meet the various structural needs of customers. The terminals use 7025 high conductivity copper, and the theoretical maximum current can exceed 8A. Full CCD detection PIN needle size, 100% electrical measurement shipment, 100% elimination of gluing, short circuit.
eFCO Precision 14Pin Type-C mother seat side insert
Yifeng Precision 14Pin Type-C female seat side plug terminal adopts 7025 high conductive copper, and the theoretical maximum current can exceed 8A. Full CCD detection PIN needle size, avoid crooked Pin, 100% electrical measurement shipment, 100% elimination of gluing, short circuit. The use of sleeve plugs, taping and shipping, to meet the placement machine automatic placement, improve production efficiency. There is also an additional version to meet the various structural needs of customers.
Charging head net summary
Yifeng Precision is a well-known connector supplier in the industry, mainly engaged in Type-C, Micro USB, FG connectors, and many of its series models have entered the supply chain of well-known brands. With the development of the USB PD fast charging market, Yifeng Precision gives full play to its own advantages, jointly with the original chip factory, launched a cable special connector with its own E-Marker chip, simplifying the design of 100W PD3.0 fast charging cable and 240W PD3.1 fast charging cable, and accelerating the product listing of cable manufacturers.
In addition, Yifeng Precision has also laid out a variety of Type-C mother seat products, providing a rich choice for fast charging chargers, car chargers, outdoor power supplies, mobile power supplies, docking stations, wireless charging and other smart wearable products.
