Installing the machine for luxury games is a very reasonable requirement. The independent DIY installation highlights the personality and can also be matched with the hardware at will. The configuration list of this friend below is for the purpose of "luxury games" and wants to form a small steel cannon type PC.

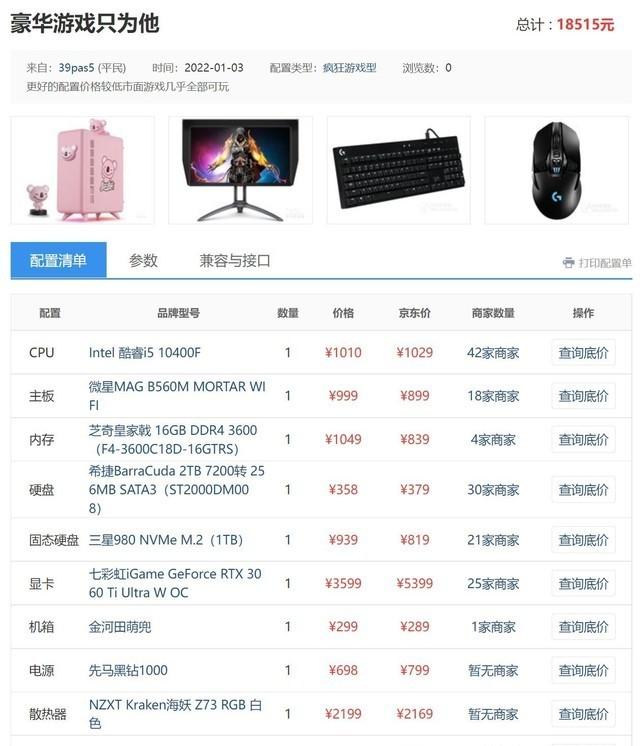

Configuration slip details
Core i5-10400F
In terms of board U, the configuration single choice is the more affordable Intel Core i5 10400F. The Intel Core i5-10400F is a midrange entry processor that dramatically improves the single-core performance of the new Core processor, but requires an updated LGA 1200 interface motherboard. It has a 6-core, 12-thread processor with a CPU clock of 2.9GHz, a full-core turbo frequency of 4.0GHz, a maximum turbo frequency of 4.3GHz, and a thermal design power consumption of 65W. This processor is suitable for use with the same mid-range B460 motherboard, but the B560 motherboard also supports it.
MSI MAG B460M MORTAR
At present, the B460 board U set with the 10th generation i5 can be started at a low price of less than 1700 yuan, and it can also have a good experience, so the author still recommends the B460 series motherboard. MSI MAG B460M MORTAR mortar as a people-friendly model, the use of 12 + 1 + 1 phase digital power supply design, and with the third generation of titanium inductors, can fully release the performance of the tenth generation of Core processors, i5-10400F can naturally meet, the two are suitable for creating an entry-level game console.
In terms of hard disks, the configuration list selects the Samsung 980+2TB Seagate mechanical disk with a capacity of 1TB, which is used as a system disk + large-scale game running disk, and the mechanical disk is used to store video files.
Samsung 980 SSD
Samsung 980 SSD is a mainstream M.2 SSD, its biggest feature is the use of dramless design, while further reducing the product volume, the use of optimized HMB technology, to maintain excellent performance, according to the test, Samsung 980 maximum continuous read speed of 3500MB / s, almost the peak performance under the PCIe3.0 protocol.
In addition, the Samsung 980 built-in a new generation of Samsung R&D master chip, and a higher stacking layer of 3D NAND particles, while ensuring absolute performance, the built-in intelligent trubowrite mechanism can provide a more reasonable and scientific cache design for the continuous write of SSDs, so that SSDs can maintain peak performance for a long time without significant performance fluctuations.
In terms of graphics, this configuration single selection is the Rainbow 3060Ti. It uses the "reflow soldering" process, 2 * 6mm and 2 * 8mm a total of four composite heat pipes and heat dissipation fins without gaps in the formation of one, fully optimize the heat dissipation efficiency, close to the heat dissipation base. In addition, it also adopts the DP 1.4a*3 + HDMI 2.1 4-interface design, and the new HDMI 2.1 interface can support single-wire 8K video output.
iGame GeForce RTX 3060 Ti Ultra W OC
This graphics card uses the NVIDIA Ampere architecture and uses the GA104 chip, which is the same chip as the RTX 3070 and RTX 3070 Ti, so it is much stronger in performance than the RTX 3060 using GA106, which is definitely a dessert card for players. In terms of performance, in most AAA games, it can meet the smooth operation of 2K resolution, and even some games can ensure the smooth operation of 60 frames under 4K resolution, which is enough for daily games.
In terms of power supply, such a configuration choice 650w power supply is enough, and the configuration of a single 1000w power supply is too luxurious. The author recommends the Hangjia WD650P dual certified power supply. In addition to supporting power ratings up to 650W, it is also CCC+CQC dual certified.
Hangjia WD650P power supply
Hangjia WD650P power supply adopts active PFC+LLC resonance +DC toDC architecture, mature architecture with solid materials is also the basis for power supply to achieve platinum performance, and the PCB with double-panel design can better layout components. In terms of conversion efficiency, Hangjia WD650P power supply has a good performance, the power supply has passed the 80 PLUS white gold certification, 1 measured in different loads have reached the white gold performance, has a very good energy-saving performance.
Overall, this set of configurations to play mainstream games is definitely enough, part of the AAA masterpiece can also run smoothly, for a small chassis, the size determines that the heat dissipation effect is certainly not as good as the ordinary tower chassis, but in terms of appearance and performance, we still have to make a certain compromise, overall, the author gives this configuration a single 8 points, according to this slight modification can be grouped on a good ITX small host, friends in need can make a reference.
The ID of the configuration sheet is here
If you have questions about your saving list, or do not know whether the price of the matched configuration order is appropriate, you can send your analog saving configuration list ID in the comment area and @ author, we will be the first time to help you.
(7844953)
