Prometheus監控學習筆記之使用JMX Exporter監控微服務JVM

Prometheus JMX Exporter 微服務 JVM

0x00 概述

本文實作微服務JVM監控的方法為，使用volume HostPath挂載的JMX Exporter的方式在容器内以in-process的方式實作對微服務的JMV監控。

主要坑點為HostPath挂載JMX Exporter javaagent導緻微服務無法啟動。

0x02 部署

2.1 下載下傳JMX Exporter javaagent包

$ mkdir -p /tmp/jmx_exporter
$ wget -O /tmp/jmx_exporter/jmx_prometheus_javaagent-0.17.0.jar https://repo1.maven.org/maven2/io/prometheus/jmx/jmx_prometheus_javaagent/0.17.0/jmx_prometheus_javaagent-0.17.0.jar

2.2 配置YAML檔案

此處鏡像采用Deployment+Tomcat的鏡像作為樣例，自測的時候注意及時更換鏡像；

'''
1. 采用HostPath的方式，将下載下傳的JMX Exporter的jar包挂載到伺服器容内啟動；
2. JMX Exporter的配置檔案以configmap的形式挂載到服務容器内；
'''

Tomcat服務的Deployment檔案：

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat-with-jvmExporter
  namespace: default
  labels:
    app: tomcat-with-jvmExporter
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tomcat-with-jvmExporter
  template:
    metadata:
      labels:
        app: tomcat-with-jvmExporter
    spec:
      nodeSelector:
        kubernetes.io/hostname: docker49
      restartPolicy: Always
      containers:
      - name: tomcat-with-jvmExporter
        image: tomcat:9.0.54-jdk8-openjdk
        imagePullPolicy: Always
        env:
        # JVM env
        - name: JAVA_OPTS
          value: "-Xms500m -Xmx500m -javaagent:/jmx_prometheus_javaagent-0.17.0.jar=5555:/jmx/prometheus-jmx-config.yaml"
          #value: "-Xms500m -Xmx500m"
        volumeMounts:
        - mountPath: /jmx_prometheus_javaagent-0.17.0.jar
          name: jmx-prometheus-javaagent
        - mountPath: /jmx
          name: prometheus-jmx-config
        resources:
          limits:
            cpu: 2000m
            memory: "4096Mi"
          requests:
            cpu: 2000m
            memory: "4096Mi"
      volumes:
      - name: jmx-prometheus-javaagent
        hostPath:
          path: /tmp/jmx_prometheus_javaagent-0.17.0.jar
      - configMap:
          name: prometheus-jmx-config
        name: prometheus-jmx-config

'''
1. 通過hostpath挂載的方式，對于pod來說，不一定會排程到這個節點伺服器上；

2. 如果pod沒排程到有這個jar包的伺服器上，在啟動pod的時候，會發現pod挂載了jar包和配置檔案，但是無法執行這個jar包；

3. 是以需要在yaml中通過nodeSelector指定pod排程到固定節點上，這樣hostPath才能取到檔案，pod才會成功挂載這個檔案并正常運作

4. 上面我們将jar包下載下傳到了docker49這台機器上，是以指定将tomcat的pod排程到docker49，注意紅字部分

'''

未配置nodeSelector的話，會出現如下報錯：

'''
Error opening zip file or JAR manifest missing : /jmx_prometheus_javaagent-0.17.0.jar
Error occurred during initialization of VM
agent library failed to init: instrument
'''

直接搜尋以上報錯日志，StackOverFlow上大部分都會說是權限問題，但是無論你改成755還是777都一樣，配置nodeSelector，将pod排程到JMX Exporter jar包的機器上即可。

Tomcat服務的Service檔案：

apiVersion: v1
kind: Service
metadata:
  name: tomcat-with-jvmExporter-svc
  namespace: default
  labels:
    app: tomcat-with-jvmExporter-svc
  annotations:
    prometheus.io/port: "5555"
    prometheus.io/jvm: "true"
spec:
  type: NodePort
  ports:
  - port: 8080
    name: tomcat-with-jvmExporter-svc
    targetPort: 30899
    nodePort: 30899
  - name: jmx-metrics
    port: 5555
    protocol: TCP
  selector:
    app: tomcat-with-jvmExporter

Tomcat服務的configmap檔案（此處為友善測試采用最小化配置檔案，官方配置檔案樣例）：

apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-jmx-config
  namespace: default
data:
  prometheus-jmx-config.yaml: |
#    lowercaseOutputLabelNames: true
#    lowercaseOutputName: true
    rules:
    - pattern: ".*"
#        - pattern: 'Catalina<type=GlobalRequestProcessor, name=\"(\w+-\w+)-(\d+)\"><>(\w+):'
#          name: tomcat_$3_total
#          labels:
#            port: "$2"
#            protocol: "$1"
#          help: Tomcat global $3
#          type: COUNTER
#        - pattern: 'Catalina<j2eeType=Servlet, WebModule=//([-a-zA-Z0-9+&@#/%?=~_|!:.,;]*[-a-zA-Z0-9+&@#/%=~_|]), name=([-a-zA-Z0-9+/$%~_-|!.]*), J2EEApplication=none, J2EEServer=none><>(requestCount|maxTime|processingTime|errorCount):'
#          name: tomcat_servlet_$3_total
#          labels:
#            module: "$1"
#            servlet: "$2"
#          help: Tomcat servlet $3 total
#          type: COUNTER
#        - pattern: 'Catalina<type=ThreadPool, name="(\w+-\w+)-(\d+)"><>(currentThreadCount|currentThreadsBusy|keepAliveCount|pollerThreadCount|connectionCount):'
#          name: tomcat_threadpool_$3
#          labels:
#            port: "$2"
#            protocol: "$1"
#          help: Tomcat threadpool $3
#          type: GAUGE
#        - pattern: 'Catalina<type=Manager, host=([-a-zA-Z0-9+&@#/%?=~_|!:.,;]*[-a-zA-Z0-9+&@#/%=~_|]), context=([-a-zA-Z0-9+/$%~_-|!.]*)><>(processingTime|sessionCounter|rejectedSessions|expiredSessions):'
#          name: tomcat_session_$3_total
#          labels:
#            context: "$2"
#            host: "$1"
#          help: Tomcat session $3 total
#          type: COUNTER

2.3 All in One yaml檔案

tomcat-with-jvmExporter-AllinOne.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat-wtih-jvmExporter
  namespace: default
  labels:
    app: tomcat-with-jvmExporter
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tomcat-with-jvmExporter
  template:
    metadata:
      labels:
        app: tomcat-with-jvmExporter
    spec:
      nodeSelector:
        kubernetes.io/hostname: docker49
      restartPolicy: Always
      containers:
      - name: tomcat-with-jvmExporter
        image: tomcat:9.0.54-jdk8-openjdk
        imagePullPolicy: Always
        env:
        # JVM env
        - name: JAVA_OPTS
          value: "-Xms500m -Xmx500m -javaagent:/jmx_prometheus_javaagent-0.17.0.jar=5555:/jmx/prometheus-jmx-config.yaml"
          #value: "-Xms500m -Xmx500m"
        volumeMounts:
        - mountPath: /jmx_prometheus_javaagent-0.17.0.jar
          name: jmx-prometheus-javaagent
        - mountPath: /jmx
          name: prometheus-jmx-config
        resources:
          limits:
            cpu: 2000m
            memory: "4096Mi"
          requests:
            cpu: 2000m
            memory: "4096Mi"
      volumes:
      - name: jmx-prometheus-javaagent
        hostPath:
          path: /tmp/jmx_prometheus_javaagent-0.17.0.jar
      - configMap:
          name: prometheus-jmx-config
        name: prometheus-jmx-config
---
apiVersion: v1
kind: Service
metadata:
  name: tomcat-with-jvmExporter-svc
  namespace: default
  labels:
    app: tomcat-with-jvmExporter-svc
  annotations:
    prometheus.io/port: "5555"
    prometheus.io/jvm: "true"
spec:
  type: NodePort
  ports:
  - port: 8080
    name: tomcat-with-jvmExporter-svc
    targetPort: 30899
    nodePort: 30899
  - name: jmx-metrics
    port: 5555
    protocol: TCP
  selector:
    app: tomcat-with-jvmExporter
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-jmx-config
  namespace: default
data:
  prometheus-jmx-config.yaml: |
    #lowercaseOutputLabelNames: true
    #lowercaseOutputName: true
    rules:
    - pattern: ".*"
#        - pattern: 'Catalina<type=GlobalRequestProcessor, name=\"(\w+-\w+)-(\d+)\"><>(\w+):'
#          name: tomcat_$3_total
#          labels:
#            port: "$2"
#            protocol: "$1"
#          help: Tomcat global $3
#          type: COUNTER
#        - pattern: 'Catalina<j2eeType=Servlet, WebModule=//([-a-zA-Z0-9+&@#/%?=~_|!:.,;]*[-a-zA-Z0-9+&@#/%=~_|]), name=([-a-zA-Z0-9+/$%~_-|!.]*), J2EEApplication=none, J2EEServer=none><>(requestCount|maxTime|processingTime|errorCount):'
#          name: tomcat_servlet_$3_total
#          labels:
#            module: "$1"
#            servlet: "$2"
#          help: Tomcat servlet $3 total
#          type: COUNTER
#        - pattern: 'Catalina<type=ThreadPool, name="(\w+-\w+)-(\d+)"><>(currentThreadCount|currentThreadsBusy|keepAliveCount|pollerThreadCount|connectionCount):'
#          name: tomcat_threadpool_$3
#          labels:
#            port: "$2"
#            protocol: "$1"
#          help: Tomcat threadpool $3
#          type: GAUGE
#        - pattern: 'Catalina<type=Manager, host=([-a-zA-Z0-9+&@#/%?=~_|!:.,;]*[-a-zA-Z0-9+&@#/%=~_|]), context=([-a-zA-Z0-9+/$%~_-|!.]*)><>(processingTime|sessionCounter|rejectedSessions|expiredSessions):'
#          name: tomcat_session_$3_total
#          labels:
#            context: "$2"
#            host: "$1"
#          help: Tomcat session $3 total
#          type: COUNTER

2.4 啟動并檢查服務

啟動服務：

kubectl apply -f tomcat-with-jvmExporter-AllinOne.yaml

檢查服務：

kubectl get svc -n default

檢查JVM Exporter是否已擷取JVM監控資料，此處docker49 ip：192.168.6.6，JVM Exporter對外nodeExporter為30566

curl 192.168.6.6:30566/metrics

如果傳回以下資料，說明已成功擷取監控資料：

jvm_threads_daemon 36.0
# HELP jvm_threads_peak Peak thread count of a JVM
# TYPE jvm_threads_peak gauge
jvm_threads_peak 80.0
# HELP jvm_threads_started_total Started thread count of a JVM
# TYPE jvm_threads_started_total counter
jvm_threads_started_total 155322.0
# HELP jvm_threads_deadlocked Cycles of JVM-threads that are in deadlock waiting to acquire object monitors or ownable synchronizers
# TYPE jvm_threads_deadlocked gauge
jvm_threads_deadlocked 0.0
# HELP jvm_threads_deadlocked_monitor Cycles of JVM-threads that are in deadlock waiting to acquire object monitors
# TYPE jvm_threads_deadlocked_monitor gauge
jvm_threads_deadlocked_monitor 0.0
# HELP jvm_threads_state Current count of threads by state
# TYPE jvm_threads_state gauge
jvm_threads_state{state="NEW",} 0.0
jvm_threads_state{state="BLOCKED",} 0.0
jvm_threads_state{state="TIMED_WAITING",} 22.0
jvm_threads_state{state="TERMINATED",} 0.0
jvm_threads_state{state="RUNNABLE",} 12.0
jvm_threads_state{state="WAITING",} 41.0
# HELP jvm_classes_currently_loaded The number of classes that are currently loaded in the JVM
# TYPE jvm_classes_currently_loaded gauge
jvm_classes_currently_loaded 18332.0
# HELP jvm_classes_loaded_total The total number of classes that have been loaded since the JVM has started execution
# TYPE jvm_classes_loaded_total counter
jvm_classes_loaded_total 18478.0
# HELP jvm_classes_unloaded_total The total number of classes that have been unloaded since the JVM has started execution
# TYPE jvm_classes_unloaded_total counter
jvm_classes_unloaded_total 146.0
# HELP jmx_config_reload_failure_created Number of times configuration have failed to be reloaded.
# TYPE jmx_config_reload_failure_created gauge
jmx_config_reload_failure_created 1.655778604558E9
# HELP jmx_config_reload_success_created Number of times configuration have successfully been reloaded.
# TYPE jmx_config_reload_success_created gauge
jmx_config_reload_success_created 1.655778604539E9
# HELP jvm_memory_pool_allocated_bytes_created Total bytes allocated in a given JVM memory pool. Only updated after GC, not continuously.
# TYPE jvm_memory_pool_allocated_bytes_created gauge
jvm_memory_pool_allocated_bytes_created{pool="Code Cache",} 1.655778606954E9
jvm_memory_pool_allocated_bytes_created{pool="PS Eden Space",} 1.655778606951E9
jvm_memory_pool_allocated_bytes_created{pool="PS Old Gen",} 1.655778606954E9
jvm_memory_pool_allocated_bytes_created{pool="PS Survivor Space",} 1.655778606954E9
jvm_memory_pool_allocated_bytes_created{pool="Compressed Class Space",} 1.655778606954E9
jvm_memory_pool_allocated_bytes_created{pool="Metaspace",} 1.655778606954E9

0x03 配置Prometheus擷取監控個資料

修改prometheus.yml配置檔案，新增JVM Exporter資料

- job_name: "jvm-ucm-config"
      honor_labels: true
      static_configs:
        - targets: ["192.168.6.6:30566"]

重新加載Prometheus配置檔案

kill -HUP $pid

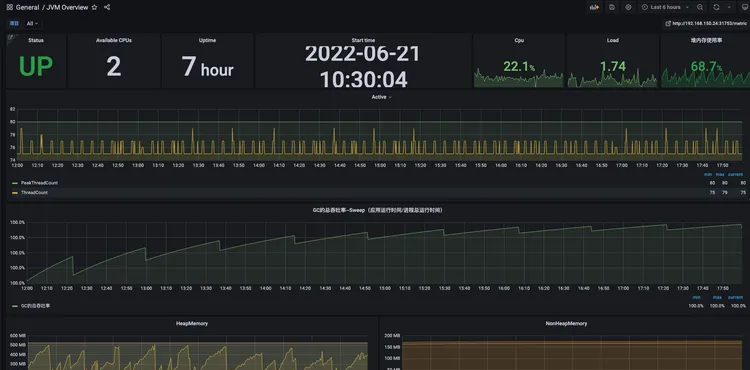

0x04 Grafana導入JVM監控面闆

推薦面闆id：11278

需要修改面闆變量，根據以上配置，變量設定為2，job+instance

0x05 參考

prometheus/jmx_exporter官方Github
