The fully integrated sensor prototype enriches the functionality of the robot hand
Tysendlow, Belgium, February 16, 2022 – Melexis, a global microelectronics engineering company, today announced the completion of a major innovation to improve the ability of robots to interact with fragile or diverse objects. Melexis introduces Tactaxis, a fully integrated haptic sensor that is compact and flexible and provides a 3D force vector acting on its surface. This innovation improves the robot's hands and grippers, enabling delicate operations like picking fruit. The technology has been successfully implemented in functional prototypes.

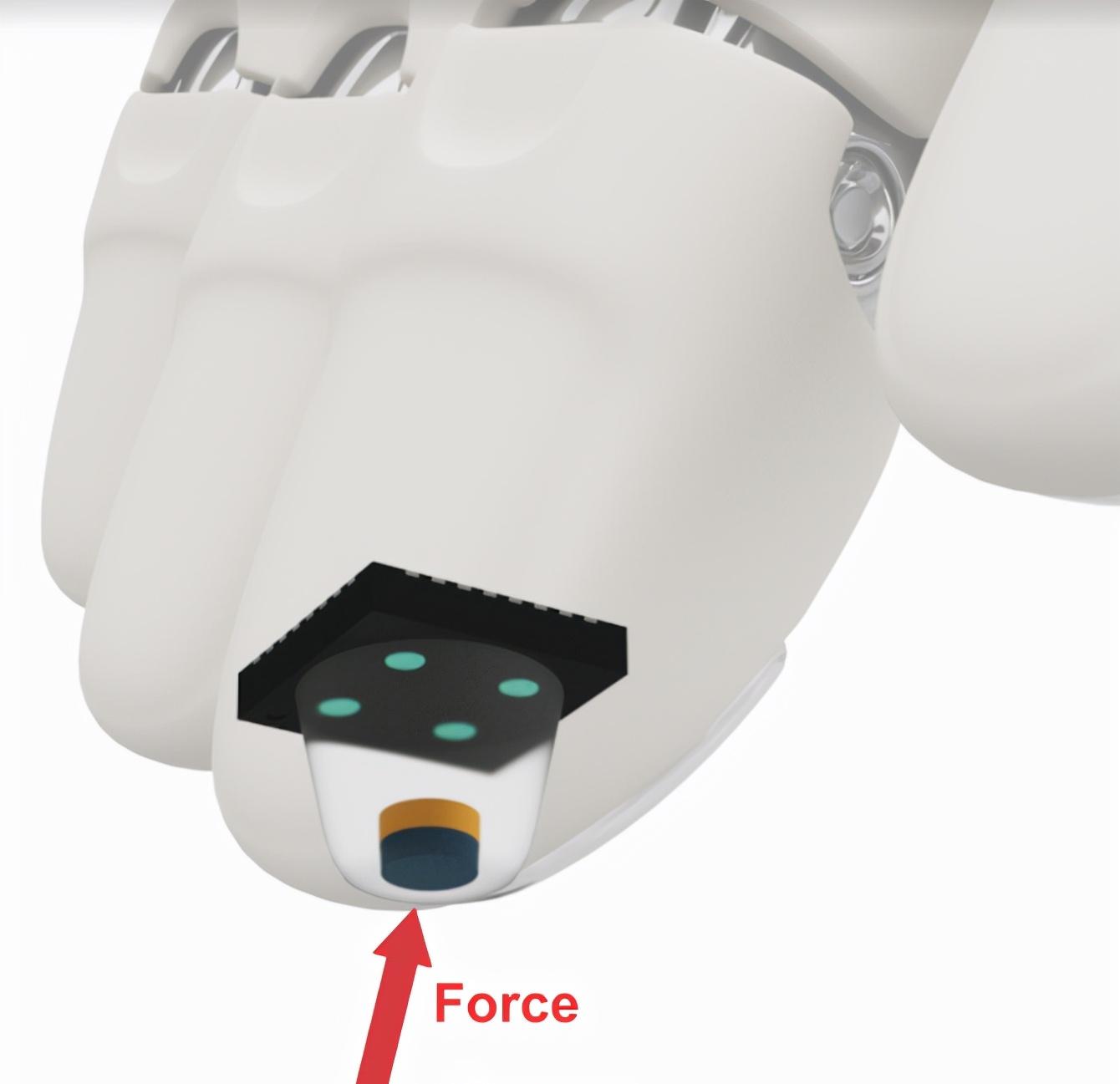

This groundbreaking prototype uses Melexis' industry-proven Triaxis® technology with multiple 3D magnetometer pixels. The sensor is equipped with a magnet embedded in an elastic material, which forms a soft-touch interface that mimics the properties of human skin. The device has a high sensitivity, so even a small force is detected and a corresponding response is generated. The force resolution achievable is 2.7mN, which is sufficient to identify weight changes of less than 1 g (about 0.3 g).
The Tactaxis prototype is very compact (measuring only 5mm x 5mm x 5mm), making it suitable for tight space applications.
The gradient measurement method used in the Tactaxis prototype protects the sensor from stray magnetic fields, which prevents potential measurement errors and is robust enough to handle harsh conditions such as temperature changes. Unlike other tactile sensors based on optical technology, Tactaxis is fully integrated and can be factory calibrated in high-volume production, a semiconductor process that offers significant cost and reliability benefits.
"Robots need haptic technology to manipulate fragile objects. For such applications, we have developed a new magnetic sensor to accurately measure contact forces while being highly robust to interference. Gael Close, Global Innovation Manager at Melexis, explains. By developing the power of Triaxis® magnetic sensor technology, Melexis has taken an important step in robotic haptic sensors, providing rugged and competitive multi-axis sensing solutions. We will now use Tactaxis prototypes as the basis for future R&D efforts. ”
The IEEE (Institute of Electrical and Electronics Engineers) has published a white paper detailing the Melexis 3D magnetic sensor prototype:
T. Le Signor, N. Dupré, and G. Close, "A Gradient Measurement Magnetic Force Sensor for Robotic Hands and Grippers That Are Not Disturbed by Stray Magnetic Fields," IEEE Robotics and Automation Letters, January 2022.
