I. Introduction
Chassis for many small partners who want to install the machine, the budget will not be too high, and when the budget is not too sufficient, the first thing that comes to mind is basically to compress the budget of the chassis, and even if you don't want the chassis, the shoe box can also be used simply. But to be honest, the shoe box can indeed be used in many cases.
Therefore, many small partners want some cost-effective chassis, cheap bowls, and a sense of design is the best. But this is not very simple for many manufacturers, because cheap bowls are easy to achieve, but with a sense of design, it is not so simple.
But for some pursuing manufacturers, it is still very simple to have a sense of design, such as Yinxin, a brand that can die in details for design and constantly postpone the time for new products to go on.
Second, the Silver Fara R1 upgraded version of the white ATX tower chassis unbox
▼ The packaging of the chassis is still quite simple, and the front is a simple line and model. The side is printed with the chassis specifications, 3D and some compatibility parameters. The accessories in the carton are very simple, in addition to the chassis, it is an accessory bag, which has fixing screws, instructions and the like.
Third, silver Hing Fara R1 upgraded version of the white ATX tower chassis appearance

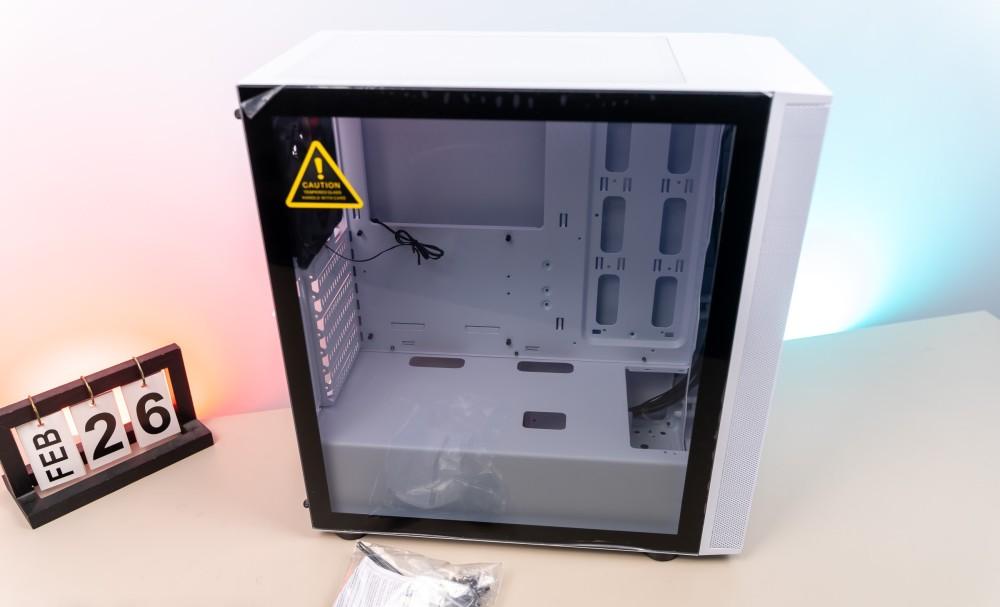

▼ The appearance of the chassis is very beautiful, the whole is white, there is a large area of side through glass on the side, and there is a little blackening treatment.
▼The front part of the chassis has a large area of metal punching mesh to ensure the air intake area.
▼ There is also a silver Silver Shin LOGO at the bottom, which looks very delicate.
▼ The right side is the IO panel of the chassis, above which is the boot and restart keys, below is the USB interface, 2.0 one, 3.0 two, the bottom is the audio interface.
▼ The back of the chassis is a whole metal bezel, which is very simple.
▼ Chassis tail, familiar with the configuration of the ATX chassis. Above is the rear chassis fan position and IO opening, the middle is the PCIe bezel, and the bottom is the power bay.
▼ There is a little height design at the top of the chassis, but the size is not large, and it feels that the upper water-cooled installation space will be more compact.
▼ PCIe bezel part, horizontal 7, vertical 2, support graphics card vertical installation.
▼The glass cover on the side of the chassis is fixed by sliding push and screw, and the disassembly is quite simple.
▼ The four sides of the glass cover on the side of the chassis are protected, the upper and lower are foam, and the left and right are metal parts, which is good.
▼On the right side is the motherboard fixed position of the chassis, and there are cable openings around it. A chassis fan comes standard on the rear of the chassis for air outlet.
▼ In addition to supporting ATX motherboards, this chassis is also compatible with E-ATX specification motherboards, so there are three cable management holes and cable tie auxiliary fixing positions on the outside. The front of the chassis can be fixed to the chassis fans and cold drain, and the metal punching mesh has a honeycomb-shaped stiffener design inside.
▼ The bottom of the chassis is a separate power supply compartment, which is simple and unpretentious.
▼ The top of the chassis is very simple, directly a white magnetic metal dust net.
▼ On the back of the chassis, the design is still quite simple.
▼The trace opening on the right side is not badly worked, and there is a flanging treatment to prevent scratching the wire.
▼On the right side are the mounting positions of two 2.5-inch hard disks, which are easy to disassemble and install.
▼ The bottom is the power supply compartment, and there is a 3.5-inch hard disk slot on the left side of the power silo.
▼ There are four large non-slip feet at the bottom of the chassis, and there is a metal dustproof mesh under the power supply fixing position. In addition, the chassis's hard drive compartment is adjustable and has two fixed positions for easy compatibility with larger power supplies.
▼ The thickness of the hardware of the chassis is about 0.85mm, and the overall touch is quite tough.
Fourth, silver Fara R1 upgraded version of the white ATX tower chassis installed
▼ Then install the machine to try it out, and make a set of 5600X with RTX3070Ti configuration.
▼ First install the motherboard normally, and then install the water cooling drain. The space above here is just right, and the cold drain fan will almost hit the memory PCB. If you choose this chassis and want to install it in a cold row, it is recommended to choose a memory vest that does not exceed the memory PCB.
▼ The graphics card is Yingchi's RTX3070Ti HOF Pro, the fan cover of the graphics card is white, and the cooling fan is also white, which looks very beautiful.
▼ The graphics card is installed horizontally by default, which is a little simpler.
▼ The power supply is Yinxin's ET700, gold medal full module power supply, the overall is not bad.
▼ The side label of the power supply is very beautiful, black and white matching, the left side is the LOGO of Yinxin, and the right side is the power supply model.
▼ After installing the hard disk, the power supply lines of each part are plugged in, you can start the machine, and the whole machine effect after the lighting is still very beautiful.
▼ Slightly sideways effect, the metal punching mesh in front of the chassis will bend to the side, and the unity is stronger.
▼ The effect of the glass cover is finally covered, and the overall look is not bad.
▼ Of course, if you add a few chassis fans to the front of the chassis, the overall effect will be more beautiful.
▼ The processor is 5600X, the motherboard is MSI's X570S EDGE MAX Wifi motherboard, the left power supply and the upper side of the power supply part of this motherboard are covered with metal parts, and the daily operation will be more stable.
▼This motherboard has three M2 connectors, and all of them are covered with metal parts. The south bridge part is also covered with metal parts, and there is no small fan, so that the standby opportunity of the motherboard is quieter, the failure rate is lower, and the praise is praised.
▼ Heat dissipation is the overclocking three of the Ling Mirror 240 water cooling, the water cooling head has a large area of light effect area on the front, and the color transition is very soft. The material on the surface of the water-cooled head seems to be glass, with a good mirror feeling and light and shadow reflections.
▼ Look closely, this ARGB magic lighting effect of the water cooling head is a bit dreamy.
▼ The memory is the Longyao D50 memory of Weigang XPG, 16G*2 3600MHz. This set of memory is still quite good, the vest of the memory stick is white, and there is a beautiful ARGB light strip on the top, and the value is very high.
▼ And the ARGB light strip on the top of the memory stick also has some shapes, and you can see beautiful light and shadow slightly sideways.
▼ Yingchi's RTX3070Ti HOF Pro graphics card has a good lighting effect, and the HOF OF GAME on the side of the graphics card and the fan on the front have ARGB lighting effects.
Fifth, Silver Fara R1 upgraded white ATX tower chassis test
▼ The whole machine configuration list, the processor is 5600X, the motherboard is MSI's X570S EDGE MAX Wifi, the memory is Weigang's Longyao D50, and the graphics card is Yingchi's RTX3070Ti HOF Pro.
▼ Simple run a whole machine test, the whole machine score of 148W, processor 59.5W, graphics card 61.5W, the performance is very strong.
▼ In daily standby, the room temperature is about 20 °C, the temperature of the processor fluctuates around 33 °C, and the core temperature of the graphics card is about 35 °C.
▼ Simple run a CPU-Z pressure test, the processor power consumption of 100W is enough, the full core turbo frequency is 4.6GHz, the processor temperature is 65 °C, and the core temperature of the graphics card is only 33 °C, which is reduced by 2 °C.
▼ Single-baked FPU test, processor power consumption of about 120W, full core turbo frequency 4.525GHz, processor temperature fluctuates around 83 °C, the core temperature of the graphics card is further reduced to about 31 °C, and the overall heat dissipation is good.
▼ Finally run the 3Dmark stress test, TS mode, the frame rate stability rate is 98.9%, or quite stable.
▼ The core temperature of the graphics card is up to about 70 ° C, the overall heat dissipation is good, the temperature of the CPU fluctuates around 55 ° C, and the overall temperature situation is more or less affected by the exhaust of the graphics card. If you want to improve this situation, Mushroom recommends adding a chassis fan to the front of the chassis to increase the intake air.
6. Summary
Yinxin this Fara R1 upgraded version of the chassis is still quite good, the overall texture is very good, the details of the design is also very in place, the installation experience and heat dissipation convenient performance are quite good, suitable for those chassis budget is not too rich players to buy, but also can get a good chassis experience.
In terms of appearance, there is a large area of metal punching mesh in the front of the chassis, and the metal punching mesh has a beautiful bend on the side, which makes the sense of unity in the front of the chassis stronger. In addition, the plastic stiffener can be clearly seen inside the metal punching mesh, and it will look better with some fans with ARGB lighting effects.
The internal space of the chassis is quite large, and while supporting ATX specification motherboards, it can also be compatible with E-ATX specification motherboards.
However, the height of the top of the chassis is only a little, with some memory vests horizontally do not exceed the memory of the PCB is no problem, you can install water cooling, such as Weigang's Long Yao D50, but it is not okay to change some vests that are larger.
Thank you!
