Tuyano car series we have reviewed many times I believe that everyone is very familiar with, but before you see Tuyano different lengths of passenger and freight models, as well as based on the Tuyano van developed a variety of special special modified vehicles. Not long ago, on December 22, Tuyano brought a new member of the family, the Hundred Variations. The release of Tuno is a professional chassis product, and its release has enriched Tuyano's product line, bringing new options for users who need to purchase lightweight special special vehicle chassis.

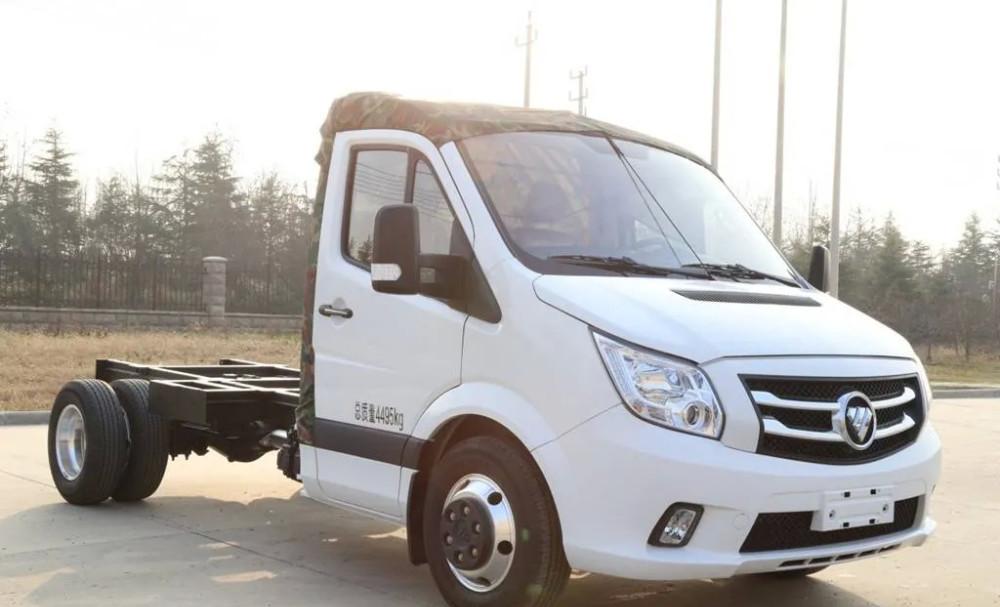

The front face shape of this newly born Tuyano van is basically the same as that of the ordinary Tuyano van, but the body stops abruptly after the door, giving the first impression that a Tuyano van is "cut" off the back half of the body with a knife, leaving only the chassis. It is said that it is a versatile diamond because its "disappearing" car body is flexible and changeable, and it can install different functional superstructures according to different user needs, just like Lego toys. We can see that the frame of the rear half of the Hundred Diamonds is very flat, and the top surface height is slightly higher than the rear wheels, which is convenient for combining with the top.
Left side of the hull
No matter what the use of the car, a strong and durable chassis is essential, and everyone will care about the quality of the chassis when choosing a car. Tuyano's Diamond Chassis is the biggest highlight of this product, which adopts H-type high rigidity skeleton structure frame, and from the photos, we can feel that the chassis is very "solid".
The right side of the hull
In order to meet the balance of economy, bearing capacity, comfort and other aspects, the versatile diamond chassis is equipped with air suspension as standard to ensure the comfort of the RV model and the normal operation of the precision instrument model. The rear axle adopts a 3.5-ton reinforced square tube drive axle, with a wheelbase of 1770mm, a tire width of 215mm, and the outermost width of the left and right wheels of 2550mm, which has a strong bearing capacity and a smooth driving.
Rear left of the hull
Tuyano Has a gold wheelbase of 3550mm, the rear is mounted directly above the rear wheels, the axle load distribution is reasonable, and the driving will be more stable when fully loaded. The longitudinal passage radius of the new car is 4420mm, the approach angle is 22 degrees, and the departure angle is 18 degrees, which is better passed and can adapt to more working conditions.
The right rear of the hull
Thanks to the adaptability of the Variety Diamond Modification, users can choose between different uses of the tops, and the chassis is Tuyano. While ensuring different job requirements, the same chassis is easy for employees to drive. In addition, vehicle maintenance and spare parts supply will also be very convenient, to ensure vehicle attendance, improve the efficiency of the entire fleet.
There are currently no tail lights installed at the rear of the car, and the position of the tail lights and license plate holders will be arranged according to different tops.
Although Tuyano is a special special car chassis, it still has a comfortable driving experience comparable to that of passenger cars. Friends who have experienced Tuyano cars have a good evaluation of its comfort, and the space inside the car is still relatively sufficient. Sitting in the Tuyano Variations, the seat fits comfortably and the seat can be rotated for easy use in the rear space.
The interior design is basically the same as that of the universal Tuyano
The interior style is simple and atmospheric, the multi-functional steering wheel is light and easy to drive, and the car is equipped with practical configurations such as air conditioning, cruise control, and electronic handbrake. Not only is the comfort good, Tuyano Variation Diamond is also equipped with the main and co-pilot airbags, tire pressure monitoring, ABS+ESC, LDWS and other active and passive safety systems, coupled with a solid integrated bearing Type Diamond Body, it can be seen that the safety performance of Tuyano Variation Diamond Is also beyond doubt.
The comfort of the 6AT gearbox is difficult to achieve with manual transmissions
A comfortable driving experience is inseparable from excellent power performance, and dynamics are also an important indicator to meet different modification needs. The surging power of Tuyano's versatile Diamond comes from the Cummins 2.8T diesel engine, which is widely used in mature economy and has accumulated a very good user reputation for many years in the market. The Cummins 2.8T China VI engine has an output of 130kW of about 176.75 horsepower, a torque of up to 360N·m, and 500,000 kilometers without overhaul. Matching this is the industry's top 6AT gearbox, which is smooth and reliable, allowing surging power to exert maximum value.
Although Tuyano Is a new product that has just been born, compared with similarly positioned products and models at home and abroad, the unique performance of Tuyano Transformers has been very prominent. It is believed that in order to meet the needs of more customers, Tuyano will continue to launch other configurations of The Diamond in the future, such as different powertrains, wheelbase lengths, suspension forms and drive forms. In terms of power system, the internal combustion engine and new energy can be developed simultaneously; the introduction of the Tuyano multi-change diamond hanging after the assembly of the steel plate, while improving the bearing capacity of the chassis, reducing the cost of vehicles can allow more customers to buy Tuyano; in addition, Tuyano also has four-wheel drive models, and it is also worth considering whether the corresponding four-wheel drive chassis can be launched to meet the needs of more complex environments. Tuyano Canonites can also be applied in different fields, such as: medical rescue, leisure travel, engineering operations, etc., which is of great significance in terms of people's livelihood and well-being.
In the 6th year of Tuyano's release, Tuyano brought a versatile Diamond Ii chassis product. In the field of special special vehicle chassis that does not choose much, the addition of Baichang King Kong undoubtedly brings more possibilities to the modification market. Although its body is not large, it has a large use that people are looking forward to, whether it is a caravan, a engineering vehicle, or a 5G square cabin medical cabin, a cash truck, and a changeable King Kong can live up to expectations and shoulder its due responsibilities.
