Pengyuansheng, a well-known charger foundry, has launched 20W fast charging, 30W fast charging, 30W mini charging, 65W fast charging, magnetic wireless charging treasure and other fast charging products, pengyuansheng recently brought 65W fast charging new products, providing another new choice for e-commerce customers to choose.

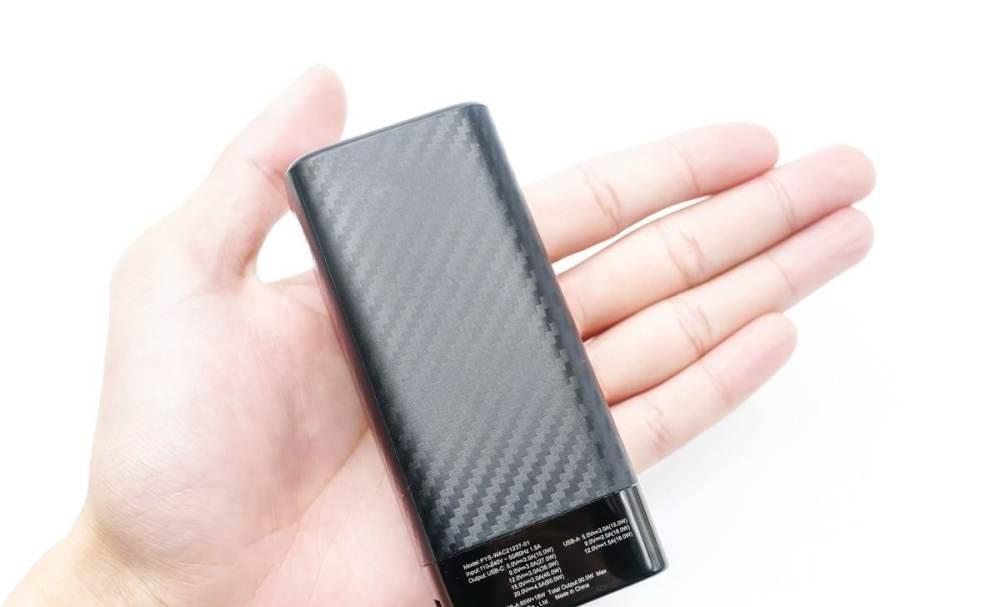

Take the first look and find that Pengyuansheng 90W 1A1C Gallium Nitride charger shell uses a very distinctive carbon fiber grain surface treatment process, the staggered grain looks very good, the bottom cover is a bright material treatment, and the two textures can be found in the same peers.
In terms of interface configuration, Pengyuansheng 90W 1A1C Gallium Nitride charger has two output ports, namely USB-C output port that supports 90W PD fast charging, USB-A output port that supports 18W multi-protocol fast charging, dual ports can be output at the same time, power intelligence is adjusted to 65W+18W, and dual devices are charged at the same time.
In terms of pins, Pengyuansheng 90W 1A1C Gallium Nitride charger adopts a foldable pin design, the pin type is a US standard two-pin, when going out, the pin can be stored in the shell to avoid rubbing other luggage, and supports the replacement of travel pins, suitable for use in different countries and regions.
The nameplate parameter is laser-carved around the glossy bottom cover.
Model: PYS-WAC21237-01
Input: 110-240V~50/60Hz 1.5A
USB-C output: 5V3A/9V3A/12V3A/15V3A/20V4.5A
USB-A output: 5V3A/9V2A/12V1.5A
USB-C + USB-A:65W+18W
Global total output: 90W Max
Manufacturer: Shenzhen Pengyuansheng Industrial Co., Ltd
The product has obtained ETL certification and passed the six-level energy certification.
The measured three-dimensional dimensions are 94.91mm X 36.91mm X 42.12mm, according to the 90W power calculation, its power density is 0.61W/cm, compared with the Apple 96W charger side by side, Pengyuansheng 90W 1A1C Gallium Nitride charger has a higher density and has more output interfaces.
Using the POWER-Z KT002 USB tester to read PDO messages, the charger is based on the PD3.0 version, supporting 5V3A / 9V3A / 12V3A / 15V3A / 20V4.5A five fixed voltage files, in addition to supporting a set of 3.3-21V3A SET OF PPS voltage subsets.
In addition to USB PD fast charging, the USB-C interface also comes with a variety of common fast charging protocols, such as APPLE2.4A, DCP, Samsung5V2A, QC3.0, QC2.0, QC4+, AFC, FCP, SCP, PE+2.0, etc.
The USB-A output also supports a variety of common fast charging protocols, such as APPLE2.4A, DCP, Samsung5V2A, QC3.0, QC2.0, FCP, SCP, PE+2.0, etc.
Measured PengYuansheng 90W 1A1C Gallium Nitride charger charged the iPhone 13 Pro, smoothly shook hands 9V PDO to open fast charging, power 9.03V 2.56A 23.17W, reaching the maximum power of the device.
Charging the Red Devil 6 Pro, smooth handshake PPS fast charge, power 16.75V 2.99A 50.23W.
Charge the iPad Pro, smoothly shake the 15V PDO, and the power is 15.06V 2.2A 33.23W, reaching the maximum power of the device.
Charge the Macbook Pro, smoothly shake hands 20V PDO, power 20.05V 4.48A 90.01W, reaching the maximum charger power.
The two devices are charged at the same time, the power is 9.42V 1.52A 14.38W, 20.13V 3.21A 64.8W, and both devices turn on fast charging at the same time.
Charging head net summary
Pengyuansheng 90W 1A1C Gallium Nitride Charger adopts a very distinctive carbon fiber grain process to create a unique appearance, made of gallium nitride technology, long strip appearance with foldable feet, power density of 0.61W/cm.
There are two output ports of 1A1C, USB-C supports five fixed voltage files of 5V3A / 9V3A / 12V3A / 15V3A / 20V4.5A, and also supports a set of PPS voltage subsets of 3.3-21V3A. USB-A supports 5V3A/9V2A/12V1.5A output, which can be fast charged by both devices at the same time, and the power is intelligently adjusted to 65W+18W.
