架構設計 | 分布式系統排程,Zookeeper叢集化管理一、架構簡介二、叢集配置三、服務節點監聽四、源代碼位址

一、架構簡介

1、基礎簡介

Zookeeper基于觀察者模式設計的元件,主要應用于分布式系統架構中的,統一命名服務、統一配置管理、統一叢集管理、伺服器節點動态上下線、軟負載均衡等場景。

  • Linux下Zookeeper單節點安裝
  • SpringBoot整合Zookeeper中間件

2、叢集選舉

Zookeeper叢集基于半數機制,叢集中半數以上機器存活,叢集處于可用狀态。是以建議Zookeeper叢集安裝為奇數台伺服器。在叢集的配置檔案中并沒有指定Master和Slave。在Zookeeper工作時,是有一個節點為Leader,其他則為Follower,Leader是通過内部的選舉機制臨時産生的。

架構設計 | 分布式系統排程,Zookeeper叢集化管理一、架構簡介二、叢集配置三、服務節點監聽四、源代碼位址

基本描述

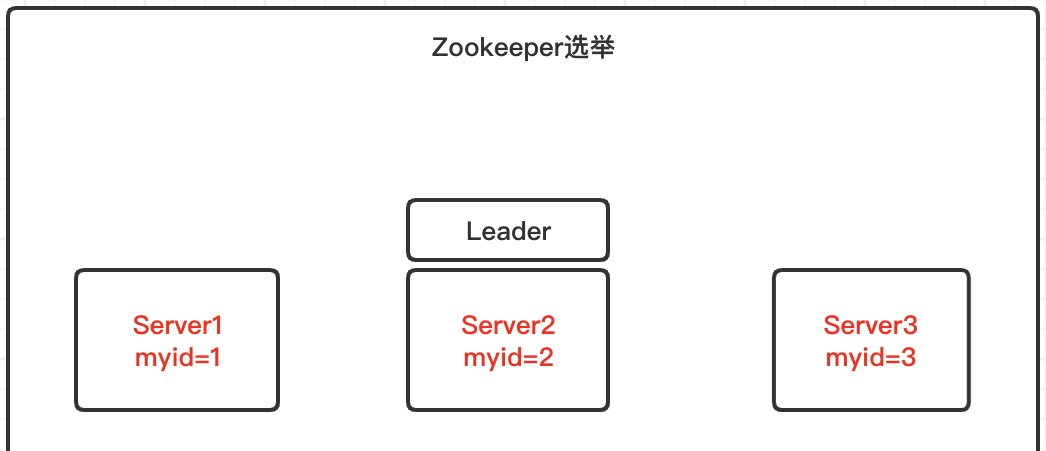

假設有三台伺服器組成的Zookeeper叢集,每個節點的myid編号依次1-3,依次啟動伺服器,會發現server2被選擇為Leader節點。

server1啟動,執行一次選舉。伺服器1投自己一票。此時伺服器1票數一票,未達到半數以上(2票),選舉無法完成,伺服器1狀态保持為LOOKING;

server2啟動,再執行一次選舉。伺服器1和2分别投自己一票,并交換選票資訊,因為伺服器2的myid比伺服器1的myid大,伺服器1會更改選票為投伺服器2。此時伺服器1票數0票,伺服器2票數2票,達到半數以上,選舉完成,伺服器1狀态為follower,2狀态保持leader,此時叢集可用,伺服器3啟動後直接為follower。

二、叢集配置

1、建立配置目錄

# mkdir -p /data/zookeeper/data
# mkdir -p /data/zookeeper/logs

2、基礎配置

# vim /opt/zookeeper-3.4.14/conf/zoo.cfg

tickTime=2000
initLimit=10
syncLimit=5
dataDir=/data/zookeeper/data
dataLogDir=/data/zookeeper/logs
clientPort=2181

3、單節點配置

# vim /data/zookeeper/data/myid

三個節點服務,分别在myid檔案中寫入[1,2,3]

4、叢集服務

在每個服務的zoo.cfg配置檔案中寫入如下配置:

server.1=192.168.72.133:2888:3888
server.2=192.168.72.136:2888:3888
server.3=192.168.72.137:2888:3888

5、啟動叢集

分别啟動三台zookeeper服務

[zookeeper-3.4.14]# bin/zkServer.sh start
Starting zookeeper ... STARTED

6、檢視叢集狀态

Mode: leader是Master節點

Mode: follower是Slave節點

[zookeeper-3.4.14]# bin/zkServer.sh status
Mode: leader

7、叢集狀态測試

随便登入一台服務的用戶端,建立一個測試節點,然後在其他服務上檢視。

[zookeeper-3.4.14 bin]# ./zkCli.sh
[zk: 0] create /node-test01 node-test01
Created /node-test01
[zk: 1] get /node-test01

或者關閉leader節點

[zookeeper-3.4.14 bin]# ./zkServer.sh stop

則會重新選舉該節點。

8、Nginx統一管理

[rnginx-1.15.2 conf]# vim nginx.conf

stream {
    upstream zkcluster {
        server 192.168.72.133:2181;
        server 192.168.72.136:2181;
        server 192.168.72.136:2181;
    }
    server {
        listen 2181;
        proxy_pass zkcluster;
    }
}

三、服務節點監聽

1、基本原理

分布式系統中,主節點可以有多台,可以動态上下線,任意一台用戶端都能實時感覺到主節點伺服器的上下線。

架構設計 | 分布式系統排程,Zookeeper叢集化管理一、架構簡介二、叢集配置三、服務節點監聽四、源代碼位址

流程描述:

  • 啟動Zookeeper叢集服務;
  • RegisterServer模拟服務端注冊;
  • ClientServer模拟用戶端監聽;
  • 啟動服務端注冊三次,注冊不同節點的zk-node服務;
  • 依次關閉注冊的服務端,模拟服務下線流程;
  • 檢視用戶端日志,可以監控到服務節點變化;

首先建立一個節點:serverList,用來存放伺服器清單。

[zk: 0] create /serverList "serverList"

2、服務端注冊

package com.zkper.cluster.monitor;
import java.io.IOException;
import org.apache.zookeeper.CreateMode;
import org.apache.zookeeper.WatchedEvent;
import org.apache.zookeeper.Watcher;
import org.apache.zookeeper.ZooKeeper;
import org.apache.zookeeper.ZooDefs.Ids;

public class RegisterServer {

    private ZooKeeper zk ;
    private static final String connectString = "127.0.0.133:2181,127.0.0.136:2181,127.0.0.137:2181";
    private static final int sessionTimeout = 3000;
    private static final String parentNode = "/serverList";

    private void getConnect() throws IOException{
        zk = new ZooKeeper(connectString, sessionTimeout, new Watcher() {
            @Override
            public void process(WatchedEvent event) {
            }
        });
    }

    private void registerServer(String nodeName) throws Exception{
        String create = zk.create(parentNode + "/server", nodeName.getBytes(),
                                  Ids.OPEN_ACL_UNSAFE, CreateMode.EPHEMERAL_SEQUENTIAL);
        System.out.println(nodeName +" 上線:"+ create);
    }

    private void working() throws Exception{

        Thread.sleep(Long.MAX_VALUE);
    }

    public static void main(String[] args) throws Exception {
        RegisterServer server = new RegisterServer();
        server.getConnect();
        // 分别啟動三次服務,注冊不同節點,再一次關閉不同服務端看用戶端效果
        // server.registerServer("zk-node-133");
        // server.registerServer("zk-node-136");
        server.registerServer("zk-node-137");
        server.working();
    }
}

3、用戶端監聽

package com.zkper.cluster.monitor;
import org.apache.zookeeper.*;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

public class ClientServer {
    private ZooKeeper zk ;
    private static final String connectString = "127.0.0.133:2181,127.0.0.136:2181,127.0.0.137:2181";
    private static final int sessionTimeout = 3000;
    private static final String parentNode = "/serverList";

    private void getConnect() throws IOException {
        zk = new ZooKeeper(connectString, sessionTimeout, new Watcher() {
            @Override
            public void process(WatchedEvent event) {
                try {
                    // 監聽線上的服務清單
                    getServerList();
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        });
    }

    private void getServerList() throws Exception {
        List<String> children = zk.getChildren(parentNode, true);
        List<String> servers = new ArrayList<>();
        for (String child : children) {
            byte[] data = zk.getData(parentNode + "/" + child, false, null);
            servers.add(new String(data));
        }
        System.out.println("目前服務清單:"+servers);
    }

    private void working() throws Exception{
        Thread.sleep(Long.MAX_VALUE);
    }

    public static void main(String[] args) throws Exception {
        ClientServer client = new ClientServer();
        client.getConnect();
        client.getServerList();
        client.working();
    }

}

四、源代碼位址

GitHub·位址
https://github.com/cicadasmile/data-manage-parent
GitEE·位址
https://gitee.com/cicadasmile/data-manage-parent
