Pipe soft rubber soft joints can provide a good cushioning effect for the installation and removal of various pipes, cooling towers, centrifugal pumps, smart water meters, gate valves, and long-distance pipe expansion and contraction. Before installation, the Asian turret bolt should be loosened, the rubber soft joint should be pulled to the installation length, and then tightened diagonally to avoid pressure deviation. If the two sides of the shelf need to install the corresponding support frame. Pipe soft rubber soft joints are suitable for transporting steam and boiling water pipelines with a temperature not higher than 350 degrees. The heating pipe rubber soft joint is a CS type and consists of a telescopic sleeve, a clutch pressure plate and a telescopic body. The key is to use the upper side of the steam pipe to compensate for the offset caused by thermal expansion of the steam pipe. The advantage is: the amount of telescopic is large. Easy to install and operate, easy to maintain.
High pressure resistance. heat resisting. Soft rubber joints for pipelines reduce the drive force of the blind plate in pipe operation. However, at the centrifugal pump entrance and exit and the corner of the pipeline, in the rolling pipe connection without a fixed town pier and a fixed town pier support frame, the force transfer joint and the force transfer joint should be selected to prevent the thrust from concentrating on the corner of the pipe or the far end of the pump, causing impact damage to the mechanical equipment. In fact, in a variety of pipeline applications, or choose rubber soft joints (rubber soft joints) and anti-stretch rubber soft joints, there is a certain degree of maintenance on the pipe, especially the installation and maintenance of the pipeline. You can choose rubber hose and hoop soft joints, because when the force transfer joint starts the pump, it can transfer the blind plate drive power to the various positions of the pump and the pipe according to the force transfer foot bolt (that is, the full silk ground foot bolt), which has the same effect on the pipe connection and plays a telescopic compensation offset effect on the operation of the pipeline.

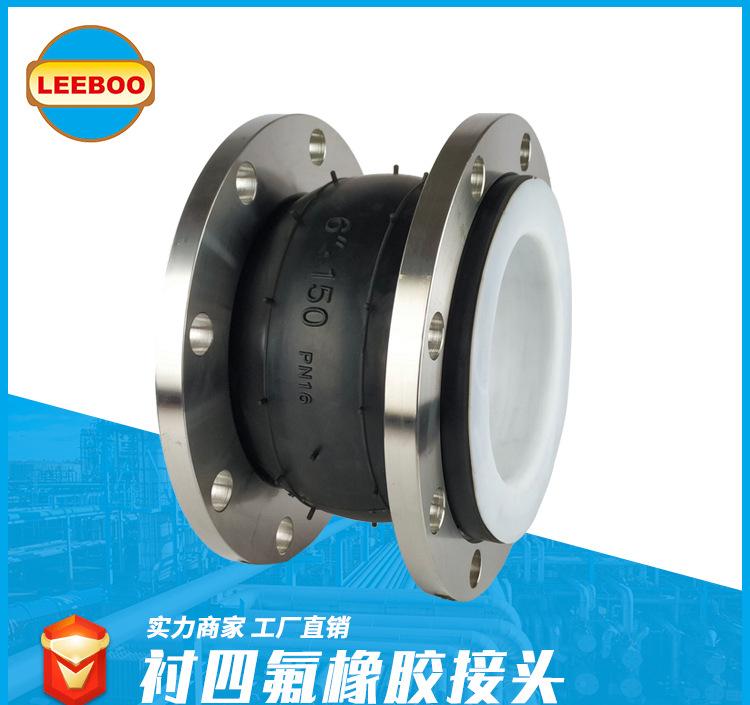

Flange rubber soft joints are flanged on both sides. When setting, adjust the length of the connection between the two sides of the commodity and the flange, the top angle symmetrical tighten the valve cover foot bolt, and then adjust the nut, so that the pipeline can be extended arbitrarily, lock the amount of expansion and contraction, and ensure the reliable operation of the pipeline. When installation and maintenance are convenient, adjust according to on-site specifications. Soft rubber fittings reduce the working pressure drive force (blind plate force) and compensate for pipe installation deviations. Flange rubber soft joints are mainly used to connect pumps, gate valves and other accessories. Rubber soft joints are mainly used for steam pipe fan painting to compensate for the offset caused by thermal expansion and cold contraction of steam pipes. Advantage: large telescopic amount. Easy to install and operate. Easy maintenance. Features: High pressure resistance. heat resisting.
