5.內建持久層架構MyBatis

1.MyBatis簡介

MyBatis是一款優秀的資料持久層架構，它支援定制化SQL、存儲過程以及進階映射。其避免了JDBC一系列繁雜的操作過程，改用簡單的XML或注解來配置和映射原生資訊，将接口和Java的POJO類映射成資料庫中的記錄。

2.引入依賴

建立一個SpringBoot工程，并在pom.xml檔案中添加內建MyBatis所需要的dependency。

<dependency>
  <groupId>mysql</groupId>
  <artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<dependency>
  <groupId>org.mybatis.spring.boot</groupId>
  <artifactId>mybatis-spring-boot-starter</artifactId>
  <version>1.1.1</version>
</dependency>
<dependency>
  <groupId>org.projectlombok</groupId>
  <artifactId>lombok</artifactId>
  <version>1.18.2</version>
  <scope>provided</scope>
</dependency>

3.添加配置

在application.properties檔案中添加如下配置資訊。

############################################################
#
# MySQL配置
#
############################################################
### 連接配接資訊
spring.datasource.url = jdbc:mysql://localhost:3306/mydb
### 使用者名
spring.datasource.username = root
### 密碼
spring.datasource.password = admin123
### 驅動
spring.datasource.driver-class-name = com.mysql.cj.jdbc.Driver

############################################################
#
# MyBatis配置
#
############################################################
### po類存放目錄
mybatis.type-aliases-package = com.leichuangkj.mybatis.dao.po
### mapper(.xml)資源檔案存放路徑
mybatis.mapper-locations = classpath:mybatis/mapper/*.xml

4.開發服務端通用傳回對象

在項目目錄“/src/main/java/com/leichuangkj/mybatis”下建立common目錄，并在common目錄下建立ResponseCode枚舉類和ServerResponse類，具體代碼如下。

public enum ResponseCode {
    //1.定義枚舉值
    ERROR(0,"ERROR"),

    SUCCESS(1,"SUCCESS");

    //2.定義枚舉屬性
    private final int code;

    private final String desc;

    //3.定義構造函數
    ResponseCode(int code, String desc){
        this.code = code;
        this.desc = desc;
    }

    //4.定義get方法
    public int getCode(){
        return code;
    }

    public String getDesc(){
        return desc;
    }
}

@JsonSerialize(include = JsonSerialize.Inclusion.NON_NULL)
//保證序列化json的時候,如果是null的對象,key也會消失
public class ServerResponse<T> implements Serializable {
    //1.定義屬性
    private int status;

    private String message;

    private T data;

    //2.定義構造函數
    private ServerResponse(int status) {
        this.status = status;
    }

    private ServerResponse(int status, T data) {
        this.status = status;
        this.data = data;
    }

    private ServerResponse(int status, String message, T data) {
        this.status = status;
        this.message = message;
        this.data = data;
    }

    private ServerResponse(int status, String message) {
        this.status = status;
        this.message = message;
    }

    //3.getter方法
    public int getStatus() {
        return status;
    }

    public T getData() {
        return data;
    }

    public String getMessage() {
        return message;
    }

    @JsonIgnore
    //使之不在json序列化結果當中
    //4.判斷這個響應是不是一個正确的響應
    public boolean isSuccess() {
        return this.status == ResponseCode.SUCCESS.getCode();
    }

    //5.定義傳回對象的方法
    public static <T> ServerResponse<T> createBySuccess() {
        return new ServerResponse<T>(ResponseCode.SUCCESS.getCode());
    }

    public static <T> ServerResponse<T> createBySuccessMessage(String message) {
        return new ServerResponse<T>(ResponseCode.SUCCESS.getCode(), message);
    }

    public static <T> ServerResponse<T> createBySuccess(T data) {
        return new ServerResponse<T>(ResponseCode.SUCCESS.getCode(), data);
    }

    public static <T> ServerResponse<T> createBySuccess(String message, T data) {
        return new ServerResponse<T>(ResponseCode.SUCCESS.getCode(), message, data);
    }

    public static <T> ServerResponse<T> createByError() {
        return new ServerResponse<T>(ResponseCode.ERROR.getCode(), ResponseCode.ERROR.getDesc());
    }

    public static <T> ServerResponse<T> createByErrorMessage(String errorMessage) {
        return new ServerResponse<T>(ResponseCode.ERROR.getCode(), errorMessage);
    }

    public static <T> ServerResponse<T> createByErrorCodeMessage(int errorCode, String errorMessage) {
        return new ServerResponse<T>(errorCode, errorMessage);
    }

    public static <T> ServerResponse<T> createByErrorCodeMessageData(int errorCode, String errorMessage,T data) {
        return new ServerResponse<T>(errorCode, errorMessage,data);
    }
}

5.dao層開發

首先在項目目錄“/src/main/java/com/leichuangkj/mybatis”下建立“/dao/po”目錄，并在po目錄下建立User實體類，具體代碼如下。

@Data
@NoArgsConstructor
@AllArgsConstructor
@ToString
public class User {
    private Integer id;

    private String name;

    private String email;
}

然後在dao目錄下建立mapper目錄，并在mapper目錄下建立UserMapper接口，具體代碼如下。

@Repository
public interface UserMapper {
    User findByName(String id);
}

最後在resource目錄下建立“mybatis/mapper”目錄，并在mapper目錄下建立UserMapper.xml檔案，具體代碼如下。

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.leichuangkj.mybatis.dao.mapper.UserMapper" >
    <resultMap id="BaseResultMap" type="com.leichuangkj.mybatis.dao.po.User">
        <constructor>
            <idArg column="id" javaType="java.lang.Integer" jdbcType="INTEGER" />
            <arg column="name" javaType="java.lang.String" jdbcType="VARCHAR" />
            <arg column="email" javaType="java.lang.String" jdbcType="VARCHAR" />
        </constructor>
    </resultMap>
    <select id="findByName" parameterType="java.lang.String" resultMap="BaseResultMap">
        select  id, name, email
        from user
        where name = #{name,jdbcType=VARCHAR}
    </select>
</mapper>

6.service層開發

在項目目錄“/src/main/java/com/leichuangkj/mybatis”下建立service目錄，并在service目錄下建立IUser接口，具體代碼如下。

public interface IUser {
    ServerResponse findByName(String name);
}

然後在service目錄下建立impl目錄，并在impl目錄下建立UserImpl實作類，具體代碼如下。

@Service
public class UserImpl implements IUser {
    @Autowired
    UserMapper userMapper;

    @Override
    public ServerResponse findByName(String name) {
        User user = userMapper.findByName(name);
        if(user == null){
            return ServerResponse.createByErrorMessage("沒有查詢到使用者");
        }
        return ServerResponse.createBySuccess(user);
    }
}

7.controller層開發

在項目目錄“/src/main/java/com/leichuangkj/mybatis”下建立controller目錄，并在controller目錄下建立UserController類，具體代碼如下。

@Controller
@RequestMapping("/user")
public class UserController {
    @Autowired
    UserImpl userImpl;

    @RequestMapping(value = "/findByName",method = RequestMethod.POST)
    @ResponseBody
    public ServerResponse findByName(@RequestBody User user){
        return userImpl.findByName(user.getName());
    }
}

8.啟動項目

在啟動類MyBatisApplication上添加注解“@MapperScan(basePackages = “com.leichuangkj.mybatis.dao.mapper”)”，然後啟動項目。

@MapperScan(basePackages = "com.leichuangkj.mybatis.dao.mapper")
@SpringBootApplication
public class MyBatisApplication {
  public static void main(String[] args) {
    SpringApplication.run(MyBatisApplication.class, args);
  }
}

9.測試

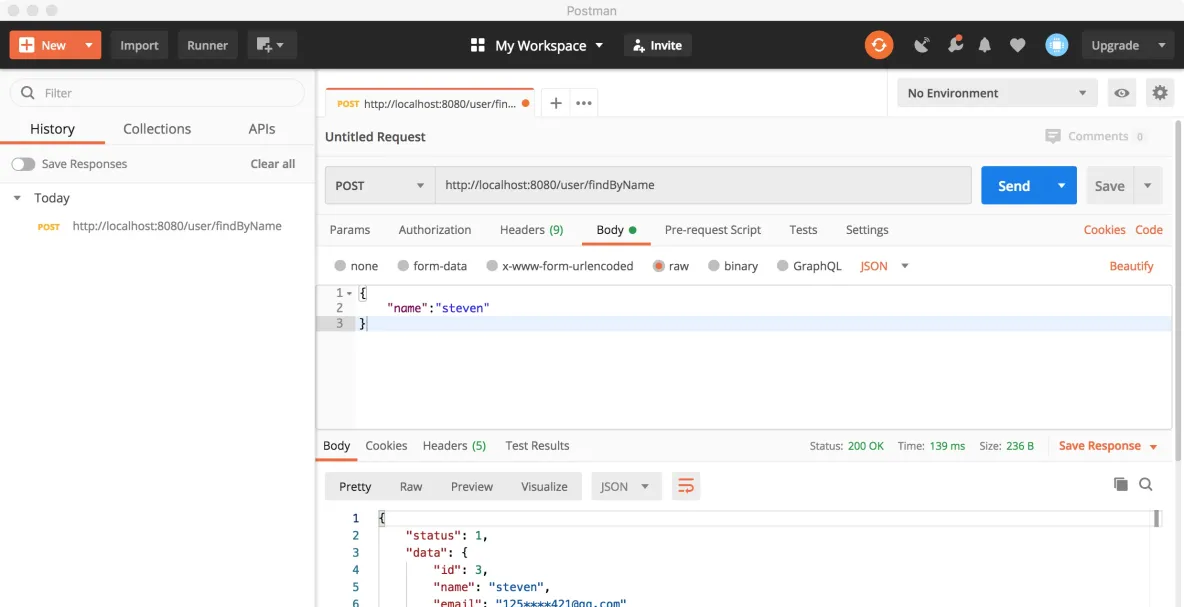

啟動項目，然後在postman中請求“http://localhost:8080/user/findByName”，可以查詢到相應的資訊，測試結果如下圖所示。
