《SpringCloud Alibaba 微服務架構》專題(十)-Spring Cloud Alibaba之Feign調用Ribbon+Hystrix請求逾時

1.什麼是Feign逾時

1.使用

Feign

調用接口分為兩層，

Ribbon

的調用和

Hystrix

的調用，是以

Ribbon

的逾時時間和

Hystrix

的逾時時間的結合就是

Feign

的逾時時間。

2.一般情況下都是

Ribbon

的逾時時間（<）

Hystrix

的逾時時間（因為涉及到

Ribbon

的重試機制），如果

Ribbon

的逾時時間大于Hystrix的逾時時間，對于

Ribbon

的重試是沒有意義的（

Hystrix

逾時熔斷了，

Ribbon

無法重試）。

提示：

預設情況下，如果Ribbon沒有配置重試時間和次數，預設是1S逾時，預設會自動重試1次。
預設情況下，如果Hystrix沒有配置重試時間和次數，預設是1S逾時，預設會自動重試1次。

2.Ribbon逾時

問題：在服務提供者的接口上加休眠5秒，測試Feign調用的時候是否會逾時？

@GetMapping(value = "/getProductInfo/{productId}")
public String getProductInfo(@PathVariable("productId") String productId) {
    log.info("請求進來啦");
    try {
        log.info("模拟服務端逾時");
        Thread.sleep(5000);
    } catch (InterruptedException e) {
        e.printStackTrace();
    } finally {
    }
    return "Hello Nacos Discovery " + productId;
}

接口提供方和接口調用方的

application.yml

都是如下：

server:
  port: 8716
spring:
  cloud:
    nacos:
      discovery:
        #服務注冊與發現位址
        server-addr: 127.0.0.1:8848
        #開啟服務注冊與發現功能
        enabled: true
  application:
    name: nacos-product

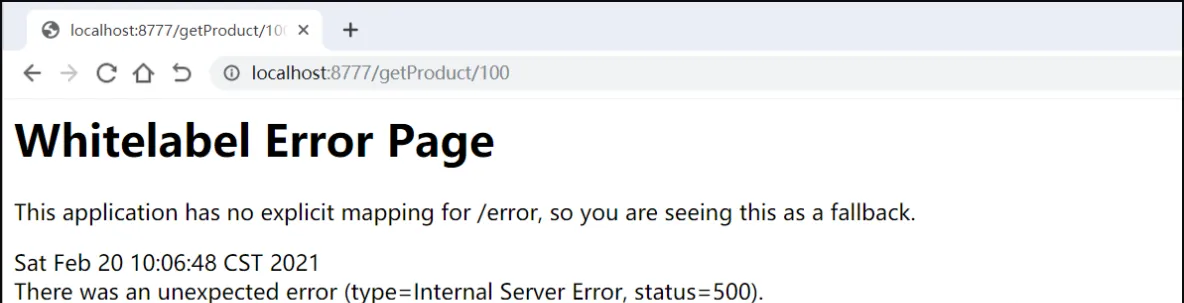

通路接口：http://localhost:8777/getProduct/100 控制台異常如下：

《SpringCloud Alibaba 微服務架構》專題(十)-Spring Cloud Alibaba之Feign調用Ribbon+Hystrix請求逾時

org.springframework.web.util.NestedServletException: Request processing failed; nested exception is feign.RetryableException: Read timed out executing GET http://nacos-product/getProductInfo/100
  at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1014) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at javax.servlet.http.HttpServlet.service(HttpServlet.java:503) ~[jakarta.servlet-api-4.0.3.jar:4.0.3]
  at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at javax.servlet.http.HttpServlet.service(HttpServlet.java:590) ~[jakarta.servlet-api-4.0.3.jar:4.0.3]
  at io.undertow.servlet.handlers.ServletHandler.handleRequest(ServletHandler.java:74) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:129) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100) ~[spring-web-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119) ~[spring-web-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93) ~[spring-web-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119) ~[spring-web-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201) ~[spring-web-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119) ~[spring-web-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.FilterHandler.handleRequest(FilterHandler.java:84) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.security.ServletSecurityRoleHandler.handleRequest(ServletSecurityRoleHandler.java:62) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletChain$1.handleRequest(ServletChain.java:68) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletDispatchingHandler.handleRequest(ServletDispatchingHandler.java:36) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.RedirectDirHandler.handleRequest(RedirectDirHandler.java:68) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.security.SSLInformationAssociationHandler.handleRequest(SSLInformationAssociationHandler.java:132) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.security.ServletAuthenticationCallHandler.handleRequest(ServletAuthenticationCallHandler.java:57) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43) ~[undertow-core-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.security.handlers.AbstractConfidentialityHandler.handleRequest(AbstractConfidentialityHandler.java:46) ~[undertow-core-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.security.ServletConfidentialityConstraintHandler.handleRequest(ServletConfidentialityConstraintHandler.java:64) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.security.handlers.AuthenticationMechanismsHandler.handleRequest(AuthenticationMechanismsHandler.java:60) ~[undertow-core-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.security.CachedAuthenticatedSessionHandler.handleRequest(CachedAuthenticatedSessionHandler.java:77) ~[undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.security.handlers.AbstractSecurityContextAssociationHandler.handleRequest(AbstractSecurityContextAssociationHandler.java:43) ~[undertow-core-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43) ~[undertow-core-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43) ~[undertow-core-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletInitialHandler.handleFirstRequest(ServletInitialHandler.java:269) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletInitialHandler.access$100(ServletInitialHandler.java:78) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:133) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:130) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.core.ServletRequestContextThreadSetupAction$1.call(ServletRequestContextThreadSetupAction.java:48) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.core.ContextClassLoaderSetupAction$1.call(ContextClassLoaderSetupAction.java:43) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletInitialHandler.dispatchRequest(ServletInitialHandler.java:249) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletInitialHandler.access$000(ServletInitialHandler.java:78) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.servlet.handlers.ServletInitialHandler$1.handleRequest(ServletInitialHandler.java:99) [undertow-servlet-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.server.Connectors.executeRootHandler(Connectors.java:376) [undertow-core-2.0.29.Final.jar:2.0.29.Final]
  at io.undertow.server.HttpServerExchange$1.run(HttpServerExchange.java:830) [undertow-core-2.0.29.Final.jar:2.0.29.Final]
  at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142) [na:1.8.0_40]
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617) [na:1.8.0_40]
  at java.lang.Thread.run(Thread.java:745) [na:1.8.0_40]
Caused by: feign.RetryableException: Read timed out executing GET http://nacos-product/getProductInfo/100
  at feign.FeignException.errorExecuting(FeignException.java:249) ~[feign-core-10.7.4.jar:na]
  at feign.SynchronousMethodHandler.executeAndDecode(SynchronousMethodHandler.java:120) ~[feign-core-10.7.4.jar:na]
  at feign.SynchronousMethodHandler.invoke(SynchronousMethodHandler.java:80) ~[feign-core-10.7.4.jar:na]
  at feign.ReflectiveFeign$FeignInvocationHandler.invoke(ReflectiveFeign.java:100) ~[feign-core-10.7.4.jar:na]
  at com.sun.proxy.$Proxy85.getProductInfo(Unknown Source) ~[na:na]
  at com.bruce.controller.OrderController.getProduct(OrderController.java:25) ~[classes/:na]
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) ~[na:1.8.0_40]
  at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) ~[na:1.8.0_40]
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[na:1.8.0_40]
  at java.lang.reflect.Method.invoke(Method.java:497) ~[na:1.8.0_40]
  at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:190) ~[spring-web-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:138) ~[spring-web-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:106) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:879) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:793) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1040) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:943) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006) ~[spring-webmvc-5.2.4.RELEASE.jar:5.2.4.RELEASE]
  ... 47 common frames omitted
Caused by: java.net.SocketTimeoutException: Read timed out
  at java.net.SocketInputStream.socketRead0(Native Method) ~[na:1.8.0_40]
  at java.net.SocketInputStream.socketRead(SocketInputStream.java:116) ~[na:1.8.0_40]
  at java.net.SocketInputStream.read(SocketInputStream.java:170) ~[na:1.8.0_40]
  at java.net.SocketInputStream.read(SocketInputStream.java:141) ~[na:1.8.0_40]
  at java.io.BufferedInputStream.fill(BufferedInputStream.java:246) ~[na:1.8.0_40]
  at java.io.BufferedInputStream.read1(BufferedInputStream.java:286) ~[na:1.8.0_40]
  at java.io.BufferedInputStream.read(BufferedInputStream.java:345) ~[na:1.8.0_40]
  at sun.net.www.http.HttpClient.parseHTTPHeader(HttpClient.java:704) ~[na:1.8.0_40]
  at sun.net.www.http.HttpClient.parseHTTP(HttpClient.java:647) ~[na:1.8.0_40]
  at sun.net.www.protocol.http.HttpURLConnection.getInputStream0(HttpURLConnection.java:1535) ~[na:1.8.0_40]
  at sun.net.www.protocol.http.HttpURLConnection.getInputStream(HttpURLConnection.java:1440) ~[na:1.8.0_40]
  at java.net.HttpURLConnection.getResponseCode(HttpURLConnection.java:480) ~[na:1.8.0_40]
  at feign.Client$Default.convertResponse(Client.java:78) ~[feign-core-10.7.4.jar:na]
  at feign.Client$Default.execute(Client.java:74) ~[feign-core-10.7.4.jar:na]
  at org.springframework.cloud.openfeign.ribbon.FeignLoadBalancer.execute(FeignLoadBalancer.java:93) ~[spring-cloud-openfeign-core-2.2.2.RELEASE.jar:2.2.2.RELEASE]
  at org.springframework.cloud.openfeign.ribbon.FeignLoadBalancer.execute(FeignLoadBalancer.java:56) ~[spring-cloud-openfeign-core-2.2.2.RELEASE.jar:2.2.2.RELEASE]
  at com.netflix.client.AbstractLoadBalancerAwareClient$1.call(AbstractLoadBalancerAwareClient.java:104) ~[ribbon-loadbalancer-2.3.0.jar:2.3.0]
  at com.netflix.loadbalancer.reactive.LoadBalancerCommand$3$1.call(LoadBalancerCommand.java:303) ~[ribbon-loadbalancer-2.3.0.jar:2.3.0]
  at com.netflix.loadbalancer.reactive.LoadBalancerCommand$3$1.call(LoadBalancerCommand.java:287) ~[ribbon-loadbalancer-2.3.0.jar:2.3.0]
  at rx.internal.util.ScalarSynchronousObservable$3.call(ScalarSynchronousObservable.java:231) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.util.ScalarSynchronousObservable$3.call(ScalarSynchronousObservable.java:228) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.Observable.unsafeSubscribe(Observable.java:10327) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeConcatMap$ConcatMapSubscriber.drain(OnSubscribeConcatMap.java:286) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeConcatMap$ConcatMapSubscriber.onNext(OnSubscribeConcatMap.java:144) ~[rxjava-1.3.8.jar:1.3.8]
  at com.netflix.loadbalancer.reactive.LoadBalancerCommand$1.call(LoadBalancerCommand.java:185) ~[ribbon-loadbalancer-2.3.0.jar:2.3.0]
  at com.netflix.loadbalancer.reactive.LoadBalancerCommand$1.call(LoadBalancerCommand.java:180) ~[ribbon-loadbalancer-2.3.0.jar:2.3.0]
  at rx.Observable.unsafeSubscribe(Observable.java:10327) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeConcatMap.call(OnSubscribeConcatMap.java:94) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeConcatMap.call(OnSubscribeConcatMap.java:42) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.Observable.unsafeSubscribe(Observable.java:10327) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OperatorRetryWithPredicate$SourceSubscriber$1.call(OperatorRetryWithPredicate.java:127) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.schedulers.TrampolineScheduler$InnerCurrentThreadScheduler.enqueue(TrampolineScheduler.java:73) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.schedulers.TrampolineScheduler$InnerCurrentThreadScheduler.schedule(TrampolineScheduler.java:52) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OperatorRetryWithPredicate$SourceSubscriber.onNext(OperatorRetryWithPredicate.java:79) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OperatorRetryWithPredicate$SourceSubscriber.onNext(OperatorRetryWithPredicate.java:45) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.util.ScalarSynchronousObservable$WeakSingleProducer.request(ScalarSynchronousObservable.java:276) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.Subscriber.setProducer(Subscriber.java:209) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.util.ScalarSynchronousObservable$JustOnSubscribe.call(ScalarSynchronousObservable.java:138) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.util.ScalarSynchronousObservable$JustOnSubscribe.call(ScalarSynchronousObservable.java:129) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeLift.call(OnSubscribeLift.java:48) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeLift.call(OnSubscribeLift.java:30) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeLift.call(OnSubscribeLift.java:48) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeLift.call(OnSubscribeLift.java:30) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeLift.call(OnSubscribeLift.java:48) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.internal.operators.OnSubscribeLift.call(OnSubscribeLift.java:30) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.Observable.subscribe(Observable.java:10423) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.Observable.subscribe(Observable.java:10390) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.observables.BlockingObservable.blockForSingle(BlockingObservable.java:443) ~[rxjava-1.3.8.jar:1.3.8]
  at rx.observables.BlockingObservable.single(BlockingObservable.java:340) ~[rxjava-1.3.8.jar:1.3.8]
  at com.netflix.client.AbstractLoadBalancerAwareClient.executeWithLoadBalancer(AbstractLoadBalancerAwareClient.java:112) ~[ribbon-loadbalancer-2.3.0.jar:2.3.0]
  at org.springframework.cloud.openfeign.ribbon.LoadBalancerFeignClient.execute(LoadBalancerFeignClient.java:83) ~[spring-cloud-openfeign-core-2.2.2.RELEASE.jar:2.2.2.RELEASE]
  at feign.SynchronousMethodHandler.executeAndDecode(SynchronousMethodHandler.java:110) ~[feign-core-10.7.4.jar:na]
  ... 64 common frames omitted

分析：出現這個異常的時候，起初我不知道究竟是

Hystrix

斷路器走熔斷了還是

Ribbon

處理請求逾時了，通過觀察日志和做測試，我發現了錯誤日志是由：

org.springframework.cloud.openfeign.ribbon.FeignLoadBalancer

包列印出來的，那麼我就很确定這是

Ribbon

處理請求逾時了，因為我設定了接口提供方休眠

秒，而Ribbon的預設逾時是

秒，而預設情況下在使用Feign時，

Hystrix預設是未開啟的

，這樣就更加肯定這是Ribbon逾時，那麼如何處理呢，見後文。

org.springframework.cloud.openfeign.ribbon.FeignLoadBalancer.execute(FeignLoadBalancer.java:93) ~[spring-cloud-openfeign-core-2.1.2.RELEASE.jar:2.1.2.RELEASE]

解決：服務調用方

application.yml

加入

Ribbon

請求處理逾時和連接配接逾時，這裡需要注意一下，我們在服務提供方的接口裡設定休眠的時間是5秒，是以這裡在設定

Ribbon

的逾時時間時，需要大于5秒，不然起不到作用。

server:
  port: 8777
spring:
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        enabled: true
  application:
    name: nacos-order
# 調用端比對值
ribbon:
  ReadTimeout: 6000
  ConnectTimeout: 5000

再次請求：http://localhost:8777/getProduct/100

正如我們初步的判斷，上述異常在Feign消費服務，

Feign

中的

Hystrix

預設是未開啟的，是以這個問題是由Ribbon逾時引起的。

3.Hystrix逾時

問題：在服務提供者的接口上加休眠5秒，測試Feign調用的時候是否會逾時？

@GetMapping(value = "/getProductInfo/{productId}")
public String getProductInfo(@PathVariable("productId") String productId) {
    log.info("請求進來啦");
    try {
        log.info("模拟服務端逾時");
        Thread.sleep(5000);
    } catch (InterruptedException e) {
        e.printStackTrace();
    } finally {
    }
    return "Hello Nacos Discovery " + productId;
}

接口提供方的

application.yml

配置改成如下，為了探究

Hystrix

我們去掉

Ribbon

的逾時配置，開啟

Feign

中的

Hystrix

：

通路接口：http://localhost:8777/getProduct/100 控制台異常如下：

2021-02-20 10:44:54.878 ERROR 8012 --- [ HystrixTimer-1] c.b.client.OrderFeignFallbackFactory     : 調用異常：com.netflix.hystrix.exception.HystrixTimeoutException
2021-02-20 10:44:54.881  INFO 8012 --- [  XNIO-1 task-1] com.bruce.controller.OrderController     : 調用服務結束： 開啟斷路-fallback; reason was: com.netflix.hystrix.exception.HystrixTimeoutException
2021-02-20 10:44:55.075  INFO 8012 --- [erListUpdater-0] c.netflix.config.ChainedDynamicProperty  : Flipping property: nacos-product.ribbon.ActiveConnectionsLimit to use NEXT property: niws.loadbalancer.availabilityFilteringRule.activeConnectionsLimit = 2147483647

控制台列印日志：

分析：從異常的日志來看，服務調用逾時了，逾時後

Hystrix

立即進行了服務的熔斷，走了回調方法

OrderFeignFallbackFactory

，輸出了服務熔斷後我們定制的Msg，那麼如何解決這個逾時問題呢？

package com.bruce.client;

import feign.hystrix.FallbackFactory;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

/**
 * @BelongsProject: springcloud-alibaba-nacos
 * @BelongsPackage: com.bruce.client
 * @CreateTime: 2021-02-20 10:42
 * @Description: TODO
 */
@Component
@Slf4j
public class OrderFeignFallbackFactory implements FallbackFactory<OrderFeign> {
    @Override
    public OrderFeign create(final Throwable throwable) {
        log.error("調用異常：" + throwable.toString());
        return new OrderFeign() {
            @Override
            public String getProductInfo(String string) {
                return "開啟斷路-fallback; reason was: " + throwable.toString();
            }
        };
    }
}

解決：在接口調用方

application.yml

加入

Hystrix

逾時配置，同樣這裡需要注意的是，

Hystrix

預設的逾時時間是

秒，而我們在服務提供方的接口裡設定休眠的時間是5秒，是以這裡在設定Hystrix的逾時時間時，需要大于

秒，不然起不到作用防止逾時的作用。

server:
  port: 8777
spring:
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        enabled: true
  application:
    name: nacos-order

feign:
  hystrix:
    enabled: true

hystrix:
  command:
    default:
      execution:
        timeout:
          enabled: true
        isolation:
          thread:
            timeoutInMilliseconds: 60000

#ribbon:
#  ReadTimeout: 6000
#  ConnectTimeout: 5000

再次通路接口：http://localhost:8777/getProduct/100 控制台異常如下：

控制台異常如下：

分析：開啟了Hystrix斷路器并且設定了

Hystrix

的逾時時間為6秒，但是這個時候Ribbon處理請求卻逾時了。分析下面這行異常日志：

RetryableException

大概意思是重試異常，查閱資料得知，Ribbon在逾時後會進行重試的，因為沒有對

Ribbon

逾時進行處理，但是開啟了

Hystirx

的斷路器功能和設定其逾時，是以

Ribbon

在處理請求逾時的時候，Hystirx就出來起作用了，對服務進行熔斷，降級處理，進而進入回調方法

OrderFeignFallbackFactory

，傳回友好提示起到服務保護作用。

調用異常：feign.RetryableException: Read timed out executing GET http://nacos-product/getProductInfo/1010110

總結：通過上述分析，那麼在開啟Hystrix斷路器功能之後就需要對

Ribbon

進行逾時設定了，兩者在碰到Feign時，需要協同作戰，或者更粗暴點直接不開啟Hystrix斷路器功能，但是這種方式極不推薦，高并發的項目中服務保護必不可少，是以我們需要将

Ribbon

與Hystrix結合使用，那麼接下來我們需要着重讨論

Ribbon

與

Hystrix

如何協同作戰。

4.在Feign中禁用Hystrix

禁用Hystrix:

參考官網資料： https://cloud.spring.io/spring-cloud-static/spring-cloud-openfeign/2.2.2.RELEASE/reference/html/#spring-cloud-feign-hystrix

要基于每個用戶端禁用

Hystrix

支援，請建立

Feign.Builder

具有“原型”範圍的香草，這段話摘自官網，例如：

package com.bruce.client;

import feign.Feign;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Scope;

@Configuration
public class FooConfiguration {
    @Bean
    @Scope("prototype")
    public Feign.Builder feignBuilder() {
        return Feign.builder();
    }
}

5.同時設定Ribbon逾時和Hystrix逾時

Feign

調用時同時設定

Ribbon

逾時和

Hystrix

逾時，

application.yml

配置如下

server:
  port: 8777
spring:
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        enabled: true
  application:
    name: nacos-order

feign:
  hystrix:
    enabled: true
hystrix:
  command:
    default:
      execution:
        timeout:
          enabled: true
        isolation:
          thread:
            timeoutInMilliseconds: 120000
ribbon:
  ReadTimeout: 6000
  ConnectTimeout: 5000

通路接口： http://localhost:8777/getProduct/100

7.Ribbon逾時值和Hystrix逾時值如何設定？

注意： Ribbon逾時+Hystrix逾時= Feign逾時

7.1.Feign逾時結論

使用 Feign 調用接口分兩層， ribbon 的調用和 hystrix 的調用，是以 ribbon 的逾時時間和 Hystrix 的逾時時間的結合就是 Feign 的逾時時間
一般情況下都是 ribbon的逾時時間 （<） hystrix的逾時時間 （因為涉及到ribbon的重試機制），如果ribbon的逾時時間大于 hystrix 的逾時時間，對于 ribbon 的重試是沒有意義的（ hystrix 逾時熔斷了， ribbon 無法重試），預設我項目中是沒有配置 ribbon 的重試的，但是需要注意的是無論是否需要配置ribbon逾時時的重試次數， hystrix 的逾時都是需要大于 ribbon 的逾時。

7.2.ribbon的重試機制

ribbon:
  OkToRetryOnAllOperations: false #對所有操作請求都進行重試,預設false
  ReadTimeout: 5000   #負載均衡逾時時間，預設值5000
  ConnectTimeout: 2000 #ribbon請求連接配接的逾時時間，預設值2000
  MaxAutoRetries: 0     #對目前執行個體的重試次數，預設0
  MaxAutoRetriesNextServer: 1 #對切換執行個體的重試次數，預設1
hystrix:
  command:
    default:  #default全局有效，service id指定應用有效
      execution:
        timeout:
          enabled: true
        isolation:
          thread:
            timeoutInMilliseconds: 10000 #斷路器逾時時間，預設1000ms

《SpringCloud Alibaba 微服務架構》專題(十)-Spring Cloud Alibaba之Feign調用Ribbon+Hystrix請求逾時

目錄

1.什麼是Feign逾時

2.Ribbon逾時

3.Hystrix逾時

4.在Feign中禁用Hystrix

5.同時設定Ribbon逾時和Hystrix逾時

7.Ribbon逾時值和Hystrix逾時值如何設定？

7.1.Feign逾時結論

7.2.ribbon的重試機制

繼續閱讀

關于Gradle配置的小結

Java小案例——随機數猜測随機數猜測

nginx location中斜線的位置的重要性

27 Best Free Eclipse Plug-ins for Java Developer to be ProductiveCode Quality PluginsText Editor PluginsDependency ManagementVersion Control Integration PluginsFramework Development Continuous Integration Related PluginsOther Utility Plugins

Java String.format方法的簡單使用

neo4j之cypher使用文檔

GitHub連夜封殺！這份阿裡 10W 字内部 Java 字面試手冊到底有多強？

spark/scala關于【資源檔案】加載方法概述外部檔案加載方案測試資源檔案打包入jar包中小結

mybatis_入門程式Mybatis入門

AOP程式設計_Android優雅權限架構(1)概念基礎，2021金三銀四前言正文大綱正文

Effective Java 8:通用程式設計

OOM三種類型

工廠模式-三種類型

【遞歸】高效率求2的n次幂

win10本地scala和spark安裝安裝scala安裝spark

scala (3) Function 和 Method
