國内高層建築不斷興建，它的特點是高度高、層數多、體量大。面積可達幾萬平方米到幾十萬平方米。這些建築都是一個個龐然大物，高高的聳立在地面上，這是它的外觀，而随之帶來的内部的建築裝置也是大量的。為了提高裝置使用率，合理地使用能源，加強對建築裝置狀态的監視等，自然地就提出了樓宇自動化控制系統。下面我們将用ThingJS平台來模拟一個裝置管理系統。

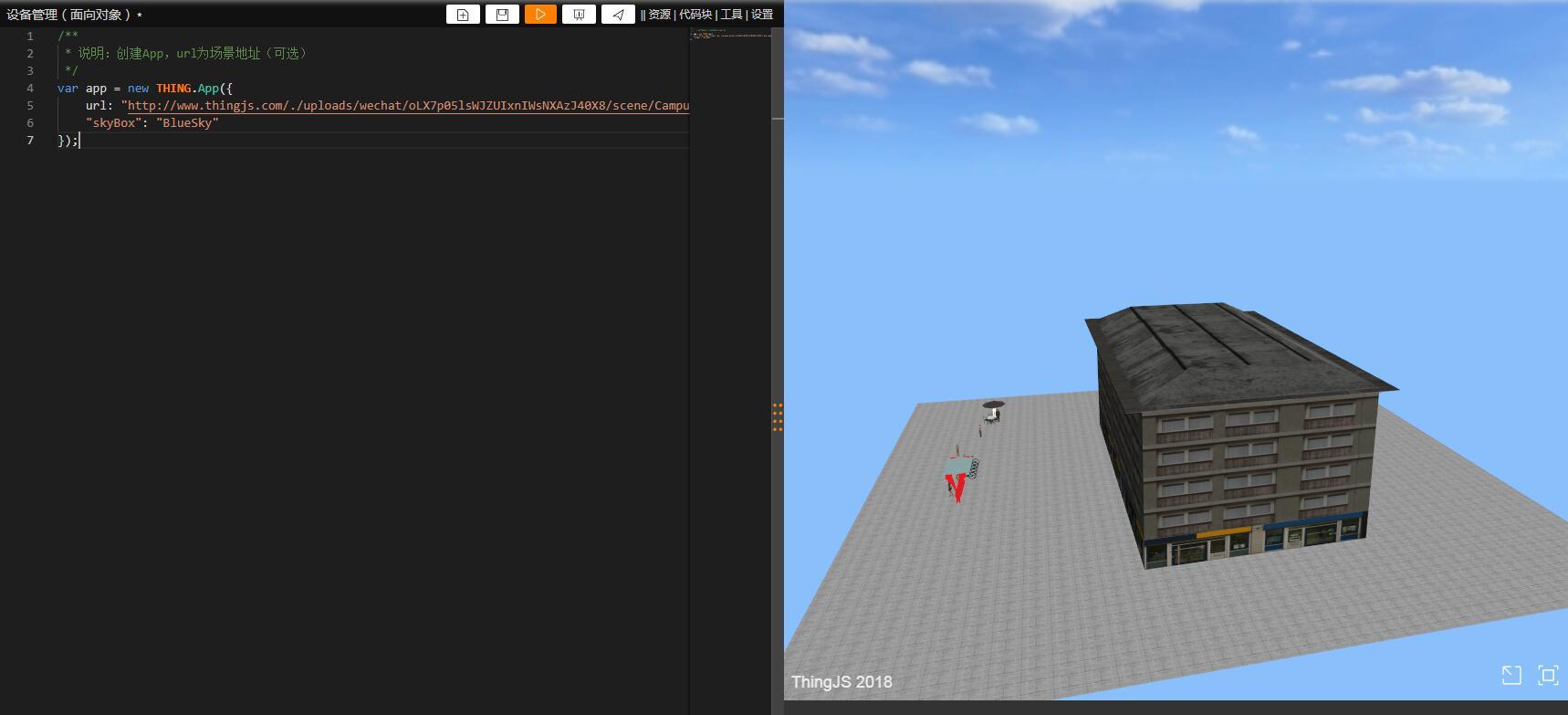

第一步，利用CampusBuilder搭模組化拟場景。CampusBuilder的模型庫有各種各樣的模型，使我們搭建出的場景更逼真。使用CampusBuilde建立層級，之後再給層級加外立面就出現了目前的效果。詳情移步：

CampusBuilder3D場景制作工具先看結果：示範位址

基于WebGL架構的3D可視化平台—三維裝置管理（ThingJS實作樓宇裝置管理3D可視化）

第二步，建立Equipment類，這裡建立。switchControl方法主要一個完成一個計時器的功能來模拟裝置警報。

class Equipment extends THING.Thing {
    constructor(app, name, obj, url) {
        super(app);
        this.name = name;
        this.obj = obj;
        this.url = url;
        this.interval = null;
        this.localPosition = [Math.floor(Math.random() * 7), 2.9, Math.floor(Math.random() * 7)];
    }
    createSelf() {
        app.create({
            type: 'Equipment',
            name: this.name,
            url: this.url,
            parent: this.obj,
            localPosition: this.localPosition,
            angle: 0
        });
    }
    switchControl(ev) {
        var flag;
        var equipment = app.query(this.name)[0];
        app.level.change(equipment);
        if (ev) {
            this.interval = setInterval(function () {
                if (flag) {
                    equipment.style.color = '#FF0000';
                    flag = false;
                } else {
                    flag = true;
                    equipment.style.color = '';
                }
            }, 500);
            console.log(this.interval + "檢視是否建立了定時器");
        } else {
            console.log(this.interval);
            clearInterval(this.interval);
            if (equipment.style.color == '#FF0000')
                equipment.style.color = '';
        }
    }
}
THING.factory.registerClass('Equipment', Equipment);

　　第三步，建立錄影機面闆，煙感報警面闆以及控制裝置的開關，這裡簡單調整一下面闆位置之後會增加兩個建立裝置的按鈕。

//建立主面闆
var panel1 = new THING.widget.Panel({
    titleText: '錄影機清單',
    closeIcon: false, // 是否有關閉按鈕
    dragable: true,
    retractable: true,
    opacity: 0.9,
    hasTitle: true,
});
panel1.position = [80, 0];

var panel2 = new THING.widget.Panel({
    titleText: '煙感報警清單',
    closeIcon: false, // 是否有關閉按鈕
    dragable: true,
    retractable: true,
    opacity: 0.9,
    hasTitle: true,
});
panel2.position = [80, 320];

// 建立任意對象
var dataObj1 = {
    open1: false,
    open2: false,
    open3: false,
    open4: false,
}
var dataObj2 = {
    open5: false,
    open6: false,
    open7: false,
    open8: false,
};

// 動态綁定物體
var open1 = panel1.addBoolean(dataObj1, 'open1').caption('裝置01');
var open2 = panel1.addBoolean(dataObj1, 'open2').caption('裝置02');
var open3 = panel1.addBoolean(dataObj1, 'open3').caption('裝置03');
var open4 = panel1.addBoolean(dataObj1, 'open4').caption('裝置04');
var open5 = panel2.addBoolean(dataObj2, 'open5').caption('裝置01');
var open6 = panel2.addBoolean(dataObj2, 'open6').caption('裝置02');
var open7 = panel2.addBoolean(dataObj2, 'open7').caption('裝置03');
var open8 = panel2.addBoolean(dataObj2, 'open8').caption('裝置04');

　　第四步，開啟場景層級切換，建立錄影機和煙感報警器各四個，建立一個數字辨別index和儲存equipment對象的數組equipmentGroup。

//建立equipment對象數組，以及數組辨別
var equipmentGroup = [];
var index = 0;

app.on('load', function (ev) {

    app.level.change(ev.campus);

    for (var i = 0; i < 8; i++) {
        var type = null;
        if (i < 4) {
            type = 'http://model.3dmomoda.cn/models/62A8A75C75044E6AB3D8463FA0CB67AF/0/gltf/';
        } else {
            type = 'http://model.3dmomoda.cn/models/641A9B800DE5431E8C84DC290F8EFDE6/0/gltf/';
        }
        var equipment = new Equipment(app, 'equipment' + index++, app.query('floor' + (Math.floor(Math.random() * 5) + 1))[0], type);
        equipment.createSelf();
        equipmentGroup.push(equipment);
    }
});

　　第五步，為每個裝置對應的建立控制開關。

open1.on('change', function (ev) {
        equipmentGroup[0].switchControl(ev);
    });
    open2.on('change', function (ev) {
        equipmentGroup[1].switchControl(ev);
    });
    open3.on('change', function (ev) {
        equipmentGroup[2].switchControl(ev);
    });
    open4.on('change', function (ev) {
        equipmentGroup[3].switchControl(ev);
    });
    open5.on('change', function (ev) {
        equipmentGroup[4].switchControl(ev);
    });
    open6.on('change', function (ev) {
        equipmentGroup[5].switchControl(ev);
    });
    open7.on('change', function (ev) {
        equipmentGroup[6].switchControl(ev);
    });
    open8.on('change', function (ev) {
        equipmentGroup[7].switchControl(ev);
    });

　　最後一步，建立兩個按鈕來控制建立裝置。

new THING.widget.Button('建立煙感報警', function () {
    var type = 'http://model.3dmomoda.cn/models/641A9B800DE5431E8C84DC290F8EFDE6/0/gltf/';
    var equipment = new Equipment(app, 'equipment' + index++, app.query('floor' + (Math.floor(Math.random() * 5) + 1))[0], type,);
    equipment.createSelf();
    equipmentGroup.push(equipment);
    app.level.change(app.query(equipment.name)[0]);
});

new THING.widget.Button('建立攝像頭', function () {
    var type = 'http://model.3dmomoda.cn/models/62A8A75C75044E6AB3D8463FA0CB67AF/0/gltf/';
    var equipment = new Equipment(app, 'equipment' + index++, app.query('floor' + (Math.floor(Math.random() * 5) + 1))[0], type,);
    equipment.createSelf();
    equipmentGroup.push(equipment);
    app.level.change(app.query(equipment.name)[0]);
});

在編寫過程還是走了不少彎路的，最主要的就是計時器的解除安裝問題，最初的版本寫來寫去發現不能控制警報的關閉，後來才發現計時器沒有解除安裝，警報不但不會關閉而且閃動的頻率越來越快。更改之後建立了Equipment這個類來控制所有裝置，通過建立這個類的對象給他賦id，父物體，模型位址。這裡控制器在開關被觸發的時候建立一個新的計時器并賦給的這個對象，再次觸發時清除這個計時器，警報的動畫就關閉了。

最後附上完整代碼：

/**
 * 說明：建立App，url為場景位址（可選）
 */
var app = new THING.App({
    url: "http://www.thingjs.com/./uploads/wechat/oLX7p05lsWJZUIxnIWsNXAzJ40X8/scene/CampusBuilder20181126134710",    // 場景位址
    "skyBox": "BlueSky"
});

//建立主面闆
var panel1 = new THING.widget.Panel({
    titleText: '裝置清單',
    closeIcon: false, // 是否有關閉按鈕
    dragable: true,
    retractable: true,
    opacity: 0.9,
    hasTitle: true,
    titleImage: 'https://www.thingjs.com/static/images/example/icon.png'
});
panel1.position = [80, 0];

var panel2 = new THING.widget.Panel({
    titleText: '裝置清單',
    closeIcon: false, // 是否有關閉按鈕
    dragable: true,
    retractable: true,
    opacity: 0.9,
    hasTitle: true,
    titleImage: 'https://www.thingjs.com/static/images/example/icon.png'
});
panel2.position = [80, 320];
// 建立任意對象
var dataObj1 = {
    open1: false,
    open2: false,
    open3: false,
    open4: false,
}
var dataObj2 = {
    open5: false,
    open6: false,
    open7: false,
    open8: false,
};

// 動态綁定物體
var open1 = panel1.addBoolean(dataObj1, 'open1').caption('裝置01');
var open2 = panel1.addBoolean(dataObj1, 'open2').caption('裝置02');
var open3 = panel1.addBoolean(dataObj1, 'open3').caption('裝置03');
var open4 = panel1.addBoolean(dataObj1, 'open4').caption('裝置04');
var open5 = panel2.addBoolean(dataObj2, 'open5').caption('裝置01');
var open6 = panel2.addBoolean(dataObj2, 'open6').caption('裝置02');
var open7 = panel2.addBoolean(dataObj2, 'open7').caption('裝置03');
var open8 = panel2.addBoolean(dataObj2, 'open8').caption('裝置04');

new THING.widget.Button('建立煙感報警', function () {
    var type = 'http://model.3dmomoda.cn/models/641A9B800DE5431E8C84DC290F8EFDE6/0/gltf/';
    var equipment = new Equipment(app, 'equipment' + index++, app.query('floor' + (Math.floor(Math.random() * 5) + 1))[0], type,);
    equipment.createSelf();
    equipmentGroup.push(equipment);
    app.level.change(app.query(equipment.name)[0]);
});

new THING.widget.Button('建立攝像頭', function () {
    var type = 'http://model.3dmomoda.cn/models/62A8A75C75044E6AB3D8463FA0CB67AF/0/gltf/';
    var equipment = new Equipment(app, 'equipment' + index++, app.query('floor' + (Math.floor(Math.random() * 5) + 1))[0], type,);
    equipment.createSelf();
    equipmentGroup.push(equipment);
    app.level.change(app.query(equipment.name)[0]);
});
//建立equipment對象數組，以及數組辨別
var equipmentGroup = [];
var index = 0;


app.on('load', function (ev) {

    app.level.change(ev.campus);

    for (var i = 0; i < 8; i++) {
        var type = null;
        if (i < 4) {
            type = 'http://model.3dmomoda.cn/models/62A8A75C75044E6AB3D8463FA0CB67AF/0/gltf/';
        } else {
            type = 'http://model.3dmomoda.cn/models/641A9B800DE5431E8C84DC290F8EFDE6/0/gltf/';
        }
        var equipment = new Equipment(app, 'equipment' + index++, app.query('floor' + (Math.floor(Math.random() * 5) + 1))[0], type);
        equipment.createSelf();
        equipmentGroup.push(equipment);
    }

    open1.on('change', function (ev) {
        equipmentGroup[0].switchControl(ev);
    });
    open2.on('change', function (ev) {
        equipmentGroup[1].switchControl(ev);
    });
    open3.on('change', function (ev) {
        equipmentGroup[2].switchControl(ev);
    });
    open4.on('change', function (ev) {
        equipmentGroup[3].switchControl(ev);
    });
    open5.on('change', function (ev) {
        equipmentGroup[4].switchControl(ev);
    });
    open6.on('change', function (ev) {
        equipmentGroup[5].switchControl(ev);
    });
    open7.on('change', function (ev) {
        equipmentGroup[6].switchControl(ev);
    });
    open8.on('change', function (ev) {
        equipmentGroup[7].switchControl(ev);
    });

});

class Equipment extends THING.Thing {
    constructor(app, name, obj, url) {
        super(app);
        this.name = name;
        this.obj = obj;
        this.url = url;
        this.interval = null;
    }
    createSelf() {
        app.create({
            type: 'Equipment',
            name: this.name,
            url: this.url,
            parent: this.obj,
            localPosition: [Math.floor(Math.random() * 7), 2.9, Math.floor(Math.random() * 7)],
            angle: 0
        });
    }
    switchControl(ev) {
        var flag;
        var equipment = app.query(this.name)[0];
        app.level.change(equipment);
        if (ev) {
            this.interval = setInterval(function () {
                if (flag) {
                    equipment.style.color = '#FF0000';
                    flag = false;
                } else {
                    flag = true;
                    equipment.style.color = '';
                }
            }, 500);
            console.log(this.interval + "檢視是否建立了定時器");
        } else {
            console.log(this.interval);
            clearInterval(this.interval);
            if (equipment.style.color == '#FF0000')
                equipment.style.color = '';
        }
    }
}

THING.factory.registerClass('Equipment', Equipment);
