spring ,springmvc,mybatis 最基本的整合，沒有多餘的jar包和依賴 2018.9.29日

最基本的ssm架構整合

本案例采用2018商業版intellij idea 編輯器 maven項目管理工具 tomcat8.5

接着上一篇使用springmvc最基本配置開始

https://www.cnblogs.com/qq376324789/p/9685125.html 1.首先在原來的基礎上添加新的依賴，都是目前版本最高的依賴

<!-- https://mvnrepository.com/artifact/com.alibaba/druid -->
<dependency>
   <groupId>com.alibaba</groupId>
   <artifactId>druid</artifactId>
   <version>1.1.11</version>
 </dependency>

   <!-- https://mvnrepository.com/artifact/org.springframework/spring-web -->
   <dependency>
       <groupId>org.springframework</groupId>
       <artifactId>spring-web</artifactId>
       <version>5.1.0.RELEASE</version>
   </dependency>

   <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
   <dependency>
       <groupId>org.springframework</groupId>
       <artifactId>spring-webmvc</artifactId>
       <version>5.1.0.RELEASE</version>
   </dependency>

   <dependency>
       <groupId>org.springframework</groupId>
       <artifactId>spring-jdbc</artifactId>
       <version>5.1.0.RELEASE</version>
     </dependency>

   <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
   <dependency>
       <groupId>org.mybatis</groupId>
       <artifactId>mybatis-spring</artifactId>
       <version>1.3.2</version>
   </dependency>


   <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
   <dependency>
       <groupId>org.mybatis</groupId>
       <artifactId>mybatis</artifactId>
       <version>3.4.6</version>
   </dependency>

2.配置web.xml ，讓其啟動spring容器

<!--讓web容器初始化時初始化spring.xml-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring.xml</param-value>
    </context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

3.配置spring.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:task="http://www.springframework.org/schema/task"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                  http://www.springframework.org/schema/beans/spring-beans.xsd
                  http://www.springframework.org/schema/aop
                  http://www.springframework.org/schema/aop/spring-aop.xsd
                  http://www.springframework.org/schema/context
                  http://www.springframework.org/schema/context/spring-context.xsd
                  http://www.springframework.org/schema/tx
                  http://www.springframework.org/schema/tx/spring-tx.xsd
                  http://www.springframework.org/schema/task  http://www.springframework.org/schema/task/spring-task-3.1.xsd
                  ">
    <!-- 啟用注解 -->
    <context:annotation-config />
    <task:annotation-driven/>
    <context:component-scan base-package="com.service"/>
    <context:component-scan base-package="com.dao"/>



    <!--讀取配置檔案；可以讀取多個-->
    <bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="locations">
            <list>
                <value>classpath:dbconfig.properties</value>

            </list>
        </property>
    </bean>


    <!--配置資料庫連接配接-->
    <bean name="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"></property>
    </bean>
    <!-- 阿裡 druid資料庫連接配接池 -->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" destroy-method="close">
        <!-- 資料庫基本資訊配置 -->
        <property name="url" value="${url}" />
        <property name="username" value="${username}" />
        <property name="password" value="${password}" />
        <property name="driverClassName" value="${driverClassName}" />
        <property name="filters" value="${filters}" />
        <!-- 最大并發連接配接數 -->
        <property name="maxActive" value="${maxActive}" />
        <!-- 初始化連接配接數量 -->
        <property name="initialSize" value="${initialSize}" />
        <!-- 配置擷取連接配接等待逾時的時間 -->
        <property name="maxWait" value="${maxWait}" />
        <!-- 最小空閑連接配接數 -->
        <property name="minIdle" value="${minIdle}" />
        <!-- 配置間隔多久才進行一次檢測，檢測需要關閉的空閑連接配接，機關是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="${timeBetweenEvictionRunsMillis}" />
        <!-- 配置一個連接配接在池中最小生存的時間，機關是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="${minEvictableIdleTimeMillis}" />
        <property name="validationQuery" value="${validationQuery}" />
        <property name="testWhileIdle" value="${testWhileIdle}" />
        <property name="testOnBorrow" value="${testOnBorrow}" />
        <property name="testOnReturn" value="${testOnReturn}" />
        <property name="maxOpenPreparedStatements" value="${maxOpenPreparedStatements}" />
        <!-- 打開removeAbandoned功能 -->
        <property name="removeAbandoned" value="${removeAbandoned}" />
        <!-- 1800秒，也就是30分鐘 -->
        <property name="removeAbandonedTimeout" value="${removeAbandonedTimeout}" />
        <!-- 關閉abanded連接配接時輸出錯誤日志 -->
        <property name="logAbandoned" value="${logAbandoned}" />
    </bean>



    <!--事物聲明配置-->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
            <tx:method name="delete*" propagation="REQUIRED" read-only="false"
                       rollback-for="java.lang.Exception"/>
            <tx:method name="insert*" propagation="REQUIRED" read-only="false"
                       rollback-for="java.lang.Exception" />
            <tx:method name="update*" propagation="REQUIRED" read-only="false"
                       rollback-for="java.lang.Exception" />
            <tx:method name="save*" propagation="REQUIRED" read-only="false"
                       rollback-for="java.lang.Exception" />
        </tx:attributes>
    </tx:advice>

    <aop:aspectj-autoproxy proxy-target-class="true"/>

    <!-- 事務處理 service -->
    <aop:config>
        <aop:pointcut id="pc" expression="execution(* com.service..*(..))" />
        <aop:advisor pointcut-ref="pc" advice-ref="txAdvice" />
    </aop:config>

<!---->

    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
        <property name="mapperLocations" value="classpath:mybatis/*.xml"/>

    </bean>
    <!--表示自動掃描con.sowell.dao下的每個mapper映射檔案-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.dao" />
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
    </bean>





</beans>

4.配置資料庫連接配接

dbconfig.properties

url:jdbc:mysql://localhost:3306/skjd?useUnicode=true&characterEncoding=utf8&characterSetResults=utf8
driverClassName:com.mysql.jdbc.Driver
username:root
password:root

filters:stat

maxActive:20
initialSize:1
maxWait:60000
minIdle:10
maxIdle:15

timeBetweenEvictionRunsMillis:60000
minEvictableIdleTimeMillis:300000

validationQuery:SELECT 'x'
testWhileIdle:true
testOnBorrow:false
testOnReturn:false

maxOpenPreparedStatements:20
removeAbandoned:true
removeAbandonedTimeout:1800
logAbandoned:true

5.配置

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD SQL Map Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <settings>
        <setting name="cacheEnabled" value="true" /><!-- 全局映射器啟用緩存 -->
        <setting name="useGeneratedKeys" value="true" />
        <setting name="defaultExecutorType" value="REUSE" />
    </settings>




</configuration>

6.測試mapper檔案

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.dao.TestDao"  >


    <select id="get" resultType="java.lang.Integer">
      select count(*) from tb_line
    </select>




</mapper>

7.接口

package com.dao;

public interface TestDao {


    int get();
}

8.service

package com.service;

import com.dao.TestDao;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class TestService {
   @Autowired
   private  TestDao testDao;

    public int get(){

        return  testDao.get();
    }



}

9.controller

package com.controller;
import com.service.TestService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;


@Controller
public class Controller01 {

    @Autowired
    private TestService testService;

    @RequestMapping("test2")
    public String test02(){
        int i= testService.get();
        System.out.println(i);
        System.out.println(123);
        return "index";
    }


    @RequestMapping("test3")
    @ResponseBody
    public int  test03(){
        System.out.println(123);

        return testService.get();
    }
}

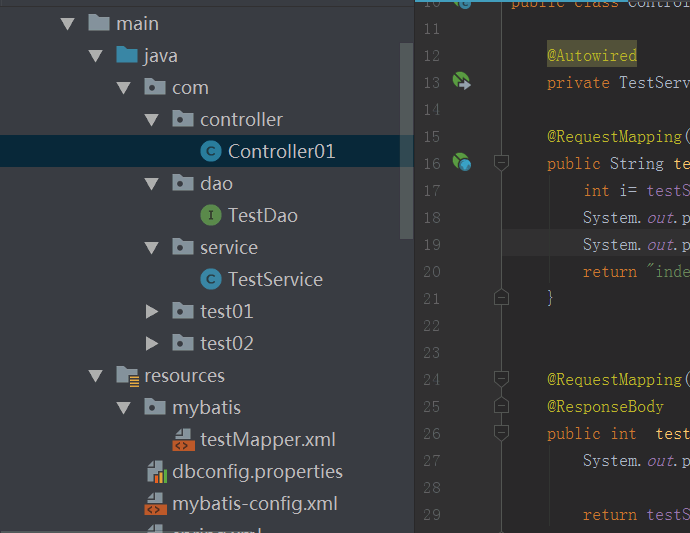

10截圖目錄結構

spring ,springmvc,mybatis 最基本的整合，沒有多餘的jar包和依賴 2018.9.29日

如果大家也使用的是idea編輯器

記得将jdk的jar包和tomcat的jar添加進來。不然會報錯

spring ,springmvc,mybatis 最基本的整合，沒有多餘的jar包和依賴 2018.9.29日
