Redis+mybatis分布式缓存

环境搭建

建表

CREATE TABLE teacher(
		id VARCHAR(255) PRIMARY KEY,
		name VARCHAR(255)
)

CREATE TABLE student (
		id VARCHAR(255) PRIMARY KEY,
		name VARCHAR(255),
		tid VARCHAR(255) REFERENCES teacher(id)
)

创建springboot项目

我们首先搭建一个spring+mybatis环境

<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--redis-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!--junit-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
        <!--mybatis-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.3</version>
        </dependency>
        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--druid-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.19</version>
        </dependency>
    </dependencies>

实体类

package com.gu.entity;

import lombok.Data;
import lombok.experimental.Accessors;

import java.io.Serializable;
import java.util.List;

@Data
@Accessors(chain = true)
// 必须实现Serializable，不然无法序列化
public class Teacher implements Serializable {
    private String id;
    private String name;
    private List<Student> students;
}

package com.gu.entity;

import lombok.Data;
import lombok.experimental.Accessors;

import java.io.Serializable;

@Data
@Accessors(chain = true)
public class Student implements Serializable {
    private String id;
    private String name;
    private String tid;
}

Dao接口

package com.gu.dao;

import com.gu.entity.Student;
import org.springframework.stereotype.Component;

import java.util.List;

@Component
public interface StudentDao {
    List<Student> findAll();

    Student findOne(String id);

    void delete(String id);

    void save(Student student);

    void update(Student student);
}

注解扫描dao包

package com.gu;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@MapperScan("com.gu.dao")
public class RedisStudyApplication {

    public static void main(String[] args) {
        SpringApplication.run(RedisStudyApplication.class, args);
    }

}

package com.gu.dao;

import com.gu.entity.Teacher;
import org.springframework.stereotype.Component;

import java.util.List;

@Component
public interface TeacherDao {
    List<Teacher> findAll();

    Teacher findOne(String id);

    void delete(String id);

    void save(Teacher teacher);

    void update(Teacher teacher);
}

Mapper配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gu.dao.StudentDao">
    <select id="findAll" resultType="Student">
        select id, name, tid from student
    </select>

    <select id="findOne" parameterType="String" resultType="Student">
        select id, name, tid from student where id = #{id}
    </select>

    <delete id="delete" parameterType="String">
        delete from student where id = #{id}
    </delete>

    <insert id="save" parameterType="Student">
        insert into student (id, name, tid) values (#{id}, #{name}, #{tid});
    </insert>

    <update id="update" parameterType="Student">
        update student
        <set>
            <if test="name != null">
                name = #{name},
            </if>
            <if test="tid != null">
                tid = #{tid},
            </if>
        </set>
        where id = #{id};
    </update>
</mapper>

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gu.dao.TeacherDao">
    <select id="findAll" resultMap="TeacherStudent">
        select t.id, t.name, s.id, s.name
        from teacher t, student s
        where t.id = s.tid
    </select>

    <select id="findOne" parameterType="String" resultType="Teacher">
        select id, name from teacher where id = #{id};
    </select>

    <delete id="delete" parameterType="String">
        delete from teacher where id = #{id}
    </delete>

    <insert id="save" parameterType="Teacher">
        insert into teacher (id, name) values (#{id}, #{name});
    </insert>

    <update id="update" parameterType="Teacher">
        update teacher
        <set>
            <if test="name != null">
                name = #{name},
            </if>
        </set>
        where id = #{id};
    </update>

    <!--结果集-->
    <resultMap id="TeacherStudent" type="Teacher">
        <result property="id" column="id"/>
        <result property="name" column="name"/>
        <collection property="students" ofType="Student">
            <result column="id" property="id"/>
            <result column="name" property="name"/>
        </collection>
    </resultMap>
</mapper>

Service接口

package com.gu.service;

import com.gu.entity.Student;

import java.util.List;

public interface StudentService {
    List<Student> findAll();

    Student findOne(String id);

    void delete(String id);

    void save(Student student);

    void update(Student student);
}

package com.gu.service;

import com.gu.entity.Teacher;

import java.util.List;

public interface TeacherService {
    List<Teacher> findAll();

    Teacher findOne(String id);

    void delete(String id);

    void save(Teacher teacher);

    void update(Teacher teacher);
}

Service实现类

package com.gu.service;

import com.gu.dao.StudentDao;
import com.gu.entity.Student;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Propagation;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;
import java.util.UUID;

@Service
@Transactional
public class StudentServiceImpl implements StudentService {
    @Autowired
    private StudentDao studentDao;

    @Override
    @Transactional(propagation = Propagation.SUPPORTS)
    public List<Student> findAll() {
        return studentDao.findAll();
    }

    @Override
    @Transactional(propagation = Propagation.SUPPORTS)
    public Student findOne(String id) {
        return studentDao.findOne(id);
    }

    @Override
    @Transactional(propagation = Propagation.REQUIRED)
    public void delete(String id) {
        studentDao.delete(id);
    }

    @Override
    @Transactional(propagation = Propagation.REQUIRED)
    public void save(Student student) {
        student.setId(UUID.randomUUID().toString());
        studentDao.save(student);
    }

    @Override
    @Transactional(propagation = Propagation.REQUIRED)
    public void update(Student student) {
        studentDao.update(student);
    }
}

package com.gu.service;

import com.gu.dao.TeacherDao;
import com.gu.entity.Teacher;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Propagation;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;
import java.util.UUID;

@Service
@Transactional
public class TeacherServiceImpl implements TeacherService {
    @Autowired
    private TeacherDao teacherDao;

    @Override
    @Transactional(propagation = Propagation.SUPPORTS)
    public List<Teacher> findAll() {
        return teacherDao.findAll();
    }

    @Override
    @Transactional(propagation = Propagation.SUPPORTS)
    public Teacher findOne(String id) {
        return teacherDao.findOne(id);
    }

    @Override
    @Transactional(propagation = Propagation.REQUIRED)
    public void delete(String id) {
        teacherDao.delete(id);
    }

    @Override
    @Transactional(propagation = Propagation.REQUIRED)
    public void save(Teacher teacher) {
        teacher.setId(UUID.randomUUID().toString());
        teacherDao.save(teacher);
    }

    @Override
    @Transactional(propagation = Propagation.REQUIRED)
    public void update(Teacher teacher) {
        teacherDao.update(teacher);
    }
}

application.properties

# datasource
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/study?characterEncoding=UTF-8
spring.datasource.username=root
spring.datasource.password=root
# mybatis
mybatis.type-aliases-package=com.gu.entity
mybatis.mapper-locations=classpath:com/gu/mapper/*.xml
# redis
spring.redis.host=192.168.70.130
spring.redis.port=6379
spring.redis.database=0
#log
logging.level.com.gu.dao=debug

MyBatis开启缓存

mybatis的一级缓存在SqlSession，默认开启。二级缓存在对应namespace的mapper文件中，需要手动开启。

如何开启maybatis二级缓存？

答：只需要在mapper文件下添加cache标签即可。例如：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gu.dao.StudentDao">
    <cache/>

    <select id="findAll" resultType="Student">
        select id, name, tid from student
    </select>

    ...
</mapper>

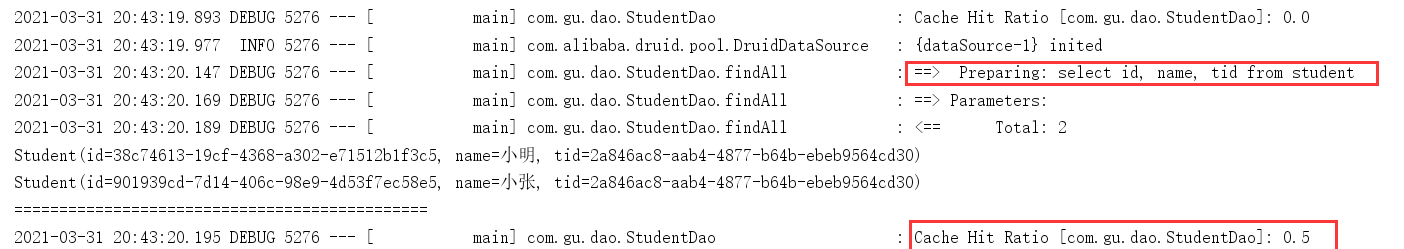

查询测试

@Test
public void testFindAll() {
	studentService.findAll().forEach(student -> System.out.println(student));
	System.out.println("==============================================");
	studentService.findAll().forEach(student -> System.out.println(student));
}

Redis+mybatis分布式缓存

总结：可以看到第一次查询没有在缓存中找到，是通过sql查询数据库得到的。而第二次查询，在缓存中找到了，所以没有查询数据库。

深入探究

cache标签的type属性可以选择不同的缓存，比如默认的type是PerpetualCache，即

/**
 *    Copyright 2009-2019 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.cache.impl;

import java.util.HashMap;
import java.util.Map;

import org.apache.ibatis.cache.Cache;
import org.apache.ibatis.cache.CacheException;

/**
 * @author Clinton Begin
 */
public class PerpetualCache implements Cache {

  private final String id;

  private final Map<Object, Object> cache = new HashMap<>();

  public PerpetualCache(String id) {
    this.id = id;
  }

  @Override
  public String getId() {
    return id;
  }

  @Override
  public int getSize() {
    return cache.size();
  }

  @Override
  public void putObject(Object key, Object value) {
    cache.put(key, value);
  }

  @Override
  public Object getObject(Object key) {
    return cache.get(key);
  }

  @Override
  public Object removeObject(Object key) {
    return cache.remove(key);
  }

  @Override
  public void clear() {
    cache.clear();
  }

  @Override
  public boolean equals(Object o) {
    if (getId() == null) {
      throw new CacheException("Cache instances require an ID.");
    }
    if (this == o) {
      return true;
    }
    if (!(o instanceof Cache)) {
      return false;
    }

    Cache otherCache = (Cache) o;
    return getId().equals(otherCache.getId());
  }

  @Override
  public int hashCode() {
    if (getId() == null) {
      throw new CacheException("Cache instances require an ID.");
    }
    return getId().hashCode();
  }
}

从31行可以看出，PerpetualCache是基于HashMap的，它的putObject，getObject方法就是对HashMap的put，get。而HashMap在多线程下是不安全的，因此PerpetualCache也是线程不安全的，但是Redis是单线程是安全的。我们只需要实现Cache接口就能写RedisCache。

MyBatis+Redis缓存

package com.gu.utils;

import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;

@Component
public class ApplicationContextUtils implements ApplicationContextAware {
    private static ApplicationContext applicationContext;

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }

    public static Object getBean(String beanName) {
        return applicationContext.getBean(beanName);
    }
}

package com.gu.cache;

import com.gu.utils.ApplicationContextUtils;
import org.apache.ibatis.cache.Cache;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import org.springframework.util.DigestUtils;

public class RedisCache implements Cache {
    private final String id;

    public RedisCache(String id) {
        this.id = id;
    }

    @Override
    public String getId() {
        return id;
    }

    @Override
    public void putObject(Object key, Object value) {
        getRedisTemplate().opsForHash().put(id, getKeyToMD5(key.toString()), value);
    }

    @Override
    public Object getObject(Object key) {
        return getRedisTemplate().opsForHash().get(id, getKeyToMD5(key.toString()));
    }

    @Override
    public Object removeObject(Object key) {
        return null;
    }

    @Override
    public void clear() {
        System.out.println("清空缓存-----");
        getRedisTemplate().delete(id);
    }

    @Override
    public int getSize() {
        return getRedisTemplate().opsForHash().size(id).intValue();
    }

    public RedisTemplate getRedisTemplate() {
        RedisTemplate redisTemplate = (RedisTemplate) ApplicationContextUtils.getBean("redisTemplate");
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashKeySerializer(new StringRedisSerializer());
        return redisTemplate;
    }

    public String getKeyToMD5(String key) {
        return DigestUtils.md5DigestAsHex(key.getBytes());
    }
}

增删改的时候，为了保证Redis中的数据和数据库中具有一致性，应该同时删除Redis中对于的缓存。通过打断点我们可以知道，调用的是clear()方法，而不是removeObject()方法。执行增删改时，会执行clear方法，清除对应缓存。

由于student和teacher存在多对一，所以学生类的缓存应该被老师类包含。我们可以直接使用cache-ref将学生类缓存到老师类下。

代码如下：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gu.dao.TeacherDao">
    <cache type="com.gu.cache.RedisCache"/>

    <select id="findAll" resultMap="TeacherStudent">
        select t.id, t.name, s.id, s.name
        from teacher t, student s
        where t.id = s.tid
    </select>

    ......
</mapper>

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gu.dao.StudentDao">
    <cache-ref namespace="com.gu.dao.TeacherDao"/>

    <select id="findAll" resultType="Student">
        select id, name, tid from student
    </select>

    ......
</mapper>

总结：

使用散列表来缓存查询的结果。断点调试可以发现，这里的id就是对应的mapper文件中的namespacecom.gu.dao.StudentDao，而key和value对应就是的查询语句和查询结果。

findAll" resultMap=“TeacherStudent”>

select t.id, t.name, s.id, s.name

from teacher t, student s

where t.id = s.tid

......

```

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gu.dao.StudentDao">
    <cache-ref namespace="com.gu.dao.TeacherDao"/>

    <select id="findAll" resultType="Student">
        select id, name, tid from student
    </select>

    ......
</mapper>

总结：

使用散列表来缓存查询的结果。断点调试可以发现，这里的id就是对应的mapper文件中的namespacecom.gu.dao.StudentDao，而key和value对应就是的查询语句和查询结果。
如果是设置具有时效性的数据，可以在putObject()方法中执行expire()设置生存时间。

Redis+mybatis分布式缓存

目录

环境搭建

建表

创建springboot项目

实体类

Dao接口

注解扫描dao包

Mapper配置文件

Service接口

Service实现类

application.properties

MyBatis开启缓存

MyBatis+Redis缓存

继续阅读

java 版本的redis-stat不能运行在后台和daemon

myeclipse 搭建mybatis框架时报错（1）Communications link failure 通讯链接故障

redis管理常用命令

django短信验证码的后端实现

Redis订阅了一段时间后订阅失效了（ redisTemplate.convertAndSend）

2022秋招面试总结（cpp+java+测开）百度测开一面字节后端一面虾皮后端一面虾皮后端二面

数据迁移方法数据迁移原则数据迁移之双写方案数据迁移之级联同步方案

微服务-性能压测\缓存redis和分布式锁redisson和SpringCache

Nacos 2.0 升级前后性能对比压测

Spring数据和Redis

redis集群数据一致性_RedisRaft为Redis集群带来强大的数据一致性

MyBatis学习笔记Mybatis学习笔记（maven、Idea版）

supervisor 管理redis 和httpd 环境centos7

Redis简介一(单机版)发展历程Redis

用mybatis的generator插件在项目中自动生成dao及entity

从mybatis到mybatis plus(mp)
