Android 自定义组件_开关控件

Google 在 API 14 开始才新增了Switch 控件。

因此，我们可以选择自己封装一个Switch 。

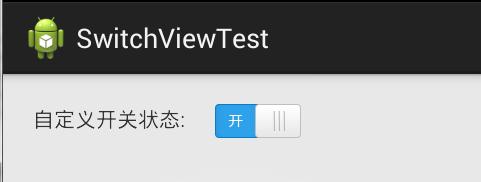

效果如图：

View主要代码：

[java]  view plain copy

1. public class SwitchView extends LinearLayout {
2.     private ImageView maskImage;              // 开关遮盖图片
3.     private boolean open;                     // 开关当前状态
4.     private boolean isAninFinish = true;      // 动画是否结束
5.     private float x;                          // 记录ACTION_DOWN时候的横坐标
6.     private boolean isChangedByTouch = false; // 是否在一次事件中已经切换过状态
7.     private OnSwitchChangeListener switchChangeListener; // 监控开关状态
8.     public interface OnSwitchChangeListener {
9.         void onSwitchChanged(boolean open);
10.     }
11.     public SwitchView(Context context, AttributeSet attrs) {
12.         super(context, attrs);
13.         init();
14.     }
15.     public SwitchView(Context context) {
16.         super(context);
17.         init();
18.     }
19.     private void init() {
20.         setBackgroundResource(R.drawable.switch_bg);
21.         maskImage = new ImageView(getContext());
22.         maskImage.setLayoutParams(new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT));
23.         maskImage.setImageResource(R.drawable.switch_mask);
24.         addView(maskImage);
25.     }
26.     public boolean getSwitchStatus() {
27.         return open;
28.     }
29.     public void setSwitchStatus(boolean isOpen) {
30.         this.open = isOpen;
31.         if (isOpen) {
32.             setGravity(Gravity.RIGHT);
33.         } else {
34.             setGravity(Gravity.LEFT);
35.         }
36.     }
37.     @Override
38.     public boolean onTouchEvent(MotionEvent event) {
39.         switch (event.getAction()) {
40.         case MotionEvent.ACTION_DOWN: {
41.             x = event.getX();
42.             break;
43.         }
44.         case MotionEvent.ACTION_MOVE: {
45.             if (event.getX() - x > 5 && !open) { // 向右
46.                 changeStatus();
47.             } else if (event.getX() - x < -5 && open) { // 向左
48.                 changeStatus();
49.             }
50.             break;
51.         }
52.         case MotionEvent.ACTION_UP: {
53.             if (Math.abs(event.getX() - x) <= 5) {
54.                 changeStatus();
55.             }
56.             isChangedByTouch = false;
57.             break;
58.         }
59.         case MotionEvent.ACTION_CANCEL: {
60.             isChangedByTouch = false;
61.             break;
62.         }
63.         }
64.         return true;
65.     }
66.     private void changeStatus() {
67.         if (isAninFinish && !isChangedByTouch) {
68.             isChangedByTouch = true;
69.             open = !open;
70.             isAninFinish = false;
71.             if (switchChangeListener != null) {
72.                 switchChangeListener.onSwitchChanged(open);
73.             }
74.             changeOpenStatusWithAnim(open);
75.         }
76.     }
77.     private void changeOpenStatusWithAnim(boolean open) {
78.         if (open) {
79.             // 左到右
80.             Animation leftToRight = new TranslateAnimation(Animation.RELATIVE_TO_SELF, 0,
81.                     Animation.ABSOLUTE, getWidth() - maskImage.getWidth(),
82.                     Animation.RELATIVE_TO_SELF, 0,
83.                     Animation.RELATIVE_TO_SELF, 0);
84.             leftToRight.setDuration(300);
85.             leftToRight.setAnimationListener(new AnimationListener() {
86.                 @Override
87.                 public void onAnimationStart(Animation animation) {
88.                 }
89.                 @Override
90.                 public void onAnimationRepeat(Animation animation) {
91.                 }
92.                 @Override
93.                 public void onAnimationEnd(Animation animation) {
94.                     maskImage.clearAnimation();
95.                     setGravity(Gravity.RIGHT);
96.                     isAninFinish = true;
97.                 }
98.             });
99.             maskImage.startAnimation(leftToRight);
100.         } else {
101.             // 右到左
102.             Animation rightToLeft = new TranslateAnimation(Animation.RELATIVE_TO_SELF, 0,
103.                     Animation.ABSOLUTE, maskImage.getWidth() - getWidth(),
104.                     Animation.RELATIVE_TO_SELF, 0,
105.                     Animation.RELATIVE_TO_SELF, 0);
106.             rightToLeft.setDuration(300);
107.             rightToLeft.setAnimationListener(new AnimationListener() {
108.                 @Override
109.                 public void onAnimationStart(Animation animation) {
110.                 }
111.                 @Override
112.                 public void onAnimationRepeat(Animation animation) {
113.                 }
114.                 @Override
115.                 public void onAnimationEnd(Animation animation) {
116.                     maskImage.clearAnimation();
117.                     setGravity(Gravity.LEFT);
118.                     isAninFinish = true;
119.                 }
120.             });
121.             maskImage.startAnimation(rightToLeft);
122.         }
123.     }
124.     public OnSwitchChangeListener getSwitchChangeListener() {
125.         return switchChangeListener;
126.     }
127.     public void setOnSwitchChangeListener(OnSwitchChangeListener switchChangeListener) {
128.         this.switchChangeListener = switchChangeListener;
129.     }
130. }

测试用代码：

[java]  view plain copy

1. public class MainActivity extends Activity {
2.     @Override
3.     protected void onCreate(Bundle savedInstanceState) {
4.         super.onCreate(savedInstanceState);
5.         setContentView(R.layout.activity_main);
6.         SwitchView switchView = (SwitchView) findViewById(R.id.switchview);
7.         switchView.setSwitchStatus(true);
8.         switchView.setOnSwitchChangeListener(new OnSwitchChangeListener() {
9.             @Override
10.             public void onSwitchChanged(boolean open) {
11.                 Toast.makeText(MainActivity.this, "开关状态:" + open, Toast.LENGTH_SHORT).show();
12.             }
13.         });
14.     }
15. }

测试用布局：

[html]  view plain copy

1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
2.     xmlns:tools="http://schemas.android.com/tools"
3.     android:layout_width="match_parent"
4.     android:layout_height="match_parent"
5.     android:padding="20dp"
6.     >
7.     <TextView
8.         android:layout_width="wrap_content"
9.         android:layout_height="wrap_content"
10.         android:text="自定义开关状态:"
11.         />
12.     <com.fancyy.switchview.SwitchView
13.         android:layout_marginLeft="20dp"
14.         android:id="@+id/switchview"
15.         android:layout_width="wrap_content"
16.         android:layout_height="wrap_content" />
17. </LinearLayout>

测试代码下载：http://download.csdn.net/detail/a105865708/6800519
