Beam shelf time and narrow roadway shelves are the most common shelf products in today's logistics warehouses, and the two also have a little similarity in appearance and characteristics, so some customers will often confuse the two shelves. So what are the differences between narrow roadway shelves and beam shelves? The following Dingli Xiaobian will take you to a brief understanding!
First, the main body of the narrow roadway shelf is a beam shelf, because the forklift handling channel of its shelf system is relatively narrow, so it will be called a narrow roadway. Narrow roadway shelves need to be equipped with three golden forks for operation, up to 14m. Guide rails need to be provided on both sides of the channel to facilitate the diversion of the three forklifts.
Second, the same places between the narrow roadway shelves and the beam shelves:
1. The two kinds of shelves are essentially the same type, which are composed of columns, beams, diagonal braces, etc.
2, narrow roadway shelves and beam shelves need to use forklifts and other auxiliary equipment to store goods.
Third, the difference between narrow roadway shelves and beam shelves:
1. The height and storage system of these two kinds of shelves are different, and the beam shelves are shorter than the narrow roadway shelves.
2, the specifications are different: narrow roadway shelves are two kinds of beam shelves used side by side, and the beam shelves are used in combination with the main and secondary shelves.
3. The narrow roadway shelves should walk in the roadway between the shelves on both sides when the forklift operation, and the passage of the beam shelves is wider.

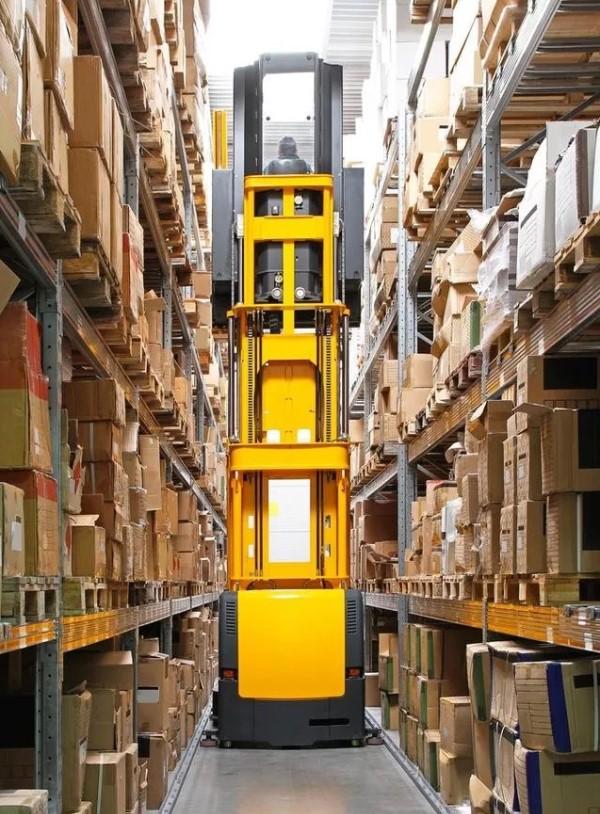

4, the biggest feature of the narrow lane shelf is that the passage is much narrower than the general beam type, about 1600mm-2000mm, which greatly improves the space utilization rate of the warehouse, in today's soaring house prices, the narrow laneway shelf is liked by many enterprise warehouses; This shelf needs to be equipped with a special forklift--- three-way stacker truck, which is also another feature of it, because the passage is relatively narrow, which requires the technology of the master of the forklift, the driving technology should be more skilled, and the usual work should be careful and cautious.
5, narrow lane shelf installation after the height of about 200mm guide rail (guide rail can be done in civil construction, can also be used in the installation of shelves with a good guard plate) as a forklift guidance system, reduce the forklift driver due to human factors to the danger of the shelf, relative to the drive-in type of the driver requirements are lower.
6. The width of the stacking channel of the shelf system is slightly larger than the width of the pallet goods, and the high-density storage requirements can be realized. At the same time, it inherits all the advantages of the beam-type racking system, which contains 100% selectivity for all materials and can store any pallet at any time. Fast storage efficiency and very high storage density bring significant productivity and cost-effectiveness to storage and logistics centers suitable for narrow aisle racking systems.
