Angel Wings? Angel wings? What a god-level plaything it is!
According to a young developer, "The idea is an air conditioning remote control made from an old-fashioned and discarded card reader, plus a night light function!" ”
So where are the Angel Wings? Let's watch it together
Look at the fairy-level gift that the man gave his girlfriend
In the hot summer, air conditioning is always indispensable, how to control air conditioning more conveniently?
Smart air conditioning companion to satisfy you ~
Even the programming rookie level will also have the air conditioning companion free of charge program to send real fragrance !!!
Bill of Materials Hardware (4)
Vintage MultifunctionAl reader Quantity: 1 Waste utilization
Graffiti WR3E Quantity: 1
1117-3.3 Quantity: 1 Mini easy to use peripherals can be used with just two 10UF capacitors
Infrared transceiver tube tertiary tube key LED blocking parts n quantity: 30 Lichuang mall are sold
steps

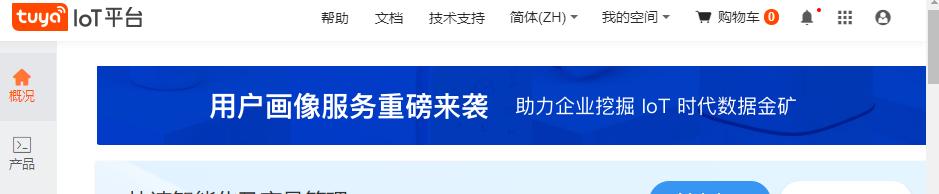

First of all, I recommend that enthusiasts first go to the doodle platform to create a device!! Of course, you have to log in first!!
https://auth.tuya.com/?_source=7c8653b7bd61bf9239a1a6c12e52124d
Then go to the homepage and click Create Product
Find the electrician category and then find the air conditioner companion
Select the scheme in the zero-code implementation
Fill in the name and model number you like
The next step is to select the function, because it is free of development (no need to write your own code), so you can choose all, you can also choose some more practical
App panelWe choose the panel in the public version, simple and beautiful! You can also customize the panel and SDK panel, interested partners can slowly study, right here to share with you that the panel is also able to change in the later stage!!
Next is hardware debugging, select the module, and the module on the side has a detailed description that can be clicked to view
Select the module and click Online to generate firmware
Then there is the IO port configuration, which can be configured by yourself and each configuration bar has options
Then it's time to buy mods, 50 coupons can buy 3 mods, you can also create 3 different solutions to buy different mod experiences!! If the amount exceeds, you have to pay for it out of your own pocket!!
Buy 3 plus the purchase quantity, and if you want to do something else, add the shopping cart first. After buying the module, look back at the lower left corner (refer to the circuit schematic)
With the schematic, you can go to the PCB design software to draw the PCB pull, here is recommended is the Creation EDA our domestic software can be edited online, the schematic will pick their own need for the function part of the reference drawing. When drawing, it is based on the reader housing and some of the original layout and dimensions.
Below is the schematic and PCB screenshot I drew
At this point, the little brother's angel wings have been made, creating a small surprise for his girlfriend to live a small life, which is actually very simple
The heart is not as good as action, come to DIY cool air conditioning companion bar ~
