preface
Have you ever used Yubo's charging treasure? Stable performance, affordable price, so that Yubo's charger is loved by consumers. In the field of outdoor power supply, Yubo is also a leader, and the product power covers 100W to 1000W, covering various use scenarios.
This time for everyone to bring is Yubo's latest 700W outdoor power supply 700P, this outdoor power supply uses lithium iron phosphate battery, 700W rated power + 614Wh capacity, about 0.6 kWh, support PD two-way 100W charging, and more intimate details, just feel it in the following review.
Product out of the box

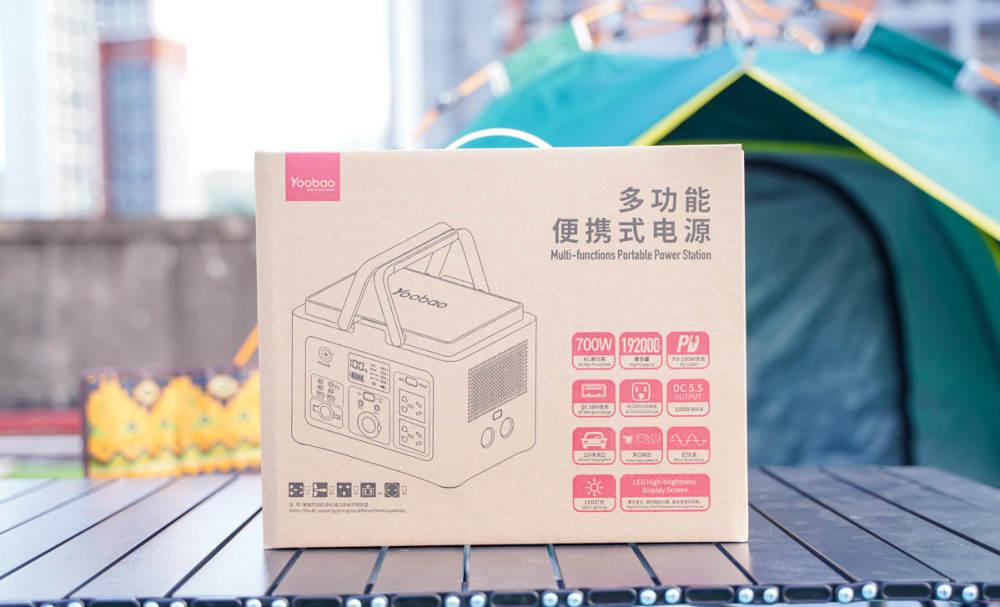

Starting with the box, the front is printed with the product's interface configuration and main selling points.
On the back is an example diagram of the applicable appliances for various interfaces.
On the side is the detailed specifications of each interface, the product model is EN700P, the battery capacity is 614.4Wh, the maximum power of AC output is 700W, the maximum DC output power is 200W, the maximum output of the car charge port and the DC port is 136W, the USB-C1 interface supports two-way 100W PD fast charging, and the C2 and C3 interfaces support 20W maximum output, and the two USB-A interfaces have a maximum output of 18W.
Outdoor power supply is protected by foam left and right.
There is an outdoor power supply and a power adapter inside the package.
Yubo 700W outdoor power connectors are configured on the front.
Two long-range spotlights on one side support solid light and SOS flashing modes, and large heat dissipation holes avoid heat accumulation during operation.
On the other side, there is also a reading strip, which supports three brightness adjustments, and the cooling fan can be faintly seen under the grid.
The bottom surface of the outdoor power supply has four large anti-slip rubber pads, and the parameter nameplate and outer packaging of the product are consistent, which will not be repeated here.
First of all, let's take a look at the interface configuration on the far left of this outdoor power supply, 3C2A has a total of 5 USB ports, of which C1 supports 100W two-way fast charging, and there is no need to carry an additional power adapter when going out; the other two C ports are prepared for mobile phone charging, supporting 20W maximum power; USB-A interfaces support 18W fast charging.
Below the USB interface area is the charging port of this outdoor power supply, which supports the maximum input power of 200W, and the thread lock design avoids poor plug contact and makes charging safer.
The DC output area consists of two DC ports and a car filler port, with a maximum output power of 136W and is equipped with independent switches.
The final area is the AC output area, which is configured with two AC output ports.
The color LED display can observe the remaining power and estimated use time of the outdoor power supply in real time, the power is known at a glance, and the use experience is as convenient as the charging treasure.
Application scenarios of outdoor power supply
With a rated power rating of 700W, what can you do? Let's take a look at which appliances can be used.
Power digital devices
The outdoor power supply for a variety of digital products is its best play.
Large-screen gaming can also be played by connecting portable displays and Switches far from the grid.
C1 interface maximum output power of 100W, for the notebook direct charging without adapter, for the burden of going out.
When charging notebooks and mobile phones at the same time, the total power is about 57W, and the remaining use time is about 7 hours.
Multiple USB ports, enough to charge all the digital devices of a family of three, the charger saves the AC jack for other uses.
Outdoor cooking
Eating, drinking and boiling water to cook rice in the wild is naturally inevitable for this outdoor power supply to have a maximum power rating of 700W, which supports a variety of kitchen appliances such as electric cookers, rice cookers, and small induction cookers.
Here the use of electric boiling pot to boil water, the power is about 635W, in 95% of the remaining power can continue to work for 45 minutes, boiling a noodle, boiling a water are stable and safe.
A cup of hot afternoon tea only takes a few moments to wait, and you can cook tea and cook rice far from the power grid, and you can eat hot meals in parks and tourist areas where there is no fire.
After the heat, the car Xiaoice the ice drink in the box do not miss, the maximum power of the car charge mouth of 136W, the power supply for the car electrical appliances is quite convenient.
Outdoor work
Generally used for outdoor work power tools have built-in lithium batteries, limited by the volume, the general power is difficult to satisfy. The use of outdoor power supply to power is more powerful, electric drill, cutting machine where to use.
And the built-in lighting can also provide illumination for the work.
Test summary
Measured Yubo 700W outdoor power supply for a variety of small and medium-power electrical power supply without problems, relatively light weight, one person can carry, outdoor for the notebook power supply, cooking, homework can be a good experience.
Self-charging
Yubo 700W outdoor power supply supports DC, solar energy, PD a variety of charging methods, of which the aviation adapter with DC socket double input, the maximum charging power up to 300W, the charging time down to three hours; and the most convenient is PD charging, no need for additional adapters; with solar panels, there is a steady stream of electricity in the wilderness.
Data testing
Self-charging full test
Yubo EN-700P outdoor power supply supports AC and USB-C input modes in terms of self-charging, the former can use its own power adapter to power it, the latter can use a universal 100-watt PD charger to restore power for it, this time also tested the outdoor power supply self-charging process.
This is the whole data change of using a 100W PD charger to charge it through the USB-C interface of the outdoor power supply, the input power is about 94W before 7 hours and 8 minutes, and finally the charging ends at 7 hours and 36 minutes.
In addition to the PD input, the data entered through the built-in charger was also collected this time, and the two charging processes were drawn together as a curve chart for comparison.
Overall, it is still faster to charge through the built-in charger, and the curve gap between the two is obvious, and half of the power can be restored in only 2 hours using the built-in power cord. Of course, this is not to say that PD fast charging is not good, outdoor power supply support PD fast charging input to ensure versatility, if the original charger is not around you can also find a PD charger to charge, the overall look is much more convenient.
Output test
As for the output test, because the outdoor power supply comes with a 220V output interface, the power output in the face of different appliances is often different, which cannot be visualized test. However, it is possible to test the output of the built-in USB-C interface.
This is a test that allows the outdoor power supply to be continuously output at 20V5A 100W through the built-in USB-C interface, and finally ends at 5 hours and 36 minutes of charging.
Why test this one, because the USB-C interface of the YUBO EN-700P outdoor power supply supports 100W PD fast charging, and this power band is often prepared for laptops.
Therefore, it can be seen from the test results that if the outdoor power supply is continuously output at 100W, it can last for 5 hours and 36 minutes, and USB-C will certainly not continue to charge at 100W full load when charging the notebook, so if you simply use USB-C to charge the laptop, the charging time that can be provided is definitely much longer than 5 hours and 36 minutes.
Charging head net summary
I believe that readers who have traveled by car and camped in parks must have encountered electricity problems, and it is not realistic to go out with a bulky generator, and it is even more troublesome to maintain. The outdoor power supply is quite advantageous in terms of size and weight, and a variety of output methods support direct charging of digital products such as notebooks and mobile phones, which is a large charging treasure for convenience.
700W rated power + 614Wh capacity, in the outdoor power supply products belong to the middle of the player, a person to carry is not a problem; a variety of self-charging methods, PD, DC, solar energy, where can be filled freely; the lights on both sides in outdoor camping, fishing, exploration and rescue can be a big show.
Most of the other common medium power products on the market are 500W, and in comparison, the additional 200W of power can be used more calmly and calmly in daily use. Now many net red small household appliances power between 500W-600W, this outdoor power supply can cope well.
In addition to the function, the battery cell of this outdoor power supply uses lithium iron phosphate material, which is outstanding in safety and temperature resistance, with a large area of heat dissipation holes on the side, safe electricity is not just talk.
