In order to achieve green and sustainable development, different cities have put forward a lot of environmental protection requirements for engineering vehicles, especially in super-first-tier cities such as Beijing, Shanghai, Guangzhou, and Shenzhen, and pay special attention to urban construction vehicles. In this issue, Fa Ge takes you to understand the muck truck specially built by Jianghuai Gelfa for Guangzhou regulations to see how it is different.
Comfort should not be underestimated

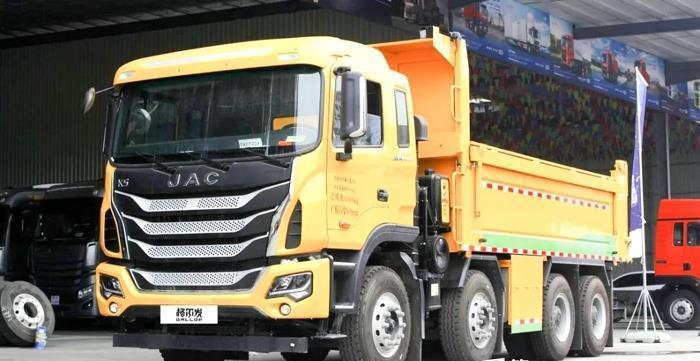

As one of the elements of the city, the Gelfa muck truck meets the needs of good appearance and comfortable interior. The car is equipped with a flat-top row semi-cab, the boxy shape coincides with the short wheelbase of the vehicle, and the overall appearance contour looks very hard and domineering.
The fully floating design of the cab, combined with the main driver's shock absorbing seat, can bring a good and comfortable driving experience to the card friends even if it is often running on the potholed and bumpy non-paved road.
The dashboard adopts a combination display of mechanical hands and LCD meters, the LCD screen in the middle is very high-tech in ui design; the multi-functional steering wheel adopts an all-inclusive design of soft leather stitching, which has an excellent feel, and the black leather covering above the center console also has a red stitching design, which echoes the beige interior in front of the co-driver, highlighting the atmosphere.
Hardcore configurations work out
Jianghuai Geerfa muck truck is equipped with Yuchai YCK08 engine, the maximum output of 350 horsepower, can be 1300-1500rpm at the maximum torque of 1450N·m, it is worth mentioning that the B10 life of the engine can reach more than 1 million kilometers.
Matched with it is the 10-speed fastener all-aluminum shell gearbox, this set of power chain configuration can be said to be the "best partner", the use of good reputation, brand after-sales guarantee and so on are their advantages. At the same time, the car can be equipped with WP8.350 engine, and card friends can choose from multiple options.
The indispensable wheel and axle differential locks for heavy-duty muck trucks are also equipped, which can easily get the vehicle out of difficulties in complex sections.
Because of the special environment used by the muck transport vehicle, the construction site and the road have been in a large dust environment for a long time, so it is necessary to be equipped with an oversized desert air filter, and the super filter effect of this level can effectively filter out the pollutants in the air.
In addition, the new technical balance suspension also brings greater load carrying capacity and stability to the vehicle. For example, the opposing four-horse U-bolt, the leaf spring stiffness is increased, and the rear suspension leaf spring center is widened.
Create compliant tops
According to the local standards of Guangzhou, the four-axle muck truck can adopt a U-shaped or rectangular structure carriage, the size of the inner cavity of the compartment is not more than 5.6 × 2.3 × 0.9 meters, and the theoretical loadable volume is not more than 11.6 cubic meters.
The original cargo compartment is shipped with a hydraulic cover, using a two-sided flip cover design (also known as a butterfly cover), to achieve the requirements of complete closure, to ensure that there is no leakage.
In order to ensure that the vehicle is more stable and efficient during operation, the lifting system adopts the front-mounted upside-down lift of the well-known brand, which has stronger stress and better stability in this position.
Through the lightweight design of the whole vehicle science, the vehicle weighs less than 13 tons, combined with the announced total mass of 31 tons, the loading capacity is very outstanding.
In recent years, the existing muck truck old models in large cities are rapidly updating, JIANGHUAI Gelfa muck truck can meet the upgrading needs of this part of the market, which is built in strict accordance with the standard, accurately meets the conditions of each subdivision of the car, can be customized regulations muck car is the best choice at present!
