With more and more digital products in our hands, charging the device has become an important problem, some devices even have up to 100W power demand for PD charging power, which has new requirements for USB-C cables carrying power transmission, and some products although support USB 3.0 standards, but the standard fast charging cable is USB 2.0, which brings inconvenience to daily use of transmitted data. Taipower full-featured fast charging data cable, not only support 100W PD fast charging, but also support USB 3.1 Gen2 data transmission and 4K HD video simultaneous interpretation, one line can solve many needs of users.
Specifications
Interface type: USB-C to USB-C
Cable length: 1.2m
USB standard: USB 3.1 Gen2
Charging power: 100W
Video Transmission: 4K@60Hz
Warranty: One year warranty
Reference price: 69 yuan

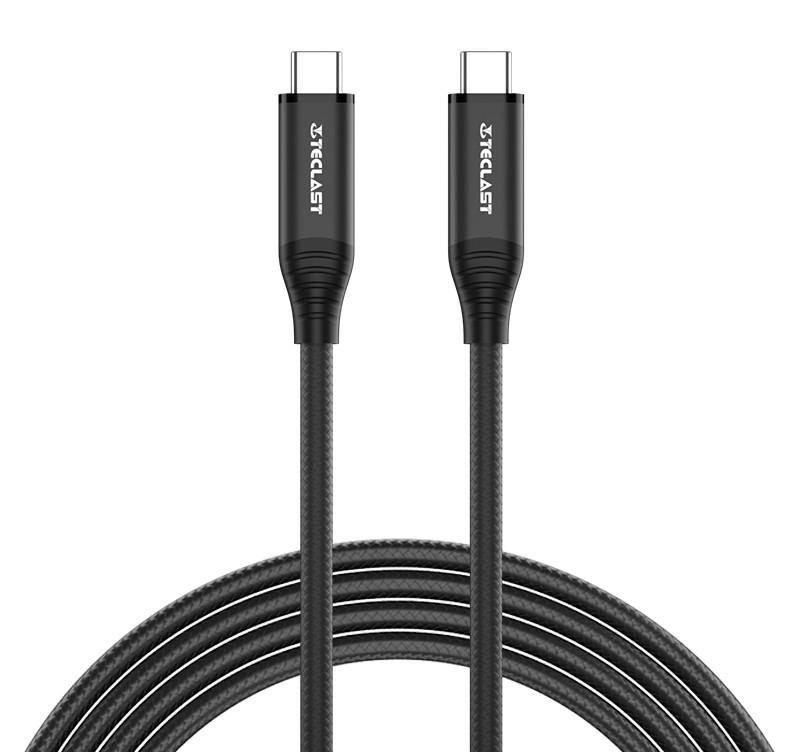

The data cable as a whole is pure black color, high-density nylon woven material body, very durable and dirt-resistant, while having a good texture, compared to ordinary plastic wire, data cable wear resistance is stronger, prolong the service life. The wire head shell in aluminium alloy is sandblasted in black and the TECLAST logo is printed on the front. The end of the net connected to the wire and the wire has been extended, which can strengthen the anti-bending ability of the data line, and it is not easy to break for a long time. The shape of the tail part of the mesh transitions smoothly, and there is a non-slip groove on it, which can be easily unplugged without touching the metal shell part, avoiding the induction electric numbness when used on some desktop hosts with poor power grounding.
In terms of specific size, the end-to-end length of the wire is about 122cm, which can meet the use of desktop office, game charging and other scenarios. The wire is relatively thick, but the softness of the wire itself is better, making the data cable very smooth when bending, and it can be quickly and easily stored with magic cable ties. Magic cable tie uses threading design, long-term connection to the computer can be removed, but magic cable tie in use has the possibility of slipping out of the thread when it is used, and the fixed part of the line body will be more reasonable if it adopts an elastic design. In other aspects, the copper nickel-plated alloy interface has passed 10,000 insertion and removal tests, 6,000 swing tests and 24-hour salt spray tests, and the quality control is guaranteed.
I don't know if you have noticed that the length of the data cable included in the hard disk box is generally not more than 30cm, which has cost factors, but the most important reason is that the longer the length, the higher the requirements for the cable anti-interference. The Taipower full-featured fast charging data cable not only has a length of 1.2m, but also supports 10Gbps transmission rate and high-definition video transmission. This is mainly due to its use of Thunderbolt 3/USB4 cable with the same coaxial wire design, compared to the traditional stranding technology, aluminum foil shielding layer, metal shielding mesh can effectively reduce interference, output loss is also lower, so as to meet the transmission rate of USB 3.1 Gen2.
In terms of charging test, we used the data cable with the Hangjia 100W multi-port charger to charge the laptop, successfully shook the 20V voltage gear, and the final charging power was 19.16/4.76A 91.35W, and the 100W power supply output was completely fine. Then we used the charging cable to charge the iPad Pro2018 and Xiaomi Mi 10, the power can reach 18W, 29W respectively, multi-device compatibility is good, and the data head has almost no heat when charging at high current, and it is stable for a long time.
If it is only used for charging, it can not play the full capabilities of this data cable, in addition to the fast charging function, it also has a very high-speed experience in data transmission. To test data transfer speeds, we will first connect one end of the cable to the Thunderbolt 3 docking station, and then connect the other connector to the hard disk enclosure containing the Samsung 970 SSD.
In software tests, the continuous read speed of the hard disk reached 967MB/s and the continuous write speed was 953MB/s. In practice, we used it to copy a very large file with a capacity of 21.1GB, which took 28 seconds and an average write speed of about 750MB/s. It can be seen that the efficiency of using this data line to transfer large-capacity files is very good, if it is connected to a mobile phone that supports usb 3.1 interface backup files, the speed is more than 10 times faster than the USB 2.0 fast charging cable included with the original factory. In fact, you can also use it to connect your phone and tablet directly, quickly share pictures taken by your phone to your tablet for retouching, or use it to replace the data cable on the hard disk box.
In addition, the full-featured fast charging data cable of Taipower also supports simultaneous interpretation of 4K@60Hz HD video. Now most of the monitors and TVs are equipped with a full-featured USB Type-C interface, and this data cable can be used as a computer video connection cable or a mobile phone projection cable. To this end, we found a 34-inch 4K display to participate in the extended test, the actual test support 4K 60Hz display, the use of data cable for high-definition screen projection without pressure, the use of iPad to connect to the monitor can also successfully trigger the screen mirroring function. The performance of the video in the process of screen projection is smooth and clear, and there is no stuttering, delay, etc., and the display effect is satisfactory.
Summary: Eliminate the trouble of cable management, and open a convenient experience on the first line
Taipower's full-featured fast charging data cable adopts black high-density braided wire body and aluminum alloy wire head shell, which feels smooth and textured, and is wear-resistant, dirty and tensile, and the length of 1.2m is enough to cope with most uses. As a full-featured data cable, it not only supports 100W PD fast charging, but also supports USB 3.1 Gen2 high-speed data transmission, and can also act as a video transmission line, easily meeting large-screen meetings, game screen projection, photo sharing and other scenarios. Compared with a single charging/data cable, this full-featured data cable of Taipower is more convenient for daily use and is an ideal alternative to the original charging cable.
