On December 29, 2021, Changjiang Storage released a new consumer-grade SSD flagship state-oriented TiPro7000, which uses PCI-e 4.0 high-speed interface to greatly improve the performance of the state-oriented TiPro7000, Changjiang Storage renamed the original solid-state drive product line "Titum" to "Zhi state", and the new "State" is committed to creating high-performance, high-quality consumer-grade three-dimensional flash memory system products.

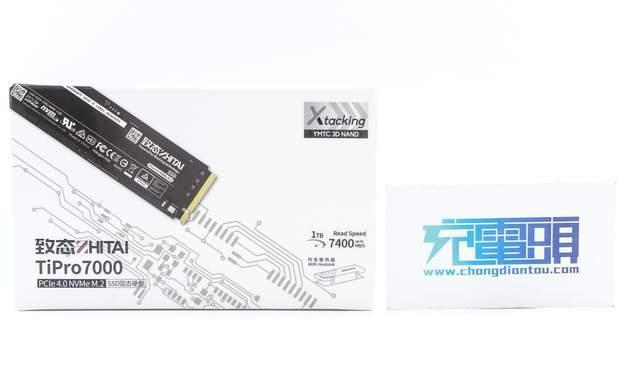

The State-oriented TiPro7000 is a high-performance solid-state drive in the field of Yangtze River Storage Attack PCI-e 4.0 high-speed storage, with sequential read speeds of up to 7400MB/s, which is directly double that of the previous generation PCI-e 3.0 standard. Highlights such as "PCIe-4.0", "Xtacking YMTC 3D NAND", "7400MB/s", "Connotation Radiator" and so on the outer packaging can be seen.
After opening the box, it can be seen that the interior is fixed packaging with a blister box, with instructions, stickers and other items, in addition, in addition to the state-oriented TiPro7000 solid-state drive, it also contains an all-inclusive radiator, and the corresponding four screws are also matched.
The conformative TiPro7000 black PCB ink, the label sticker is also designed for white characters on a black background, the length is the most commonly used 2280 specification, the M.2 interface type is the nvme protocol interface with the right notch, and the PCI-e 4.0 rate.
The state-oriented TiPro7000 has a capacity of 1TB version, using a double-sided design, with a DRAM cache and two NAND flash memory chips on the front and back sides, and an InnoGrit Rainier master IG5236 under the label.
The State-Oriented TiPro7000 adopts The 3rd Generation 3D NAND Flash Memory Chip, TLC Particles, and the innovative Xtacking 2.0 architecture of Yangtze River Storage to process peripheral circuits and storage units on two independent wafers, enabling NAND to have higher I/O interface speed, higher density, and lower operating power consumption.
The radiator distributed in the package is an all-inclusive design, divided into a bottom cover, two thermally conductive silicone pads, a top cover, fastened and installed by four screws distributed, and a live hole design with a 0.5 mm thermal conductive adhesive to cover all heat sources.
After installing the heat sink, the state-oriented TiPro7000 is shown in the figure, and the heat dissipation of the front and back chips is better, so that the state-oriented TiPro7000 can be kept at a low operating temperature and high performance, and bring longer service life.
Charging head net summary
As the original manufacturer of three-dimensional flash memory chips, Yangtze River Storage is committed to bringing consumers true original quality and ultimate experience, and constantly innovating to improve product performance and quality to meet the higher needs of consumers. The State-Oriented TiPro7000 supports PCI-e 4.0 high-speed interface, speeds up to 7400MB/s, the third generation of 3D NAND flash memory chips, and innovative Xtacking 2.0 architecture technology, which greatly improves boot, application and game loading speed. In order to make the high-speed reading and writing performance more stable and extreme, the State-making TiPro7000 is equipped with an all-inclusive heatsink, which can be used in the PS5 and most PC motherboards after installing the heatsink.
In terms of capacity, the zhizhi TiPro7000 provides three versions of 2TB, 1TB and 512GB for users to choose, and the current zhizhi TiPro7000 has officially been listed on the major e-commerce platforms. The follow-up charging head network will launch a detailed evaluation of the zhi state TiPro7000, interested partners please pay attention to the follow-up update.
