There are actually a lot of awkward moments at work.
For example, when I met a colleague who had met twice in the elevator and looked at my phone silently because there was no common topic;
For example, the leader talks to you about work, and suddenly the computer jumps out of an unbearable advertisement without controversy;
But the most embarrassing thing is that in the meeting, the bad network makes the computer live and die on the screen, and after tossing and turning for half an hour, in the huge conference room, dozens of pairs of eyes are frowning, staring at your computer screen...

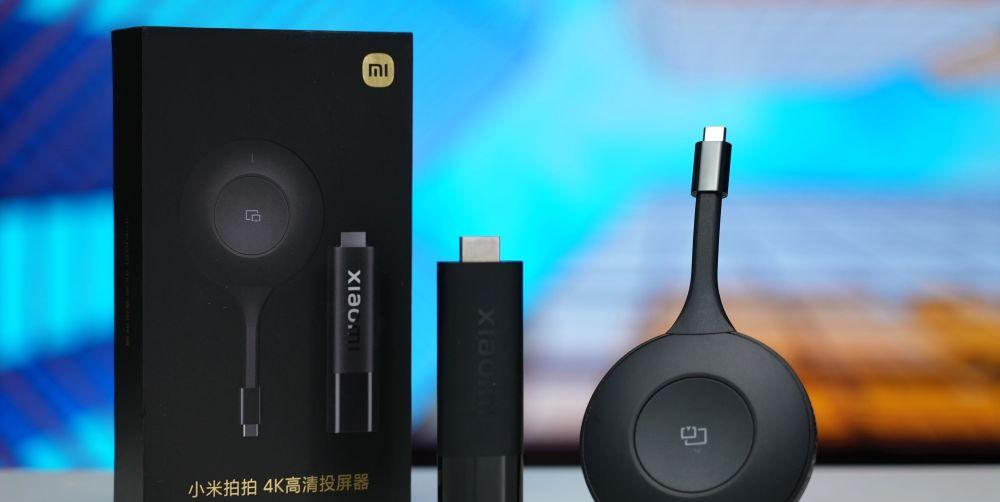

Today, Xiaomi released a Xiaomi Pai 4K HD screendropper, which is a new product to solve the pain points of this specific scene.
What equipment is suitable?
Now most of the office thin and light notebooks use the Type-C interface to charge and transmit data, and the USB interface has become a scarce resource. The output of the Xiaomi Pat Screen Projector uses a Type-C plug, because the Type-C plug can be inserted front and back, so the front and back of the Xiaomi Pat output are equipped with a screen-throwing key to facilitate the operation of screen projection.
In addition, mobile phones that support OTG function can also be mirrored by accessing the output, and there is no need to transfer mobile phone documents to a computer without a network before mirroring. Xiaomi Paipai supports hot swapping, the output can be quickly connected to the screen when switching between different devices, and it supports up to 4 transmitters to be used at the same time, making it easier to share information across devices.
It's hard to top a few hours of meetings at the beginning, and the laptop's battery is no exception. Therefore, the output of Xiaomi Pai is also equipped with a Type-C, which can also charge the computer or mobile phone while casting the screen, reducing the occupation of the port.
The receiver has an HDMI plug, which is compatible with TVs, projectors, monitors and other devices. The receiving end needs to be powered when it is used, and the charging port uses a Micro USB interface, and does not use the C port uniformly.
However, the accessory comes with a charging cable, and considering that the receiver is hidden behind the TV, it will basically not move after accessing the screen projection device, this interface problem will not make the experience particularly fragmented.
Considering that some devices have a small HDMI space and cannot accommodate a large volume of receivers, the accessory is also equipped with an EXTENSION cable of HDMI, which allows the receiver to connect smoothly.
When the screendropper is plugged in and the source of the screen projection device is correctly configured, just press the screen projection button to project the computer screen that needs to be shared.
The Xiaomi screendropper has a built-in signal conversion chip that can decode and mirror the screen, supporting signal inputs up to 4K30 frames. Connect using a notebook and a 4K TV, select extended mode in the notebook, the TV can achieve 4K full screen output, and you can also use the PPT speaker mode, and the notebook as the output can also display the meeting highlights that need to be explained.
Xiaomi Paipai integrates the 5G network module and uses MiPlay's wireless screen projection protocol, which can achieve a quick handshake connection without external network, output and receiver, and will not cause the embarrassment of selecting the wrong device when the mobile phone is screen casting, resulting in the embarrassment of other conference rooms.
Which is important, clarity or fluency?
In fact, xiaomi pai has a generation of products before it, which is connected through the USB+HDMI interface, and the projection resolution is only 1080P/60HZ. In contrast, this generation has increased the resolution but reduced the frame rate, which is an upgrade? Or is it a reverse upgrade? For the 30-frame parameter, I was still more concerned at the beginning, so when I experienced it, I also focused on testing the picture effect of high quality and low refresh rate.
There is no very noticeable sense of delay when the window is dragged, but because it supports the corresponding rate of up to 30 frames, the lower frame rate will visually feel a little "stuck" when the window is dragged quickly. Will that have a big impact on fast-moving images? We also deliberately tried to use the screen caster to play videos, because videos and movies are basically shot at 30/24 frames, so there is no sense of stuttering when watching. However, when carefully comparing the colors of notebooks and TVs, we found that the screen caster can still ensure the correct information display under the bright picture, and the shadow details will be lost in the extremely dark scenes of the movie.
(Video clip source network)
Movie test belongs to the limit test of screen projection quality, this display defect does not exclude the impact of HDR film source, as well as the decoding ability of the decoder and other factors, and the use of screen projection to watch movies is not in line with our habits.
The test seemed to measure something, but it didn't give the answer we wanted. Perhaps thinking about this problem, it should still need to return to the scene of the meeting.
In the conference scene, in fact, the static content displayed is often far more than the dynamic video, and the demand for dynamic content is to see the > picture quality, and the parameters of 4K/30 frames can reach the basic passing line. The size of the conference room projection equipment (TV, projector) is also getting larger, and most of them have reached a resolution of 4K. If the low resolution + large size display screen is combined, the picture quality will be degraded twice.
(Image source network)
The above table is the bandwidth requirements under different transmission protocols, this transmission bandwidth is actually calculated by the amount of pixels * color depth * 3 * number of frames * sample compression ratio, if the 4K / 60 frames / 8bit video signal into the formula, 12Gbps is the lowest transmission rate (sample compression is 1), and this does not include the required bandwidth of audio. The maximum transmission rate of 5G WIFI is 1Gbps, and to achieve high picture quality transmission means to increase the sampling compression rate, reduce the image quality protocol or reduce the color depth. If you want to improve the image quality, it means that you need a more powerful compression decoding chip, which means higher cost.
Obviously, under the demand for large-screen high-density information in the conference scene, the priority is more important in terms of clarity and fluency and picture quality.
summary
Low latency and high stability must be just needed in the conference scene, and the Xiaomi Paipai 4K HD screendropper is in such a scene demand, taking connectivity, convenience and adaptability as the primary indicators of the performance of the screendropper. Although the Xiaomi screendropper has some regrets in frame rate and color, in this specific scene, the focus of product design can also be seen.
The screen caster solves the problem of rapid connection of the network-free environment, and has been able to achieve the maximum product value, and in the game of price and performance, I believe that this trade-off is beyond doubt.
