Springboot jar包外指定配置檔案及原理

• 解決方案：

  修改maven的pom.xml檔案

不拷貝資源檔案
<resources>
    <resource>
        <directory>src/main/resources</directory>
        <excludes>
            <exclude>*</exclude>
        </excludes>
        <filtering>true</filtering>
    </resource>
</resources>

修改打包方式
<plugin>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-maven-plugin</artifactId>
    <configuration>
        <layout>ZIP</layout>
    </configuration>
</plugin>


• 運作

  假設application.properties和application-{profile}.properties都在/tmp/temp/config，jar檔案在/tmp/temp

  java -Dloader.path=file:///tmp/temp/config,demo-1.0.jar -jar demo-1.0.jar

• 原理

  對比jar包中MANIFEST.MF檔案在`ZIP配置前後的差別

  配置前：

Main-Class: org.springframework.boot.loader.JarLauncher
Start-Class: com.chinaunicom.gateway.GatewayApplication


     配置後：

Main-Class: org.springframework.boot.loader.PropertiesLauncher
Start-Class: com.chinaunicom.gateway.GatewayApplication

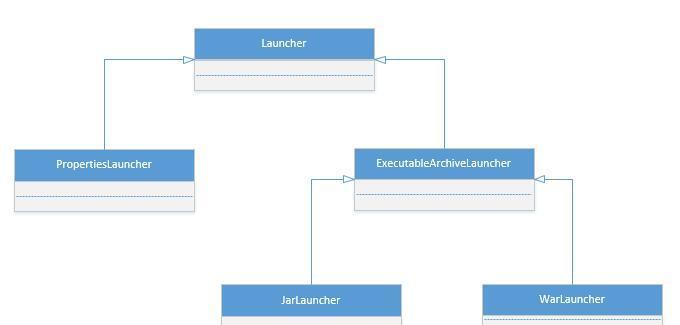

     發現是類加載器變了，檢視org.springframework.boot.loader包下所有加載器實作：

     檢視五個類描述：官方文檔

• JarLauncher

  Launcher for JAR based archives. This launcher assumes that dependency jars are included inside a /BOOT-INF/lib directory and that application classes are included inside a /BOOT-INF/classes directory.

• WarLauncher

  Launcher for WAR based archives. This launcher for standard WAR archives. Supports dependencies in WEB-INF/lib as well as WEB-INF/lib-provided, classes are loaded from WEB-INF/classes.

• PropertiesLauncher

  Launcher for archives with user-configured classpath and main class via a properties file. This model is often more flexible and more amenable to creating well-behaved OS-level services than a model based on executable jars.

  Looks in various places for a properties file to extract loader settings, defaulting to application.properties either on the current classpath or in the current working directory. The name of the properties file can be changed by setting a System property loader.config.name (e.g. -Dloader.config.name=foo will look for foo.properties. If that file doesn’t exist then tries loader.config.location (with allowed prefixes classpath: and file: or any valid URL). Once that file is located turns it into Properties and extracts optional values (which can also be provided overridden as System properties in case the file doesn’t exist):

  loader.path: a comma-separated list of directories (containing file resources and/or nested archives in .jar or .zip or archives) or archives to append to the classpath. BOOT-INF/classes,BOOT-INF/lib in the application archive are always used

  loader.main: the main method to delegate execution to once the class loader is set up. No default, but will fall back to looking for a Start-Class in a MANIFEST.MF, if there is one in ${loader.home}/META-INF.

• spring-boot-maven-plugin幫助

  對zip格式說明

  對jar和war說明
