文章目錄
- 1. 部署劃分
- 2. 單機安裝Redis
- 3. 建立配置/資料/日志目錄
- 4. 修改配置檔案
- 5. 防火牆開放
- 6. redis啟動
- 7. 檢視redis狀态
- 8. 登入檢視資訊
- 9. 讀寫分離測試
1. 部署劃分
| IP | 角色 | 端口 |
| 192.168.45.80 | Master | 6380 |
| 192.168.45.80 | Slave | 6381 |
| 192.168.45.80 | Slave | 6382 |
2. 單機安裝Redis
首先在在3台伺服器上分别安裝Redis單機環境
Linux環境 安裝 Redis-6.2.6 配置運作_01
3. 建立配置/資料/日志目錄
- 建立配置目錄+資料目錄+日志目錄
mkdir /usr/local/redis/conf/redis01 -p
mkdir /usr/local/redis/conf/redis02 -p
mkdir /usr/local/redis/conf/redis03 -p
mkdir /usr/local/redis/data/redis01 -p
mkdir /usr/local/redis/data/redis02 -p
mkdir /usr/local/redis/data/redis03 -p
mkdir /usr/local/redis/log/redis01 -p
mkdir /usr/local/redis/log/redis02 -p
mkdir /usr/local/redis/log/redis03 -p 4. 修改配置檔案
vim /usr/local/redis/conf/redis01/redis-6380.conf - master主節點配置
# 放行通路IP的限制 多個用空格隔開
# 0.0.0.0 代表無限制
bind 0.0.0.0
# 背景啟動開啟
daemonize yes
# 日志存儲目錄以及日志檔案名
logfile "/usr/local/redis/log/redis01/redis.log"
# rdb資料檔案名
dbfilename dump.rdb
# aof模式開啟
appendonly no
# aof資料檔案名
appendfilename "appendonly.aof"
#rdb資料檔案和aof資料檔案存儲目錄
dir /usr/local/redis/data/redis01
# 設定密碼
requirepass 123456
# 從節點通路主節點的密碼(必須和requirepass 一緻)
masterauth 123456
#從節點隻讀模式
replica-read-only yes
# 端口
port 6380 - slave01配置
vim /usr/local/redis/conf/redis02/redis-6381.conf # 放行通路IP的限制 多個用空格隔開
# 0.0.0.0 代表無限制
bind 0.0.0.0
# 背景啟動開啟
daemonize yes
# 日志存儲目錄以及日志檔案名
logfile "/usr/local/redis/log/redis02/redis.log"
# rdb資料檔案名
dbfilename dump.rdb
# aof模式開啟
appendonly no
# aof資料檔案名
appendfilename "appendonly.aof"
#rdb資料檔案和aof資料檔案存儲目錄
dir /usr/local/redis/data/redis02
# 設定密碼
requirepass 123456
# 從節點通路主節點的密碼(必須和requirepass 一緻)
masterauth 123456
#從節點隻讀模式
replica-read-only yes
port 6381
# 從節點從屬于那個主節點
slaveof 192.168.45.80 6380 - slave02配置
vim /usr/local/redis/conf/redis03/redis-6382.conf # 放行通路IP的限制 多個用空格隔開
# 0.0.0.0 代表無限制
bind 0.0.0.0
# 背景啟動開啟
daemonize yes
# 日志存儲目錄以及日志檔案名
logfile "/usr/local/redis/log/redis03/redis.log"
# rdb資料檔案名
dbfilename dump.rdb
# aof模式開啟
appendonly no
# aof資料檔案名
appendfilename "appendonly.aof"
#rdb資料檔案和aof資料檔案存儲目錄
dir /usr/local/redis/data/redis03
# 設定密碼
requirepass 123456
# 從節點通路主節點的密碼(必須和requirepass 一緻)
masterauth 123456
#從節點隻讀模式
replica-read-only yes
port 6382
# 從節點從屬于那個主節點

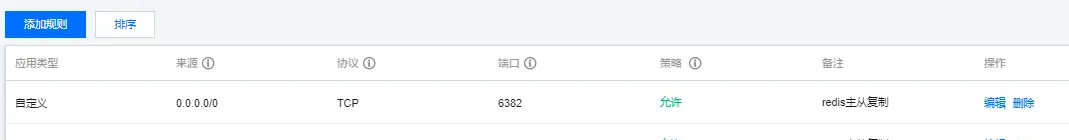

slaveof 192.168.45.80 6380 5. 防火牆開放
firewall-cmd --zone=public --add-port=6380/tcp --permanent
firewall-cmd --zone=public --add-port=6381/tcp --permanent
firewall-cmd --zone=public --add-port=6382/tcp --permanent
firewall-cmd --reload
6. redis啟動
/app/redis-6.2.6/src/redis-server /usr/local/redis/conf/redis01/redis-6380.conf
/app/redis-6.2.6/src/redis-server /usr/local/redis/conf/redis02/redis-6381.conf
/app/redis-6.2.6/src/redis-server /usr/local/redis/conf/redis03/redis-6382.conf 7. 檢視redis狀态
ps -ef |grep redis [root@VM-24-10-centos redis03]# ps -ef |grep redis
root 14763 1 0 14:39 ? 00:00:00 /app/redis-6.2.6/src/redis-server 0.0.0.0:6380
root 14779 1 0 14:39 ? 00:00:00 /app/redis-6.2.6/src/redis-server 0.0.0.0:6381
root 14834 1 0 14:39 ? 00:00:00 /app/redis-6.2.6/src/redis-server 0.0.0.0:6382 8. 登入檢視資訊
主節點資訊
[root@VM-24-10-centos ~]# /app/redis-6.2.6/src/redis-cli -p 6380 -a 123456
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
127.0.0.1:6380> info replication
# Replication
role:master
connected_slaves:2
slave0:ip=192.168.45.80,port=6381,state=online,offset=182,lag=1
slave1:ip=192.168.45.80,port=6382,state=online,offset=182,lag=1
master_failover_state:no-failover
master_replid:58bef7c5bf537c81b17cdec50ed8f4ba6a30f2d3
master_replid2:0000000000000000000000000000000000000000
master_repl_offset:196
second_repl_offset:-1
repl_backlog_active:1
repl_backlog_size:1048576
repl_backlog_first_byte_offset:1
repl_backlog_histlen:196
127.0.0.1:6380>
slave01節點資訊
[root@VM-24-10-centos ~]# /app/redis-6.2.6/src/redis-cli -p 6381 -a 123456
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
127.0.0.1:6381> info replication
# Replication
role:slave
master_host:192.168.45.80
master_port:6380
master_link_status:up
master_last_io_seconds_ago:6
master_sync_in_progress:0
slave_read_repl_offset:238
slave_repl_offset:238
slave_priority:100
slave_read_only:1
replica_announced:1
connected_slaves:0
master_failover_state:no-failover
master_replid:58bef7c5bf537c81b17cdec50ed8f4ba6a30f2d3
master_replid2:0000000000000000000000000000000000000000
master_repl_offset:238
second_repl_offset:-1
repl_backlog_active:1
repl_backlog_size:1048576
repl_backlog_first_byte_offset:1
repl_backlog_histlen:238
127.0.0.1:6381> slave02節點資訊
[root@VM-24-10-centos ~]# /app/redis-6.2.6/src/redis-cli -p 6382 -a 123456
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
127.0.0.1:6382> info replication
# Replication
role:slave
master_host:192.168.45.80
master_port:6380
master_link_status:up
master_last_io_seconds_ago:6
master_sync_in_progress:0
slave_read_repl_offset:378
slave_repl_offset:378
slave_priority:100
slave_read_only:1
replica_announced:1
connected_slaves:0
master_failover_state:no-failover
master_replid:58bef7c5bf537c81b17cdec50ed8f4ba6a30f2d3
master_replid2:0000000000000000000000000000000000000000
master_repl_offset:378
second_repl_offset:-1
repl_backlog_active:1
repl_backlog_size:1048576
repl_backlog_first_byte_offset:1
repl_backlog_histlen:378
127.0.0.1:6382> 9. 讀寫分離測試
master節點 能讀能寫驗證
127.0.0.1:6380> set name zhangsan
OK
127.0.0.1:6380> get name
"zhangsan"
127.0.0.1:6380> 127.0.0.1:6381> get name
"zhangsan"
127.0.0.1:6381> set lisi
(error) ERR wrong number of arguments for 'set' command
127.0.0.1:6381> 127.0.0.1:6382> get name
"zhangsan"
127.0.0.1:6382> set name lisi
(error) READONLY You can't write against a read only replica.
127.0.0.1:6382>
