一、網關搭建

1. 引入依賴

<parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <spring.cloud-version>Hoxton.SR9</spring.cloud-version>
    </properties>
    <dependencies>
        <!--安全認證架構-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <!--security-oauth2整合-->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-oauth2-resource-server</artifactId>
        </dependency>
        <!--oauth2-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <!--網關-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <!--https://github.com/alibaba/spring-cloud-alibaba/wiki/%E7%89%88%E6%9C%AC%E8%AF%B4%E6%98%8E-->
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud-version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

2. 配置檔案

server:
  port: 8081
spring:
  cloud:
    gateway:
      routes:
        - id: product
          uri: http://localhost:9000
          predicates:
            - Host=product.gblfy.com**
        - id: auth
          uri: http://localhost:5000
          predicates:
            - Path=/oauth/token
        - id: skill
          uri: http://localhost:13000
          predicates:
            - Path=/skill
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/auth-serv?characterEncoding=UTF-8&serverTimezone=GMT%2B8
    username: root
    password: 123456

3. 增權重限管理器

package com.gblfy.gatewayserv.config;

import lombok.extern.slf4j.Slf4j;
import org.springframework.security.authorization.AuthorizationDecision;
import org.springframework.security.authorization.ReactiveAuthorizationManager;
import org.springframework.security.core.Authentication;
import org.springframework.security.oauth2.provider.OAuth2Authentication;
import org.springframework.security.web.server.authorization.AuthorizationContext;
import org.springframework.stereotype.Component;
import org.springframework.util.AntPathMatcher;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import java.util.Set;
import java.util.concurrent.ConcurrentSkipListSet;

@Slf4j
@Component
public class AccessManager implements ReactiveAuthorizationManager<AuthorizationContext> {
    private Set<String> permitAll = new ConcurrentSkipListSet<>();
    private static final AntPathMatcher antPathMatcher = new AntPathMatcher();


    public AccessManager() {
        permitAll.add("/");
        permitAll.add("/error");
        permitAll.add("/favicon.ico");
        permitAll.add("/**/v2/api-docs/**");
        permitAll.add("/**/swagger-resources/**");
        permitAll.add("/webjars/**");
        permitAll.add("/doc.html");
        permitAll.add("/swagger-ui.html");
        permitAll.add("/**/oauth/**");
        permitAll.add("/**/current/get");
    }

    /**
     * 實作權限驗證判斷
     */
    @Override
    public Mono<AuthorizationDecision> check(Mono<Authentication> authenticationMono, AuthorizationContext authorizationContext) {
        ServerWebExchange exchange = authorizationContext.getExchange();
        //請求資源
        String requestPath = exchange.getRequest().getURI().getPath();
        // 是否直接放行
        if (permitAll(requestPath)) {
            return Mono.just(new AuthorizationDecision(true));
        }

        return authenticationMono.map(auth -> {
            return new AuthorizationDecision(checkAuthorities(exchange, auth, requestPath));
        }).defaultIfEmpty(new AuthorizationDecision(false));

    }

    /**
     * 校驗是否屬于靜态資源
     *
     * @param requestPath 請求路徑
     * @return
     */
    private boolean permitAll(String requestPath) {
        return permitAll.stream()
                .filter(r -> antPathMatcher.match(r, requestPath)).findFirst().isPresent();
    }

    //權限校驗
    private boolean checkAuthorities(ServerWebExchange exchange, Authentication auth, String requestPath) {
        if (auth instanceof OAuth2Authentication) {
            OAuth2Authentication athentication = (OAuth2Authentication) auth;
            String clientId = athentication.getOAuth2Request().getClientId();
            log.info("clientId is {}", clientId);
        }

        Object principal = auth.getPrincipal();
        log.info("使用者資訊:{}", principal.toString());
        return true;
    }
}

4. 自定義認證接口管理類

package com.gblfy.gatewayserv.config;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.security.authentication.ReactiveAuthenticationManager;
import org.springframework.security.core.Authentication;
import org.springframework.security.oauth2.common.OAuth2AccessToken;
import org.springframework.security.oauth2.common.exceptions.InvalidTokenException;
import org.springframework.security.oauth2.provider.OAuth2Authentication;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.server.resource.BearerTokenAuthenticationToken;
import reactor.core.publisher.Mono;


public class ReactiveJdbcAuthenticationManager implements ReactiveAuthenticationManager {

    Logger logger= LoggerFactory.getLogger(ReactiveJdbcAuthenticationManager.class);
    private TokenStore tokenStore;

    public ReactiveJdbcAuthenticationManager(TokenStore tokenStore){
        this.tokenStore = tokenStore;
    }

    @Override
    public Mono<Authentication> authenticate(Authentication authentication) {
        return Mono.justOrEmpty(authentication)
                .filter(a -> a instanceof BearerTokenAuthenticationToken)
                .cast(BearerTokenAuthenticationToken.class)
                .map(BearerTokenAuthenticationToken::getToken)
                .flatMap((accessToken ->{
                    logger.info("accessToken is :{}",accessToken);
                    OAuth2AccessToken oAuth2AccessToken = this.tokenStore.readAccessToken(accessToken);
                    //根據access_token從資料庫擷取不到OAuth2AccessToken
                    if(oAuth2AccessToken == null){
                        return Mono.error(new InvalidTokenException("invalid access token,please check"));
                    }else if(oAuth2AccessToken.isExpired()){
                        return Mono.error(new InvalidTokenException("access token has expired,please reacquire token"));
                    }

                    OAuth2Authentication oAuth2Authentication =this.tokenStore.readAuthentication(accessToken);
                    if(oAuth2Authentication == null){
                        return Mono.error(new InvalidTokenException("Access Token 無效!"));
                    }else {
                        return Mono.just(oAuth2Authentication);
                    }
                })).cast(Authentication.class);
    }
}

5. 增加網關層的安全配置

package com.gblfy.gatewayserv.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.ReactiveAuthenticationManager;
import org.springframework.security.config.web.server.SecurityWebFiltersOrder;
import org.springframework.security.config.web.server.ServerHttpSecurity;
import org.springframework.security.oauth2.provider.token.store.JdbcTokenStore;
import org.springframework.security.oauth2.server.resource.web.server.ServerBearerTokenAuthenticationConverter;
import org.springframework.security.web.server.SecurityWebFilterChain;
import org.springframework.security.web.server.authentication.AuthenticationWebFilter;

import javax.sql.DataSource;

@Configuration
public class SecurityConfig {
    private static final String MAX_AGE = "18000L";
    @Autowired
    private DataSource dataSource;
    @Autowired
    private AccessManager accessManager;


    @Bean
    SecurityWebFilterChain webFluxSecurityFilterChain(ServerHttpSecurity http) throws Exception{
        //token管理器
        ReactiveAuthenticationManager tokenAuthenticationManager = new ReactiveJdbcAuthenticationManager(new JdbcTokenStore(dataSource));
        //認證過濾器
        AuthenticationWebFilter authenticationWebFilter = new AuthenticationWebFilter(tokenAuthenticationManager);
        authenticationWebFilter.setServerAuthenticationConverter(new ServerBearerTokenAuthenticationConverter());

        http
                .httpBasic().disable()
                .csrf().disable()
                .authorizeExchange()
                .pathMatchers(HttpMethod.OPTIONS).permitAll()
                .anyExchange().access(accessManager)
                .and()
                //oauth2認證過濾器
                .addFilterAt(authenticationWebFilter, SecurityWebFiltersOrder.AUTHENTICATION);
        return http.build();
    }
}

這個類是SpringCloug Gateway 與 Oauth2整合的關鍵，通過建構認證過濾器 AuthenticationWebFilter 完成Oauth2.0的token校驗。

AuthenticationWebFilter 通過我們自定義的 ReactiveJdbcAuthenticationManager 完成token校驗。

6. 搭建授權認證中心

SpringCloudAliaba 基于OAth2.0 搭建認證授權中心

二、搭建産品服務

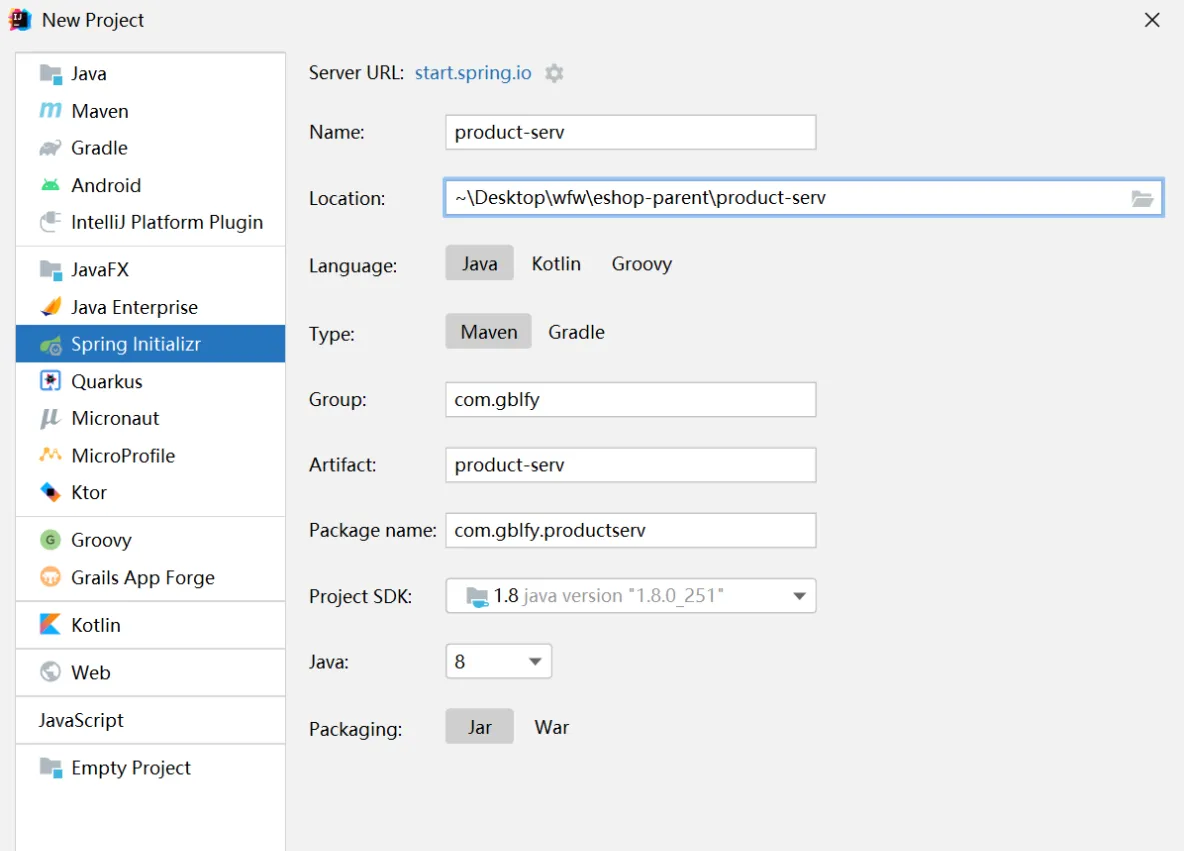

2.1. 建立boot項目

子產品名稱product-serv

SpringCloud Gateway 內建 oauth2 實作統一認證授權_03

2.2. 引入依賴

<parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.gblfy</groupId>
    <artifactId>product-serv</artifactId>
    <version>1.0-SNAPSHOT</version>

    <!--https://github.com/alibaba/spring-cloud-alibaba/wiki/%E7%89%88%E6%9C%AC%E8%AF%B4%E6%98%8E-->
    <properties>
        <java.version>1.8</java.version>
        <spring.cloud-version>Hoxton.SR9</spring.cloud-version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--服務注冊發現-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <!--spring-cloud 版本控制-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud-version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring-cloud-alibaba 版本控制-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.2.6.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

2.3. controller

package com.gblfy.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class ProductController {

    //http://localhost:9000/product/" + productId
    @GetMapping("/product/{productId}")
    public String getProductName(@PathVariable Integer productId) {
        return "IPhone 12";
    }
}

2.4. 啟動類

package com.gblfy;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class ProductAplication {

    public static void main(String[] args) {
        SpringApplication.run(ProductAplication.class);
    }
}

2.5. 配置

server:
  port: 9000

四、測試驗證

4.1. 啟動nacos

4.2. 啟動認證中心

4.3. 啟動産品服務

4.3. 請求認證授權中心

不攜帶token

4.4. 網關請求産品子產品

通過網關請求産品服務，提示需要認證

4.5. 擷取token

http://localhost:8081/oauth/token 通過認證授權中心擷取toekn

grant_type:password
client_id:app
client_secret:app
username:ziya
password:111111

發起請求，擷取token

4.6. 攜帶token請求産品服務

http://product.gblfy.com:8081/product/1

Authorization:Bearer d364c6cc-3c60-402f-b3d0-af69f6d6b73e

4.7. 直接請求産品服務

4.8. 請求結果比對

從4.6和4.7可以看出，當從授權中心擷取token，攜帶token通過網關服務請求産品服務和直接請求産品服務效果是一樣的。

SpringCloud Gateway 內建 oauth2 實作統一認證授權_03

文章目錄

一、網關搭建

二、搭建産品服務

四、測試驗證

五、總結

繼續閱讀

資料遷移方法資料遷移原則資料遷移之雙寫方案資料遷移之級聯同步方案

Spring資料和Redis

redis叢集資料一緻性_RedisRaft為Redis叢集帶來強大的資料一緻性

寶塔面闆mysql恢複2018.1.8更新

SpringMVC的啟動過程源碼分析1 SpringMVC 配置XML的方式啟動2 SpringMVC純注解模式啟動

Java Spring 架構

Centos7 MySQL 5.7 安裝MySQL 5.7 安裝

查找入職員工時間排名倒數第三的員工所有資訊

Hibernate使用Hibernate的“3個準備，7個步驟”Hibernate API簡介操作實體對象對象識别

雲計算面試題——mysql/存儲引擎/備份

SQL語言基礎：常用的資料查詢語句

SpringCloud微服務（四）之ribbon筆記ribbon是什麼？入門案例自定義均衡負載算法

Ubuntu16.04安裝Apache+MySQL+PHP1. 安裝Apache2. 安裝MySQL3. 安裝PHP4. 安裝phpMyAdmin

MySQL的4種隔離級别？出現問題

neo4j之cypher使用文檔

mysql使用source指令導入.sql檔案
