SpringCloud微服務實戰3：資料庫持久化內建MySql+Druid+MyBatis-Plus

1 在父工程下的pom.xml裡面引入相關jar包

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.mycloud.cloud</groupId>
    <artifactId>mycloud</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>mycloud-common</module>
        <module>mycloud-oauth</module>
        <module>mycloud-gateway</module>
        <module>mycloud-plugin</module>
        <module>mycloud-service</module>
    </modules>

    <properties>
        <!-- jdk版本1.8 -->
        <java.version>1.8</java.version>
        <!-- maven-compiler-plugin插件版本，Java代碼編譯 -->
        <maven.plugin.version>3.8.1</maven.plugin.version>
        <!-- maven編譯時指定編碼UTF-8 -->
        <maven.compiler.encoding>UTF-8</maven.compiler.encoding>
        <!-- 項目統一字元集編碼UTF-8 -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <!-- 項目統一字元集編碼UTF-8 -->
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>

        <!-- 項目統一設定版本号 -->
        <gitegg.project.version>1.0-SNAPSHOT</gitegg.project.version>
        <!-- SpringBoot版本号 -->
        <spring.boot.version>2.3.3.RELEASE</spring.boot.version>
        <!-- SpringCloud版本号 -->
        <spring.cloud.version>Hoxton.SR8</spring.cloud.version>
        <!-- SpringPlatform版本号 -->
        <spring.platform.version>Cairo-SR8</spring.platform.version>
        <!-- mysql資料庫驅動 -->
        <mysql.connector.version>8.0.17</mysql.connector.version>
        <!-- postgresql資料庫驅動 -->
        <postgresql.connector.version>9.1-901.jdbc4</postgresql.connector.version>
        <!-- 資料庫連接配接池Druid -->
        <druid.version>1.1.23</druid.version>
        <!-- Mybatis Plus增強工具 -->
        <mybatis.plus.version>3.4.0</mybatis.plus.version>

    </properties>

    <dependencies>
        <!-- Lombok 通過簡單注解消除冗長代碼  -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <!-- mysql資料庫驅動 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.connector.version}</version>
            </dependency>
            <!-- postgresql資料庫驅動 -->
            <dependency>
                <groupId>postgresql</groupId>
                <artifactId>postgresql</artifactId>
                <version>${postgresql.connector.version}</version>
            </dependency>
            <!-- 資料庫連接配接池 -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <!-- Mybatis Plus增強工具 -->
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>${mybatis.plus.version}</version>
            </dependency>
            <!-- spring boot工程的依賴庫,無需繼承spring-boot-starter-parent -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- spring cloud工程的依賴庫 -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <finalName>${project.name}</finalName>
        <!--資源目錄 -->
        <resources>
            <resource>
                <directory>src/main/resources</directory>
            </resource>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
        </resources>
        <!-- pluginManagement 下的 plugins 下的 plugin 則僅僅是一種聲明，子項目中可以對 pluginManagement
             下的 plugin 進行資訊的選擇、繼承、覆寫等。-->
        <pluginManagement>
            <plugins>
                <!-- 能夠将Spring Boot應用打包為可執行的jar或war檔案，然後以通常的方式運作Spring Boot應用 -->
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <version>${spring.boot.version}</version>
                    <configuration>
                        <fork>true</fork>
                        <finalName>${project.build.finalName}</finalName>
                    </configuration>
                    <executions>
                        <execution>
                            <goals>
                                <goal>repackage</goal>
                            </goals>
                        </execution>
                    </executions>
                </plugin>
            </plugins>
        </pluginManagement>
        <plugins>
            <!-- 能夠将Spring Boot應用打包為可執行的jar或war檔案，然後以通常的方式運作Spring Boot應用 -->
            <!--<plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>-->
            <!-- 設定maven插件 并且指定jdk版本 -->
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${maven.plugin.version}</version>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                    <encoding>UTF-8</encoding>
                    <compilerArgs>
                        <arg>-parameters</arg>
                    </compilerArgs>
                </configuration>
            </plugin>
        </plugins>
    </build>

    <!--配置maven項目的遠端倉庫-->
    <repositories>
        <repository>
            <id>aliyun-repos</id>
            <url>https://maven.aliyun.com/nexus/content/groups/public/</url>
            <!--禁止下載下傳snapshot版本的構件-->
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
        <repository>
            <id>mycloud-release</id>
            <name>Release Repository</name>
            <url>https://packages.aliyun.com/maven/repository/2020515-release-dpxo1j/</url>
        </repository>
    </repositories>
    <!--配置maven插件倉庫-->
    <pluginRepositories>
        <pluginRepository>
            <id>aliyun-plugin</id>
            <url>https://maven.aliyun.com/nexus/content/groups/public/</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </pluginRepository>
    </pluginRepositories>

    <!--環境配置-->
    <profiles>
        <profile>
            <id>dev</id>
            <properties>
                <profileActive>dev</profileActive>
            </properties>
            <activation>
                <!--預設為dev環境打包方式-->
                <activeByDefault>true</activeByDefault>
            </activation>
        </profile>
        <profile>
            <id>test</id>
            <properties>
                <profileActive>test</profileActive>
            </properties>
        </profile>
        <profile>
            <id>pro</id>
            <properties>
                <profileActive>pro</profileActive>
            </properties>
        </profile>
    </profiles>

</project>

2 common工程引入jar包

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>mycloud</artifactId>
        <groupId>com.mycloud.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>mycloud-common</artifactId>

    <dependencies>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>postgresql</groupId>
            <artifactId>postgresql</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
        </dependency>
    </dependencies>

</project>

3  common打包

 問題：common打包時報錯

repackage failed: Unable to find main class 工具包打包的時候不應該有maven的依賴，去掉pom檔案中的這個插件就可以了

SpringCloud微服務實戰3：資料庫持久化內建MySql+Druid+MyBatis-Plus

 去掉依賴，打包成功

4 service工程引入common工程

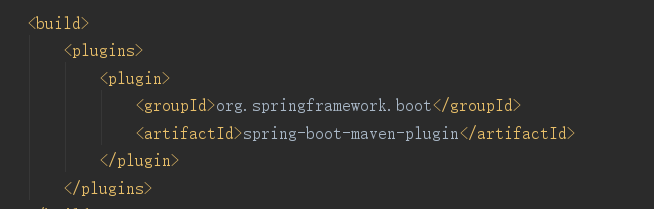

 問題1 src.main.java目錄總是自動變為resource類型，原因是父工程pom檔案中

SpringCloud微服務實戰3：資料庫持久化內建MySql+Druid+MyBatis-Plus

 這段配置引起，去除就好了

 問題2 mapper通路報錯 org.apache.ibatis.binding.BindingException: Invalid bound statement (not found)

發現是

SpringCloud微服務實戰3：資料庫持久化內建MySql+Druid+MyBatis-Plus

 4、建立GitEggSystemApplication主啟動類：

package com.gitegg.service.system;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * gitegg-system 啟動類
 */
@SpringBootApplication
public class GitEggSystemApplication {

    public static void main(String[] args) {
        SpringApplication.run(GitEggSystemApplication.class,args);
    }

}
server:
  port: 8001
spring:
  application:
    name: gitegg-service-system
    datasource:
      type: com.alibaba.druid.pool.DruidDataSource
      driverClassName: com.mysql.jdbc.Driver
      url: jdbc:mysql://127.0.0.1/gitegg_cloud?zeroDateTimeBehavior=convertToNull&useUnicode=true&characterEncoding=utf8&allowMultiQueries=true&autoReconnect=true
      username: root
      password: root
      initialSize: 1
      minIdle: 3
      maxActive: 20
      # 配置擷取連接配接等待逾時的時間
      maxWait: 60000
      # 配置間隔多久才進行一次檢測，檢測需要關閉的空閑連接配接，機關是毫秒
      timeBetweenEvictionRunsMillis: 60000
      # 配置一個連接配接在池中最小生存的時間，機關是毫秒
      minEvictableIdleTimeMillis: 30000
      validationQuery: select 'x'
      testWhileIdle: true
      testOnBorrow: false
      testOnReturn: false
      # 打開PSCache，并且指定每個連接配接上PSCache的大小
      poolPreparedStatements: true
      maxPoolPreparedStatementPerConnectionSize: 20
      # 配置監控統計攔截的filters，去掉後監控界面sql無法統計，'wall'用于防火牆
      filters: config,stat,slf4j
      # 通過connectProperties屬性來打開mergeSql功能；慢SQL記錄
      connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000;
      # 合并多個DruidDataSource的監控資料
      useGlobalDataSourceStat: true
mybatis-plus:
      mapper-locations: classpath*:/com/gitegg/*/*/mapper/*Mapper.xml
      typeAliasesPackage: com.gitegg.*.*.entity
      global-config:
        #主鍵類型  0:"資料庫ID自增", 1:"使用者輸入ID",2:"全局唯一ID (數字類型唯一ID)", 3:"全局唯一ID UUID";
        id-type: 2
        #字段政策 0:"忽略判斷",1:"非 NULL 判斷"),2:"非空判斷"
        field-strategy: 2
        #駝峰下劃線轉換
        db-column-underline: true
        #重新整理mapper 調試神器
        refresh-mapper: true
        #資料庫大寫下劃線轉換
        #capital-mode: true
        #邏輯删除配置
        logic-delete-value: 1
        logic-not-delete-value: 0
      configuration:
        map-underscore-to-camel-case: true
        cache-enabled: false
package com.gitegg.platform.mybatis.config;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
@MapperScan("com.gitegg.**.mapper.**")
public class MybatisPlusConfig {

    /**
     * 新的分頁插件,一緩和二緩遵循mybatis的規則,需要設定 MybatisConfiguration#useDeprecatedExecutor = false
     * 避免緩存出現問題(該屬性會在舊插件移除後一同移除)
     */
    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
        return interceptor;
    }

}
