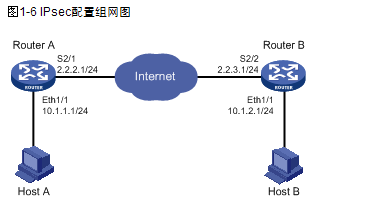

手工方式建立IPsec安全隧道

R1]dis curr

dis curr

#

 sysname R1

acl number 3000

 rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255

ipsec proposal h3c

 esp authentication-algorithm sha1

 esp encryption-algorithm 3des

ipsec policy hehe 10 manual

 security acl 3000

 proposal h3c

 tunnel local 2.2.2.1

 tunnel remote 2.2.3.1

 sa spi inbound esp 123456

 sa string-key inbound esp abc

 sa spi outbound esp 123456

 sa string-key outbound esp abc

interface Ethernet0/0/0

 ip address 10.1.1.1 255.255.255.0

  ---- More ----

interface Serial0/0/0

 link-protocol ppp

 ip address 2.2.2.1 255.255.255.0

 ipsec policy hehe

#

interface NULL0

aaa

 authentication-scheme default

 #

 authorization-scheme default

 accounting-scheme default

 domain default

ospf 1

 area 0.0.0.0

  network 2.2.2.0 0.0.0.255

  ---- More ----

 ip route-static 10.1.2.0 255.255.255.0 2.2.2.2

user-interface con 0

user-interface vty 0 4

user-interface vty 16 20

return

[R1]

<R2>sys

sys

Enter system view, return user view with Ctrl+Z.

[R2]dis curr

 sysname R2

interface Serial0/0/0

 link-protocol ppp

 ip address 2.2.2.2 255.255.255.0

interface Serial0/0/1

 ip address 2.2.3.2 255.255.255.0

interface NULL0

aaa

 authentication-scheme default

 #

 authorization-scheme default

 accounting-scheme default

 domain default

  network 2.2.3.0 0.0.0.255

user-interface con 0

user-interface vty 0 4

user-interface vty 16 20

return
