WPF跨程式集共享資源

WPF跨程式集共享資源

1.添加資源

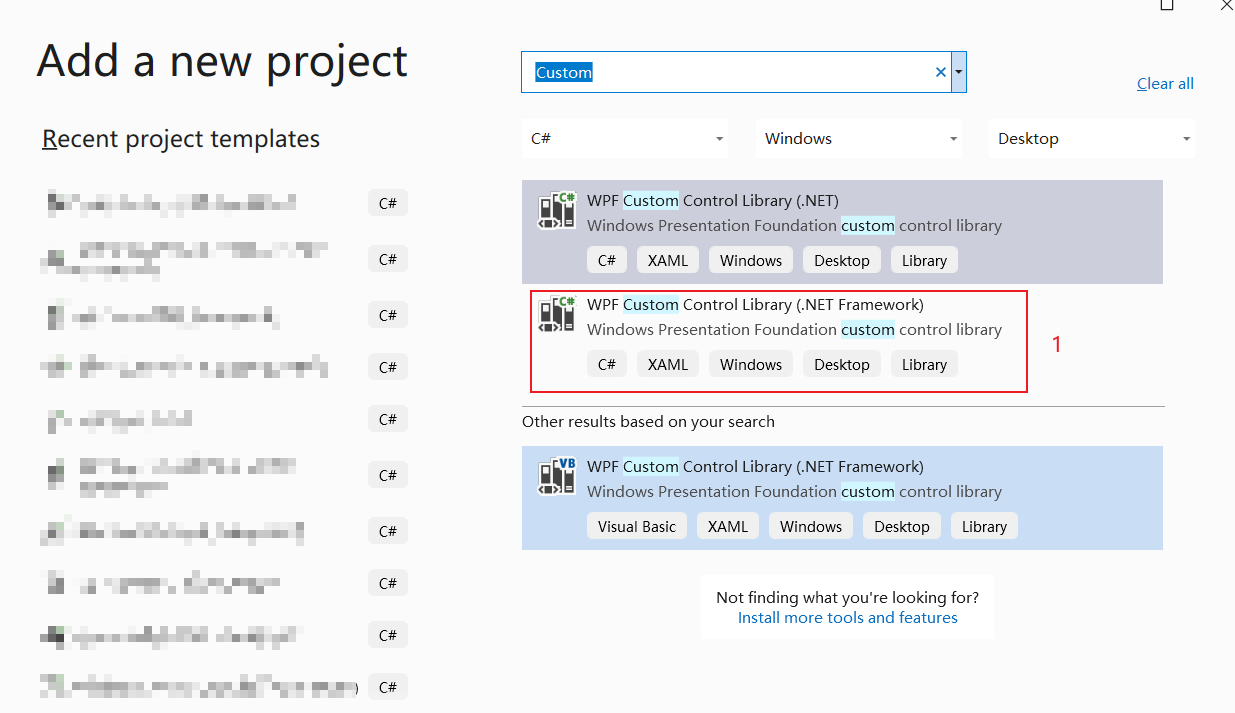

1.1 添加WPFCustomControlLibrary項目

1.2 在WPFCustomControlLibrary項目下添加資源字典

本例子是直接在預設建立的Themes檔案夾添加ResourceDictionary，也可以在該項目下另外建立檔案夾，并在此檔案下添加ResourceDictionary

1.3 編寫資源檔案裡的内容

• ButtonDictionary.xaml

<Style x:Key="ButtonStyle1" TargetType="{x:Type Button}">
        <Setter Property="FocusVisualStyle" Value="{StaticResource FocusVisual}"/>
        <Setter Property="Background" Value="{StaticResource Button.Static.Background}"/>
        <Setter Property="BorderBrush" Value="{StaticResource Button.Static.Border}"/>
        <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.ControlTextBrushKey}}"/>
        <Setter Property="BorderThickness" Value="1"/>
        <Setter Property="HorizontalContentAlignment" Value="Center"/>
        <Setter Property="VerticalContentAlignment" Value="Center"/>
        <Setter Property="Padding" Value="1"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type Button}">
                    <Border x:Name="border" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding     BorderThickness}"
                            Background="{TemplateBinding Background}" SnapsToDevicePixels="true">
                        <ContentPresenter x:Name="contentPresenter" Focusable="False"
                                          HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                                          Margin="{TemplateBinding Padding}" RecognizesAccessKey="True"
                                          SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"
                                          VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>
                    </Border>
                    <ControlTemplate.Triggers>
                        <Trigger Property="IsDefaulted" Value="true">
                            <Setter Property="BorderBrush" TargetName="border" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
                        </Trigger>
                        <Trigger Property="IsMouseOver" Value="true">
                            <Setter Property="Background" TargetName="border" Value="{StaticResource Button.MouseOver.Background}"/>
                            <Setter Property="BorderBrush" TargetName="border" Value="{StaticResource Button.MouseOver.Border}"/>
                        </Trigger>
                        <Trigger Property="IsPressed" Value="true">
                            <Setter Property="Background" TargetName="border" Value="{StaticResource Button.Pressed.Background}"/>
                            <Setter Property="BorderBrush" TargetName="border" Value="{StaticResource Button.Pressed.Border}"/>
                        </Trigger>
                        <Trigger Property="IsEnabled" Value="false">
                            <Setter Property="Background" TargetName="border" Value="{StaticResource Button.Disabled.Background}"/>
                            <Setter Property="BorderBrush" TargetName="border" Value="{StaticResource Button.Disabled.Border}"/>
                            <Setter Property="TextElement.Foreground" TargetName="contentPresenter" Value="{StaticResource Button.Disabled.Foreground}"/>
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>


• BrushDictionary.xaml

<ImageBrush x:Key="img"  ImageSource="/WpfCustomControlLibrary;Component/Icon/facebook_64px.png" TileMode="Tile"
                    Viewport="0 0 20 20" ViewportUnits="Absolute"/>


本例子中添加了2個資源字典分别是ButtonDictionary和BrushDictionary

2.使用資源

2.1在需要使用資源的項目中添加WPFCustomControlLibrary的引用

2.2合并資源字典

2.3使用資源

<Button Grid.Row="2" Style="{StaticResource ButtonStyle1}">
            Hello
</Button>
<Button Background="{StaticResource img}" Grid.Row="3" Margin="20">
</Button>


實作效果

其實圖檔資源也可以使用本方法實作跨程式集共享

把資源分離出來管理，可以使業務更加的清晰，也友善管理資源，和在本程式集使用資源沒有差別
