Tomcat 學習筆記

如何建立一個簡單的Servlet

添加Servlet的jar包

<dependencies>
        <dependency>
            <groupId>Javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
        </dependency>
    </dependencies>

建立ServletTest.java

建立一個ServletTest.java檔案如下

package com.test;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;


@WebServlet(urlPatterns = "/test")
public class ServletTest extends HttpServlet{

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        resp.getWriter().print("aaa");
    }
}

這個是Servlet3.0的寫法，可以通過注解的方式代替xml

這樣一個簡單的Servlet就建立好了。

到現在的話，直接打包的會報錯

Failed to execute goal org.apache.maven.plugins:maven-war-plugin:2.2:war (default-war) on project servlettest: Error assembling WAR: webxml attribute is required (or pre-existing WEB-INF/web.xml if executing in update mode) -> [Help 1]

因為在打war包的時候，必須有web.xml，可是我們沒有建立，在這裡使用maven-war的插件即可

<build>
        <plugins>
          <plugin>
              <groupId>org.apache.maven.plugins</groupId>
              <artifactId>maven-war-plugin</artifactId>
              <version>3.2.0</version>
          </plugin>
        </plugins>
    </build>

在pom.xml 中添加這段會幫我們自動添加web.xml

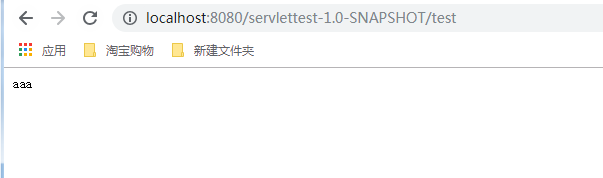

到這就可以執行

mvn install

指令了，然後我們把war檔案放到tomcat 的

webapps

路徑下即可；

參考位址： (https://www.ibm.com/developerworks/cn/java/j-lo-servlet30/index.html)

Tomcat 的幾種部署方式

将war包放到複制到目錄中 $CATALINA_BASE/webapps/ 中

這種形式，當Tomcat啟動時，它會自動将Web應用程式歸檔檔案擴充為其解壓縮的形式,并且會根據子目錄名稱為應用程式配置設定上下文路徑。如果用這種方式部署，後續如果向更改了程式代碼，必須重新開機才可以生效。

這種方式也就是上面我們測試的方式。
在tomcat的server.xml中添加context元素

第1種方式是最簡單的，也是入門的時候最常見的。

接下來就是這種，在servet.xml中添加如下代碼

Tomcat 學習筆記
```
<Context path="/aaa" docBase="E:\webapp\servlettest\target\servlettest-1.0-SNAPSHOT">
</Context>

```
docBase:web應用程式的根目錄

path: Web應用程式的上下文路徑，與每個請求URI的開頭比對，以選擇适當的Web應用程式進行處理.

配置完，啟動tomcat 即可通路
$CATALINA_BASE/conf/catalina/localhost下建立xml
第二種方式看似簡單，省去了複制war包的過程，在server.xml中配置難免顯得雜亂，是以我們可以将context元素的内容在 $CATALINA_BASE/conf/catalina/localhost 下建立一個xml, 這個xml的名稱則就是上下文的路徑，如果context中也同樣配置了path ,則還是以名稱為主。
```
<?xml version="1.0" encoding="UTF-8"?>
	<Context path="/aaa" docBase="E:\webapp\servlettest\target\servlettest-1.0-SNAPSHOT">
			</Context>

```
Tomcat 學習筆記

Tomcat 學習筆記

當然配置context元素的方式也是直接熱部署的

更多context屬性說明：http://tomcat.apache.org/tomcat-8.5-doc/config/context.html

Tomcat Maven 插件

大家有沒有感覺到，如上開發的時候，不管如何處理，貌似都很麻煩，我們必須下載下傳tomcat，還得打包部署或者配置tomcat中的xml檔案，稍微有一個地方出錯，就特别耗費時間，然而tomcat maven 就讓我們在開發的時候省了很多時間。

在pom.xml添加如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.servlet</groupId>
    <artifactId>servlettest</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>Javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
          <plugin>
              <groupId>org.apache.maven.plugins</groupId>
              <artifactId>maven-war-plugin</artifactId>
              <version>3.2.0</version>
          </plugin>

            <!--**** 在此位置添加tomcat 插件 **** -->
            <plugin>
                <!--這個是配置說明位址請大家參考：http://tomcat.apache.org/maven-plugin-trunk/run-mojo-features.html-->
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <configuration>
                     <port>8080</port>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

添加之後，插件就會下載下傳，稍微等下就好。

如果是idea 的話配置下

tomcat7:run

即可啟動

maven插件配置說明位址請大家參考：http://tomcat.apache.org/maven-plugin-trunk/run-mojo-features.html

maven tomcat 深入的了解

看到maven tomcat 如此的友善，就對這個插件産生的濃厚的好奇心。

首先我們打包下，

<plugin>
                <!--http://tomcat.apache.org/maven-plugin-trunk/run-mojo-features.html-->
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <configuration>
                     <port>8080</port>
                </configuration>
                <executions>
                    <execution>
                        <id>tomcat-run</id>
                        <goals>
                            <goal>exec-war-only</goal>
                        </goals>
                        <phase>package</phase>
                        <configuration>
                            <path>/</path>
                        </configuration>
                    </execution>
                </executions>
            </plugin>

更改下pom.xml中的配置然後打包下，然後在target檔案夾中發現了有一個jar

這個jar 是可以直接

java -jar

執行的，那麼既然的jar,他就一定有一個入口方法，我就從入口方法下手，看看這個是如何運作的。

果然在MANIFEST.MF 檔案中發現了這段

Manifest-Version: 1.0

Main-Class: org.apache.tomcat.maven.runner.Tomcat7RunnerCli

很明顯，這就是他的入口。

那麼在pom.xml 添加jar的依賴，檢視下入口到底長什麼樣子。

<dependency>
            <groupId>org.apache.tomcat.maven</groupId>
            <artifactId>tomcat7-maven-plugin</artifactId>
            <version>2.2</version>
        </dependency>

注：maven 插件其實也是一個jar檔案而已。直接添加依賴即可；

找到main入口之後，依次發現代碼沒什麼

大概梳理了下代碼

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package org.apache.tomcat.maven.runner;

import java.io.IOException;
import java.io.InputStream;
import java.util.Iterator;
import java.util.Properties;
import java.util.Map.Entry;
import org.apache.commons.cli.CommandLine;
import org.apache.commons.cli.CommandLineParser;
import org.apache.commons.cli.GnuParser;
import org.apache.commons.cli.HelpFormatter;
import org.apache.commons.cli.Option;
import org.apache.commons.cli.OptionBuilder;
import org.apache.commons.cli.Options;
import org.apache.commons.cli.ParseException;

public class Tomcat7RunnerCli {
    public static final String STAND_ALONE_PROPERTIES_FILENAME = "tomcat.standalone.properties";
    static Option httpPort;
    static Option httpsPort;
    static Option ajpPort;
    static Option serverXmlPath;
    static Option resetExtract;
    static Option help;
    static Option debug;
    static Option sysProps;
    static Option clientAuth;
    static Option keyAlias;
    static Option obfuscate;
    static Option httpProtocol;
    static Option extractDirectory;
    static Option loggerName;
    static Option uriEncoding;
    static Options options;

    public Tomcat7RunnerCli() {
    }

    public static void main(String[] args) throws Exception {
		// 建立解析器
        CommandLineParser parser = new GnuParser();
        CommandLine line = null;

        try {
			// 解析參數，例如：spring boot 啟動方式  java -jar demo.jar --server.port=8080   通過server.port 設定端口号   不過這裡是httpPort
            line = parser.parse(options, args);
        } catch (ParseException var8) {
            System.err.println("Parsing failed.  Reason: " + var8.getMessage());
            HelpFormatter formatter = new HelpFormatter();
            formatter.printHelp(getCmdLineSyntax(), options);
            System.exit(1);
        }

        if (line.hasOption(help.getOpt())) {
            HelpFormatter formatter = new HelpFormatter();
            formatter.printHelp(getCmdLineSyntax(), options);
            System.exit(0);
        }

        if (line.hasOption(obfuscate.getOpt())) {
            System.out.println(PasswordUtil.obfuscate(line.getOptionValue(obfuscate.getOpt())));
            System.exit(0);
        }
		// 建立Tomcat對象
        Tomcat7Runner tomcat7Runner = new Tomcat7Runner();
        tomcat7Runner.runtimeProperties = buildStandaloneProperties();
        if (line.hasOption(serverXmlPath.getOpt())) {
            tomcat7Runner.serverXmlPath = line.getOptionValue(serverXmlPath.getOpt());
        }
		// 擷取端口号
        String port = tomcat7Runner.runtimeProperties.getProperty("httpPort");
        if (port != null) {
            tomcat7Runner.httpPort = Integer.parseInt(port);
        }
		// 擷取啟動時的端口号，啟動時設定的端口号優先
        if (line.hasOption(httpPort.getOpt())) {
            tomcat7Runner.httpPort = Integer.parseInt(line.getOptionValue(httpPort.getOpt()));
        }

        if (line.hasOption(httpsPort.getOpt())) {
            tomcat7Runner.httpsPort = Integer.parseInt(line.getOptionValue(httpsPort.getOpt()));
        }
		// ajp端口号
        if (line.hasOption(ajpPort.getOpt())) {
            tomcat7Runner.ajpPort = Integer.parseInt(line.getOptionValue(ajpPort.getOpt()));
        }

        if (line.hasOption(resetExtract.getOpt())) {
            tomcat7Runner.resetExtract = true;
        }

        if (line.hasOption(debug.getOpt())) {
            tomcat7Runner.debug = true;
        }

        if (line.hasOption(httpProtocol.getOpt())) {
            tomcat7Runner.httpProtocol = line.getOptionValue(httpProtocol.getOpt());
        }

        if (line.hasOption(sysProps.getOpt())) {
            Properties systemProperties = line.getOptionProperties(sysProps.getOpt());
            if (systemProperties != null && !systemProperties.isEmpty()) {
                Iterator i$ = systemProperties.entrySet().iterator();

                while(i$.hasNext()) {
                    Entry<Object, Object> sysProp = (Entry)i$.next();
                    System.setProperty((String)sysProp.getKey(), (String)sysProp.getValue());
                }
            }
        }

        if (line.hasOption(clientAuth.getOpt())) {
            tomcat7Runner.clientAuth = clientAuth.getOpt();
        }

        if (line.hasOption(keyAlias.getOpt())) {
            tomcat7Runner.keyAlias = line.getOptionValue(keyAlias.getOpt());
        }

        if (line.hasOption(extractDirectory.getOpt())) {
            tomcat7Runner.extractDirectory = line.getOptionValue(extractDirectory.getOpt());
        }
		//loggerName 日志配置
        if (line.hasOption(loggerName.getOpt())) {
            tomcat7Runner.loggerName = line.getOptionValue(loggerName.getOpt());
        }
		//uriEncoding 編碼配置
        if (line.hasOption(uriEncoding.getOpt())) {
            tomcat7Runner.uriEncoding = line.getOptionValue(uriEncoding.getOpt());
        }
		// 一直到這裡， 都是關于tomcat的一些配置，這些相對無關緊要，
		// run 方法請看下一段代碼
        tomcat7Runner.run();
    }

    private static Properties buildStandaloneProperties() throws IOException {
        InputStream is = Thread.currentThread().getContextClassLoader().getResourceAsStream("tomcat.standalone.properties");
        Properties properties = new Properties();
        properties.load(is);
        return properties;
    }

    public static String getCmdLineSyntax() {
        return "java -jar [path to your exec war jar]";
    }

    static {
        OptionBuilder.withArgName("httpPort");
        OptionBuilder.hasArg();
        OptionBuilder.withDescription("http port to use");
        httpPort = OptionBuilder.create("httpPort");
        OptionBuilder.withArgName("httpsPort");
        OptionBuilder.hasArg();
        OptionBuilder.withDescription("https port to use");
        httpsPort = OptionBuilder.create("httpsPort");
        OptionBuilder.withArgName("ajpPort");
        OptionBuilder.hasArg();
        OptionBuilder.withDescription("ajp port to use");
        ajpPort = OptionBuilder.create("ajpPort");
        OptionBuilder.withArgName("serverXmlPath");
        OptionBuilder.hasArg();
        OptionBuilder.withDescription("server.xml to use, optional");
        serverXmlPath = OptionBuilder.create("serverXmlPath");
        OptionBuilder.withArgName("resetExtract");
        OptionBuilder.withDescription("clean previous extract directory");
        resetExtract = OptionBuilder.create("resetExtract");
        OptionBuilder.withLongOpt("help");
        OptionBuilder.withDescription("help");
        help = OptionBuilder.create('h');
        OptionBuilder.withLongOpt("debug");
        OptionBuilder.withDescription("debug");
        debug = OptionBuilder.create('X');
        OptionBuilder.withDescription("use value for given property");
        OptionBuilder.hasArgs();
        OptionBuilder.withDescription("key=value");
        OptionBuilder.withValueSeparator();
        sysProps = OptionBuilder.create('D');
        OptionBuilder.withArgName("clientAuth");
        OptionBuilder.withDescription("enable client authentication for https");
        clientAuth = OptionBuilder.create("clientAuth");
        OptionBuilder.withArgName("keyAlias");
        OptionBuilder.hasArgs();
        OptionBuilder.withDescription("alias from keystore for ssl");
        keyAlias = OptionBuilder.create("keyAlias");
        OptionBuilder.withArgName("password");
        OptionBuilder.hasArgs();
        OptionBuilder.withDescription("obfuscate the password and exit");
        obfuscate = OptionBuilder.create("obfuscate");
        OptionBuilder.withArgName("httpProtocol");
        OptionBuilder.hasArg();
        OptionBuilder.withDescription("http protocol to use: HTTP/1.1 or org.apache.coyote.http11.Http11NioProtocol");
        httpProtocol = OptionBuilder.create("httpProtocol");
        OptionBuilder.withArgName("extractDirectory");
        OptionBuilder.hasArg();
        OptionBuilder.withDescription("path to extract war content, default value: .extract");
        extractDirectory = OptionBuilder.create("extractDirectory");
        OptionBuilder.withArgName("loggerName");
        OptionBuilder.hasArg();
        OptionBuilder.withDescription("logger to use: slf4j to use slf4j bridge on top of jul");
        loggerName = OptionBuilder.create("loggerName");
        OptionBuilder.withArgName("uriEncoding");
        OptionBuilder.hasArg();
        OptionBuilder.withDescription("connector uriEncoding default ISO-8859-1");
        uriEncoding = OptionBuilder.create("uriEncoding");
        options = new Options();
        options.addOption(httpPort).addOption(httpsPort).addOption(ajpPort).addOption(serverXmlPath).addOption(resetExtract).addOption(help).addOption(debug).addOption(sysProps).addOption(httpProtocol).addOption(clientAuth).addOption(keyAlias).addOption(obfuscate).addOption(extractDirectory).addOption(loggerName).addOption(uriEncoding);
    }
}

package org.apache.tomcat.maven.runner;

public class Tomcat7Runner  {

    public static final String USE_SERVER_XML_KEY = "useServerXml";
    public static final String WARS_KEY = "wars";
    public static final String ARCHIVE_GENERATION_TIMESTAMP_KEY = "generationTimestamp";
    public static final String ENABLE_NAMING_KEY = "enableNaming";
    public static final String ACCESS_LOG_VALVE_FORMAT_KEY = "accessLogValveFormat";
    public static final String CODE_SOURCE_CONTEXT_PATH = "codeSourceContextPath";
    public static final String HTTP_PROTOCOL_KEY = "connectorhttpProtocol";
    public static final String HTTP_PORT_KEY = "httpPort";
    public int httpPort;
    public int httpsPort;
    public int ajpPort;
    public String serverXmlPath;
    public Properties runtimeProperties;
    public boolean resetExtract;
    public boolean debug = false;
    public String clientAuth = "false";
    public String keyAlias = null;
    public String httpProtocol;
    public String extractDirectory = ".extract";
    public File extractDirectoryFile;
    public String codeSourceContextPath = null;
    public File codeSourceWar = null;
    public String loggerName;
    Catalina container;
    Tomcat tomcat;
    String uriEncoding = "ISO-8859-1";
    Map<String, String> webappWarPerContext = new HashMap();

    public Tomcat7Runner() {
    }
public void run() throws Exception {
        PasswordUtil.deobfuscateSystemProps();
        if(this.loggerName != null && this.loggerName.length() > 0) {
            this.installLogger(this.loggerName);
        }

        this.extractDirectoryFile = new File(this.extractDirectory);
        this.debugMessage("use extractDirectory:" + this.extractDirectoryFile.getPath());
        boolean archiveTimestampChanged = false;
		// 擷取目前目錄tomcat_executable_archive.timestamp配置檔案,這個檔案在servlettest-1.0-SNAPSHOT-war-exec.jar 中打開就可以發現
		// 為了友善我貼上配置檔案的内容，突然一看配置檔案我很是懵逼。
		// #created by Apache Tomcat Maven plugin
		//#Tue Apr 16 21:39:05 CST 2019
		//generationTimestamp=1555421945264
		//accessLogValveFormat=%h %l %u %t %r %s %b %I %D
		//enableNaming=false
		//useServerXml=false
		//wars=.war|/
		//connectorhttpProtocol=HTTP/1.1
        File timestampFile = new File(this.extractDirectoryFile, ".tomcat_executable_archive.timestamp");
        Properties timestampProps = this.loadProperties(timestampFile);
        String wars;
        if(timestampFile.exists()) {
            wars = timestampProps.getProperty("generationTimestamp");
            if(wars != null) {
                long timestamp = Long.parseLong(wars);
                archiveTimestampChanged = Long.parseLong(this.runtimeProperties.getProperty("generationTimestamp")) > timestamp;
                this.debugMessage("read timestamp from file " + wars + ", archiveTimestampChanged: " + archiveTimestampChanged);
            }
        }

        this.codeSourceContextPath = this.runtimeProperties.getProperty("codeSourceContextPath");
        if(this.codeSourceContextPath != null && !this.codeSourceContextPath.isEmpty()) {
            this.codeSourceWar = (File)AccessController.doPrivileged(new PrivilegedAction<File>() {
                public File run() {
                    try {
                        File src = new File(Tomcat7Runner.class.getProtectionDomain().getCodeSource().getLocation().toURI());
                        if(src.getName().endsWith(".war")) {
                            return src;
                        }

                        Tomcat7Runner.this.debugMessage("ERROR: Code source is not a war file, ignoring.");
                    } catch (URISyntaxException var2) {
                        Tomcat7Runner.this.debugMessage("ERROR: Could not find code source. " + var2.getMessage());
                    }

                    return null;
                }
            });
        }

        if(this.extractDirectoryFile.exists() && !this.resetExtract && !archiveTimestampChanged) {
            wars = this.runtimeProperties.getProperty("wars");
            this.populateWebAppWarPerContext(wars);
        } else {
            this.extract();
            if(archiveTimestampChanged || !timestampFile.exists()) {
                timestampProps.put("generationTimestamp", this.runtimeProperties.getProperty("generationTimestamp"));
                this.saveProperties(timestampProps, timestampFile);
            }
        }
		// 以上都是對配置檔案做的處理
		// 下面這幾行看到特别熟悉，這應該就是建立基本的tomcat目錄
        (new File(this.extractDirectory, "conf")).mkdirs();
        (new File(this.extractDirectory, "logs")).mkdirs();
        (new File(this.extractDirectory, "webapps")).mkdirs();
        (new File(this.extractDirectory, "work")).mkdirs();
        File tmpDir = new File(this.extractDirectory, "temp");
        tmpDir.mkdirs();
        System.setProperty("java.io.tmpdir", tmpDir.getAbsolutePath());
        System.setProperty("catalina.base", this.extractDirectoryFile.getAbsolutePath());
        System.setProperty("catalina.home", this.extractDirectoryFile.getAbsolutePath());
        if(this.serverXmlPath == null && !this.useServerXml()) {
            this.tomcat = new Tomcat() {
				//看到這裡，想到之前在server.xml中配置的xml資訊是不是一目了然
				//<Context path="/aaa" docBase="E:\webapp\servlettest\target\servlettest-1.0-SNAPSHOT">
				//</Context>
                public Context addWebapp(Host host, String url, String name, String path) {
                    Context ctx = new StandardContext();
                    ctx.setName(name);
                    ctx.setPath(url);
                    ctx.setDocBase(path);
                    ContextConfig ctxCfg = new ContextConfig();
                    ctx.addLifecycleListener(ctxCfg);
                    ctxCfg.setDefaultWebXml((new File(Tomcat7Runner.this.extractDirectory, "conf/web.xml")).getAbsolutePath());
                    if(host == null) {
                        this.getHost().addChild(ctx);
                    } else {
                        host.addChild(ctx);
                    }

                    return ctx;
                }
            };
            if(this.enableNaming()) {
                System.setProperty("catalina.useNaming", "true");
                this.tomcat.enableNaming();
            }

            this.tomcat.getHost().setAppBase((new File(this.extractDirectory, "webapps")).getAbsolutePath());
            String connectorHttpProtocol = this.runtimeProperties.getProperty("connectorhttpProtocol");
            if(this.httpProtocol != null && this.httpProtocol.trim().length() > 0) {
                connectorHttpProtocol = this.httpProtocol;
            }

            this.debugMessage("use connectorHttpProtocol:" + connectorHttpProtocol);
			//以下在代碼在server.xml中基本都能找到對應配置例如下面這個
            if(this.httpPort > 0) {
				//這裡對應servet.xml 的這段配置
				//<Connector port="8080" protocol="HTTP/1.1"
               //        connectionTimeout="20000"
               //				redirectPort="8443" />
			   //
                Connector connector = new Connector(connectorHttpProtocol);
                connector.setPort(this.httpPort);
                if(this.httpsPort > 0) {
                    connector.setRedirectPort(this.httpsPort);
                }

                connector.setURIEncoding(this.uriEncoding);
                this.tomcat.getService().addConnector(connector);
                this.tomcat.setConnector(connector);
            }

            AccessLogValve alv = new AccessLogValve();
            alv.setDirectory((new File(this.extractDirectory, "logs")).getAbsolutePath());
            alv.setPattern(this.runtimeProperties.getProperty("accessLogValveFormat"));
            this.tomcat.getHost().getPipeline().addValve(alv);
            Connector httpsConnector;
            String baseDir;
            String context;
            if(this.httpsPort > 0) {
                httpsConnector = new Connector(connectorHttpProtocol);
                httpsConnector.setPort(this.httpsPort);
                httpsConnector.setSecure(true);
                httpsConnector.setProperty("SSLEnabled", "true");
                httpsConnector.setProperty("sslProtocol", "TLS");
                httpsConnector.setURIEncoding(this.uriEncoding);
                String keystoreFile = System.getProperty("javax.net.ssl.keyStore");
                baseDir = System.getProperty("javax.net.ssl.keyStorePassword");
                context = System.getProperty("javax.net.ssl.keyStoreType", "jks");
                if(keystoreFile != null) {
                    httpsConnector.setAttribute("keystoreFile", keystoreFile);
                }

                if(baseDir != null) {
                    httpsConnector.setAttribute("keystorePass", baseDir);
                }

                httpsConnector.setAttribute("keystoreType", context);
                String truststoreFile = System.getProperty("javax.net.ssl.trustStore");
                String truststorePass = System.getProperty("javax.net.ssl.trustStorePassword");
                String truststoreType = System.getProperty("javax.net.ssl.trustStoreType", "jks");
                if(truststoreFile != null) {
                    httpsConnector.setAttribute("truststoreFile", truststoreFile);
                }

                if(truststorePass != null) {
                    httpsConnector.setAttribute("truststorePass", truststorePass);
                }

                httpsConnector.setAttribute("truststoreType", truststoreType);
                httpsConnector.setAttribute("clientAuth", this.clientAuth);
                httpsConnector.setAttribute("keyAlias", this.keyAlias);
                this.tomcat.getService().addConnector(httpsConnector);
                if(this.httpPort <= 0) {
                    this.tomcat.setConnector(httpsConnector);
                }
            }

            if(this.ajpPort > 0) {
                httpsConnector = new Connector("org.apache.coyote.ajp.AjpProtocol");
                httpsConnector.setPort(this.ajpPort);
                httpsConnector.setURIEncoding(this.uriEncoding);
                this.tomcat.getService().addConnector(httpsConnector);
            }

            Iterator i$ = this.webappWarPerContext.entrySet().iterator();

            while(i$.hasNext()) {
                Entry<String, String> entry = (Entry)i$.next();
                baseDir = null;
                context = null;
                Context context;
                if(((String)entry.getKey()).equals("/")) {
                    baseDir = (new File(this.extractDirectory, "webapps/ROOT.war")).getAbsolutePath();
                    context = this.tomcat.addWebapp("", baseDir);
                } else {
                    baseDir = (new File(this.extractDirectory, "webapps/" + (String)entry.getValue())).getAbsolutePath();
                    context = this.tomcat.addWebapp((String)entry.getKey(), baseDir);
                }

                URL contextFileUrl = this.getContextXml(baseDir);
                if(contextFileUrl != null) {
                    context.setConfigFile(contextFileUrl);
                }
            }

            if(this.codeSourceWar != null) {
                String baseDir = (new File(this.extractDirectory, "webapps/" + this.codeSourceWar.getName())).getAbsolutePath();
                Context context = this.tomcat.addWebapp(this.codeSourceContextPath, baseDir);
                URL contextFileUrl = this.getContextXml(baseDir);
                if(contextFileUrl != null) {
                    context.setConfigFile(contextFileUrl);
                }
            }

            this.tomcat.start();
            Runtime.getRuntime().addShutdownHook(new Tomcat7Runner.TomcatShutdownHook());
        } else {
            this.container = new Catalina();
            this.container.setUseNaming(this.enableNaming());
            if(this.serverXmlPath != null && (new File(this.serverXmlPath)).exists()) {
                this.container.setConfig(this.serverXmlPath);
            } else {
                this.container.setConfig((new File(this.extractDirectory, "conf/server.xml")).getAbsolutePath());
            }

            this.container.start();
        }
		//  大家知道正常情況下一個main方法執行完了結束了
		// 可是這也是一個main方法卻不會結束，就是這行代碼可以使main方法處與等待狀态
        this.waitIndefinitely();
    }

}

Tomcat 學習筆記

如何建立一個簡單的Servlet

添加Servlet的jar包

建立ServletTest.java

Tomcat 的幾種部署方式

将war包放到複制到目錄中 `$CATALINA_BASE/webapps/` 中

在tomcat的server.xml中添加context元素

$CATALINA_BASE/conf/catalina/localhost下建立xml

Tomcat Maven 插件

maven tomcat 深入的了解

繼續閱讀

nginx location中斜線的位置的重要性

27 Best Free Eclipse Plug-ins for Java Developer to be ProductiveCode Quality PluginsText Editor PluginsDependency ManagementVersion Control Integration PluginsFramework Development Continuous Integration Related PluginsOther Utility Plugins

Java String.format方法的簡單使用

neo4j之cypher使用文檔

GitHub連夜封殺！這份阿裡 10W 字内部 Java 字面試手冊到底有多強？

spark/scala關于【資源檔案】加載方法概述外部檔案加載方案測試資源檔案打包入jar包中小結

mybatis_入門程式Mybatis入門

maven No compiler is provided in this environment. Perhaps you are running on a JRE rather than a J

AOP程式設計_Android優雅權限架構(1)概念基礎，2021金三銀四前言正文大綱正文

Effective Java 8:通用程式設計

OOM三種類型

工廠模式-三種類型

【遞歸】高效率求2的n次幂

win10本地scala和spark安裝安裝scala安裝spark

scala (3) Function 和 Method

Opendaylight課堂之深度剖析toaster（一）

Tomcat 學習筆記

如何建立一個簡單的Servlet

添加Servlet的jar包

建立ServletTest.java

Tomcat 的幾種部署方式

将war包放到複制到目錄中 $CATALINA_BASE/webapps/ 中

在tomcat的server.xml中添加context元素

$CATALINA_BASE/conf/catalina/localhost下建立xml

Tomcat Maven 插件

maven tomcat 深入的了解

繼續閱讀

将war包放到複制到目錄中 `$CATALINA_BASE/webapps/` 中
