ArcGIS Engine 10.2 如何釋出服務

​

1 ArcGIS Engine 10.2 如何釋出服務

ArcGIS Engine的代碼不能直接将MXD地圖文檔作為資料源進行釋出，如果要釋出的話，需要用ArcMap将MXD轉成MSD，然後使用轉換成功的MSD文檔進行釋出，代碼如下：

public void Publish(string host,string username,string password,  string service, string msdDocument, string outputDir)

        {

//IAGSServerConnectionFactory3 pConnectionFactory = new AGSServerConnectionFactoryClass();

////admin connection file works fine, tested in ArcCatalog on the same server

//IAGSServerConnection4 server = pConnectionFactory.OpenFromFile(@"e:\admin-connection.ags", 0) as IAGSServerConnection4;

//     IAGSServerConnectionAdmin pAGSServerConnectionAdmin = server as IAGSServerConnectionAdmin;

IPropertySet propertySet = new PropertySetClass();

propertySet.SetProperty("url", host);

propertySet.SetProperty("ConnectionMode", esriAGSConnectionMode.esriAGSConnectionModeAdmin);

propertySet.SetProperty("ServerType", esriAGSServerType.esriAGSServerTypeDiscovery);

propertySet.SetProperty("user", username);

propertySet.SetProperty("password", password);

propertySet.SetProperty("ALLOWINSECURETOKENURL", true); //設定為false會彈出一個警告對話框

IAGSServerConnectionName3 pConnectName = new AGSServerConnectionNameClass() as IAGSServerConnectionName3;//10.1新增接口

pConnectName.ConnectionProperties = propertySet;

IAGSServerConnectionAdmin pAGSAdmin = ((IName)pConnectName).Open() as IAGSServerConnectionAdmin;

IAGSServerConnectionAdmin pAGSServerConnectionAdmin = pAGSAdmin as IAGSServerConnectionAdmin;

IServerObjectAdmin pServerObjectAdmin = pAGSServerConnectionAdmin.ServerObjectAdmin;

IServerObjectConfiguration5 pConfiguration = (IServerObjectConfiguration5)pServerObjectAdmin.CreateConfiguration();

//Set the general configuration settings

pConfiguration.Name = service;

pConfiguration.TypeName = "MapServer";

pConfiguration.TargetCluster = "default";

pConfiguration.StartupType = esriStartupType.esriSTAutomatic;

pConfiguration.IsolationLevel = esriServerIsolationLevel.esriServerIsolationHigh;

pConfiguration.IsPooled = true;

pConfiguration.Description = "Modsim Map Output";

// pConfiguration.LoadBalancing = esriLoadBalancing.esriLoadBalancingNone;//沒有叢集的話可以不用設定

pConfiguration.MinInstances = 1;

pConfiguration.MaxInstances = 15;

pConfiguration.WaitTimeout = 60;

pConfiguration.UsageTimeout = 600;

pConfiguration.IdleTimeout = 1800;

//Set the configuration properties of the MapServer

IPropertySet pProps = pConfiguration.Properties;

pProps.SetProperty("FilePath", msdDocument);

pProps.SetProperty("OutputDir", outputDir);

pProps.SetProperty("MaxImageHeight", "2048");

pProps.SetProperty("MaxRecordCount", "1000");

pProps.SetProperty("MaxBufferCount", "100");

pProps.SetProperty("MaxImageWidth", "2048");

pConfiguration.Properties = pProps;

//MIME+URL (virtual directory)

IEnumServerDirectory dirs = pServerObjectAdmin.GetServerDirectories();

dirs.Reset();

IServerDirectory serverDir = dirs.Next();

while (serverDir != null)

            {

if (((IServerDirectory2)serverDir).Type == esriServerDirectoryType.esriSDTypeOutput)

                {

pProps.SetProperty("OutputDir", serverDir.Path);

pProps.SetProperty("VirtualOutputDir", serverDir.URL);

break;

// gp.AddMessage("[DEBUG] Outputpath: " + serverDir.Path + " || Virtual: " + serverDir.URL);

                }

serverDir = dirs.Next();

            }

//Set the info segment properties

IPropertySet info = pConfiguration.Info;

info.SetProperty("WebEnabled", "true");

info.SetProperty("WebCapabilities", "Map,Query,Data");

pConfiguration.Info = info;

//Set the recycle properties of the MapServer object

IPropertySet recycle = pConfiguration.RecycleProperties;

recycle.SetProperty("StartTime", "1:00 AM");

recycle.SetProperty("Interval", "86400");

pConfiguration.RecycleProperties = recycle;

//Add the configuration to the server

pServerObjectAdmin.AddConfiguration(pConfiguration);

pServerObjectAdmin.StartConfiguration(service, "MapServer");

        }

2 使用ArcGIS Engie中的GP釋出地圖文檔

ArcGIS 10.1 在釋出服務的時候其實是按照下面的步驟來的，如果認真觀察過也不難得出：

l  将MXD文檔轉成sddraft檔案；

l  将sddraft檔案轉成sd檔案；

l 将sd檔案上傳到ArcGIS for Server中

既然這個過程已經知道了，那麼就可以通過Python按照這個流程來自動化的完成服務的釋出：

import arcpy

# define local variables

wrkspc = 'C:/Project/'

mapDoc = arcpy.mapping.MapDocument(wrkspc + 'counties.mxd')

con = r'GIS Servers\arcgis on MyServer_6080 (admin).ags'

service = 'Counties'

sddraft = wrkspc + service + '.sddraft'

sd = wrkspc + service + '.sd'

# create service definition draft

arcpy.mapping.CreateMapSDDraft(mapDoc, sddraft, service, 'ARCGIS_SERVER', con, True, None)

# analyze the service definition draft

analysis = arcpy.mapping.AnalyzeForSD(sddraft)

# stage and upload the service if the sddraft analysis did not contain errors

if analysis['errors'] == {}:

# Execute StageService

    arcpy.StageService_server(sddraft, sd)

# Execute UploadServiceDefinition

    arcpy.UploadServiceDefinition_server(sd, con)

else:

# if the sddraft analysis contained errors, display them

print analysis['errors']

可以将上面的腳本建立為一個tbx檔案，然後在ArcGIS Engine中通過GP來實作服務的釋出.

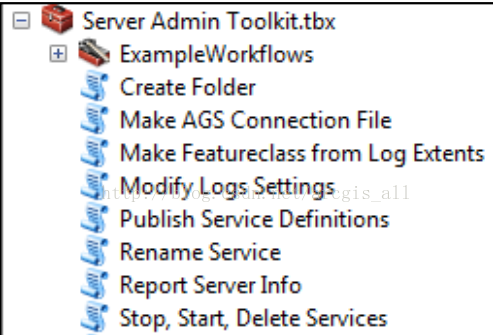

其實Esri在官網上釋出了一個tbx裡面就包含了對server服務管理的功能（有興趣的可以下載下傳，文檔所在的目錄下也包含了）：

3 使用Admin API 釋出文檔

ArcGIS for Server 10.1 增加了Admin API，那麼，所謂的Admin API 其實就是一一http請求的方法，這些方法包含了對Server的管理，下面為Admin API 的代碼：

namespace ServerAPIAdmin.ArcGIS.Rest

{

using System;

using System.Collections;

using System.Collections.Generic;

using System.IO;

using System.Linq;

using System.Net;

using System.Text;

using System.Web;

using ESRI.ArcGIS.SOESupport;

///<summary>

/// tipi di servizio arcgis server (mappa la tabella servizio tipo)

///</summary>

public enum ServiceType

    {

MapServer,

GeocodeServer,

SearchServer,

IndexingLauncher,

IndexGenerator,

GeometryServer,

GeoDataServer,

GPServer,

GlobeServer,

ImageServer

    }

/// Load Balancing

public enum LoadBalancing

ROUND_ROBIN,

FAIL_OVER

/// isolation level

public enum IsolationLevel

LOW,

HIGH

/// administrative API Rest

public class AGSAdmin

private string username;

private string password;

private string urlRestAdmin;

private string urlRestServer;

/// Initializes a new instance of the <see cref="AGSAdmin"/> class.

///<param name="serverName">server name</param>

///<param name="port">port of server</param>

///<param name="username">username administrator</param>

///<param name="password">password administrator</param>

public AGSAdmin(string serverName, int port, string username, string password)

this.username = username;

this.password = password;

string url = string.Format("http://{0}:{1}/arcgis", serverName, port.ToString());

this.urlRestAdmin = url + "/admin";

this.urlRestServer = url + "/server";

/// Prevents a default instance of the <see cref="AGSAdmin"/> class from being created.

private AGSAdmin()

/// Create arcgis server folder

///<param name="folderName">Folder name</param>

///<param name="description">Description of the folder</param>

///<returns>True if successfully created</returns>

public bool CreateServerFolder(string folderName, string description)

try

string token = this.GenerateAGSToken();

string folderUrl = this.urlRestAdmin + "/services/" + folderName + "?f=json&token=" + token;

string resultExistsFolder = this.GetResult(folderUrl);

if (!this.HasError(resultExistsFolder))

return true; // exists

else

string createFolderUrl = this.urlRestAdmin + "/services/createFolder";

string postContent = string.Format("folderName={0}&description={1}&f=json&token={2}", folderName, description, token);

string result = this.GetResult(createFolderUrl, postContent);

return this.HasSuccess(result);

catch

return false;

/// Get physical Path and virtual Path from directory ags

///<param name="directory">directory ags</param>

///<param name="physicalPath">physical Path</param>

///<param name="virtualPath">virtual Path</param>

///<returns>True if successfully return path</returns>

public bool GetServerDirectory(string directory, out string physicalPath, out string virtualPath)

physicalPath = null;

virtualPath = null;

string directoryUrl = this.urlRestAdmin + "/system/directories/" + directory + "?f=json&token=" + token;

string result = this.GetResult(directoryUrl);

JsonObject jsonObject = new JsonObject(result);

if (!jsonObject.Exists("physicalPath") || !jsonObject.TryGetString("physicalPath", out physicalPath))

throw new Exception();

jsonObject = new JsonObject(result);

if (!jsonObject.Exists("virtualPath") || !jsonObject.TryGetString("virtualPath", out virtualPath))

return true;

/// Delete Service

///<param name="serviceName">Service Name</param>

///<param name="serviceType">Server Type</param>

///<returns>True if successfully deleted</returns>

public bool DeleteService(string serviceName, ServiceType serviceType)

string serviceUrl = this.urlRestAdmin + "/services/" + serviceName + "." + Enum.GetName(typeof(ServiceType), serviceType) + "/delete";

string result = this.GetResult(serviceUrl, "f=json&token=" + token);

/// Start Service

///<returns>True if successfully started</returns>

public bool StartService(string serviceName, ServiceType serviceType)

string serviceUrl = this.urlRestAdmin + "/services/" + serviceName + "." + Enum.GetName(typeof(ServiceType), serviceType) + "/start";

/// Stop Service

///<returns>True if successfully stopped</returns>

public bool StopService(string serviceName, ServiceType serviceType)

string serviceUrl = this.urlRestAdmin + "/services/" + serviceName + "." + Enum.GetName(typeof(ServiceType), serviceType) + "/stop";

/// list of services

public void ListServices()

this.ListServices(null);

/// list of services in folder

///<param name="folder">name of folder</param>

public void ListServices(string folder)

string serviceUrl = this.urlRestAdmin + "/services/" + folder;

string postcontent = "f=json&token=" + token;

string result = this.GetResult(serviceUrl, postcontent);

object[] folders = null;

if (jsonObject.Exists("folders") && jsonObject.TryGetArray("folders", out folders))

foreach (string subfolder in folders)

                    {

this.ListServices(subfolder);

                    }

object[] services = null;

if (jsonObject.Exists("services") && jsonObject.TryGetArray("services", out services))

IEnumerable<JsonObject> jsonObjectService = services.Cast<JsonObject>();

jsonObjectService.ToList().ForEach(jo =>

string serviceName;

jo.TryGetString("serviceName", out serviceName);

string folderName;

jo.TryGetString("folderName", out folderName);

Console.WriteLine(folderName + "/" + serviceName);

                    });

throw;

/// create service type MapServer

///<returns>>True if successfully created</returns>

public bool CreateService(String msdPath)

string serviceUrl = this.urlRestAdmin + "/services/createService";

JsonObject jsonObject = new JsonObject();

jsonObject.AddString("serviceName", "Test");

jsonObject.AddString("type", Enum.GetName(typeof(ServiceType), ServiceType.MapServer));

jsonObject.AddString("description", "This is an example");

jsonObject.AddString("capabilities", "Map,Query,Data");

jsonObject.AddString("clusterName", "default");

jsonObject.AddLong("minInstancesPerNode", 1);

jsonObject.AddLong("maxInstancesPerNode", 2);

jsonObject.AddLong("maxWaitTime", 60);

jsonObject.AddLong("maxStartupTime", 300);

jsonObject.AddLong("maxIdleTime", 1800);

jsonObject.AddLong("maxUsageTime", 600);

jsonObject.AddLong("recycleInterval", 24);

jsonObject.AddString("loadBalancing", Enum.GetName(typeof(LoadBalancing), LoadBalancing.ROUND_ROBIN));

jsonObject.AddString("isolationLevel", Enum.GetName(typeof(IsolationLevel), IsolationLevel.HIGH));

JsonObject jsonObjectProperties = new JsonObject();

// see for a list complete http://resources.arcgis.com/en/help/server-admin-api/serviceTypes.html

jsonObjectProperties.AddLong("maxBufferCount", 100); // optional 100

jsonObjectProperties.AddString("virtualCacheDir", this.urlRestServer + "/arcgiscache"); // optional

jsonObjectProperties.AddLong("maxImageHeight", 2048); // optional 2048

jsonObjectProperties.AddLong("maxRecordCount", 1000); // optional 500

// Other service types do not require you to use arcpy.mapping or create an MSD.

jsonObjectProperties.AddString("filePath", msdPath); // required

jsonObjectProperties.AddLong("maxImageWidth", 2048); // optional 2048

jsonObjectProperties.AddBoolean("cacheOnDemand", false); // optional false

jsonObjectProperties.AddString("virtualOutputDir", this.urlRestServer + "/arcgisoutput");

jsonObjectProperties.AddString("outputDir", @"C:\arcgisserver\directories\arcgisoutput"); // required

jsonObjectProperties.AddString("supportedImageReturnTypes", "MIME+URL"); // optional MIME+URL

jsonObjectProperties.AddBoolean("isCached", false); // optional false

jsonObjectProperties.AddBoolean("ignoreCache", false); // optional false

jsonObjectProperties.AddBoolean("clientCachingAllowed", false); // optional true

jsonObjectProperties.AddString("cacheDir", @"C:\arcgisserver\directories\arcgiscache"); // optional

jsonObject.AddJsonObject("properties", jsonObjectProperties);

string result = this.GetResult(serviceUrl, "service=" + HttpUtility.UrlEncode(jsonObject.ToJson()) + "&f=json&token=" + token);

/// check is status is equal success

///<param name="result">result of request</param>

///<returns>True if status is equal success</returns>

private bool HasSuccess(string result)

string status = null;

if (!jsonObject.Exists("status") || !jsonObject.TryGetString("status", out status))

return status == "success";

/// check is status is equal error

///<returns>True if status is equal error</returns>

private bool HasError(string result)

return status == "error";

/// Get request rest

///<param name="url">url of request</param>

///<returns>return response</returns>

private string GetResult(string url)

WebRequest request = WebRequest.Create(url);

WebResponse response = request.GetResponse();

using (Stream responseStream = response.GetResponseStream())

using (StreamReader reader = new StreamReader(responseStream))

return reader.ReadToEnd();

/// Post request rest

///<param name="postContent">content of post</param>

private string GetResult(string url, string postContent)

byte[] content = Encoding.UTF8.GetBytes(postContent);

request.ContentLength = content.Length;

request.ContentType = "application/x-www-form-urlencoded";

request.Method = WebRequestMethods.Http.Post;

using (Stream requestStream = request.GetRequestStream())

requestStream.Write(content, 0, content.Length);

requestStream.Close();

                        {

                        }

/// Generate a token

///<returns>A token that has default expiration time</returns>

private string GenerateAGSToken()

string urlGenerateToken = string.Format("{0}/generateToken", this.urlRestAdmin);

string credential = string.Format("username={0}&password={1}&client=requestip&expiration=&f=json", this.username, this.password);

string result = this.GetResult(urlGenerateToken, credential);

string token = null;

if (!jsonObject.Exists("token") || !jsonObject.TryGetString("token", out token))

throw new Exception("Token not found!");

return token;

return string.Empty;

}
