FLINK基礎（103）: DS算子與視窗（14）多流轉換算子(5) Interval Join

Interval Join

KeyedStream,KeyedStream → DataStream #

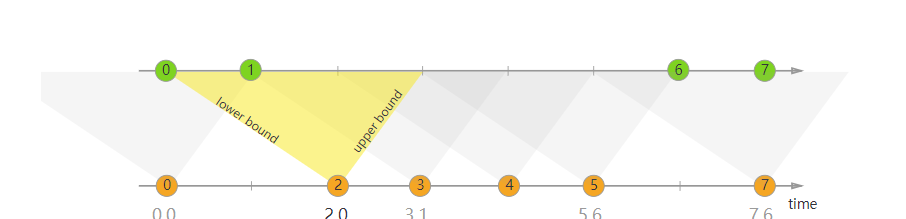

Join two elements e1 and e2 of two keyed streams with a common key over a given time interval, so that

e1.timestamp + lowerBound <= e2.timestamp <= e1.timestamp + upperBound

.

Interval Join會将兩個資料流按照相同的key，并且在其中一個流的時間範圍内的資料進行join處理。通常用于把一定時間範圍内相關的分組資料拉成一個寬表。我們通常可以用類似下面的表達式來使用interval Join來處理兩個資料流：

key1 == key2 && e1.timestamp + lowerBound <= e2.timestamp <= e1.timestamp + upperBound

 我們通常可以使用下面的程式設計模型來處理兩個資料流：

import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.streaming.api.functions.co.ProcessJoinFunction;
import org.apache.flink.streaming.api.windowing.time.Time;

...

DataStream<Integer> orangeStream = ...
DataStream<Integer> greenStream = ...

orangeStream
    .keyBy(<KeySelector>)
    .intervalJoin(greenStream.keyBy(<KeySelector>))
    .between(Time.milliseconds(-2), Time.milliseconds(1))
    .process (new ProcessJoinFunction<Integer, Integer, String(){

        @Override
        public void processElement(Integer left, Integer right, Context ctx, Collector<String> out) {
            out.collect(first + "," + second);
        }
    });

2.操作DataSet

執行個體如下：

public class JoinDemo {

    public static void main(String[] args) throws Exception {
        final ExecutionEnvironment env=ExecutionEnvironment.getExecutionEnvironment();

        DataSet<Tuple2<String,Integer>> data1=env.fromElements(
                Tuple2.of("class1",100),
                Tuple2.of("class1",400),
                Tuple2.of("class2",200),
                Tuple2.of("class2",400)
        );

        DataSet<Tuple2<String,Integer>> data2=env.fromElements(
                Tuple2.of("class1",300),
                Tuple2.of("class1",600),
                Tuple2.of("class2",200),
                Tuple2.of("class3",200)
        );

        data1.join(data2)
                .where(0).equalTo(0)
                .with(new JoinFunction<Tuple2<String,Integer>, Tuple2<String,Integer>, Object>() {

                    @Override
                    public Object join(Tuple2<String, Integer> tuple1,
                                       Tuple2<String, Integer> tuple2) throws Exception {
                        return new String(tuple1.f0+" : "+tuple1.f1+" "+tuple2.f1);
                    }
                }).print();
    }
}

運作結果：

class1 : 100 300
class1 : 400 300
class1 : 100 600
class1 : 400 600
class2 : 200 200
class2 : 400 200
