序言
我前邊有幾篇文章有介紹過quartz的基本使用文法與類庫。但是他的執行計劃都是被寫在本地的xml檔案中。無法做叢集部署，我讓它看起來脆弱不堪，那是我的罪過。
但是quart.net是經過許多大項目的錘煉，走到啦今天，支援叢集高可用的開發方案那是一定的，今天我就給小結下我的quartz.net開發更新過程。
Quartz.net的資料庫表結構
如果支援叢集與持久化，單靠本機的記憶體和xml來儲存計算任務排程的各種狀态值，可想而知，是困難的。是以支援資料庫這樣的解決方案，OpenSymphony組織怎麼可能會給遺漏。
官方提供的各種資料庫腳本：https://github.com/quartznet/quartznet/tree/master/database/tables

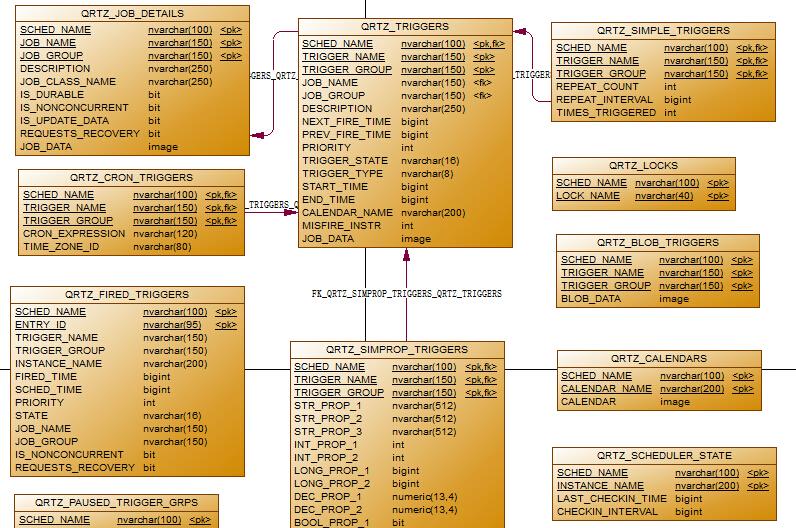

下面我給大家展示下quartz任務排程的MS SQLSERVER表結構
建立表結構T-SQL腳本
USE [enter_db_name_here]
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[FK_QRTZ_TRIGGERS_QRTZ_JOB_DETAILS]') AND OBJECTPROPERTY(id, N'ISFOREIGNKEY') = 1)
ALTER TABLE [dbo].[QRTZ_TRIGGERS] DROP CONSTRAINT FK_QRTZ_TRIGGERS_QRTZ_JOB_DETAILS
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[FK_QRTZ_CRON_TRIGGERS_QRTZ_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISFOREIGNKEY') = 1)
ALTER TABLE [dbo].[QRTZ_CRON_TRIGGERS] DROP CONSTRAINT FK_QRTZ_CRON_TRIGGERS_QRTZ_TRIGGERS
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[FK_QRTZ_SIMPLE_TRIGGERS_QRTZ_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISFOREIGNKEY') = 1)
ALTER TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS] DROP CONSTRAINT FK_QRTZ_SIMPLE_TRIGGERS_QRTZ_TRIGGERS
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[FK_QRTZ_SIMPROP_TRIGGERS_QRTZ_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISFOREIGNKEY') = 1)
ALTER TABLE [dbo].[QRTZ_SIMPROP_TRIGGERS] DROP CONSTRAINT FK_QRTZ_SIMPROP_TRIGGERS_QRTZ_TRIGGERS
GO
IF EXISTS (SELECT * FROM sys.foreign_keys WHERE object_id = OBJECT_ID(N'[dbo].[FK_QRTZ_JOB_LISTENERS_QRTZ_JOB_DETAILS]') AND parent_object_id = OBJECT_ID(N'[dbo].[QRTZ_JOB_LISTENERS]'))
ALTER TABLE [dbo].[QRTZ_JOB_LISTENERS] DROP CONSTRAINT [FK_QRTZ_JOB_LISTENERS_QRTZ_JOB_DETAILS]
IF EXISTS (SELECT * FROM sys.foreign_keys WHERE object_id = OBJECT_ID(N'[dbo].[FK_QRTZ_TRIGGER_LISTENERS_QRTZ_TRIGGERS]') AND parent_object_id = OBJECT_ID(N'[dbo].[QRTZ_TRIGGER_LISTENERS]'))
ALTER TABLE [dbo].[QRTZ_TRIGGER_LISTENERS] DROP CONSTRAINT [FK_QRTZ_TRIGGER_LISTENERS_QRTZ_TRIGGERS]
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_CALENDARS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_CALENDARS]
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_CRON_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_CRON_TRIGGERS]
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_BLOB_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_BLOB_TRIGGERS]
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_FIRED_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_FIRED_TRIGGERS]
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_PAUSED_TRIGGER_GRPS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_PAUSED_TRIGGER_GRPS]
GO
IF EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[QRTZ_JOB_LISTENERS]') AND type in (N'U'))
DROP TABLE [dbo].[QRTZ_JOB_LISTENERS]
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_SCHEDULER_STATE]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_SCHEDULER_STATE]
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_LOCKS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_LOCKS]
GO
IF EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[QRTZ_TRIGGER_LISTENERS]') AND type in (N'U'))
DROP TABLE [dbo].[QRTZ_TRIGGER_LISTENERS]
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_JOB_DETAILS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_JOB_DETAILS]
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_SIMPLE_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS]
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_SIMPROP_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].QRTZ_SIMPROP_TRIGGERS
GO
IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
DROP TABLE [dbo].[QRTZ_TRIGGERS]
GO
CREATE TABLE [dbo].[QRTZ_CALENDARS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[CALENDAR_NAME] [NVARCHAR] (200) NOT NULL ,
[CALENDAR] [IMAGE] NOT NULL
)
GO
CREATE TABLE [dbo].[QRTZ_CRON_TRIGGERS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[TRIGGER_NAME] [NVARCHAR] (150) NOT NULL ,
[TRIGGER_GROUP] [NVARCHAR] (150) NOT NULL ,
[CRON_EXPRESSION] [NVARCHAR] (120) NOT NULL ,
[TIME_ZONE_ID] [NVARCHAR] (80)
)
GO
CREATE TABLE [dbo].[QRTZ_FIRED_TRIGGERS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[ENTRY_ID] [NVARCHAR] (95) NOT NULL ,
[TRIGGER_NAME] [NVARCHAR] (150) NOT NULL ,
[TRIGGER_GROUP] [NVARCHAR] (150) NOT NULL ,
[INSTANCE_NAME] [NVARCHAR] (200) NOT NULL ,
[FIRED_TIME] [BIGINT] NOT NULL ,
[SCHED_TIME] [BIGINT] NOT NULL ,
[PRIORITY] [INTEGER] NOT NULL ,
[STATE] [NVARCHAR] (16) NOT NULL,
[JOB_NAME] [NVARCHAR] (150) NULL ,
[JOB_GROUP] [NVARCHAR] (150) NULL ,
[IS_NONCONCURRENT] BIT NULL ,
[REQUESTS_RECOVERY] BIT NULL
)
GO
CREATE TABLE [dbo].[QRTZ_PAUSED_TRIGGER_GRPS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[TRIGGER_GROUP] [NVARCHAR] (150) NOT NULL
)
GO
CREATE TABLE [dbo].[QRTZ_SCHEDULER_STATE] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[INSTANCE_NAME] [NVARCHAR] (200) NOT NULL ,
[LAST_CHECKIN_TIME] [BIGINT] NOT NULL ,
[CHECKIN_INTERVAL] [BIGINT] NOT NULL
)
GO
CREATE TABLE [dbo].[QRTZ_LOCKS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[LOCK_NAME] [NVARCHAR] (40) NOT NULL
)
GO
CREATE TABLE [dbo].[QRTZ_JOB_DETAILS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[JOB_NAME] [NVARCHAR] (150) NOT NULL ,
[JOB_GROUP] [NVARCHAR] (150) NOT NULL ,
[DESCRIPTION] [NVARCHAR] (250) NULL ,
[JOB_CLASS_NAME] [NVARCHAR] (250) NOT NULL ,
[IS_DURABLE] BIT NOT NULL ,
[IS_NONCONCURRENT] BIT NOT NULL ,
[IS_UPDATE_DATA] BIT NOT NULL ,
[REQUESTS_RECOVERY] BIT NOT NULL ,
[JOB_DATA] [IMAGE] NULL
)
GO
CREATE TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[TRIGGER_NAME] [NVARCHAR] (150) NOT NULL ,
[TRIGGER_GROUP] [NVARCHAR] (150) NOT NULL ,
[REPEAT_COUNT] [INTEGER] NOT NULL ,
[REPEAT_INTERVAL] [BIGINT] NOT NULL ,
[TIMES_TRIGGERED] [INTEGER] NOT NULL
)
GO
CREATE TABLE [dbo].[QRTZ_SIMPROP_TRIGGERS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[TRIGGER_NAME] [NVARCHAR] (150) NOT NULL ,
[TRIGGER_GROUP] [NVARCHAR] (150) NOT NULL ,
[STR_PROP_1] [NVARCHAR] (512) NULL,
[STR_PROP_2] [NVARCHAR] (512) NULL,
[STR_PROP_3] [NVARCHAR] (512) NULL,
[INT_PROP_1] [INT] NULL,
[INT_PROP_2] [INT] NULL,
[LONG_PROP_1] [BIGINT] NULL,
[LONG_PROP_2] [BIGINT] NULL,
[DEC_PROP_1] [NUMERIC] (13,4) NULL,
[DEC_PROP_2] [NUMERIC] (13,4) NULL,
[BOOL_PROP_1] BIT NULL,
[BOOL_PROP_2] BIT NULL,
)
GO
CREATE TABLE [dbo].[QRTZ_BLOB_TRIGGERS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[TRIGGER_NAME] [NVARCHAR] (150) NOT NULL ,
[TRIGGER_GROUP] [NVARCHAR] (150) NOT NULL ,
[BLOB_DATA] [IMAGE] NULL
)
GO
CREATE TABLE [dbo].[QRTZ_TRIGGERS] (
[SCHED_NAME] [NVARCHAR] (100) NOT NULL ,
[TRIGGER_NAME] [NVARCHAR] (150) NOT NULL ,
[TRIGGER_GROUP] [NVARCHAR] (150) NOT NULL ,
[JOB_NAME] [NVARCHAR] (150) NOT NULL ,
[JOB_GROUP] [NVARCHAR] (150) NOT NULL ,
[DESCRIPTION] [NVARCHAR] (250) NULL ,
[NEXT_FIRE_TIME] [BIGINT] NULL ,
[PREV_FIRE_TIME] [BIGINT] NULL ,
[PRIORITY] [INTEGER] NULL ,
[TRIGGER_STATE] [NVARCHAR] (16) NOT NULL ,
[TRIGGER_TYPE] [NVARCHAR] (8) NOT NULL ,
[START_TIME] [BIGINT] NOT NULL ,
[END_TIME] [BIGINT] NULL ,
[CALENDAR_NAME] [NVARCHAR] (200) NULL ,
[MISFIRE_INSTR] [INTEGER] NULL ,
[JOB_DATA] [IMAGE] NULL
)
GO
ALTER TABLE [dbo].[QRTZ_CALENDARS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_CALENDARS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[CALENDAR_NAME]
)
GO
ALTER TABLE [dbo].[QRTZ_CRON_TRIGGERS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_CRON_TRIGGERS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
)
GO
ALTER TABLE [dbo].[QRTZ_FIRED_TRIGGERS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_FIRED_TRIGGERS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[ENTRY_ID]
)
GO
ALTER TABLE [dbo].[QRTZ_PAUSED_TRIGGER_GRPS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_PAUSED_TRIGGER_GRPS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[TRIGGER_GROUP]
)
GO
ALTER TABLE [dbo].[QRTZ_SCHEDULER_STATE] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_SCHEDULER_STATE] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[INSTANCE_NAME]
)
GO
ALTER TABLE [dbo].[QRTZ_LOCKS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_LOCKS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[LOCK_NAME]
)
GO
ALTER TABLE [dbo].[QRTZ_JOB_DETAILS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_JOB_DETAILS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[JOB_NAME],
[JOB_GROUP]
)
GO
ALTER TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_SIMPLE_TRIGGERS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
)
GO
ALTER TABLE [dbo].[QRTZ_SIMPROP_TRIGGERS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_SIMPROP_TRIGGERS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
)
GO
ALTER TABLE [dbo].[QRTZ_TRIGGERS] WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_TRIGGERS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
)
GO
ALTER TABLE [dbo].QRTZ_BLOB_TRIGGERS WITH NOCHECK ADD
CONSTRAINT [PK_QRTZ_BLOB_TRIGGERS] PRIMARY KEY CLUSTERED
(
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
)
GO
ALTER TABLE [dbo].[QRTZ_CRON_TRIGGERS] ADD
CONSTRAINT [FK_QRTZ_CRON_TRIGGERS_QRTZ_TRIGGERS] FOREIGN KEY
(
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
) REFERENCES [dbo].[QRTZ_TRIGGERS] (
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
) ON DELETE CASCADE
GO
ALTER TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS] ADD
CONSTRAINT [FK_QRTZ_SIMPLE_TRIGGERS_QRTZ_TRIGGERS] FOREIGN KEY
(
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
) REFERENCES [dbo].[QRTZ_TRIGGERS] (
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
) ON DELETE CASCADE
GO
ALTER TABLE [dbo].[QRTZ_SIMPROP_TRIGGERS] ADD
CONSTRAINT [FK_QRTZ_SIMPROP_TRIGGERS_QRTZ_TRIGGERS] FOREIGN KEY
(
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
) REFERENCES [dbo].[QRTZ_TRIGGERS] (
[SCHED_NAME],
[TRIGGER_NAME],
[TRIGGER_GROUP]
) ON DELETE CASCADE
GO
ALTER TABLE [dbo].[QRTZ_TRIGGERS] ADD
CONSTRAINT [FK_QRTZ_TRIGGERS_QRTZ_JOB_DETAILS] FOREIGN KEY
(
[SCHED_NAME],
[JOB_NAME],
[JOB_GROUP]
) REFERENCES [dbo].[QRTZ_JOB_DETAILS] (
[SCHED_NAME],
[JOB_NAME],
[JOB_GROUP]
)
GO
CREATE INDEX IDX_QRTZ_T_J ON QRTZ_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP)
CREATE INDEX IDX_QRTZ_T_JG ON QRTZ_TRIGGERS(SCHED_NAME,JOB_GROUP)
CREATE INDEX IDX_QRTZ_T_C ON QRTZ_TRIGGERS(SCHED_NAME,CALENDAR_NAME)
CREATE INDEX IDX_QRTZ_T_G ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP)
CREATE INDEX IDX_QRTZ_T_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE)
CREATE INDEX IDX_QRTZ_T_N_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE)
CREATE INDEX IDX_QRTZ_T_N_G_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE)
CREATE INDEX IDX_QRTZ_T_NEXT_FIRE_TIME ON QRTZ_TRIGGERS(SCHED_NAME,NEXT_FIRE_TIME)
CREATE INDEX IDX_QRTZ_T_NFT_ST ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME)
CREATE INDEX IDX_QRTZ_T_NFT_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME)
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE)
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE_GRP ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE)
CREATE INDEX IDX_QRTZ_FT_TRIG_INST_NAME ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME)
CREATE INDEX IDX_QRTZ_FT_INST_JOB_REQ_RCVRY ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY)
CREATE INDEX IDX_QRTZ_FT_J_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP)
CREATE INDEX IDX_QRTZ_FT_JG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_GROUP)
CREATE INDEX IDX_QRTZ_FT_T_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
CREATE INDEX IDX_QRTZ_FT_TG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_GROUP)
GO View Code
部分我們擴充開發常用到的表及字段說明
1、QRTZ_JOB_DETAILS：存儲的是job的詳細資訊，包括：[DESCRIPTION]描述，[IS_DURABLE]是否持久化，[JOB_DATA]持久化對象等基本資訊。
2、QRTZ_TRIGGERS：觸發器資訊,包含：job的名，組外鍵，[DESCRIPTION]觸發器的描述等基本資訊，還有[START_TIME]開始執行時間，[END_TIME]結束執行時間，[PREV_FIRE_TIME]上次執行時間，[NEXT_FIRE_TIME]下次執行時間，[TRIGGER_TYPE]觸發器類型：simple和cron，[TRIGGER_STATE]執行狀态：WAITING，PAUSED，ACQUIRED分别為：等待，暫停，運作中。
3、QRTZ_CRON_TRIGGERS：儲存cron表達式。
4、QRTZ_SCHEDULER_STATE：存儲叢集中note執行個體資訊，quartz會定時讀取該表的資訊判斷叢集中每個執行個體的目前狀态，INSTANCE_NAME:之前配置檔案中org.quartz.scheduler.instanceId配置的名字，就會寫入該字段，如果設定為AUTO,quartz會根據實體機名和目前時間産生一個名字。 [LAST_CHECKIN_TIME]上次檢查時間，[CHECKIN_INTERVAL]檢查間隔時間。
5、QRTZ_PAUSED_TRIGGER_GRPS：暫停的任務組資訊。
6、QRTZ_LOCKS，悲觀鎖發生的記錄資訊。
7、QRTZ_FIRED_TRIGGERS，正在運作的觸發器資訊。
8、QRTZ_SIMPLE_TRIGGERS，簡單的出發器詳細資訊。
9、QRTZ_BLOB_TRIGGERS,觸發器存為二進制大對象類型(用于Quartz使用者自己觸發資料庫定制自己的觸發器，然而JobStore不明白怎麼存放執行個體的時候)。
.net程式配置quartz資料庫參數
//1.首先建立一個作業排程池
var properties = new NameValueCollection();
//存儲類型
properties["quartz.jobStore.type"] = "Quartz.Impl.AdoJobStore.JobStoreTX, Quartz";
//表明字首
properties["quartz.jobStore.tablePrefix"] = "QRTZ_";
//驅動類型
properties["quartz.jobStore.driverDelegateType"] = "Quartz.Impl.AdoJobStore.SqlServerDelegate, Quartz"; //資料源名稱
properties["quartz.jobStore.dataSource"] = "myDS";
//連接配接字元串
properties["quartz.dataSource.myDS.connectionString"] = Config.QuartzConnStr;
//sqlserver版本
properties["quartz.dataSource.myDS.provider"] = "SqlServer-20";
//最大連結數
//properties["quartz.dataSource.myDS.maxConnections"] = "5";
// First we must get a reference to a scheduler
ISchedulerFactory sf = new StdSchedulerFactory(properties);
IScheduler sched = sf.GetScheduler(); 上面便是建立一個排程器，以及配置與quartz資料庫的詳細參數。有啦資料庫後你會很興奮，直接寫t-sql操作資料庫多麼便捷啊，并且所有的任務排程資訊都一目了然，這裡我要告訴你的事，你不需要直接寫sql語句，quart提供的類庫就能自動對資料庫進行填充，以完成對任務排程的管理操作。
quartz.net任務排程的各種操作方法
首先我要說下，我前面有一篇文章對quartz.net做個基本的操作描述，這裡也隻貼代碼，僅供參考。
1、添加任務計劃，并制定要觸發的執行類
#region 檢查是否存在
if (IsExistJob(m.JobGroupName, m.JobName))
{
return false;
}
#endregion
#region 添加任務計劃
if (m.StarTime == null)
{
m.StarTime = DateTime.Now;
}
DateTimeOffset starRunTime = DateBuilder.NextGivenSecondDate(m.StarTime, 1);
if (m.EndTime == null)
{
m.EndTime = DateTime.MaxValue.AddDays(-1);
}
DateTimeOffset endRunTime = DateBuilder.NextGivenSecondDate(m.EndTime, 1);
scheduler = GetScheduler();
IJobDetail job = JobBuilder.Create<QuartzFunction>()
.WithIdentity(m.JobName, m.JobGroupName)
.WithDescription(m.JobDescribe)
.Build();
ICronTrigger trigger = (ICronTrigger)TriggerBuilder.Create()
.StartAt(starRunTime)
.EndAt(endRunTime)
.WithIdentity(m.JobName, m.JobGroupName)
.WithCronSchedule(m.CronStr)
.WithDescription(m.JobDescribe)
.Build();
scheduler.ScheduleJob(job, trigger);
scheduler.Start();
#endregion
#region 關聯運作接口
var api = new A_RunJobTriggerEntity();
api.ApiCode = m.ApiCode;
api.ApiType = m.ApiType;
api.ApiUrl = m.ApiUrl;
api.AppID = m.AppID;
api.CreateTime = DateTime.Now;
api.JobDescribe = m.JobDescribe;
api.ServiceCode = m.ServiceCode;
api.Token = m.Token;
api.TriggerGroup = m.JobGroupName;
api.TriggerName = m.JobName;
new ARunJobRelationManage().Insert(api);
#endregion 2、移除執行計劃
scheduler = GetScheduler();
var trigger = new TriggerKey(jobGroup, jobName);
scheduler.PauseTrigger(trigger);//停止觸發器
scheduler.UnscheduleJob(trigger); //移除觸發器
var result = scheduler.DeleteJob(JobKey.Create(jobName,jobGroup)); 3、暫停指定任務計劃
scheduler = GetScheduler();
scheduler.PauseJob(JobKey.Create(jobName, jobGroup)); 4、暫停所有的任務計劃
scheduler = GetScheduler();
scheduler.PauseAll(); 5、開啟指定的任務計劃
scheduler = GetScheduler();
if (!scheduler.IsStarted)
{
scheduler.Start();
}
//scheduler.ResumeTrigger(new TriggerKey(jobName, jobGroup));
scheduler.ResumeJob(JobKey.Create(jobName, jobGroup)); 6、開啟所有的任務計劃
scheduler = GetScheduler();
if (!scheduler.IsStarted)
{
scheduler.Start();
}
//scheduler.ResumeTrigger(new TriggerKey(jobName, jobGroup));
scheduler.ResumeAll(); 7、排程啟動狀态，如果排程的狀态沒有開啟，即便觸發器的狀态為等待執行，執行中，也是無效的。
scheduler = GetScheduler();
if (scheduler.IsStarted)
{
return "開啟";
}
else
{
return "關閉";
} 8、是否叢集
//是否叢集
//properties["quartz.jobStore.clustered"] = "false";
//properties["quartz.scheduler.instanceId"] = "AUTO"; 檢驗下結果：
我在兩台伺服器上部署，設定一個任務計劃，每2秒出發一次，2台機器同時跑，沒有重複執行，且一台伺服器down掉仍可準确無誤的運作，給圖。
總結
如果你在用quartz.net中有什麼疑惑，或者有什麼好的項目分享，歡迎加入右上角的群，我們一起學習進步。
