AOP注解執行流程

1、注解工作原理

@EnableAspectJAutoProxy

啟動支援處理标有AspectJ的@Aspect批注的元件，類似于Spring的<aop：aspectj-autoproxy> XML元素中的功能。要在@Configuration類上使用。

注冊BeanName的 internalAutoProxyCreator(AnnotationAwareAspectJAutoProxyCreator.class)的 BeanDefinetion，在執行個體化之前執行傳回代理對象。

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {

/**
* 訓示與基于标準Java接口的代理相反，是否要建立基于子類（CGLIB）的代理。預設為false。
*/
boolean proxyTargetClass() default false;

/**
* 訓示代理應由AOP架構作為ThreadLocal公開，以便通過org.springframework.aop.framework.AopContext類進行檢索。預設情況下為關閉，即不保證AopContext通路将正常進行。
*/
boolean exposeProxy() default false;

}

// AspectJAutoProxyRegistrar
class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {

@Override
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);
AnnotationAttributes enableAspectJAutoProxy = AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);
if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {
AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
    }
if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {
AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
    }
  }

}

// org.springframework.aop.config.AopConfigUtils

registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);

private static BeanDefinition registerOrEscalateApcAsRequired(Class<?> cls, BeanDefinitionRegistry registry, Object source) {
Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
int requiredPriority = findPriorityForClass(cls);
if (currentPriority < requiredPriority) {
apcDefinition.setBeanClassName(cls.getName());
      }
    }
return null;
  }
RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
beanDefinition.setSource(source);
beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
return beanDefinition;
}

注冊 AnnotationAwareAspectJAutoProxyCreator

@EnableAspectJAutoProxy
    --> @Import(AspectJAutoProxyRegistrar.class)
    --> AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar
        --> AspectJAutoProxyRegistrar.registerBeanDefinitions
        -- AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);
            -- registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);

AnnotationAwareAspectJAutoProxyCreator 實作 InstantiationAwareBeanPostProcessor，Instantiation執行個體化之前執行。

graph TB
AnnotationAwareAspectJAutoProxyCreator-->AspectJAwareAdvisorAutoProxyCreator
AspectJAwareAdvisorAutoProxyCreator-->AbstractAdvisorAutoProxyCreator
AbstractAdvisorAutoProxyCreator-->AbstractAutoProxyCreator

AbstractAutoProxyCreator-.-SmartInstantiationAwareBeanPostProcessor
AbstractAutoProxyCreator-.-BeanFactoryAware
AbstractAutoProxyCreator-->ProxyProcessorSupport

SmartInstantiationAwareBeanPostProcessor-.-InstantiationAwareBeanPostProcessor
InstantiationAwareBeanPostProcessor-.-BeanPostProcessor

3、工作流程

3.1 建立和注冊AnnotationAwareAspectJAutoProxyCreator的過程

建立ioc容器；
注冊配置類，調用refresh()重新整理容器；

registerBeanPostProcessors(beanFactory); 注冊bean的後置處理器來友善攔截bean的建立；

擷取ioc容器已經定義了的需要建立對象的所有BeanPostProcessor;
注冊BeanPostProcessorChecker，該日志将在以下情況下記錄資訊消息在BeanPostProcessor執行個體化期間（即當一個bean不适合所有BeanPostProcessor處理。
将BeanPostProcessor按照 PriorityOrdered、Ordered、nonOrdered、MergedBeanDefinitionPostProcessor儲存到priorityOrderedPostProcessors、internalPostProcessors、orderedPostProcessorNames、nonOrderedPostProcessorNames 依次注冊；
注冊BeanPostProcessor，實際上就是建立BeanPostProcessor對象，儲存在容器中；

建立 internalAutoProxyCreator 的BeanPostProcessor【AnnotationAwareAspectJAutoProxyCreator】

建立Bean的執行個體；
populateBean；給bean的各種屬性指派；
initializeBean：初始化bean；

invokeAwareMethods()：處理Aware接口的方法回調；
applyBeanPostProcessorsBeforeInitialization()：應用後置處理器的postProcessBeforeInitialization()；
invokeInitMethods()；執行自定義的初始化方法；
applyBeanPostProcessorsAfterInitialization()；執行後置處理器的postProcessAfterInitialization()；

BeanPostProcessor(AnnotationAwareAspectJAutoProxyCreator)建立成功；--> initBeanFactory():aspectJAdvisorsBuilder = new BeanFactoryAspectJAdvisorsBuilderAdapter(beanFactory, this.aspectJAdvisorFactory);
最後重新注冊用于将内部bean檢測為ApplicationListener的後處理器，将其移到處理器鍊的末尾（用于拾取代理等）。
把BeanPostProcessor注冊到BeanFactory中；

beanFactory.addBeanPostProcessor(postProcessor);

finishBeanFactoryInitialization(beanFactory);完成BeanFactory初始化工作；建立剩下的非抽象非懶加載單執行個體bean；

周遊擷取容器中所有的Bean，依次建立對象getBean(beanName);

preInstantiateSingletons:getBean --> doGetBean --> getSingleton --> singletonFactory.getObject(); --> createBean --> doCreateBean
createBean

resolveBeforeInstantiation(beanName, mbdToUse); 生成代理對象，為null就繼續執行 doCreateBean建立對象；
doCreateBean AnnotationAwareAspectJAutoProxyCreator注冊流程一緻。

protected Object createBean(String beanName, RootBeanDefinition mbd, Object[] args) throws BeanCreationException {
// 省略部分代碼 ....
// 給BeanPostProcessors一個傳回代理而不是目标bean執行個體的機會
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
return bean;
          }
// 實際建立指定的bean
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
return beanInstance;
          }


// AnnotationAwareAspectJAutoProxyCreator在所有bean建立之前會有一個攔截，InstantiationAwareBeanPostProcessor 實作會調用
// postProcessBeforeInstantiation()  postProcessAfterInitialization()
// 【createBean:resolveBeforeInstantiation() 實作接口 InstantiationAwareBeanPostProcessor調用，bean執行個體化（doCreateBean）之前執行】
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.resolveBeforeInstantiation
protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
Object bean = null;
if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {.
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
Class<?> targetType = determineTargetType(beanName, mbd);
if (targetType != null) {
bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
if (bean != null) {
bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
                  }
                }
              }
mbd.beforeInstantiationResolved = (bean != null);
            }
return bean;
          }

protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
Object result = ibp.postProcessBeforeInstantiation(beanClass, beanName);
if (result != null) {
return result;
                }
              }
            }
return null;
          }

3.2 AnnotationAwareAspectJAutoProxyCreator【InstantiationAwareBeanPostProcessor】作用；

bean執行個體化之前，調用AnnotationAwareAspectJAutoProxyCreator.postProcessBeforeInstantiation()；

// 判斷目前bean是否在advisedBeans中。
// isInfrastructureClass 判斷目前bean是否是基礎類型的Advice、Pointcut、Advisor、AopInfrastructureBean、或者是否是切面（@Aspect）；則   this.advisedBeans.put(cacheKey, Boolean.FALSE);傳回NULL；

public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
Object cacheKey = getCacheKey(beanClass, beanName);

if (beanName == null || !this.targetSourcedBeans.contains(beanName)) {
if (this.advisedBeans.containsKey(cacheKey)) {
return null;
            }
// 判斷目前bean是否是基礎類型的Advice、Pointcut、Advisor、AopInfrastructureBean、或者是否是切面（@Aspect），是則傳回 NULL
if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return null;
            }
        }


// 如果我們有自定義的TargetSource，請在此處建立代理。
// 禁止目标Bean的不必要的預設執行個體化：
// TargetSource将以自定義方式處理目标執行個體。
if (beanName != null) {
TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
if (targetSource != null) {
this.targetSourcedBeans.add(beanName);
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
            }
        }

return null;
    }

bean初始化之後,調用 AnnotationAwareAspectJAutoProxyCreator.postProcessAfterInitialization，目标類傳回代理對象；

getAdvicesAndAdvisorsForBean --> findEligibleAdvisors --> findAdvisorsThatCanApply 查詢符合目标類的AOP攔截器，并對增強器排序；
specificInterceptors != DO_NOT_PROXY,建立代理對象；

将對應攔截器包裝成 Advisor,儲存進 proxyFactory；
給容器中傳回目前元件使用cglib增強了的代理對象；
以後容器中擷取到的就是這個元件的代理對象，執行目标方法的時候，代理對象就會執行通知方法的流程；

// 如果Bean被子類辨別為要代理的bean，則使用配置的攔截器建立代理 AnnotationAwareAspectJAutoProxyCreator.postProcessAfterInitialization
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
if (bean != null) {
Object cacheKey = getCacheKey(bean.getClass(), beanName);
if (!this.earlyProxyReferences.contains(cacheKey)) {
return wrapIfNecessary(bean, beanName, cacheKey);
            }
        }
return bean;
    }

// 包裝Bean的代理，或按原樣包裝Raw Bean執行個體
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
if (beanName != null && this.targetSourcedBeans.contains(beanName)) {
return bean;
        }
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
        }
// 判斷目前bean是否是基礎類型的Advice、Pointcut、Advisor、AopInfrastructureBean、或者是否是切面（@Aspect），是則傳回 NULL
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
        }

// 擷取目前bean的所有增強器（通知方法）  Object[]  specificInterceptors
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
if (specificInterceptors != DO_NOT_PROXY) {
this.advisedBeans.put(cacheKey, Boolean.TRUE);
Object proxy = createProxy(bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
        }

this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
    }


// getAdvicesAndAdvisorsForBean --> findEligibleAdvisors --> findAdvisorsThatCanApply  查詢符合目标類的AOP攔截器
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
List<Advisor> candidateAdvisors = findCandidateAdvisors();
List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
extendAdvisors(eligibleAdvisors);
if (!eligibleAdvisors.isEmpty()) {
eligibleAdvisors = sortAdvisors(eligibleAdvisors);
        }
return eligibleAdvisors;
    }


// eligibleAdvisors 可用增強器集合，
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
if (candidateAdvisors.isEmpty()) {
return candidateAdvisors;
        }
List<Advisor> eligibleAdvisors = new LinkedList<Advisor>();
for (Advisor candidate : candidateAdvisors) {
if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
eligibleAdvisors.add(candidate);
            }
        }
boolean hasIntroductions = !eligibleAdvisors.isEmpty();
for (Advisor candidate : candidateAdvisors) {
if (candidate instanceof IntroductionAdvisor) {
// already processed
continue;
            }
if (canApply(candidate, clazz, hasIntroductions)) {
eligibleAdvisors.add(candidate);
            }
        }
return eligibleAdvisors;
    }

// 建立AOP代理對象
protected Object createProxy(Class<?> beanClass, String beanName, Object[] specificInterceptors, TargetSource targetSource) {

if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
        }

ProxyFactory proxyFactory = new ProxyFactory();
proxyFactory.copyFrom(this);

if (!proxyFactory.isProxyTargetClass()) {
if (shouldProxyTargetClass(beanClass, beanName)) {
proxyFactory.setProxyTargetClass(true);
            }
else {
evaluateProxyInterfaces(beanClass, proxyFactory);
            }
        }
// 将對應攔截器包裝成Advisor,儲存進proxyFactory；
Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
for (Advisor advisor : advisors) {
proxyFactory.addAdvisor(advisor);
        }

proxyFactory.setTargetSource(targetSource);
customizeProxyFactory(proxyFactory);

proxyFactory.setFrozen(this.freezeProxy);
if (advisorsPreFiltered()) {
proxyFactory.setPreFiltered(true);
        }

return proxyFactory.getProxy(getProxyClassLoader());
    }

// DefaultAopProxyFactory.createAopProxy() 使用cglib或者是jdk代理
public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
Class<?> targetClass = config.getTargetClass();
if (targetClass == null) {
throw new AopConfigException("TargetSource cannot determine target class: " +
"Either an interface or a target is required for proxy creation.");
            }
if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
return new JdkDynamicAopProxy(config);
            }
return new ObjenesisCglibAopProxy(config);
        }
else {
return new JdkDynamicAopProxy(config);
        }
    }

2.3 AOP代理類目标方法執行；

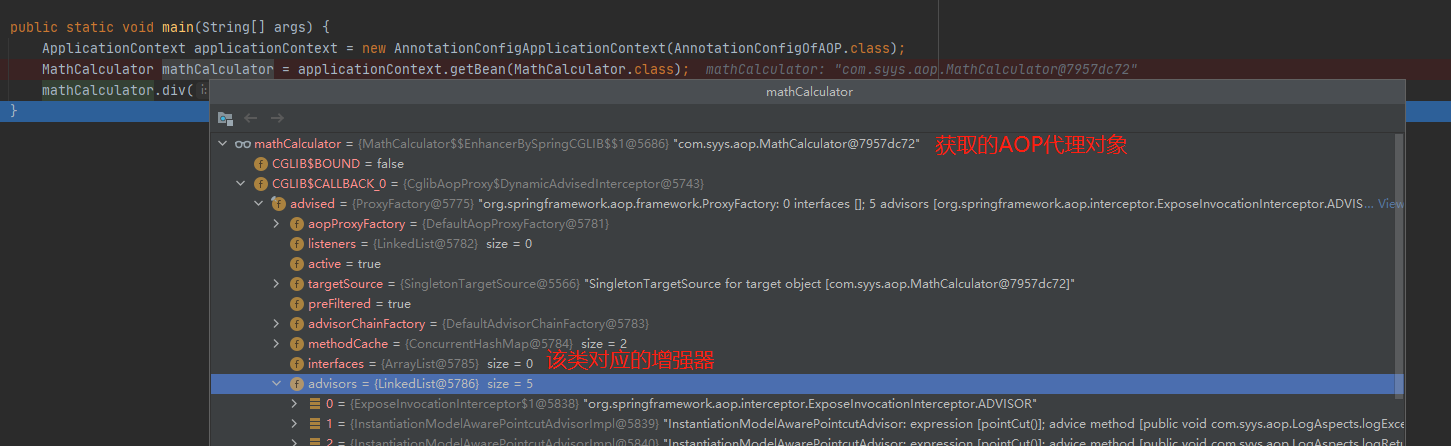

AOP 代理對象資訊（比如增強器，目标對象，xxx；

org.springframework.aop.framework.CglibAopProxy.intercept();攔截目标方法的執行；
根據ProxyFactory對象擷取将要執行的目标方法攔截器鍊；

List
如果沒有攔截器鍊，直接執行目标方法;

攔截器鍊（每一個通知方法又被包裝為方法攔截器，利用MethodInterceptor機制）
如果有攔截器鍊，把需要執行的目标對象，目标方法，

攔截器鍊等資訊傳入建立一個 CglibMethodInvocation 對象，

并調用 Object retVal = mi.proceed();
攔截器鍊的觸發過程;

如果沒有攔截器執行執行目标方法，或者攔截器的索引和攔截器數組-1大小一樣（指定到了最後一個攔截器）執行目标方法；
鍊式擷取每一個攔截器，攔截器執行invoke方法，每一個攔截器等待下一個攔截器執行完成傳回以後再來執行；

攔截器鍊的機制，保證通知方法與目标方法的執行順序；

3 總結

@EnableAspectJAutoProxy 開啟AOP功能

@EnableAspectJAutoProxy 會給容器中注冊一個元件 AnnotationAwareAspectJAutoProxyCreator

AnnotationAwareAspectJAutoProxyCreator是一個後置處理器；

容器的建立流程:

4.1. registerBeanPostProcessors（）注冊後置處理器；建立AnnotationAwareAspectJAutoProxyCreator對象

4.2. finishBeanFactoryInitialization（）初始化剩下的單執行個體bean

     4.2.1. 建立業務邏輯元件和切面元件

     4.2.2. AnnotationAwareAspectJAutoProxyCreator攔截元件的建立過程

     4.2.3. 元件建立完之後，判斷元件是否需要增強

          是：切面的通知方法，包裝成增強器（Advisor）;給業務邏輯元件建立一個代理對象（cglib）；

執行目标方法：

5.1 代理對象執行目标方法

5.2 CglibAopProxy.intercept()；

     5.2.1 得到目标方法的攔截器鍊（增強器包裝成攔截器MethodInterceptor）

     5.2.2 利用攔截器的鍊式機制，依次進入每一個攔截器進行執行；

     5.2.3 效果：

          正常執行：前置通知-》目标方法-》後置通知-》傳回通知

          出現異常：前置通知-》目标方法-》後置通知-》異常通知

AOP注解執行流程

1、注解工作原理

@EnableAspectJAutoProxy

3、工作流程

3.1 建立和注冊AnnotationAwareAspectJAutoProxyCreator的過程

3.2 AnnotationAwareAspectJAutoProxyCreator【InstantiationAwareBeanPostProcessor】作用；

2.3 AOP代理類目标方法執行；

3 總結

繼續閱讀

JAVA自學之路——馬士兵

Rabbitmq指令行手動建立隊列

整合 Spring 開發架構及服務端技術

SSM整合02---Spring-SpringMVC層一、添加web架構支援二、web.xml三、spring-mvc.xml

SSM架構（二）------------表現層的SpringMVC

Intellij idea基于Maven 的SSM 架構整合

PAT (Advanced Level) Practise 1131 Subway Map (30)

ZOJ 3938 Defuse the Bomb

CSU 1565 Word Cloud

ZOJ 3700 Ever Dream

ZOJ 1199 Point of Intersection

CSU 1567 Reverse Rot

Spring資料和Redis

SpringMVC的啟動過程源碼分析1 SpringMVC 配置XML的方式啟動2 SpringMVC純注解模式啟動

Java Spring 架構

SpringCloud微服務（四）之ribbon筆記ribbon是什麼？入門案例自定義均衡負載算法
