Step By Step
物聯網産品及裝置的建立
1、建立

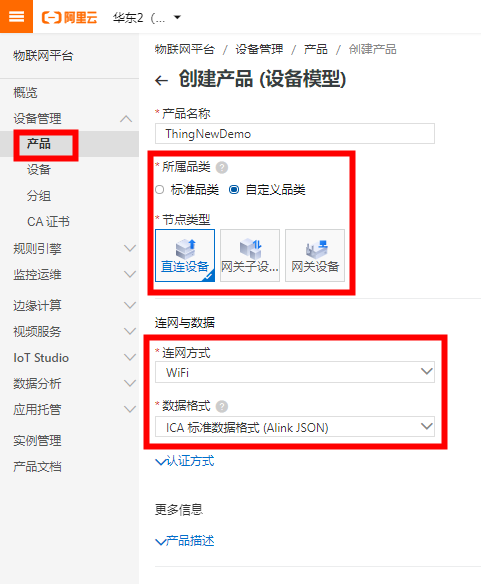

産品
2、導入物模型
model.json
{
"schema":"https://iotx-tsl.oss-ap-southeast-1.aliyuncs.com/schema.json",
"profile":{
"productKey":"<替換為自己産品的productkey>"
},
"properties":[
{
"identifier":"Distance",
"name":"距離",
"accessMode":"rw",
"required":false,
"dataType":{
"type":"double",
"specs":{
"min":"0",
"max":"10000",
"unit":"m",
"step":"1"
}
}
},
{
"identifier":"GeoLocation",
"name":"自定義地理位置",
"accessMode":"rw",
"required":false,
"dataType":{
"type":"struct",
"specs":[
{
"identifier":"Longitude",
"name":"經度",
"dataType":{
"type":"double",
"specs":{
"min":"-180",
"max":"180",
"unit":"°",
"step":"0.01"
}
}
},
{
"identifier":"Latitude",
"name":"緯度",
"dataType":{
"type":"double",
"specs":{
"min":"-90",
"max":"90",
"unit":"°",
"step":"0.01"
}
}
},
{
"identifier":"CoordinateSystem",
"name":"坐标系統",
"dataType":{
"type":"enum",
"specs":{
"1":"WGS_84",
"2":"GCJ_02"
}
}
}
]
}
},
{
"identifier":"CellSignalStrength",
"name":"信号強度",
"accessMode":"r",
"required":false,
"dataType":{
"type":"int",
"specs":{
"min":"-128",
"max":"127",
"unit":"dBm",
"step":"1"
}
}
}
],
"events":[
{
"identifier":"post",
"name":"post",
"type":"info",
"required":true,
"desc":"屬性上報",
"method":"thing.event.property.post",
"outputData":[
{
"identifier":"Distance",
"name":"距離",
"dataType":{
"type":"double",
"specs":{
"min":"0",
"max":"10000",
"unit":"m",
"step":"1"
}
}
},
{
"identifier":"GeoLocation",
"name":"自定義地理位置",
"dataType":{
"type":"struct",
"specs":[
{
"identifier":"Longitude",
"name":"經度",
"dataType":{
"type":"double",
"specs":{
"min":"-180",
"max":"180",
"unit":"°",
"step":"0.01"
}
}
},
{
"identifier":"Latitude",
"name":"緯度",
"dataType":{
"type":"double",
"specs":{
"min":"-90",
"max":"90",
"unit":"°",
"step":"0.01"
}
}
},
{
"identifier":"CoordinateSystem",
"name":"坐标系統",
"dataType":{
"type":"enum",
"specs":{
"1":"WGS_84",
"2":"GCJ_02"
}
}
}
]
}
},
{
"identifier":"CellSignalStrength",
"name":"信号強度",
"dataType":{
"type":"int",
"specs":{
"min":"-128",
"max":"127",
"unit":"dBm",
"step":"1"
}
}
}
]
}
],
"services":[
{
"identifier":"set",
"name":"set",
"required":true,
"callType":"async",
"desc":"屬性設定",
"method":"thing.service.property.set",
"inputData":[
{
"identifier":"Distance",
"name":"距離",
"dataType":{
"type":"double",
"specs":{
"min":"0",
"max":"10000",
"unit":"m",
"step":"1"
}
}
},
{
"identifier":"GeoLocation",
"name":"自定義地理位置",
"dataType":{
"type":"struct",
"specs":[
{
"identifier":"Longitude",
"name":"經度",
"dataType":{
"type":"double",
"specs":{
"min":"-180",
"max":"180",
"unit":"°",
"step":"0.01"
}
}
},
{
"identifier":"Latitude",
"name":"緯度",
"dataType":{
"type":"double",
"specs":{
"min":"-90",
"max":"90",
"unit":"°",
"step":"0.01"
}
}
},
{
"identifier":"CoordinateSystem",
"name":"坐标系統",
"dataType":{
"type":"enum",
"specs":{
"1":"WGS_84",
"2":"GCJ_02"
}
}
}
]
}
}
],
"outputData":[
]
},
{
"identifier":"get",
"name":"get",
"required":true,
"callType":"async",
"desc":"屬性擷取",
"method":"thing.service.property.get",
"inputData":[
"Distance",
"GeoLocation",
"CellSignalStrength"
],
"outputData":[
{
"identifier":"Distance",
"name":"距離",
"dataType":{
"type":"double",
"specs":{
"min":"0",
"max":"10000",
"unit":"m",
"step":"1"
}
}
},
{
"identifier":"GeoLocation",
"name":"自定義地理位置",
"dataType":{
"type":"struct",
"specs":[
{
"identifier":"Longitude",
"name":"經度",
"dataType":{
"type":"double",
"specs":{
"min":"-180",
"max":"180",
"unit":"°",
"step":"0.01"
}
}
},
{
"identifier":"Latitude",
"name":"緯度",
"dataType":{
"type":"double",
"specs":{
"min":"-90",
"max":"90",
"unit":"°",
"step":"0.01"
}
}
},
{
"identifier":"CoordinateSystem",
"name":"坐标系統",
"dataType":{
"type":"enum",
"specs":{
"1":"WGS_84",
"2":"GCJ_02"
}
}
}
]
}
},
{
"identifier":"CellSignalStrength",
"name":"信号強度",
"dataType":{
"type":"int",
"specs":{
"min":"-128",
"max":"127",
"unit":"dBm",
"step":"1"
}
}
}
]
}
]
} 注意： 替換自己産品的ProductKey
3、添加裝置
IoT Studio綁定産品+裝置
1、建立項目
2、項目建立完成後分别關聯建立的産品和裝置
3、建立業務服務
4、業務流程搭建
5、雲資料庫MySQL節點
配置介紹- 5.1 MySQL的版本
請使用MySQL5.7或MySQL5.6版本，其它版本相容性會有問題，可能會出現連接配接異常。
- 5.2 參數配置
{
"table": "iotdevice1",
"rows": [
{
"CellSignalStrength": "{{query.props.CellSignalStrength.value}}",
"Distance": "{{query.props.Distance.value}}",
"Longitude": "{{query.props.GeoLocation.value.Latitude}}",
"Latitude": "{{query.props.GeoLocation.value.Longitude}}"
}
]
} 也可以是（注意節點Id按照具體節點情況修改）：
{
"table": "iotdevice1",
"rows": [
{
"CellSignalStrength": "{{payload.props.CellSignalStrength.value}}",
"Distance": "{{query.props.Distance.value}}",
"Longitude": "{{query.props.GeoLocation.value.Latitude}}",
"Latitude": "{{node.node_339cdef0.props.GeoLocation.value.Longitude}}"
}
]
} payload表示上一個節點輸出參數；query表示輸入節點的參數；node.nodeId表示指定某一節點的輸出參數。
- 5.3 MySQL建表語句
/*------- CREATE SQL---------*/
CREATE TABLE `iotdevice1` (
`CellSignalStrength` int(11) DEFAULT NULL,
`Distance` double DEFAULT NULL,
`Longitude` double DEFAULT NULL,
`Latitude` double DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8 裝置線上模拟測試
1、部署調試
2、資料流轉檢視
3、流程測試正常後，釋出即可
