Spring源碼分析之IOC的三種常見用法及源碼實作（一）1.ioc核心功能bean的配置與擷取api

1.ioc核心功能bean的配置與擷取api

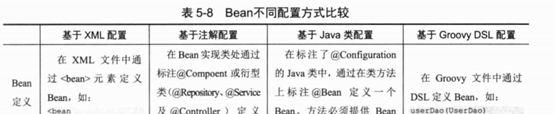

有以下四種

Spring源碼分析之IOC的三種常見用法及源碼實作（一）1.ioc核心功能bean的配置與擷取api

(來自精通spring4.x的p175)

常用的是前三種

第一種方式

<?xml version="1.0" encoding="GBK"?>

<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

    xmlns="http://www.springframework.org/schema/beans"

    xsi:schemaLocation="http://www.springframework.org/schema/beans

    http://www.springframework.org/schema/beans/spring-beans-4.0.xsd">
    <!-- 指定class屬性，通過構造方法建立Bean執行個體 -->
    <bean id="person" class="com.mao.gouzao.Person">
    </bean>
</beans>

public static void main( String[] args )

{
    ClassPathXmlApplicationContext ctx = new  ClassPathXmlApplicationContext("beans.xml");
    System.out.println(ctx.getBean("person"));
}

第二種方式

定義

@Service
public class UserServiceImpl {
    public void test(){
        System.out.println(666);
    }
}

擷取

@Autowired
private static UserServiceImpl userService;

第三種方式

@Configuration

public class MainConfig {
    @Bean
    public Person person(){
        return new Person();
    }
}

注意: 通過@Bean的形式是使用的話，bean的預設名稱是方法名，若Bean(value="bean＂的名稱")那麼bean的名稱是指定的

去容器中讀取Bean的資訊（傳入配置類）

public static void main( String[] args )

{
    AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext(MainConfig.class);
    System.out.println(ctx.getBean("person"));
}

2.如何實作的

1.基于Java類配置的實作方式源碼分析

1.就執行了這兩句代碼

AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext(MainConfig.class);
System.out.println(ctx.getBean("person"));

先看看，打開構造器源碼：

public AnnotationConfigApplicationContext(Class<?>... annotatedClasses) {
   this();
   register(annotatedClasses);
   refresh();
}

2.首先不急，主角兒AnnotationConfigApplicationContext 它有父類，因為類初始化順序的關系，會先初始化父類，是以得看父類，一直看到最後父類為DefaultResourceLoader

Spring源碼分析之IOC的三種常見用法及源碼實作（一）1.ioc核心功能bean的配置與擷取api

DefaultResourceLoader，很明顯是用來加載資源的，倒數第二個AbstractApplicationContext的無參構造中也是初始化一個加載資源相關：

Ok，再來看最後一個父類GenericApplicationContext了，父類預設初始化使用下面這個無參的

public GenericApplicationContext() {
   this.beanFactory = new DefaultListableBeanFactory();
}

這裡是建立了springioc體系中的一個重要的類DefaultListableBeanFactory，DefaultListableBeanFactory非常關鍵裡面實作了ioc相關很多功能，可以提供給我們的AnnotationConfigApplicationContext使用（後面會看到）

3.ok父類都看完了，那就回到我們的主角兒AnnotationConfigApplicationContext了

我們來看它的構造器剛剛是什麼代碼（回歸本身）：

public AnnotationConfigApplicationContext() {
   this.reader = new AnnotatedBeanDefinitionReader(this);
   this.scanner = new ClassPathBeanDefinitionScanner(this);
}

就兩行。

4.先看第一句this.reader = new AnnotatedBeanDefinitionReader(this);

進去

public AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry) {
   this(registry, getOrCreateEnvironment(registry));
}

它再次調用自己的構造器

這裡還涉及了一個方法getOrCreateEnvironment(registry)

很明顯這個方法從名字看就知道是有緩存的意思，擷取或建立，如果是第一次則建立 第二次則就是擷取了，第二次拿的第一次緩存的。如下：

private static Environment getOrCreateEnvironment(BeanDefinitionRegistry registry) {
        Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
        if (registry instanceof EnvironmentCapable) {
            return ((EnvironmentCapable) registry).getEnvironment();
        }
        return new StandardEnvironment();
    }

ok，繼續看，剛剛是從構造器到另一個構造器了：

public AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry, Environment environment) {
        Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
        Assert.notNull(environment, "Environment must not be null");
        this.registry = registry;
        this.conditionEvaluator = new ConditionEvaluator(registry, environment, null);
        AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
    }

ConditionEvaluator是計算conditon的解析器（後面會講），這裡很明顯主要邏輯在 AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);

接下來AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);是重中之重，終于開始有大段邏輯了！之前都是各種繼承跳轉！

registerAnnotationConfigProcessors源碼實作如下

public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
            BeanDefinitionRegistry registry, Object source) {

        DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
        if (beanFactory != null) {
            if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
                beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
            }
            if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
                beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
            }
        }

        Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<BeanDefinitionHolder>(4);

        if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        if (!registry.containsBeanDefinition(REQUIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(RequiredAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, REQUIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        // Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
        if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        // Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
        if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition();
            try {
                def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
                        AnnotationConfigUtils.class.getClassLoader()));
            }
            catch (ClassNotFoundException ex) {
                throw new IllegalStateException(
                        "Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
            }
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
        }
        if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
        }

        return beanDefs;
    }

挺長，先看第一部分：

DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
        if (beanFactory != null) {
            if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
                beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
            }
            if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
                beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
            }
        }

很明顯這是從registry裡拿DefaultListableBeanFactory ，還記得前面講主角兒AnnotationConfigApplicationContext的父類GenericApplicationContext嗎？在它的無參構造中就建立了DefaultListableBeanFactory。現在到這個registry裡去拿，而這個registry就是前面用this傳過來的主角兒AnnotationConfigApplicationContext自然就有DefaultListableBeanFactory了。後面的邏輯就是null判斷和設定比較器和解析器到裡面了。

Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<BeanDefinitionHolder>(4);

        if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        if (!registry.containsBeanDefinition(REQUIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(RequiredAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, REQUIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        // Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
        if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        // Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
        if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition();
            try {
                def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
                        AnnotationConfigUtils.class.getClassLoader()));
            }
            catch (ClassNotFoundException ex) {
                throw new IllegalStateException(
                        "Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
            }
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
        }
        if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
        }

        return beanDefs;

建立了一個set集合儲存BeanDefinitionHolder（BeanDefinition是）。後面就非常多的if判斷。這都是判斷啥呢？

if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

判斷registry中是否存在一個個的常量定義的東西。那這些常量是什麼呢？打開一看：

public static final String CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME = "org.springframework.context.annotation.internalConfigurationAnnotationProcessor";

是個類的全路徑，如果registry裡面沒有就執行最後一句（前兩句都是給最後一句服務的）：

beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));

也就是判斷有沒有這個類，沒有就添加這個類進去，這這個類是用來解析配置注解的處理器。

還有個 public static final String AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME = "org.springframework.context.annotation.internalAutowiredAnnotationProcessor";

綜合所見，這段代碼後半部分其實就是注冊spring支援的各種注解的解析器的邏輯

這個對應是用來解析自動裝配注解的

最後如下：

public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
            BeanDefinitionRegistry registry, Object source) {

        //擷取之前建立的DefaultListableBeanFactory，檢查null并塞入相關元件
        DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
        if (beanFactory != null) {
            if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
                beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
            }

            if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
                beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
            }
        }

        Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<BeanDefinitionHolder>(8);

        //注冊一個配置類@Configuration解析器的bean定義（ConfigurationClassPostProcessor）
        if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        //設定AutoWired注解解析器的bean定義資訊
        if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        //注冊解析@Required 注解的處理器
        if (!registry.containsBeanDefinition(REQUIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(RequiredAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, REQUIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        //檢查是否支援JSR250規範，如何支援注冊 解析JSR250規範的注解
        // Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
        if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        //檢查是否支援jpa，若支援注冊解析jpa規範的注解
        // Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
        if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition();
            try {
                def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
                        AnnotationConfigUtils.class.getClassLoader()));
            }
            catch (ClassNotFoundException ex) {
                throw new IllegalStateException(
                        "Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
            }
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
        }

        //注冊解析@EventListener的注解解析器
        if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
        }

        if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
            RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
            def.setSource(source);
            beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
        }
        //最後帶着這一堆spring支援的功能的解析器傳回（實際上剛剛分析的過程中壓根沒用到這個傳回值，那是為什麼呢？值得注意的是 原來它是把這些搞到registry裡去了，綜上， 注入這堆注解解析器 到registry 也就是DefaultListableBeanFactory中！）
        return beanDefs;
    }

好，以上這部分分析結束，回到主角兒AnnotationConfigApplicationContext，之前我們是從它的構造器：

public AnnotationConfigApplicationContext() {
        this.reader = new AnnotatedBeanDefinitionReader(this);
        this.scanner = new ClassPathBeanDefinitionScanner(this);
    }

中分析的第一句終于把這個reader完畢了，接下來分析第二句咯。

名字可以看出是類路徑下的掃描器，開始檢視源碼！

public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry) {
        this(registry, true);
    }

繼續跟進

public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters) {
        this(registry, useDefaultFilters, getOrCreateEnvironment(registry));
    }

第一個registry 還是之前說的DefaultListableBeanFactory傳的this,第二個也就是 傳了個true，是否使用預設的filter，選擇了是。第三個之前講過了，有則用沒有則建立，緩存。繼續跟

public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters,
            Environment environment, ResourceLoader resourceLoader) {

        Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
        this.registry = registry;

        if (useDefaultFilters) {
            registerDefaultFilters();
        }
        setEnvironment(environment);
        setResourceLoader(resourceLoader);
    }

這部分代碼前面就是指派、注冊預設的filters、設定從registry拿的環境設定、最後設定ResourceLoader

一部分一部分的看，先看registerDefaultFilters();

/**
     * Register the default filter for {@link Component @Component}.
     * <p>This will implicitly register all annotations that have the
     * {@link Component @Component} meta-annotation including the
     * {@link Repository @Repository}, {@link Service @Service}, and
     * {@link Controller @Controller} stereotype annotations.
     * <p>Also supports Java EE 6's {@link javax.annotation.ManagedBean} and
     * JSR-330's {@link javax.inject.Named} annotations, if available.
     *
     */
    @SuppressWarnings("unchecked")
    protected void registerDefaultFilters() {
        this.includeFilters.add(new AnnotationTypeFilter(Component.class));
        ClassLoader cl = ClassPathScanningCandidateComponentProvider.class.getClassLoader();
        try {
            this.includeFilters.add(new AnnotationTypeFilter(
                    ((Class<? extends Annotation>) ClassUtils.forName("javax.annotation.ManagedBean", cl)), false));
            logger.debug("JSR-250 'javax.annotation.ManagedBean' found and supported for component scanning");
        }
        catch (ClassNotFoundException ex) {
            // JSR-250 1.1 API (as included in Java EE 6) not available - simply skip.
        }
        try {
            this.includeFilters.add(new AnnotationTypeFilter(
                    ((Class<? extends Annotation>) ClassUtils.forName("javax.inject.Named", cl)), false));
            logger.debug("JSR-330 'javax.inject.Named' annotation found and supported for component scanning");
        }
        catch (ClassNotFoundException ex) {
            // JSR-330 API not available - simply skip.
        }
    }

方法注釋可以看到 意思是，注冊這些預設的filter，@Component、@Repository、@Controller才會起作用

然後方法内部就注入添加Component.class進去了，讓@Component起作用，而@Repository、@Controller本身都被打了@Component 是子注解，是以也連帶起作用

後面部分就是判斷jsr250 330相關注解了

到此看完了，回到上層上層去，至此

public AnnotationConfigApplicationContext(DefaultListableBeanFactory beanFactory) {
        super(beanFactory);
        this.reader = new AnnotatedBeanDefinitionReader(this);
        this.scanner = new ClassPathBeanDefinitionScanner(this);
    }

中的第二句我們也大緻看完了，至此一個構造器看完了。大功告成.......了，一半。。。發現這個構造器是無參的，而我們之前用的兩句代碼：

AnnotationConfigApplicationContext annotationConfigApplication = new AnnotationConfigApplicationContext (MainConfig.class);Person person2 = (Person)annotationConfigApplication.getBean("person2");

中主角AnnotationConfigApplicationContext用的帶class的構造器啊，看來沒完，原來這個構造器還有上層調用，在這：

public AnnotationConfigApplicationContext(Class<?>... annotatedClasses) {
        this();
        register(annotatedClasses);
        refresh();
    }

這裡才是最開始那兩行代碼的第一次調用處。我們把this()；看完了！

接下來看第二句register(annotatedClasses);，不斷跟進

public void register(Class<?>... annotatedClasses) {
        Assert.notEmpty(annotatedClasses, "At least one annotated class must be specified");
        this.reader.register(annotatedClasses);
    }

不斷跟進到這

public void registerBean(Class<?> annotatedClass, String name, Class<? extends Annotation>... qualifiers) {
        AnnotatedGenericBeanDefinition abd = new AnnotatedGenericBeanDefinition(annotatedClass);
        if (this.conditionEvaluator.shouldSkip(abd.getMetadata())) {
            return;
        }

        ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(abd);
        abd.setScope(scopeMetadata.getScopeName());
        String beanName = (name != null ? name : this.beanNameGenerator.generateBeanName(abd, this.registry));
        AnnotationConfigUtils.processCommonDefinitionAnnotations(abd);
        if (qualifiers != null) {
            for (Class<? extends Annotation> qualifier : qualifiers) {
                if (Primary.class == qualifier) {
                    abd.setPrimary(true);
                }
                else if (Lazy.class == qualifier) {
                    abd.setLazyInit(true);
                }
                else {
                    abd.addQualifier(new AutowireCandidateQualifier(qualifier));
                }
            }
        }

        BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(abd, beanName);
        definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
        BeanDefinitionReaderUtils.registerBeanDefinition(definitionHolder, this.registry);
    }

原來這句代碼是把傳入的配置類裡的bean全給注冊了。至此第二句完畢。至于最後第三句核心，留給下篇文章。一起加油！

緩存 java api spring spring緩存java報錯 spring緩存問題java java spring緩存 ioc spring源碼學習bean spring二級緩存java
上一篇: Spring源碼分析之IOC的三種常見用法及源碼實作（二）
下一篇: 資料安全管理：RSA加密算法，簽名驗簽流程詳解一、RSA算法簡介二、場景描述三、源代碼實作四、源代碼位址

繼續閱讀
